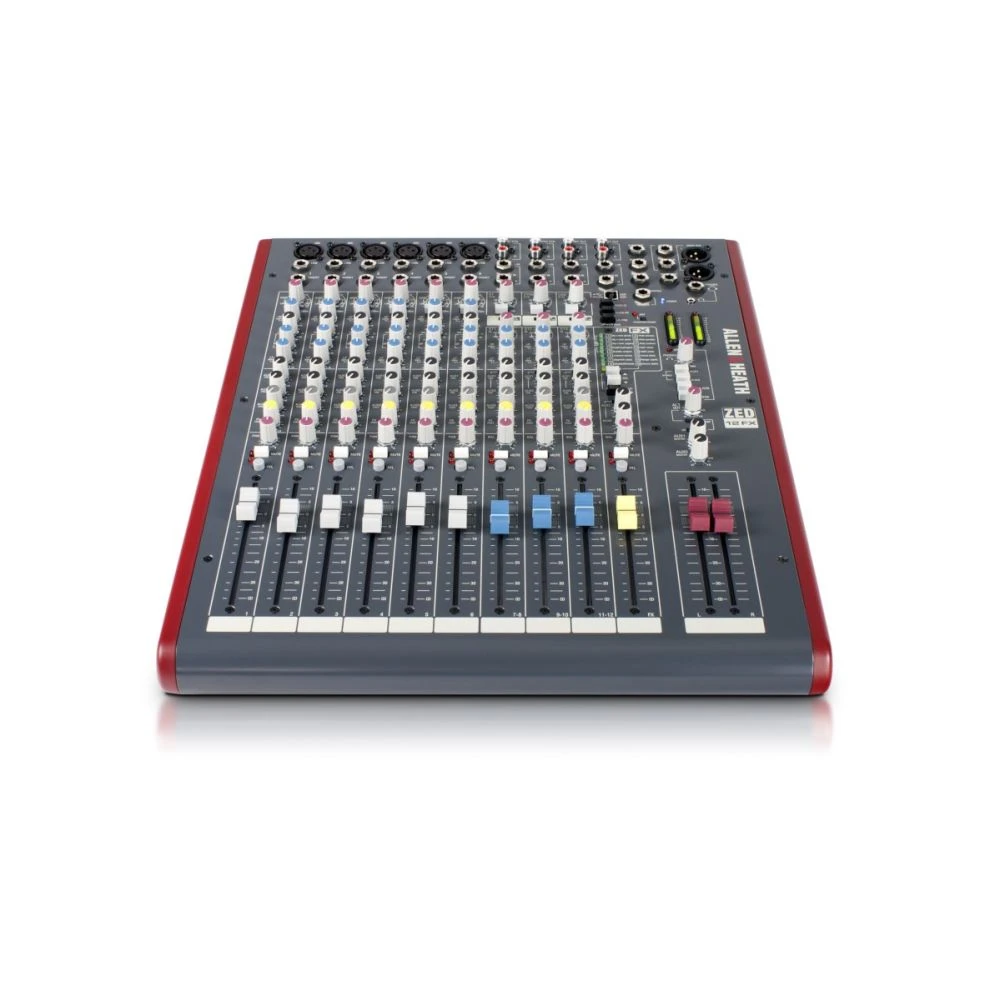

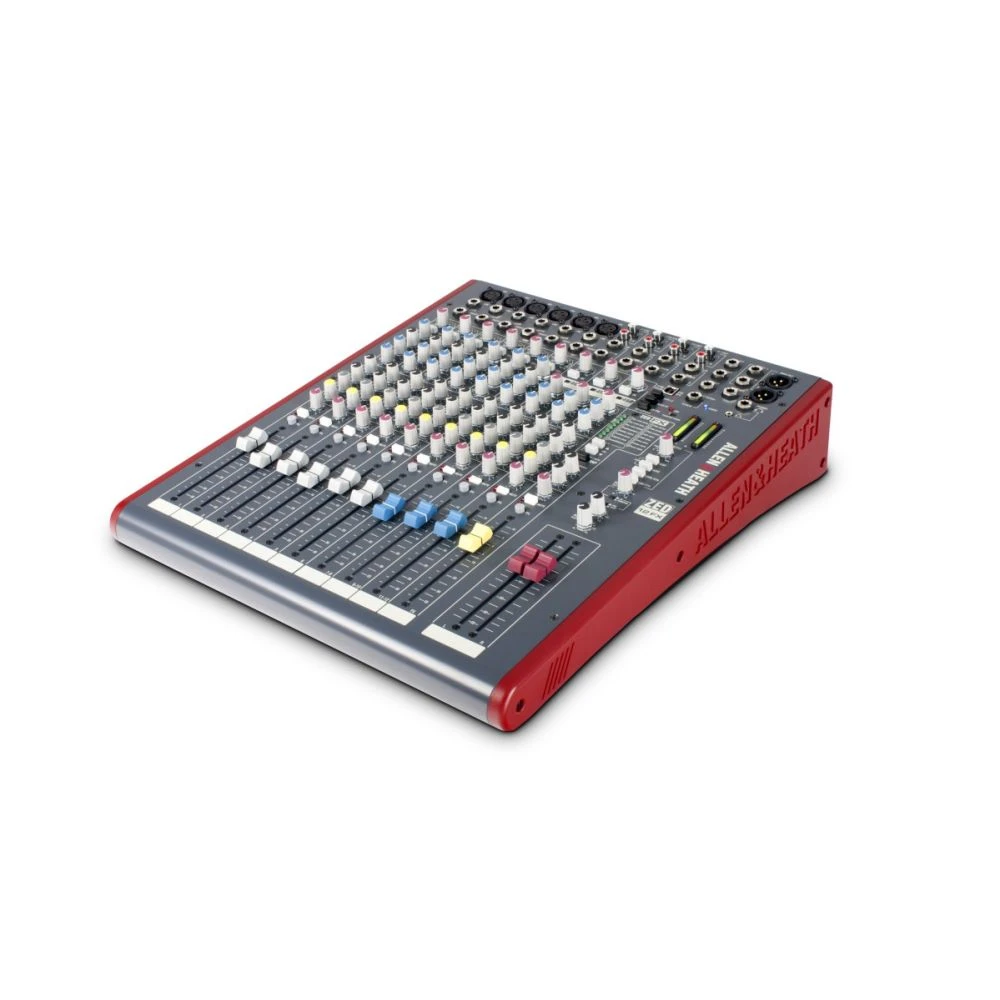

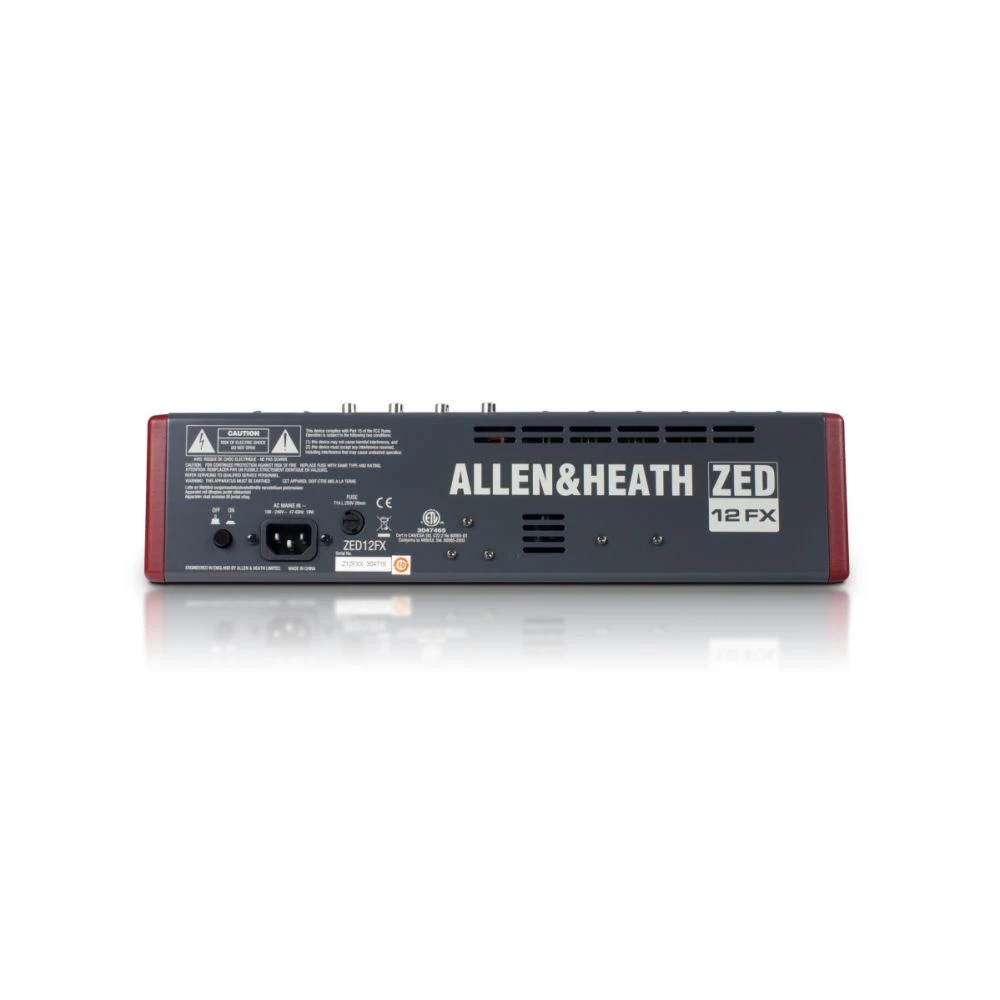

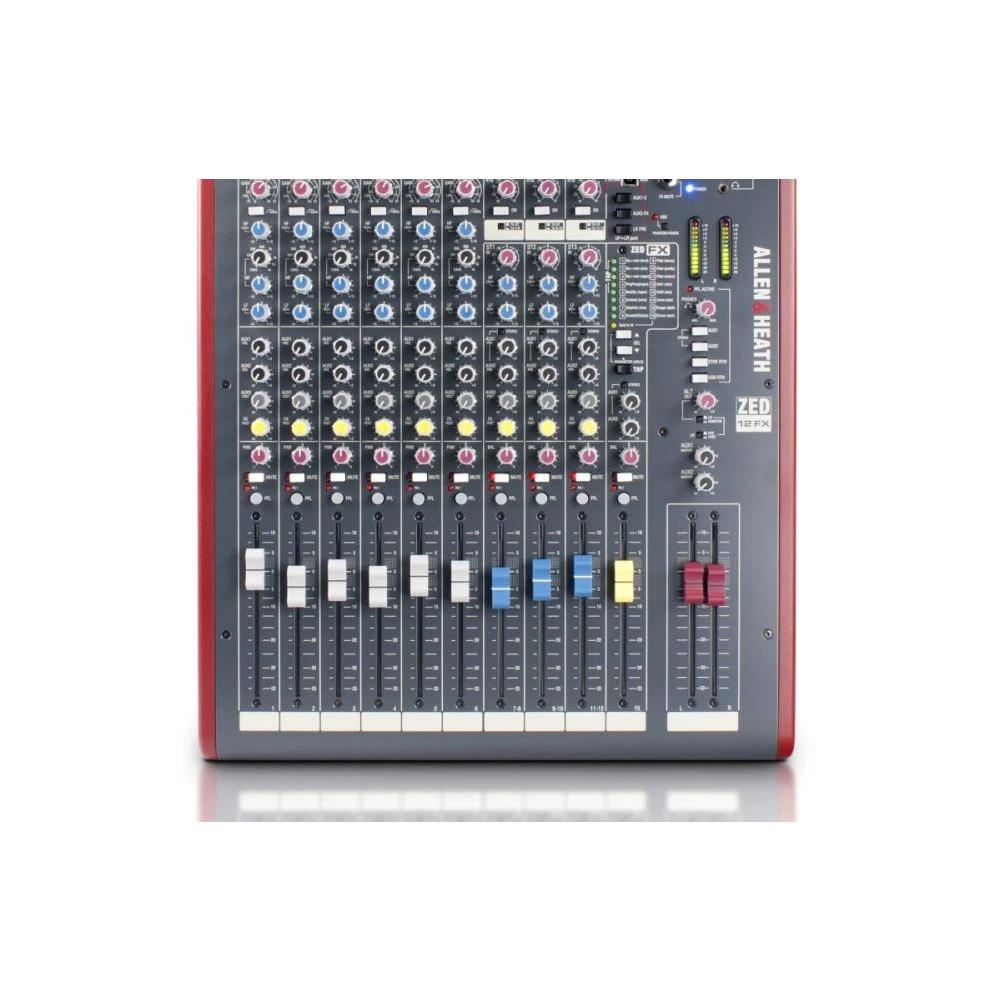

Allen & Heath ZED-12FX Hybrid Compact Mixer

Ideal for small band mixing and portable enough to carry from stage to studio, the Allen & Heath ZED-12FX boasts a range of premium features and enhancements that make it the perfect compact mixing desk for a wide range of recording applications.

With a total of four mic/line inputs, two of which are Class A FET high impedance inputs, you’ve got versatile options with how you record – allowing for guitars to be plugged directly into mixer if needed!

Add the ecially created suite of studio quality effects, crafted by Allen & Heath’s acclaimed in-house effects aficionados and the the ZED-12FX starts to take shape!

Complete with two stereo inputs for MP3/CD players or keyboards, stereo outputs with a flexible monitoring section and USB audio routing the sophistication is in the simplicity – giving you a professional set of tools through an intuitive user interface that guarantees to get the job done.

Allen & Heath ZED-12FX Hybrid Compact Mixer Key Features:

• 6 mono channels
• 3 stereo channels with 2-band EQ and inputs for extra sources
• 16 internal time-delay effects
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain ‘DuoPre’ mic line input
• 3 band EQ with MusiQ
• 2 pre-fade Aux sends
• 1 post-fade Aux send
• 1 internal FX send
• Illuminated mute
• Sound image pan
• Illuminated PFL & peak warning indicator
• ALPS 100mm faders
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Mono/stereo function on auxes 1&2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
• Rack ears available

Allen & Heath ZED-12FX Hybrid Compact Mixer Specifications:

Input

• Mono channel (XLR) Input -10 to –60dBu for nominal (+11dBu in max)
• Mono channel Line Input (Jack socket) +10 to –40dBu (+31dBu maximum)
• Stereo Input (Jack or phono sockets) 0dBu nominal (control = Off to +15dB)

Output

• L/R Outputs (XLR) 0dBu (+21dBu maximum)
• Aux & FX Output (Jack sockets) 0dBu (+21dBu maximum)
• Monitor Output L/R (RCA Phono Sockets) 0dBu (+21dBu maximum)

Frequency Response

• Mic in to Mix L/R Out, 30dB gain 10Hz to 30kHz +0.5/-1dB
• Instrument/Line in to Mix L/R out 0dB gain 10Hz to 30kHz +0.5/-1dB
• Stereo in to Mix L/R out 10Hz to 30kHz +0.5/-1dB

THD+n

• Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHzFilter) 0.002%
• Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.01%
• Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.003%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.002%

Headroom

• Analogue Headroom from nominal (0Vu) 21dB
• USB in & out headroom from nominal (0Vu) 14dB

Noise

• Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
• Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -96dBu
• Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -96dBu

USB Audio

• USB Audio In/Out USB 1.1 compliant
• Bit Depth 16 bit
• Sample Rate 32, 44.1, 48
