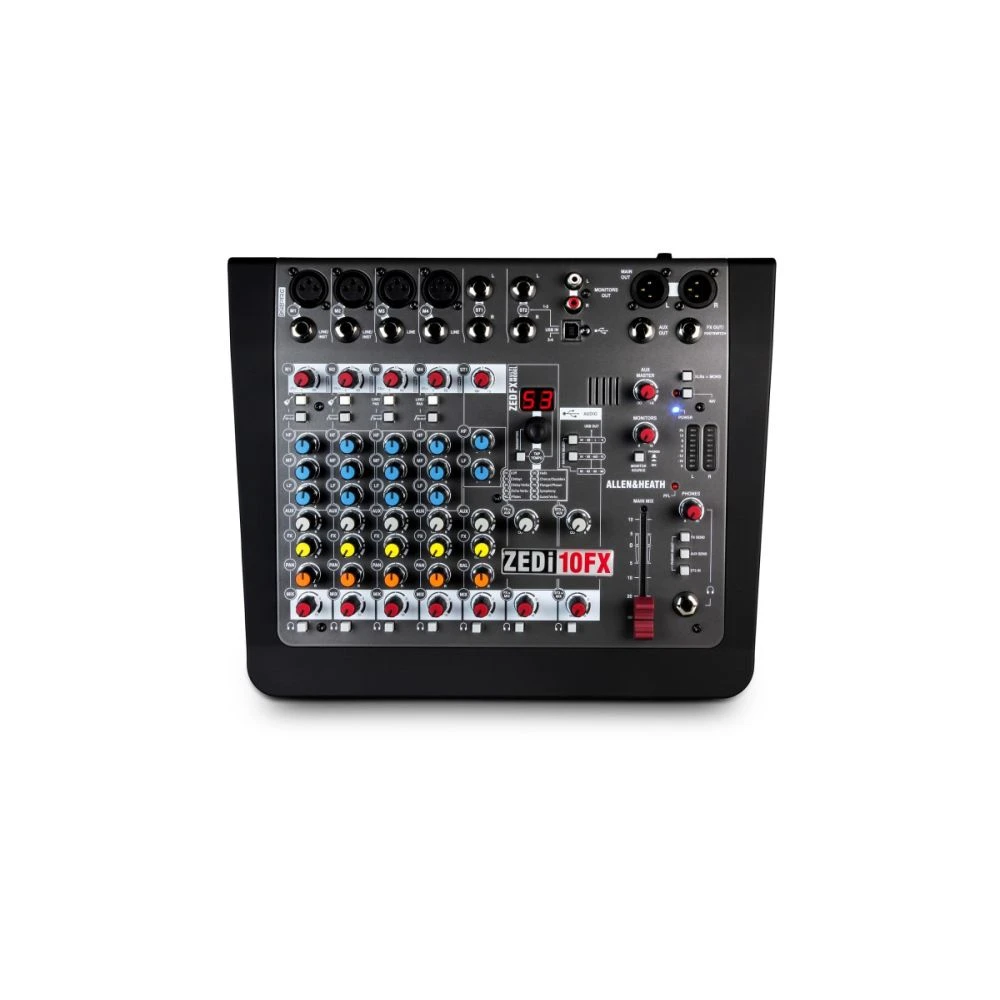

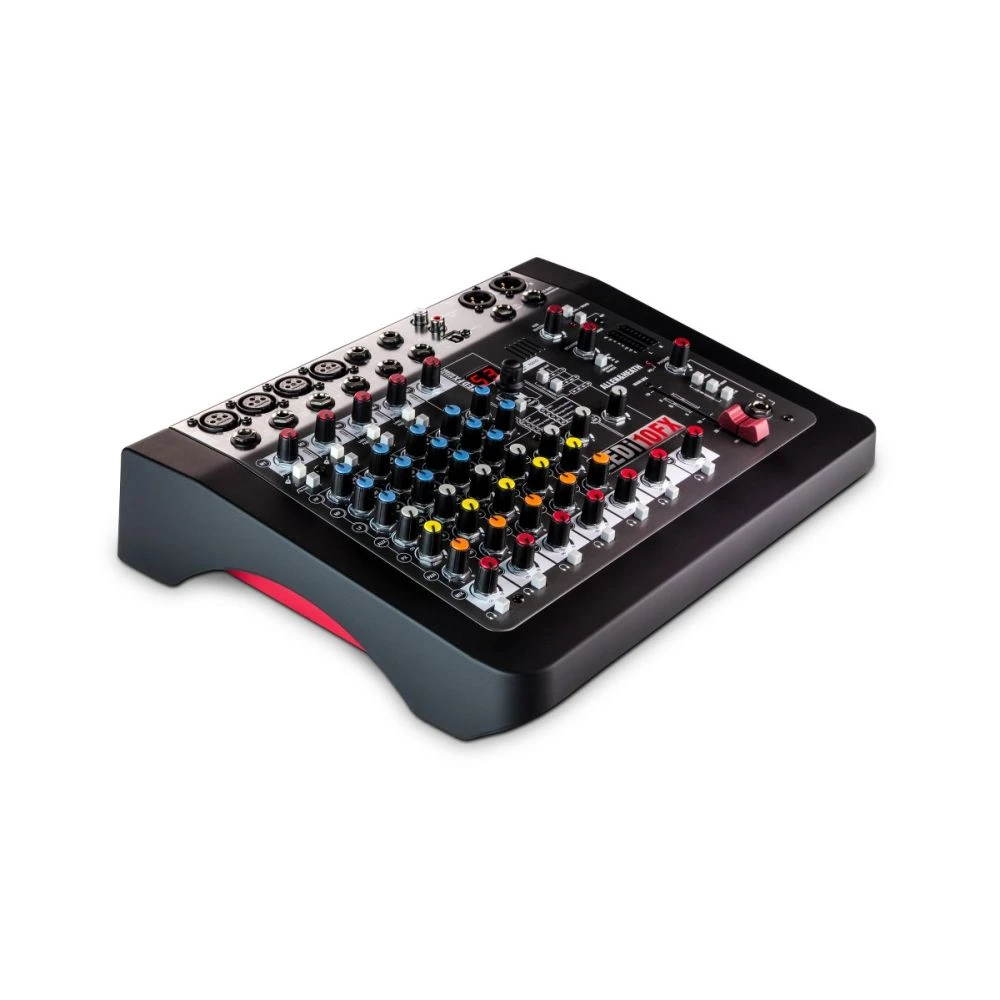

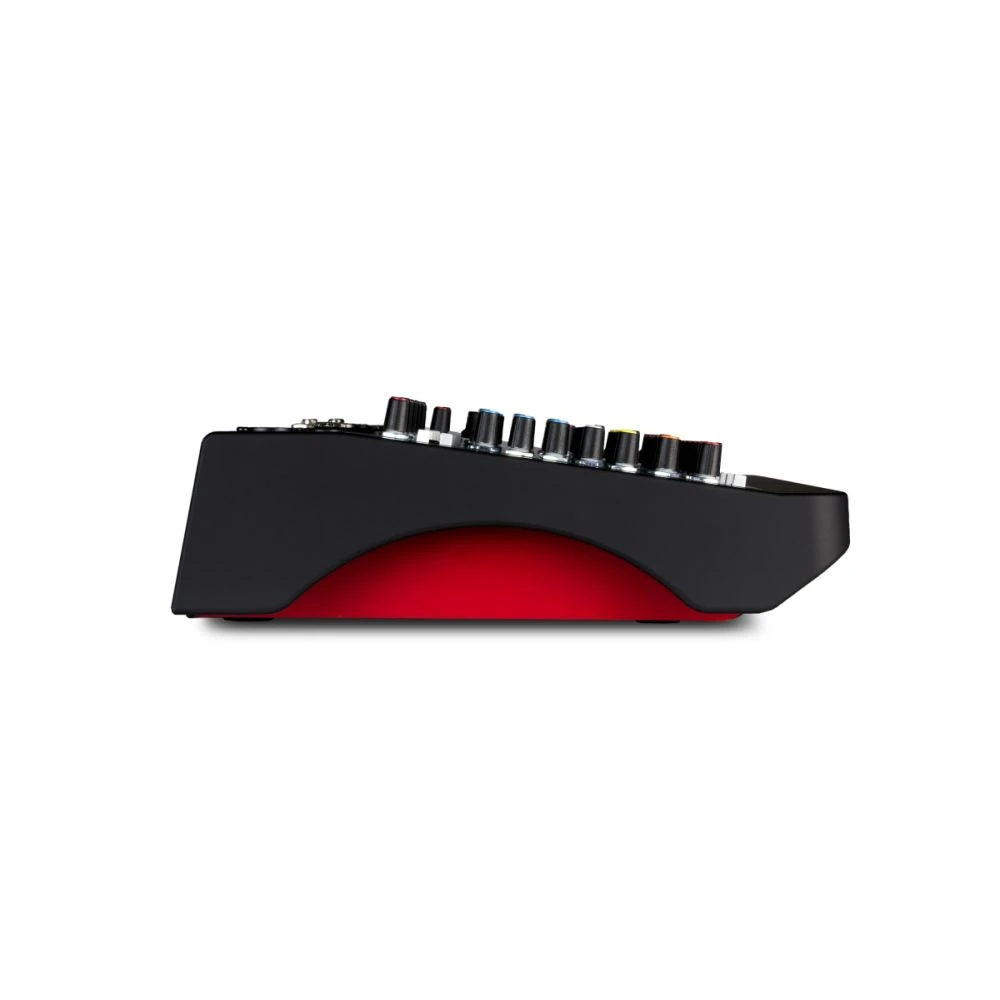

Allen & Heath ZEDi-10FX Hybrid Compact Mixer

Caught up between a mixer or an interface for your recording needs? The Allen & Heath ZEDi-10FX gives you both, combining the hands-on control of an analogue audio mixing desk with a studio-ready high quality 4×4 USB interface.

Perhaps one of the most versatile choices out there for recording, whether you’re a musician, a recording artists or a venue organizer, the ZEDi-10FX has all bases covered and even includes an outstanding multi-model FX unit to cement it as the perfect all-rounder choice for your creative journey.

The studio quality 24-bit / 96kHz 4×4 USB interface makes light work of a range of recording applications, delivering studio-quality shine and analogue warmth through a new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console.

Complete with 10 mono channels, two of which feature Guitar DI high impedance inputs and a specially created suite of studio quality effects, crafted by Allen & Heath’s acclaimed in-house effects aficionados, the ZEDi-10FX takes recording versatility to the next level.

Allen & Heath ZEDi-10FX Hybrid Compact Mixer Key Features:

• 4 in, 4 out USB Audio Interface (24-bit/96kHz)
• Cubase LE Software included
• Cubasis LE App included
• 4 Mic / Line Inputs with separate XLR and TRS jack sockets
• 2 Stereo Inputs with TRS jack sockets
• 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
• Internal FX Engine with Tap Tempo
• Lo-cut filter for cleaning up unwanted low frequency noise
• 3 band EQ for easy creative and corrective tonal shaping
• Aux out for connecting a monitor speaker or in-ear / headphone monitoring

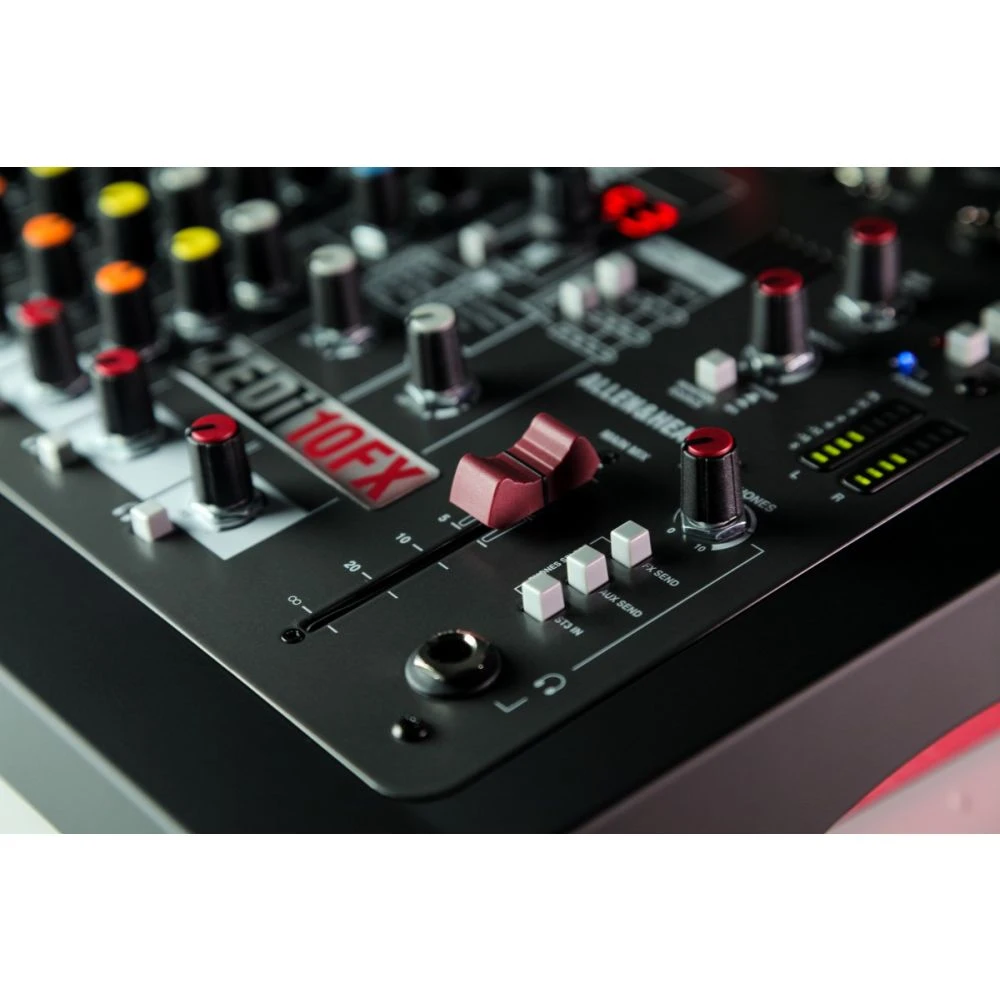

• 60mm smooth travel fader on main mix

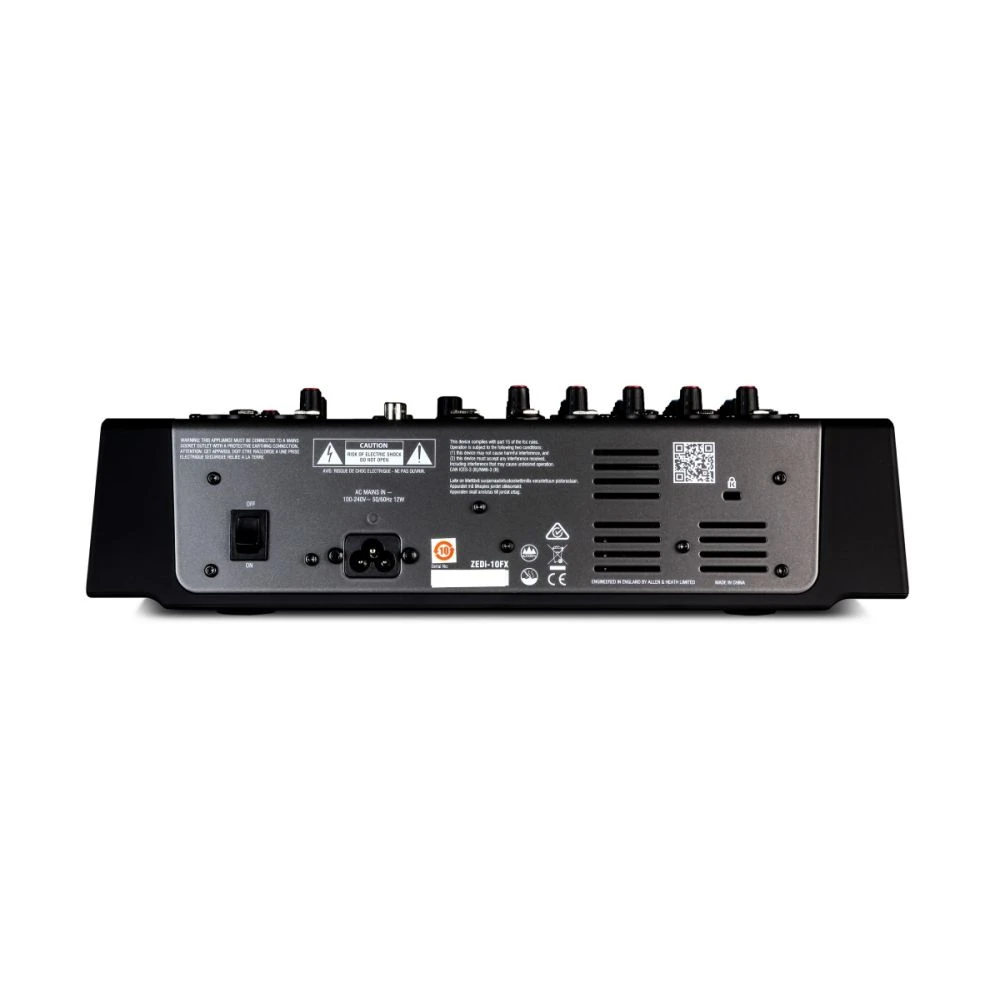

• XLR main outputs
• Flexible signal monitoring
• 8 LED signal metering
• 48V Phantom Power for condenser mics
• Robust internal power supply

Allen & Heath ZEDi-10FX Hybrid Compact Mixer Specifications:

Input

• Mono channel 1-2 (XLR) Input (For Nominal 0dBu) -5dBu to –60dBu (+13dBu maximum)
• Mono channel 3-4 (XLR) Input (For Nominal 0dBu) Pad IN +15dBu to –40dBu (+23dBu maximum)
• Mono channel 1-2 Instrument/Line Input (Jack socket) +14dBu to -40dBu (+17dBu maximum)
• Mono channel 3-4 Line Input (Jack socket) +15dBu to -40dBu (+23dBu maximum)
• Stereo Input (Jack sockets) 0dBu nominal (control = Off to +15dB Gain)

Output

• L/R Outputs (XLR) 0dBu (+18dBu maximum)
• Aux & FX Output (Jack sockets) 0dBu (+18dBu maximum)
• Monitor Output L/R (RCA Phono Sockets) 0dBu (+18dBu maximum)

Frequency Response

• Mic in to Mix L/R Out, 30dB gain 10Hz to 30kHz +0.5/-1dB
• Instrument/Line in to Mix L/R out 0dB gain 10Hz to 30kHz +0.5/-1dB
• Stereo in to Mix L/R out 10Hz to 30kHz +0.5/-1dB

THD+n

• Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz
• Filter)
• 0.002%
• Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) 0.005%
• Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter) 0.0025%

Headroom

• Analogue Headroom from nominal (0Vu) 18dB
• USB in & out headroom from nominal (0Vu) 18dB

Noise

• Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) -127dBu
• Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter) -93dBu
• Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter) -90dBu
• ZEDi-10FX Technical Datasheet 3 Allen & Heath Ltd

USB Audio

• USB Audio In/Out USB 2.0 compliant
• Bit Depth 24 bit
• Sample Rate 44.1, 48, 88.2, 96kHz
