Alto Professional TX308 350W 8″ 2-Way Active PA Speaker

If you’re a performer looking for sublime sound on stage, look no further than Alto Professional’s premium and practical speaker!

Live Sound Powerhouse

Crafted to ensure a high-quality audio experience with every use, the Alto TX308 is a 350-watt powered speaker that the essential choice for a multitude of scenarios.

An addition to Alto Professional’s family of powered loudspeakers, the TX308 can effortlessly handle even the most demanding gig schedules with sharp clarity without breaking a sweat!

Consisting of a bi-amplified 2-way design, the mighty speaker features a long-excursion woofer and a 1-inch titanium compression driver. The result is an impressive projection that’s overflowing with dynamic character.

Not only that but the horn design on the TX3 series enhances high-frequency performance and ensures an articulate 90°H X 60°V radiation pattern. Perfect for making your sound reach a wide audience with ease!

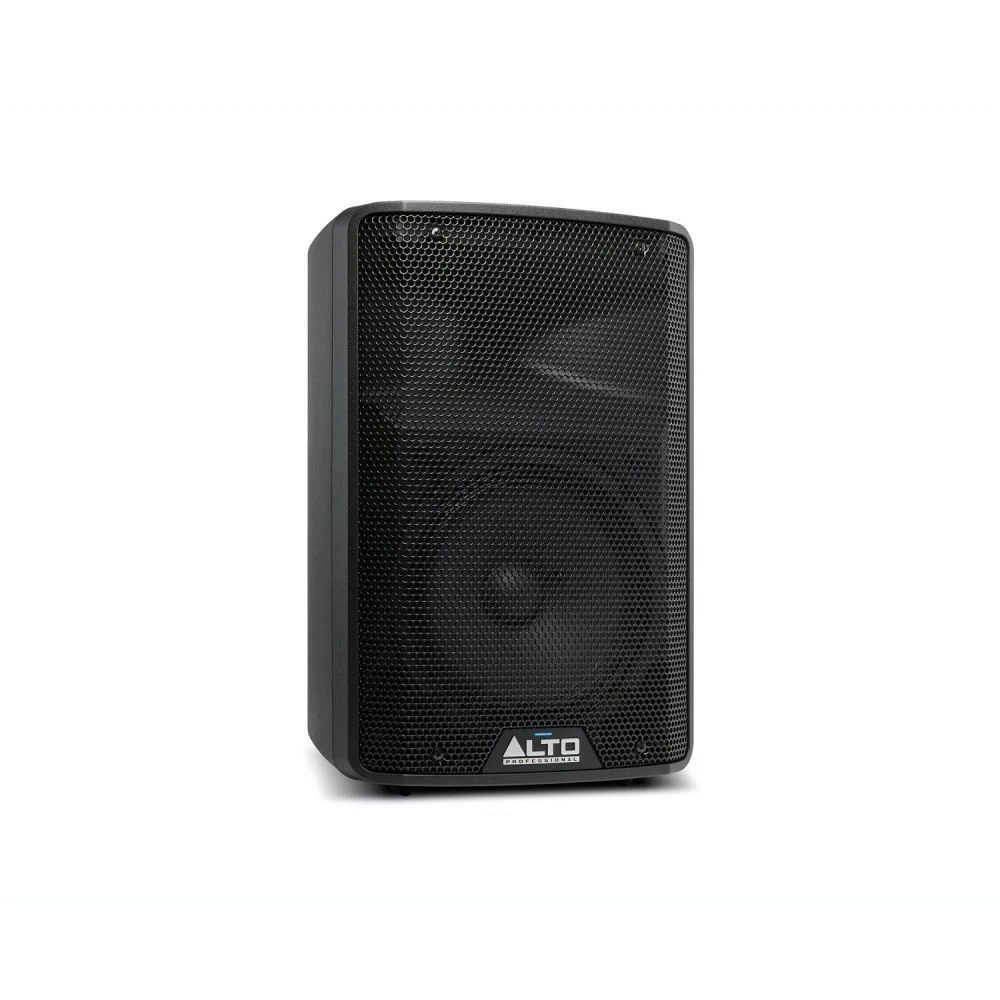

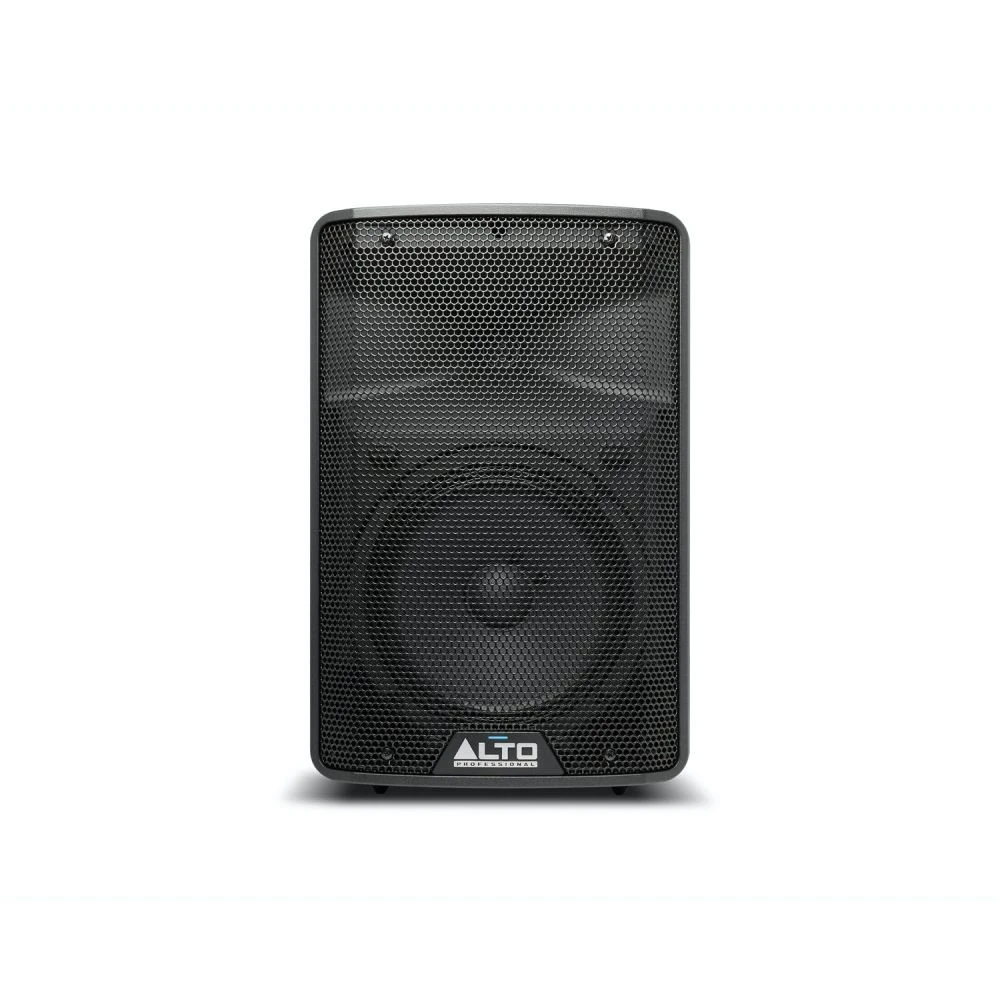

Presented in a rugged yet lightweight exterior, the TX308 can be easily transported from the van to the stage and back again. With a full-sized steel grille at the front, you can be sure your driver is fully protected at all times!

Alto TX308 Powered Speaker Features:

• 350 Watts peak, (150 Watts continuous Class D power)
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and protects your investment.
• 8-inch (203 mm) LF driver, 1.4-inch (35.5 mm) voice coil
• 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analogue limiter and overload protection circuitry
• Designed and tuned in the USA

Alto TX308 2000 Watt Active Speaker Specifications:

• System Type: 2-way active ported loudspeaker

Drivers:

• Low-Frequency: 8.0” (203 mm) driver, 1.4” (35.5 mm) voice coil
• High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil
• Amplifier: 350 watts (peak), 175 watts (continuous), Class D power
• Horn Coverage: 90º horizontal x 60º vertical (nominal)
• Frequency Response: 75 Hz – 20 kHz (-3 dB)
• Crossover Frequency: 2.5 kHz
• Max SPL: 113 dB @ 1 m

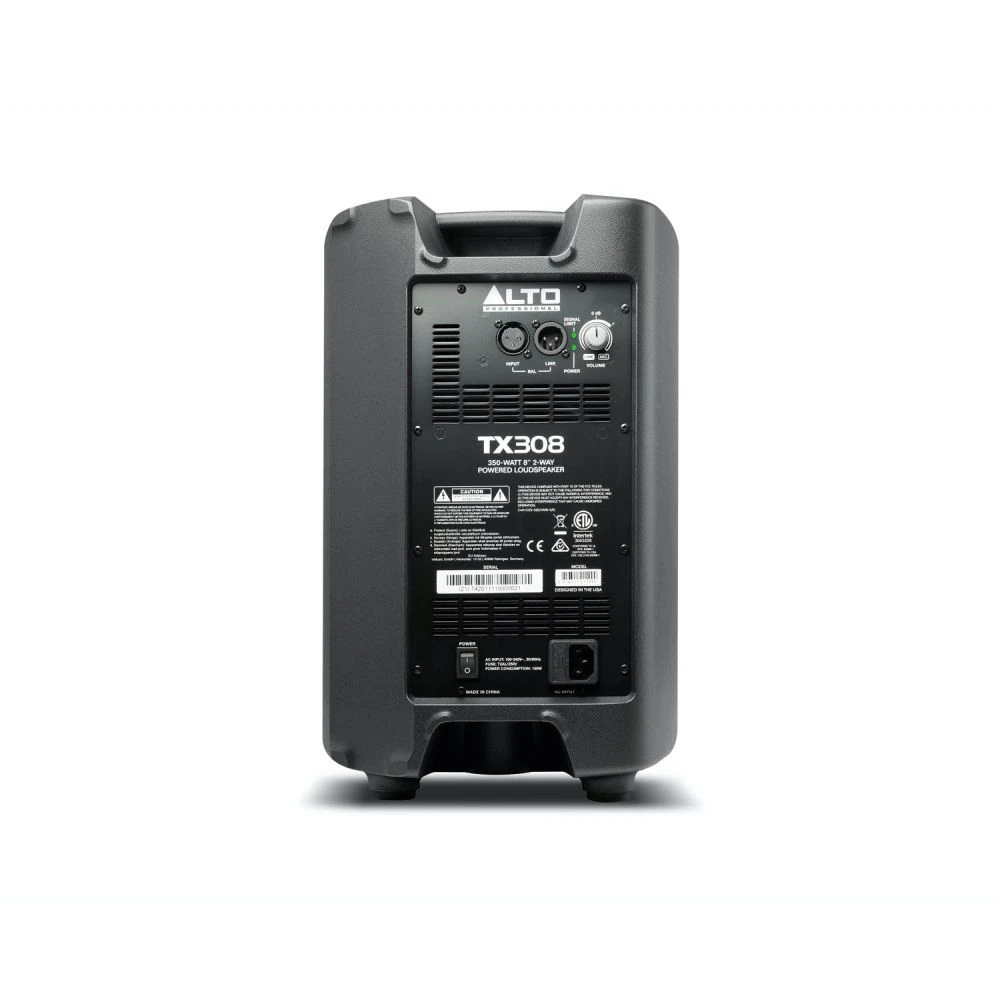

Connectors:

• (1) XLR balanced input (Line/Mic)
• (1) XLR output (Link)
• (1) IEC power cable input
• Controls: Power switch, volume control knob
• Indicators: (2) power LEDs (1 front panel, 1 rear panel), Clip limiter LED

Power:

• Connection: IEC
• Voltage: 100–240 V~; 50/60 Hz
• Fuse: T2AL/250V
• Consumption: 150 W
• Protection: Thermal, overload analogue limiter/compressor
• Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
• Mounting/Installation: Standard 36 mm pole socket, wedge monitor

Dimensions (height x width x depth):

• 16.6” x 10.7” x 9.9”
• 422 x 272 x 251 mm

Weight:

• 12.3 lb
• 5.6 kg
