Alto Truemix 500 5-Channel Analogue Mixer

The Alto Professional TrueMix 500 is a compact mixer that comes equipped with a stereo USB audio interface, making it an ideal tool for home recording, podcasting, live streaming, or live performances. Consisting of five analogue inputs that feature high-headroom circuitry, it ensures minimal noise and clipping in the signal.

The Mic Input Channel of the mixer provides an XLR input, which is ideal for connecting a dynamic mic. It also features a balanced ¼” line input that can be used for connecting instruments and other line-level signals. In addition, there are two Stereo Input Channels that come with dual balanced ¼” TRS inputs, which are perfect for accommodating line-level audio sources.

The mixer’s channels are equipped with two-band EQ, and their colour-coded knobs make it effortless to adjust your sound in low-light environments. Not only that but the TrueMix 500 can be quickly connected to your computer with plug-and-play functionality on both Windows and macOS platforms. Showcasing a user-friendly design and portability, the TrueMix 500 is an excellent choice for straightforward audio mixing and recording while on the move.

Key Features:

• USB I/O for audio playback and stereo recording
• 1/4” Main, Tape, and Headphone outputs
• Mic input channel with 48v phantom power and balanced line input
• Two stereo input channels with balanced 1/4” TRS jacks
• Two-band EQ on all channels
• 2-track inputs w/ assignable routing: Main Mix or Headphone Out

Alto Truemix 500 5-Channel Analog Mixer Specifications:

Frequency Response:

• All inputs: 20 Hz – 22 kHz (±1 dB)
• THD+N (Total Harmonic Distortion)
• All inputs: < 0.005% (@ 4 dBu, 1 kHz)

Gain Range:

• Mic inputs (Channel 1): 0 – 44 dB
• Line input (Channel 1): 12 – 30 dBu
• Line inputs (Channels 2/3): 0 dBu

Max Voltage Gain:

• 74 dB (Mic Input to Main Out and 2TK Output)
• 80 dB (Mic Input to Phones Output)
• 30 dB (Line Input to Main Out)
• SNR (Signal-to-Noise ratio)
• All inputs: > 110 dBu

Impedance:

• Mic inputs: 3.9 kO
• All other inputs: > 10 kO
• 2TK output: 1 kO
• All other outputs: 120 O

Crosstalk

• Adjacent inputs: < -80 dB @ 1 kHz
• Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)

Equalization:

• High: ±15 dB @ 12 kHz
• Low: ±15 dB @ 80 Hz

Connectors:

• (2) 1/4” (6.35 mm) TRS outputs
• (2) 1/4” (6.35 mm) TRS stereo L/R inputs
• (1) 1/4″ (6.35 mm) TRS headphone output
• (1) 1/4″ (6.35 mm) TRS mono input
• (1) XLR input
• (1) Stereo RCA L/R input
• (1) Stereo RCA L/R output

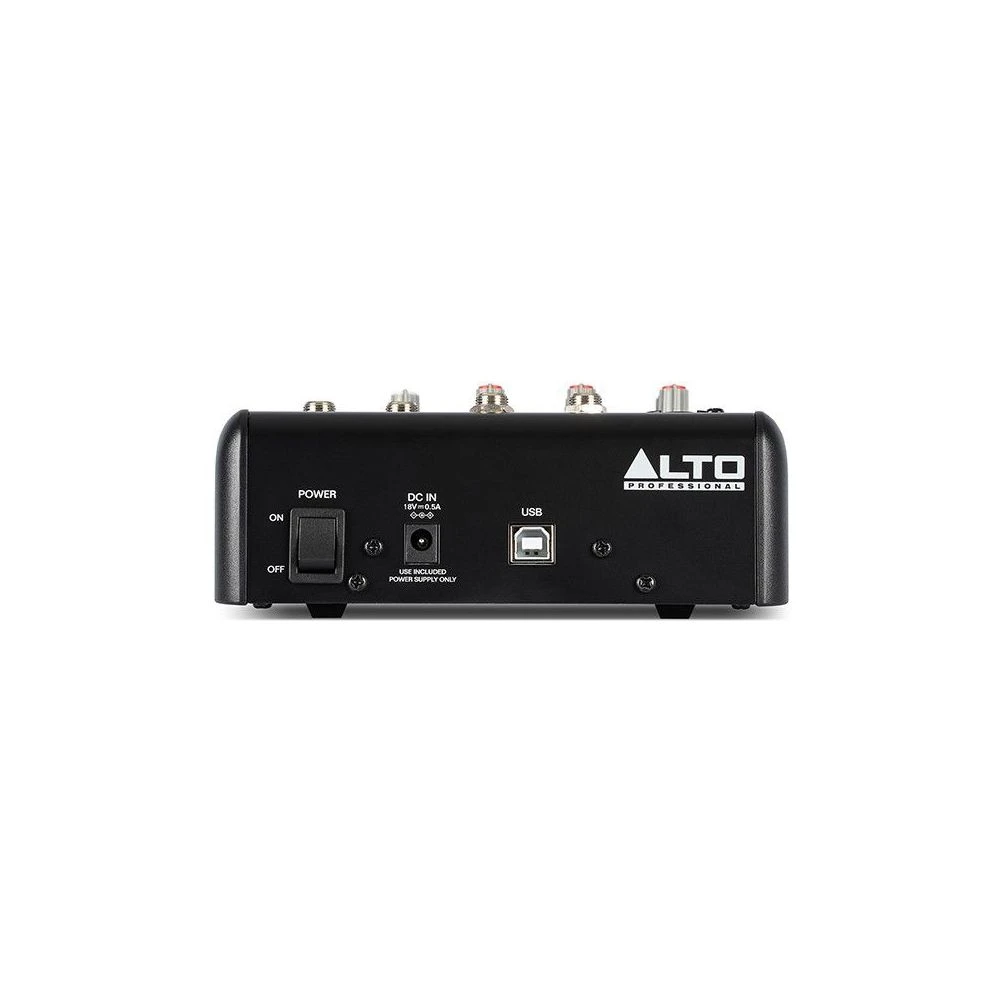

• (1) USB type-B input
• (1) DC power input

Controls:

• (1) Power Switch
• (6) Volume control knobs (1 per input and output)
• (3) Gain control knobs (1 per channel)
• (3) EQ Hi control knobs (1 per channel)
• (3) EQ Low control knobs (1 per channel)
• (3) Stereo pan control Knobs (1 per channel)
• (2) Locking switch buttons
• Indicators: (1) Power LED, (3) Peak LEDs, (8) Main Out meter LEDs

Main Mix:

• Main output: (2) 1/4″ (6.35 mm) balanced TRS, +22 dBu max output
• 2TK output: (2) unbalanced RCA, 0 dBu max output
• Headphone output: (1) stereo 1/4″ (6.35 mm) TRS, 160 mW @ 32 O

Power:

• Connection: DC
• Voltage: 18V, 500 mA
• Consumption: 9 W
• Dimensions (width x depth x height): 6.3″ x 7.6″ x 2.6″/ 159.5 mm x 193 mm x 66 mm
• Weight: 2.0 lbs./0.9 kg
