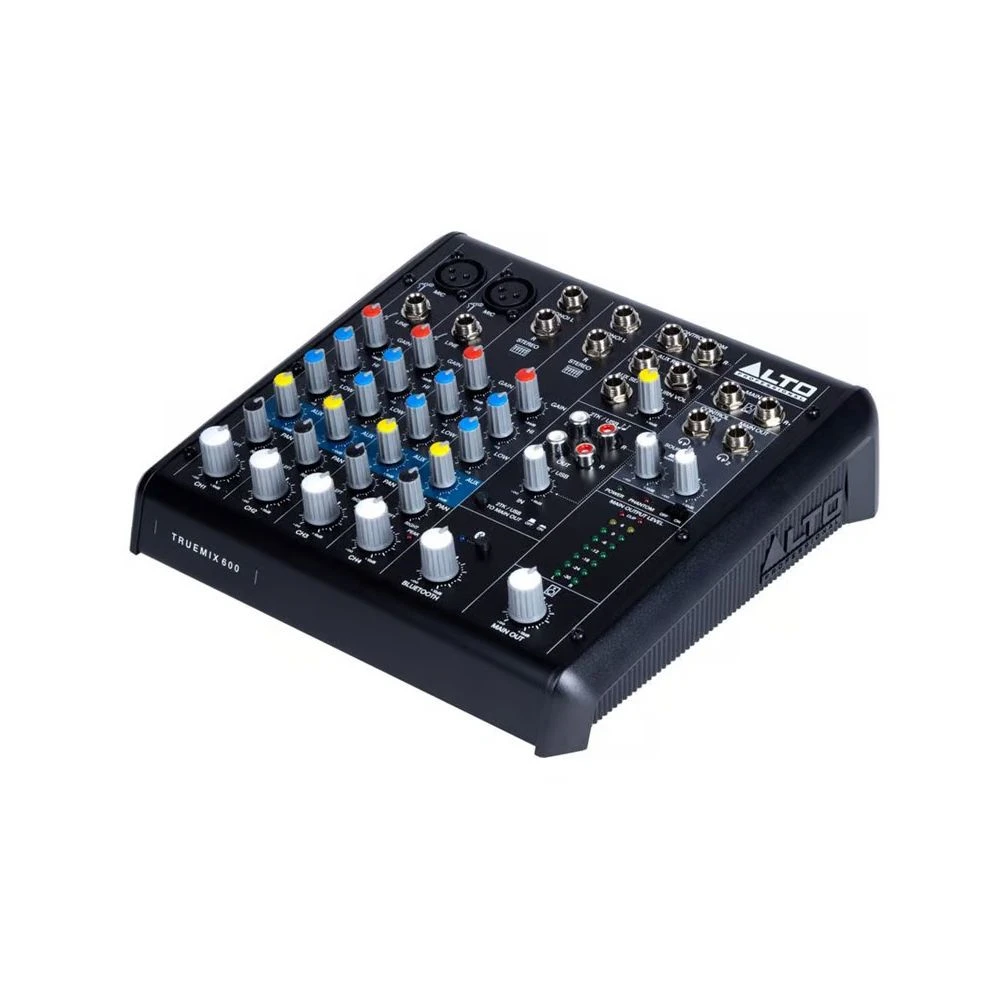

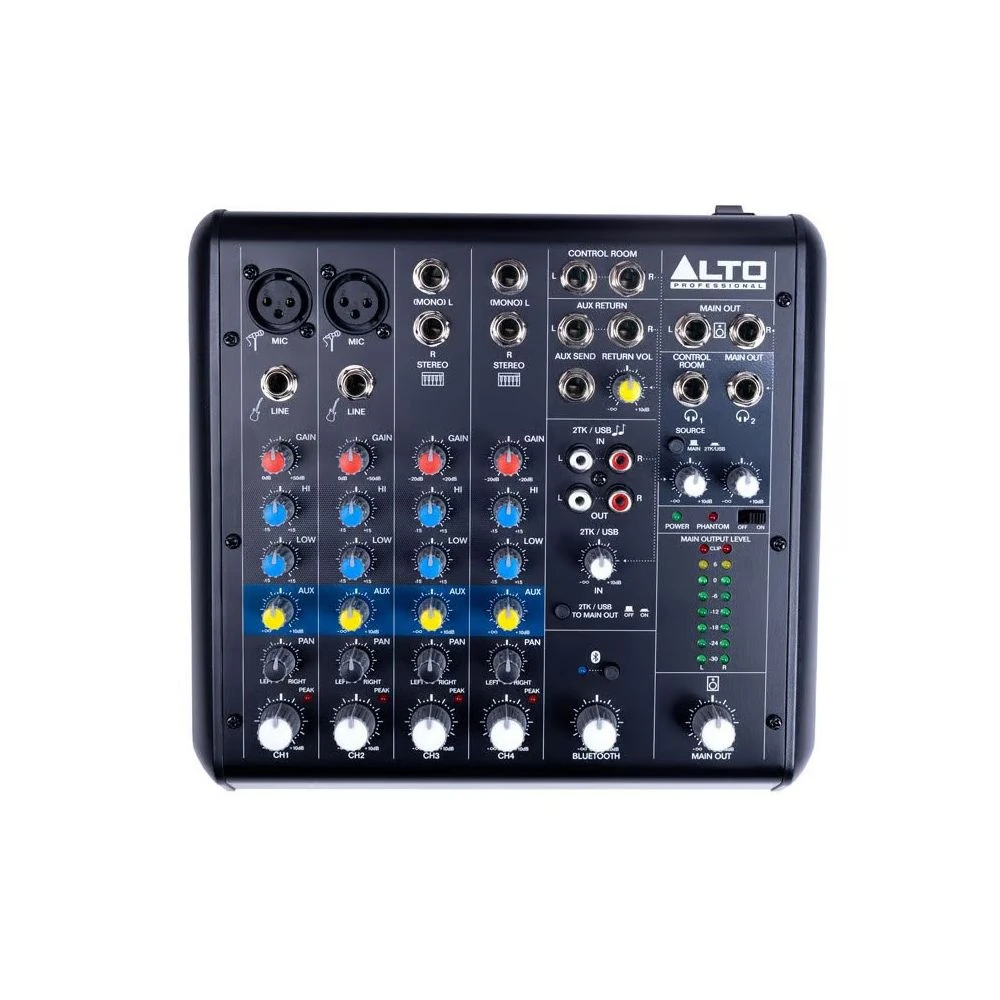

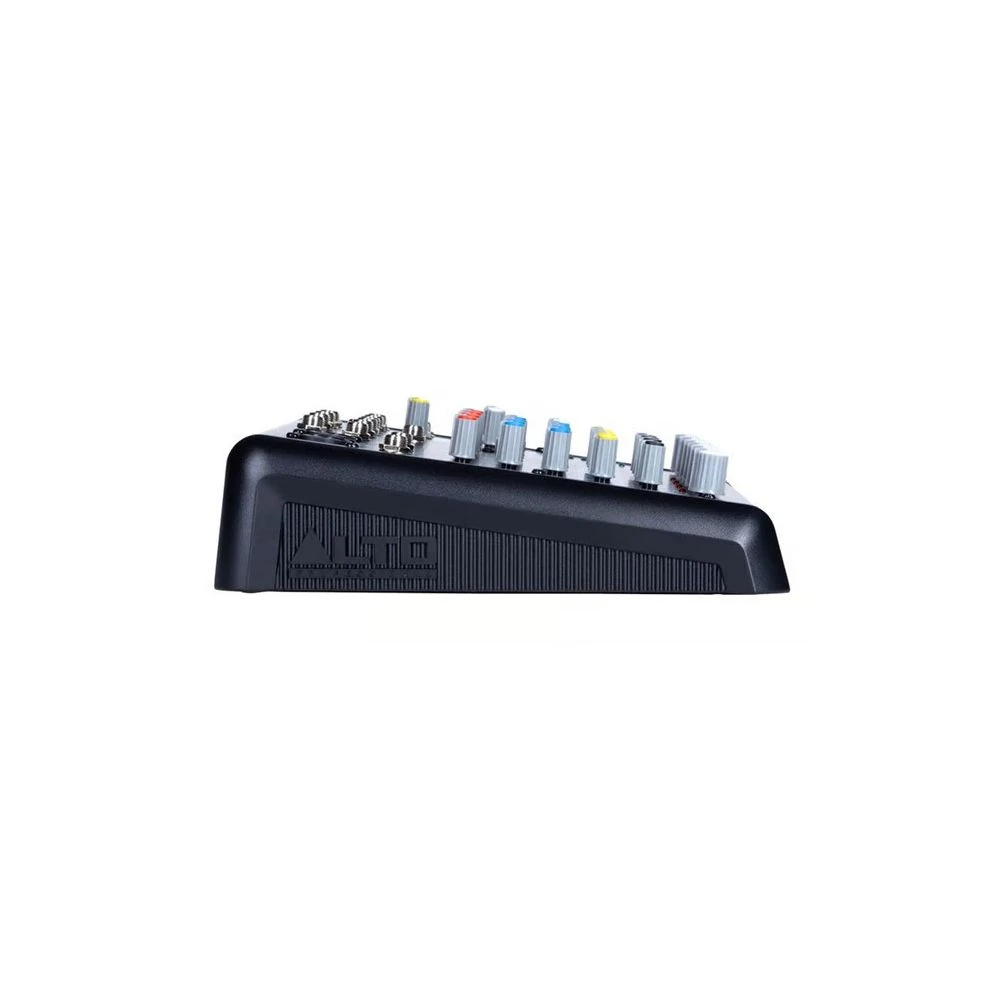

Alto Truemix 600 6-Channel Analogue Mixer W/ USB

The Alto Professional TrueMix 600 USB Mixer is a compact device that boasts a stereo USB audio interface, making it an ideal tool for recording, podcasting, live streaming, and live performances from the comfort of your home. It is equipped with six analogue inputs that feature high-headroom circuitry, ensuring minimal noise and clipping in the signal.

The Mic Input Channel of the mixer provides an XLR input, which is perfect for connecting a dynamic mic. It also features a balanced ¼” line input that can be used for connecting instruments and other line-level signals. Additionally, there are two Stereo Input Channels with dual balanced ¼” TRS inputs, which are suitable for accommodating line-level audio sources.

With its two-band EQ, the mixer’s channels are equipped with colour-coded knobs that make it easy to adjust your sound, even in low-light environments. Moreover, the TrueMix 600 can be effortlessly connected to your computer, as it features plug-and-play functionality on both Windows and macOS platforms. Its user-friendly design and portability make it an excellent choice for recording and mixing audio while on the move. Furthermore, the TrueMix 600 comes with a dedicated Bluetooth channel, allowing users to stream audio from their personal devices conveniently.

Key Features:

• USB I/O for audio playback and stereo recording
• Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing
• Dual headphone outputs with independent volume control
• 1/4” Main, Tape, Headphone, and AUX outputs
• Two mic input channels with phantom power and balanced line inputs
• Two stereo input channels with balanced 1/4” TRS jacks
• Two-band EQ on all channels
• 2-track inputs w/ assignable routing: Main Mix or Headphone Out
• Eight-segment LED VU meter for precise level monitoring

Alto Truemix 600 6-Channel Analogue USB Mixer Specifications:

• Frequency Response: All inputs: 20 Hz – 22 kHz (±1 dB)
• THD+N (Total Harmonic Distortion): All inputs: < 0.05% (@ 4 dBu, 1 kHz)
• Gain Range: Mic inputs (Channels 1-2): 0 +48 dB, Line inputs (Channels 1-2): 15 – +33 dB, Line inputs (Channels 3-4): 20 – +20 dB, All inputs: +22 dBu max
• Max Voltage Gain: 67 dB (mic input to any output) 40 dB (line output to any output) 20 dB (2TK/USB/Bluetooth to any output)
• SNR (Signal to Noise ratio): All inputs: > 110 dBu
• Phantom Power: +45 ~ +49V with switch control
• Impedance Mic inputs: 3.9 kO, All other inputs: > 10 kO, Aux outputs: 1 kO, 2TK outputs: 1 kO, All outputs: 120 O
• Equalization High: ±15 dB @ 12 kHz, Low: ±15 dB @ 80 Hz
• Bluetooth Profile: A2DP, Module: Bluetooth 5.0, Operating Frequency: 2402 MHz – 2480 MHz, Range: 100 ft. / 30.5 m
• USB Audio Interface: Version 2.0, Resolution: 16bit, DAC Sampling Rates: 32, 44.1, 48 kHz, ADC Sampling Rates: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHz
• Connectors (5) 1/4” (6.35 mm) TRS outputs, (6) 1/4” (6.35 mm) TRS stereo L/R inputs, (2) 1/4″ (6.35 mm) TRS headphone output, (2) 1/4″ (6.35 mm) TRS mono input,(1) Standard RCA L/R input, (1) Standard RCA L/R output,(2) XLR inputs, (1) USB type B input, (1) DC power input
• Controls: (1) Power switch, (10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphones out, 1 Bluetooth, 1 Main Out), (4) Stereo pan control knobs (1 per input), (4) Aux volume control knobs (1 per input), (4) EQ Low control knobs (1 per input), (4) EQ Hi control knobs (1 per input), (4) Gain control knobs (1 per input), (3) Locking switch buttons (2 source select, 1 Bluetooth), (1) Horizontal sliding switch
• Indicators (1) Power LED, (4) Peak LEDs, (1) Phantom LED, (16) Main Out Meter LEDs, (1) Bluetooth LED
• Main Mix: Main output: (2) 1/4″ (6.35 mm) balanced TRS, +22 dBu max output 2TK output: (2) unbalanced RCA, +22 dBu max output, Headphone output: (1) stereo 1/4″ (6.35 mm) TRS, 170 mW @ 32 O
• Power Connection: DC, Voltage: 18V, 1A, Consumption: 18W
• Dimensions (width x depth x height): 8.9” x 8.5” x 2.9” / 225.5 x 217 x 74 mm
• Weight 3.2 lbs / 1.4 kg
