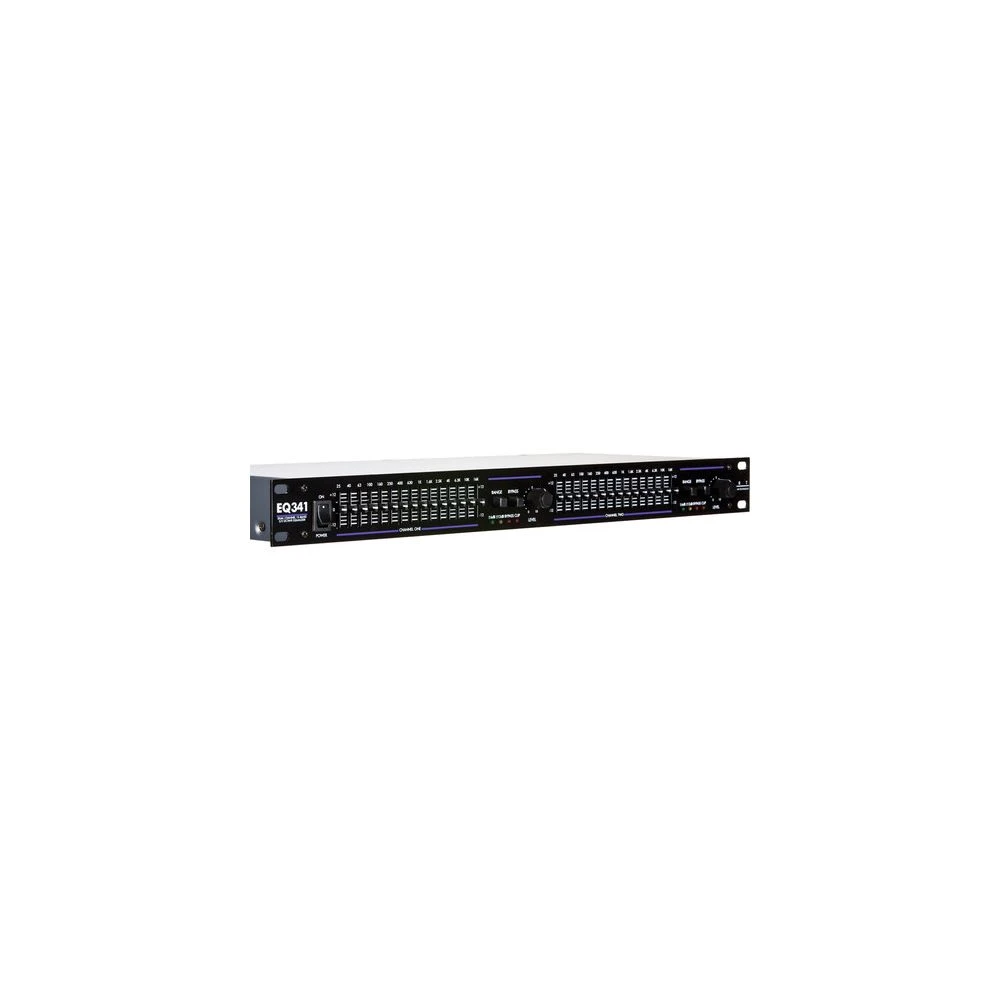

*art ART EQ341 Dual 15 Band EQ

The 341 Dual 15 Band EQ has the features and performance you need for any of your audio applications requiring equalization.

ART’s 341 Dual Channel 15 band 2/3 octave graphic equalizer features: constant Q circuitry with a 3% center frequency accuracy, 20mm center detent sliders, selectable boost/cut range of 6dB or 12dB, active balanced and unbalanced input and output connect-ions, variable input level control, clip level indicators, ground lift switch, internal power supply and selectable line voltage switch. A range control switch is provided allowing you to set the maximum boost or cut for each band of equalization to either 6dB or 12dB. Each channel has its own bypass switch with LED indicator. The rugged, all-steel constructed chassis occupies 1U rack space and is intended for installation in standard 19″ equipment racks.

Multiple input and output configurations are provided for ease of use and incorporate paralleled connections. The XLR and 1/4″ TRS connectors use active balanced, low noise circuitry. XLR connections are: Pin 1 = ground, Pin 2 = Hot (+), and Pin 3 = Cold (-). The 1/4″ TRS connections are: Tip = Hot (+), Ring =Cold (-), and Sleeve = ground. Both the XLR and 1/4″ connectors may be used in an unbalanced configuration. The RCA jacks are unbalanced. The 341 is designed to work with a variety of signal levels. The input level control covers a wide range and can easily accommodate -10 and +4 signal levels. A clip LED will light when a signal level of 5dB before clipping occurs.

The 341 may be used in a variety of applications such as live sound, recording studios, instrument racks as well as any conventional fixed installation environment. Use the 341 equalizer wherever modification of the frequency contour of a sound is needed. The 341 graphic equalizer is a powerful tool for solving a number of audio problems and creating interesting sound textures. Patch the EQ between your mixing console and power amps to allow you to alter the overall mix to better match your environment. Use the 341 between your monitor mixer and monitor power amps to aid in the removal of feedback inducing frequencies. Patch into a channel insert to EQ one channel or track individually. Run your instrument directly into the equalizer to enhance its sound before reaching a power amplifier or instrument amplifier. Patch the 341 into the effects loop of an instrument amplifier or between a preamp and power amp to have precise control over the complete sound.

Key Features

• Dual Channel 15-Band Graphic Equalizer
• Constant-Q Filtering
• Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors
• +/- 6dB or +/-12dB Level Adjustments
• 20mm Center Detented Frequency Band Sliders
• Independent Level and Bypass Controls Per Channel
• Designed for Years of continuous, reliable performance
• Rugged All Steel Construction

Specification

• Channel Separation > 50dB
• Controls Power On/Off Switch; L/R Filter Range Switch; L/R Bypass Switch; L/R Level Control; Ground Lift Switch
• Filter Type Constant Q – 3% center accuracy
• Frequency Bands 2×15, 2/3 octave, ISO spacing
• Frequency Response 20Hz to 20kHz, +0.5dB
• Indicators 6dB/12dB Range LEDs; Bypass and Clip LEDs
• Input Impedance 20k (bal), 15k (unbal)
• Input/Output Connections Active balanced XLR and 1/4″ TRS {XLR pin 2/ 1/4″ tip = Hot (+)} Unbalanced RCA
• Maximum Input Level +22dBm
• Maximum Output Level +18dBm (bal), +22dBm (unbal)
• Power (Switchable) 95-130VAC, 50/60Hz
• Power Consumption 12 W
• Range +/-6dB or +/-12dB selectable
• Signal to Noise Ratio -94dB
• Slider Travel 20mm w/ positive center detent
• Total Harmonic Distortion 0.0001
• Dimensions 1.75″H x 19″W x 8.5″D
• Weight 4.5lbs (2.5kg)
