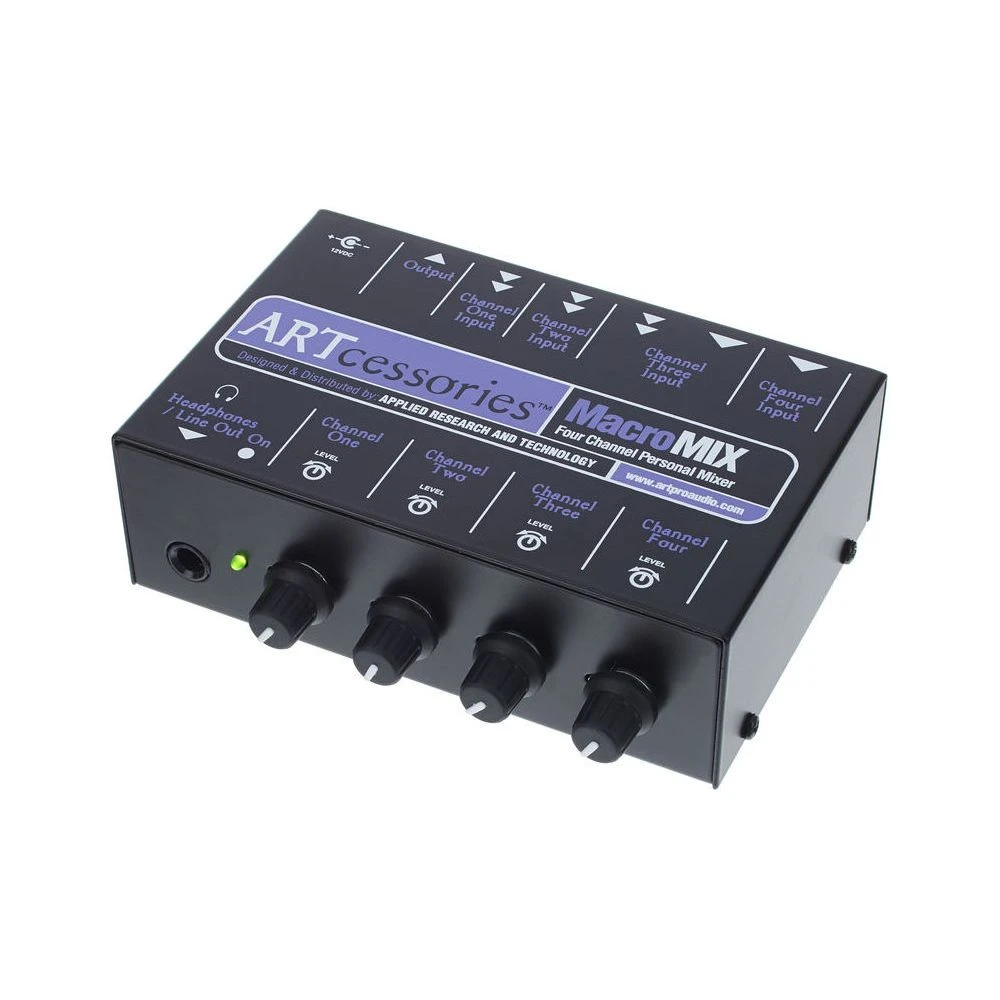

*art ART MacroMIX

Four Channel Personal Mixer

Problem: You need to mix a CD and a VCR’s audio output with a synthesizer and the line output of a bass amp and send it all to a PC or cassette deck.

Solution: Connect the MacroMIX between your audio sources and the PC or cassette deck. Levels can be mixed and a headphone jack lets you monitor the mix. Mix it up however you like!

Specifications

• Signal To Noise Ratio > 90dB
• Maximum Gain +40dB
• Input Impedance 10K
• IMD (SMPTE) <0.008%
• Power Requirements 12V DC (Adapter included)
• Total Harmonic Distortion <0.008%
• Dimensions 5.625×3.75×1.75 inches (143mm x 92mm x 45mm)
• Weight 1.6 lbs (725g)
