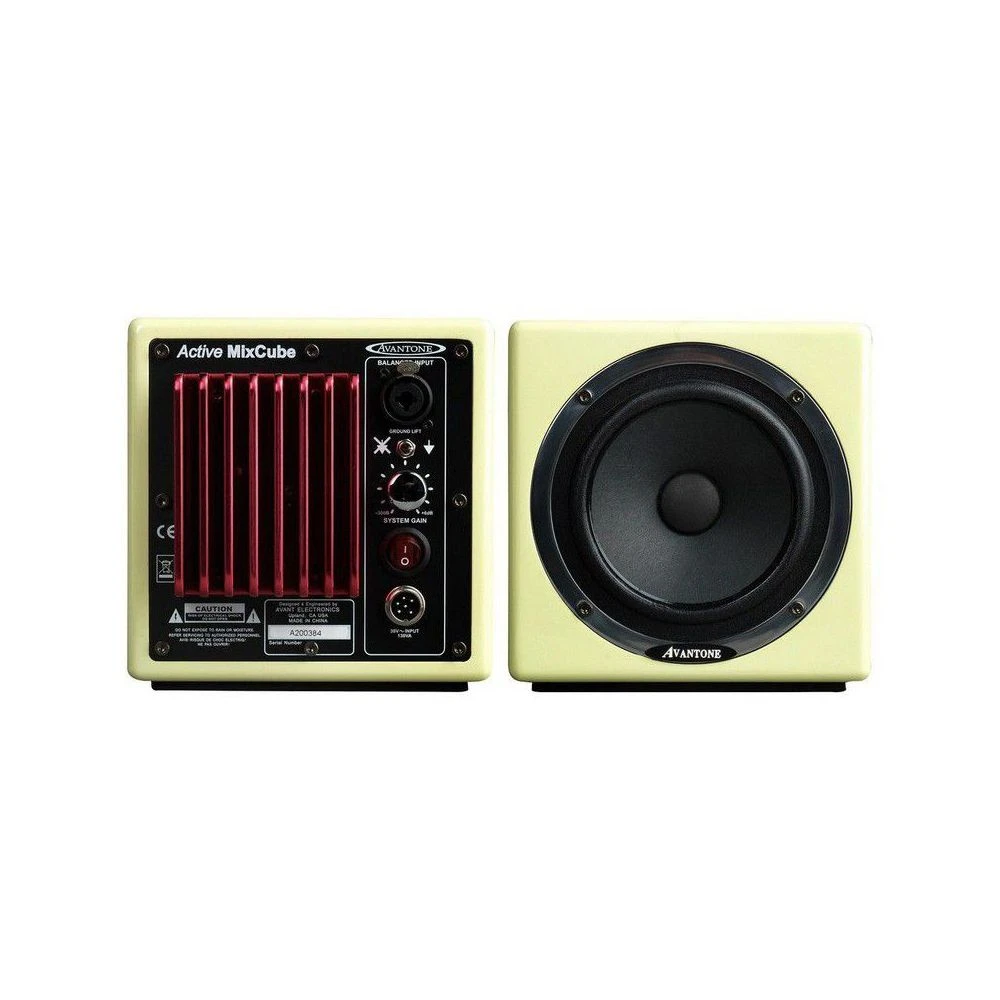

Avantone Mixcube Active Monitor Single Cream

The Avantone Mixcube Active Monitor is a single, self-powered monitor designed to provide a reference-grade audio representation of bass-challenged playback devices such as car stereos, TVs, clock radios, and more.

Avantone Mixcube Active Monitor, Cream Key Features

• System Type: The monitor is an active (self-powered) shielded full-range stereo pair, allowing for accurate stereo imaging and representation.
• Frequency Response: The frequency response of the Mixcube Active Monitor ranges from 90Hz to 17,000Hz, covering the useful musical range and focusing on the midrange and treble frequencies.
• Impedance: The nominal impedance of the monitor is 8 ohms, ensuring compatibility with a wide range of audio equipment.
• Max SPL: The monitor can reach a maximum sound pressure level of 104dB at 1 meter with 1% Total Harmonic Distortion (THD) when driven by pink noise.
• Amplifier Type and Power: The monitor utilizes a Class A/B amplifier with 60 watts RMS power output at 0.005% THD (1kHz). This provides ample power for accurate reproduction without introducing significant distortion.
• Amplifier Frequency Response and Noise: The amplifier’s frequency response ranges from 22Hz to 50kHz (+0dB/-3dB), ensuring a wide and accurate frequency range. The signal-to-noise ratio (S/N) is -113dB, indicating low noise performance.
• Sensitivity: The monitor has a sensitivity of 0dBu (0.775VRMS) input at maximum volume (+6dB), resulting in a sound pressure level of 104dB SPL. This means it can produce a relatively high volume level for its size.
• Driver: The Mixcube Active Monitor features a proprietary 5.25″ cast aluminum frame driver with a paper cone, designed for optimal performance and accuracy. The driver is shielded to prevent interference with nearby electronic devices.
• Cabinet: The monitor is housed in a sealed cabinet constructed from 18mm MDF (Medium-Density Fiberboard). It incorporates Dacron acoustical stuffing to enhance the low-frequency response and reduce resonance.
• Inputs: The monitor provides XLR and TRS (Combo Jack) inputs, accommodating both +4/Balanced and -10 unbalanced audio signals. This allows for flexible connectivity options.

Weight and Dimensions: Each monitor weighs approximately 7.13 lbs and has dimensions of 6.5″ x 6.5″ x 6.5″, making it compact and portable.

The Avantone Mixcube Active Monitor is designed to provide a reliable and accurate reference for mixing and monitoring audio in various applications.

Its compact size, accurate midrange and treble representation, and self-powered design make it a versatile tool for audio professionals and enthusiasts alike.
