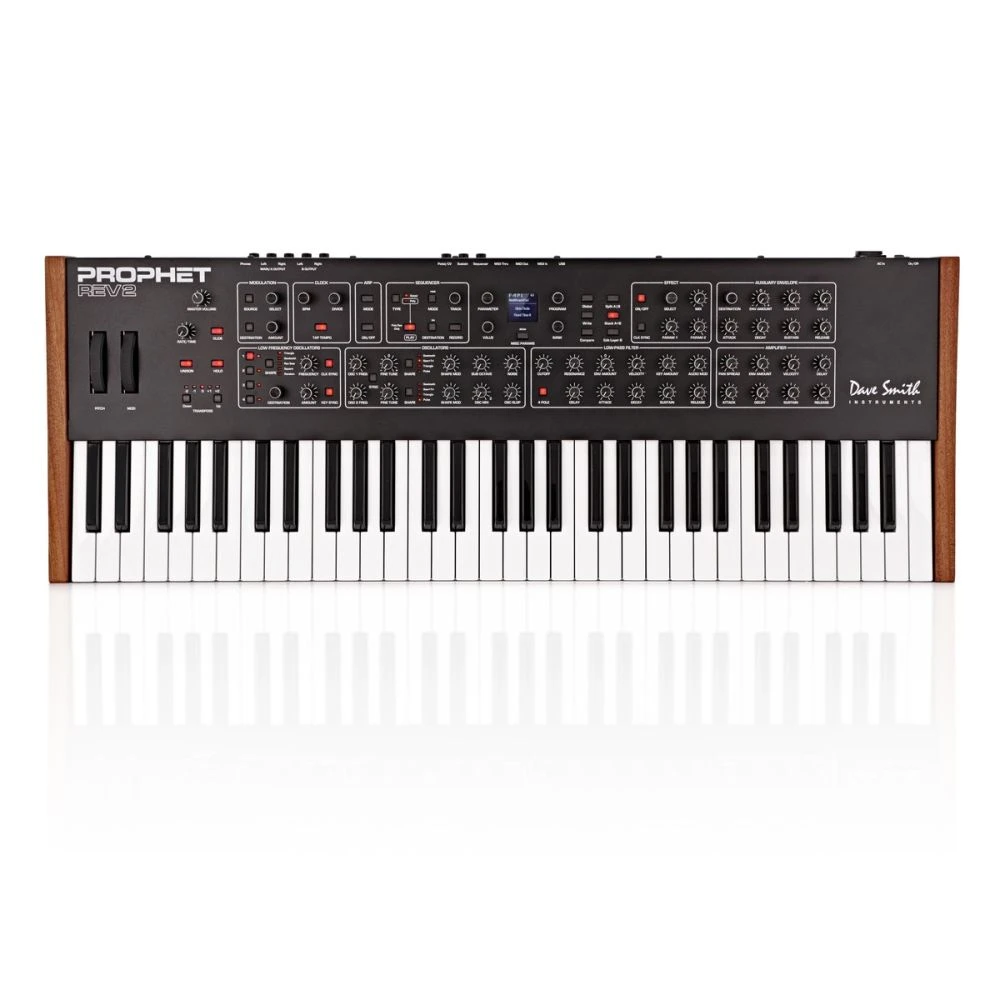

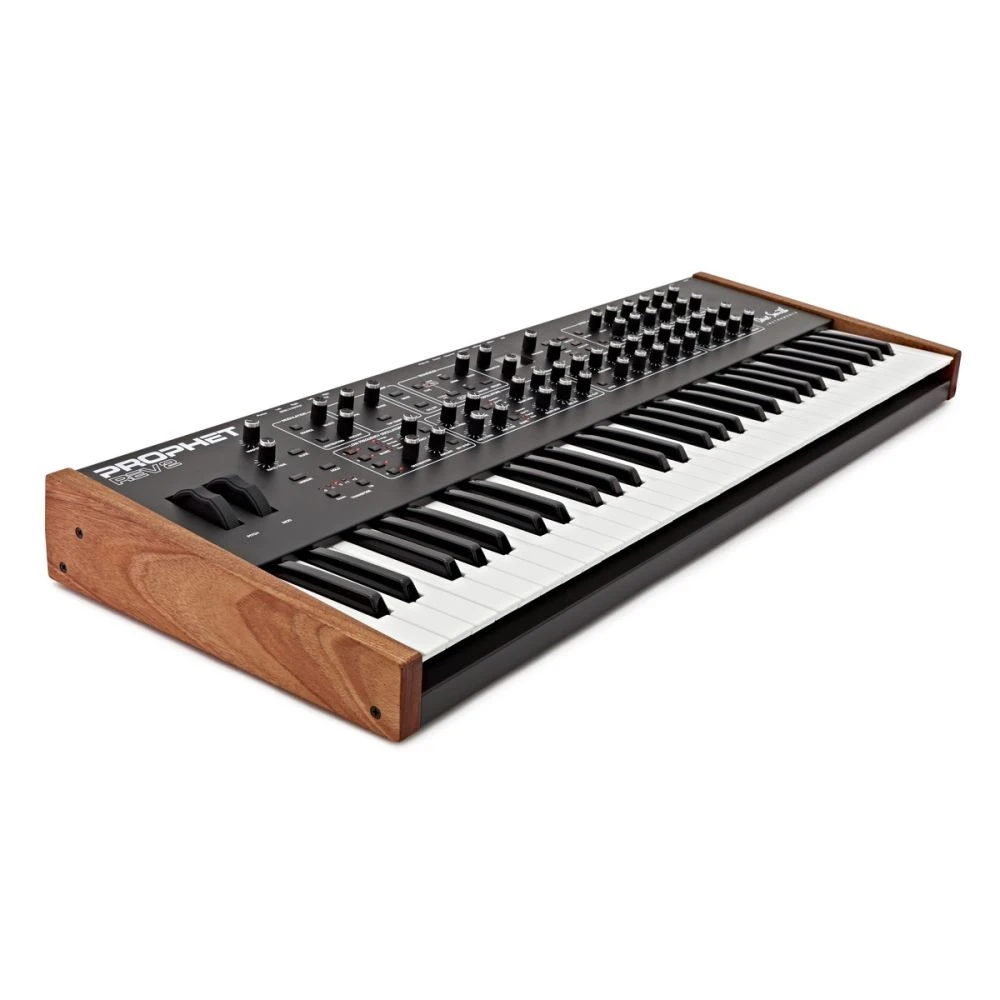

B-Stock Sequential Prophet Rev2 16-Voice Analog Synth Keyboard

———————

B-Stock Explained

B-Stock is in full working order and is protected by a standard manufacturers warranty as if you are buying the A-Grade equivalent.

B-Stock may be ex-display, opened for demonstration, returned by a customer, refurbished, or have accessories or software missing e.g. gig-bag, manuals etc. There may also be signs of use including minor wear and damage, and it may not come in the original packaging. If you have any questions about the condition of an item, please get in touch with our friendly sales team.

——————–

A new and improved take on his acclaimed Prophet ’08 poly synth, Dave Smith has delivered a modern classic that attempts to improve upon every possible aspect of the original, while maintaining all of the analog charm and vintage character.

Retaining all of the original features, the Rev2 expands upon the foundations of greatness by doubling the polyphony, doubling the mod matrix and delivering waveshape modulation on all waveforms. Alongside this you’ve got
digital effects per layer in stacked or split voice mode, a polyphonic step sequencer per layer and much, much more!

Weighing in as a true modern analog powerhouse, with 16 voices to play with and near endless tone-shaping possibilities, the Rev2 will make a fine addition to your collection, whether you’re a studio dweller or a stage performer!

Sequential Prophet Rev2 16-Voice Analog Synth Keyboard Key Features:

• Reimagined Classic – Building upon the Prophet ’08 poly synth, Dave Smith has redesigned this analog classic for the modern audience, making sure to improve and upgrade at every available opportunity.
• 16-Voice Polyphony – With twice the polyphony of the original, you’d got the freedom to explore your creativity like never before.
• Punchy Vintage Sound – With a 2/4 pole, low-pass, resonant Curtis filters on each voice, these bold and vibrant filters have stood the test of time, featuring on several 70’s and 80’s models.
• Powerful Waveshape Modulation – Completely new for the Prophet Rev2, you can now vary the ‘pulse width’ of any of the four waveforms to continuously shift the timbre to create unique and exciting new sounds.
• FX Per Layer – Boasting reverb, delays, chorus, phase shifter, ring modulation, and distortion, you’ve got a vast range of effects to play with.
• Extended Mod Matrix – Twice as big as it’s predecessor, easily assign to any of the 9 individual slots.
• Poly Step Sequencing – Allowing for up to 64 steps and up to 6 notes per step, you’ve got a powerful tool for both composition and performance.

Sequential Prophet Rev2 16-Voice Analog Synth Keyboard Specifications:

OSCILLATORS

• 2 digitally controlled analog oscillators (DCOs) per voice (plus sub octave on oscillator 1) with selectable sawtooth, triangle, saw/triangle mix, and pulse waves (with pulse-width modulation)
• Glide (portamento): separate rates per oscillator
• White noise generator
• Analog VCAs
• Hard sync

FILTERS

• 1 analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)

ENVELOPES

• 3 envelope generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop.

SEQUENCER

• Polyphonic step sequencer with up to 64 steps (6 notes per step), and ties and rests. Separate 16 x 4 gated step sequencer. Each layer can have a separate sequence.

LFOS

• 4 LFO’s with key sync per LFO

MODULATION

• 8-slot modulation matrix
• 22 sources
• 53 destinations
• 5 additional dedicated sources: mod wheel, pressure, velocity, breath controller, footswitch

ARPEGGIATOR

• Programmable arpeggiator with up, down, up+down, random, assign modes
• Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
• One, two, or three octave range
• Re-latching arpeggiation
• Note repeat

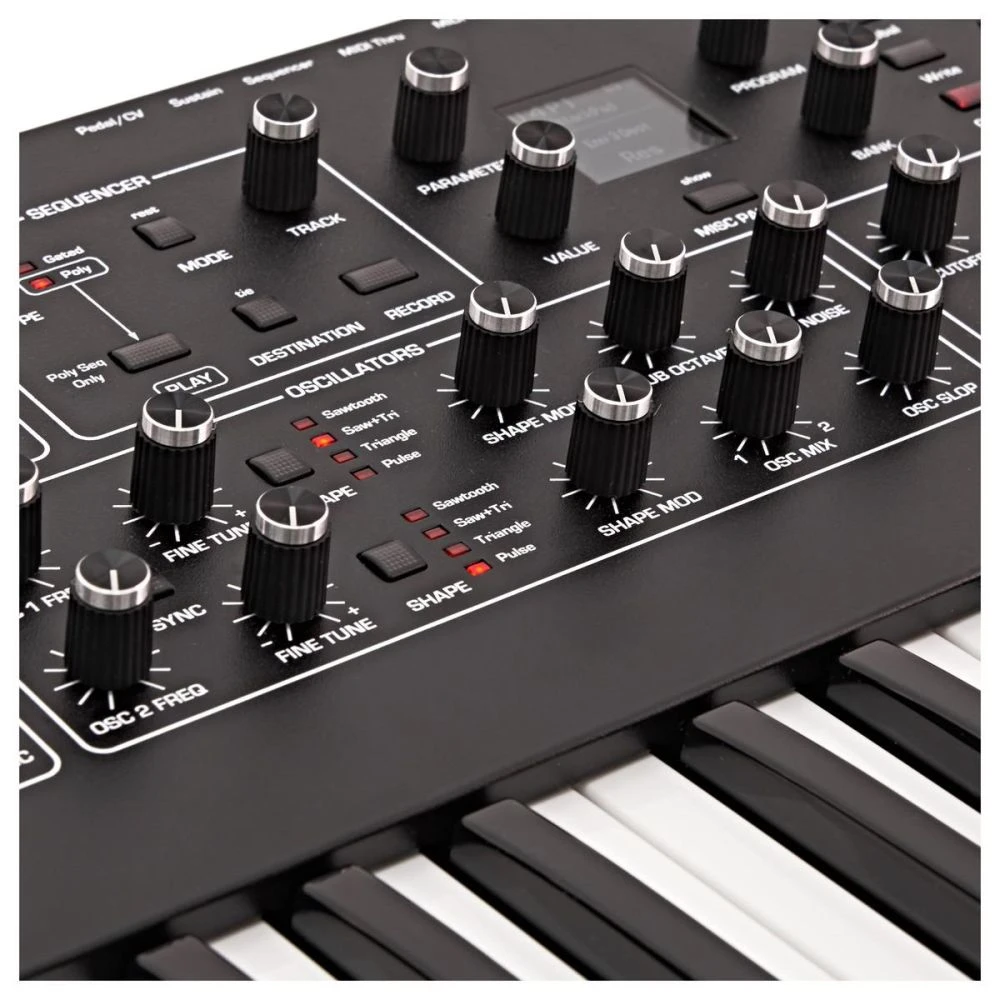

CONTROLS

• 5-octave keyboard with semi-weighted action, velocity, and aftertouch
• 55 knobs and 35 buttons enable deep and comprehensive editing with little to no menu diving.
• Spring-loaded pitch wheel and assignable mod wheel

MEMORY

• 512 Factory Programs (4 banks of 128) and 512 fully editable User Programs with 2 layers (2 separate sounds) in each Program

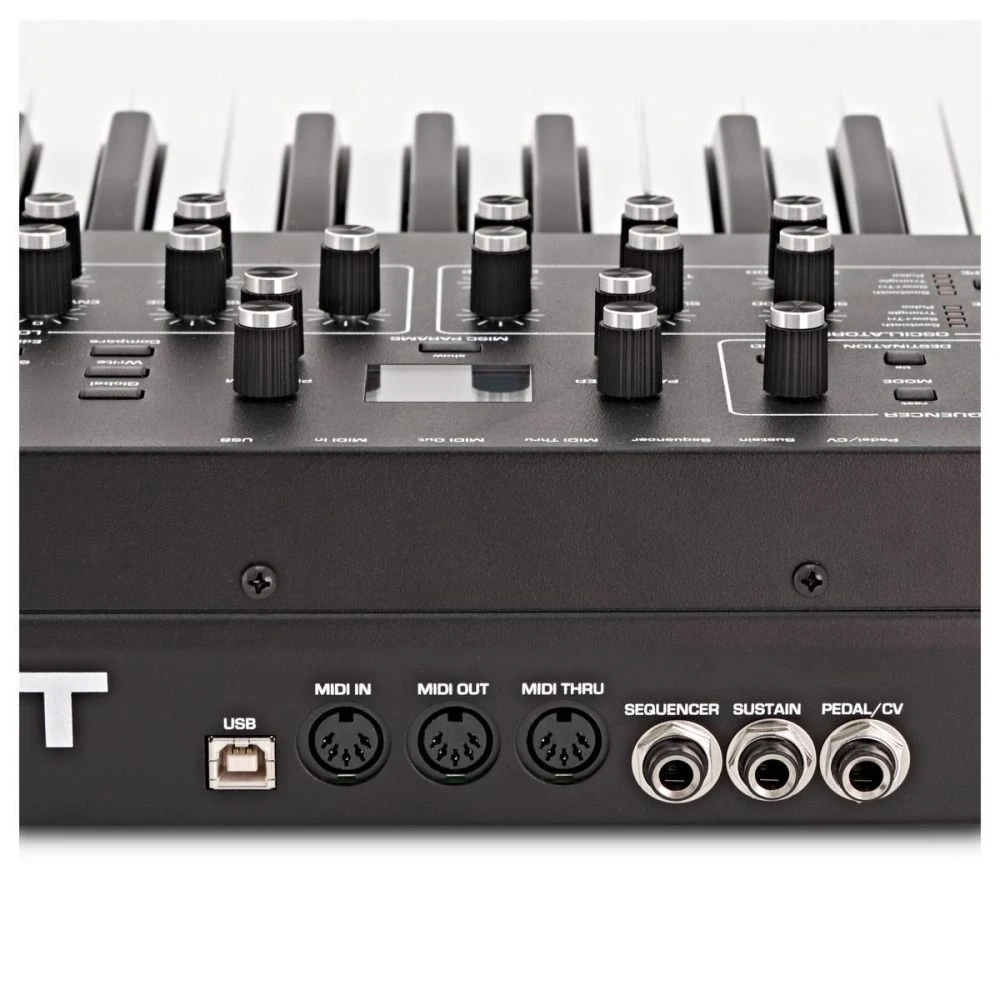

IN/OUT

• MIDI In, Out, Thru
• Main stereo audio output: 1/4″ unbalanced
• Output B stereo audio output: 1/4″ unbalanced
• Sustain pedal input: accepts normally on or normally off momentary footswitch.
• Pedal/CV input: responds to expression pedals or control voltages ranging from 0 to 5 VDC (protected against higher or negative voltages).
• Headphone output: 1/4″ stereo phone jack.

POWER

• IEC AC power inlet for internal power supply
• Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz
• Power consumption: 22 watts maximum (17 watts for 8-voice configuration; 22 watts for 16-voice configuration)

PHYSICAL SPECS

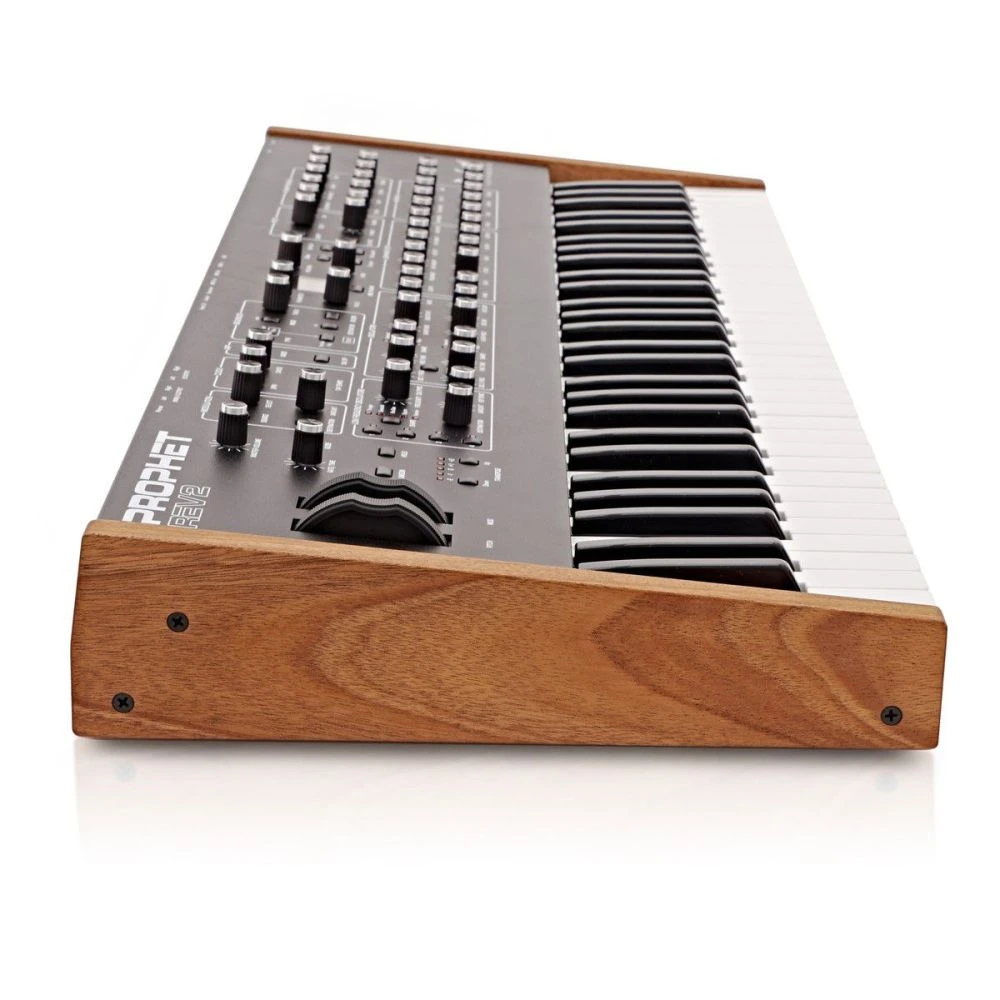

• Oiled African mahogany wood end panels
• Dimensions: 12.70″ (32.26 cm) W x 35.12″ (89.20 cm) L x 3.80″ (9.65 cm) H (2.30″ at front edge; the feet account for 0.25″ of the total height)
• Weight: 20.5 lbs. (9.3 kg)
