B-Stock Yamaha DHR10 10″ 2-Way Powered Loudspeaker System

———————

B-Stock Explained

B-Stock is in full working order and is protected by a standard manufacturers warranty as if you are buying the A-Grade equivalent.

B-Stock may be ex-display, opened for demonstration, returned by a customer, refurbished, or have accessories or software missing e.g. gig-bag, manuals etc. There may also be signs of use including minor wear and damage, and it may not come in the original packaging. If you have any questions about the condition of an item, please get in touch with our friendly sales team.

——————–

An ideal choice for bands and DJs alike looking to up their live sound game, the Yamaha DHR10 is a 10″ 2-Way Powered Loudspeaker System that omits an instantly professional sound quality full of precision and spectacular clarity.

Optimised and Versatile Performance

An amalgamation of a high-functioning DSP and a 700W amplifier module, this premium loudspeaker is encased within the same elite-grade plywood construction and polyurea coating that can be found on the higher budget DZR range.

Designed to meet the needs of a vast array of dynamic scenarios, the DHR10 is ideal for fixed installation setups where space is important but doesn’t sacrifice the overall output.

Yamaha DHR10 10″ 2-Way Powered Loudspeaker System Features:

• Plywood Cabinet that Delivers Transparent Sound with Minimal Vibration
• Plywood Enclosure with a Polyurea Coating for a Robust, Scratch Resistant Surface
• Compact Appearance thanks to a 10-inch LF Driver that Provides Excellent Low-Frequency Response
• Can be Used in a Horizontal or Vertical Angle with a Rotatable HF Horn for Wide Adaptability
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• Propitiatory FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Versatile Design

Enhanced to meet the demands of various applications, the 10″ model has been articulately designed with a rotatable HF horn and a bracket for simple functionality in fixed installations. So whether you’re using it for a smaller scaled outdoor stage or indoor venues, the DHR10 is guaranteed to work brilliantly.

Innovative Dynamic Control

Giving a mighty yet consistent output at all volume levels, the D-CONTOUR is an intuitive multi-band compressor that consistently monitors a vast selection of multiple frequency bands to create the perfect EQ for each, so you always get the ideal dynamic projection and precision.

Enhanced and User Friendly

Boasting Yamaha’s authentic Ultra-Precise DSP Processing for exceptional quality sound at all times, the DHR10 Loudspeaker comes with FIR-X tuning, using linear phase FIR filters for heightened frequency and phase response. The result is an impressively smooth performance and pro-level clarity around the crossover point.

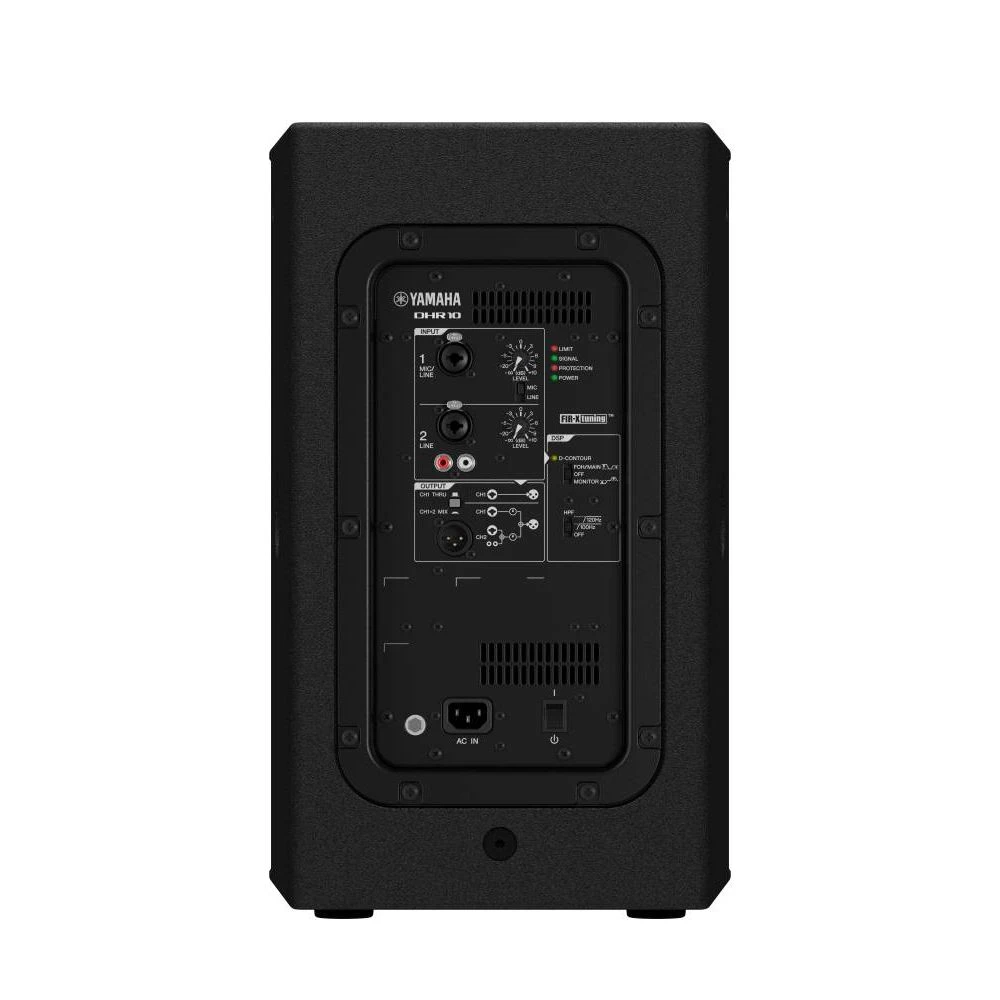

Not only that but the Yamaha DHR10 Loudspeaker comes with two user-friendly input channels, the first channel has a combo jack that accepts both XLR and TRS Phone for Mic and Line level signals. CH2 also offers two inputs, a combo jack and a pair of RCA pin Jacks for stereo line-level sources.

Yamaha DHR10 10″ 2-Way Powered Loudspeaker System Specifications:

• Width: 12 in
• Depth: 11.8 in
• Height: 19.5 in (with rubber feet)
• Unit Weight: 15 kg
• Active or Passive: Active
• Driver Sizes: LF: 10″ cone, 2″ voice coil, Ferrite magnet; HF: 1.4″, 1″ throat compression driver, Ferrite magnet
• Number of Speakers: Single
• Input Connectors: RCA, XLR Combo Jack TRS
• Output Connectors: Analog XLR
• Amp Wattage: LF: 500 W Class D; HF: 200 W Class D (dynamic)
• Frequency Range: 52 Hz – 20 kHz
• Max. SPL: 128 dB
