BSS Soundweb Lite Sw3088 Signal Processor

BSS Soundweb Lite 3088, Standalone, Rack-mountable Signal Processor

Building on the groundbreaking success of the Soundweb 9088iis and associated products, BSS Audio have developed the Soundweb Lite (or sw3088), a less-expensive alternative for those situations where you require a standalone DSP with a maximum of 8 inputs and outputs.

8 inputs and 8 outputs, powerful DSP engine and analogue GPI control interfacing

This powerful, 8×8, fully-programmable Digital Audio System is perfect for many smaller-scale applications that the 9088iis may have seemed a little excessive for (such as houses of worship, theme bars, boardrooms, clubs etc.) and comes complete with all the same capabilities as it’s bigger brother, including a totally free-design DSP layout, large palette of processing objects and custom control panels.

Consultants and Contractors already familiar with Soundweb systems should take to using the 3088 with ease, thanks largely to its use of the common Soundweb Designer platform and familiar control layout.

With the capability of holding up to 12 completely different system designs within its internal memory, the 3088 is perfect for a variety of different sound-reinforcement situations. Each setting is fully customisable via PC interface (RS232 port) through the aforementioned Soundweb Designer application (available for free from the BSS Audio website).

Highlights

• 8 Analogue Mic/Line Inputs and 8 Analogue Outputs
• Optional AES/EBU digital input/output (2 x stereo) cards with external word clock input
• Standalone unit with 200MIPS of DSP resource
• Integral Multivoltage PSU (85V – 270V AC)
• Analogue Control ports for GPI hardware interfacing e.g. faders, switches, LEDs
• Front and rear access RS232 ports for PC control
• Integral memory holds up to 12 DSP system designs
• Optional lacing bar to secure cabling

Technical Specifications

Inputs: 8 Analogue, electronically balanced

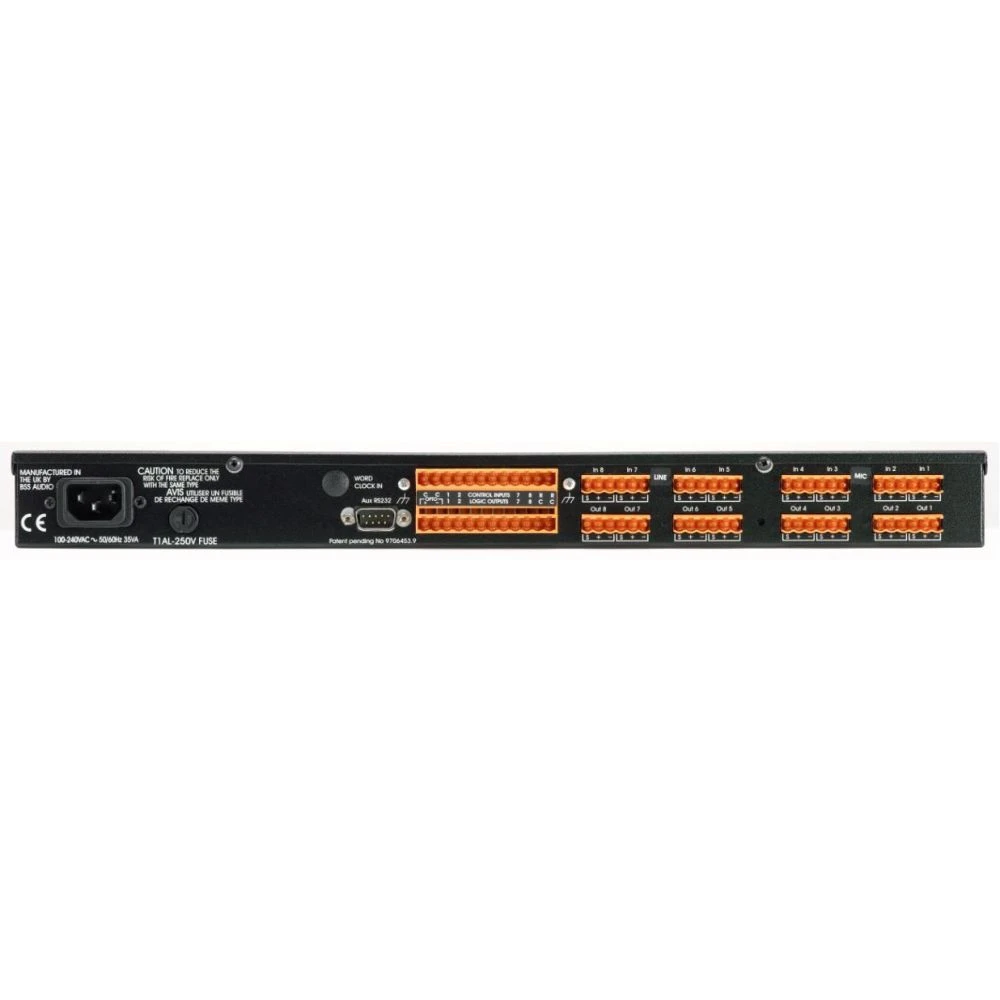

• Connectors: Phoenix/Combicon removable screw connectors
• Line Inputs: Nominal gain 0dB, electronically switchable to +12dB gain, input impedance 10kOhm
• Mic/Line Inputs: Nomical gain 0db, electronically switchable up to +72dB, in +6dB steps, input impedance 3.5kOhm
• Maximum input Level: +20dBu with 0dB input gain (+8dBu with 12dB gain)
• CMRR: >75dB at 1kHz
• Equiv. Input Noise (EIN): <-128dBu typ with 150 Ohms source
• Phantom Power: 48V nominal, selectable per input
• AES/EBU Digital Inputs: 2 x 2 channel inputs per card
• Sample Rates: 32 to 96kHz, auto selected
• Connectors: Phoenix/Combicon removable screw connectors

Outputs: 8 Analogue, electronically balanced

• Connectors: Phoenix/Combicon removable screw connectors
• Maximum Output Level: +20dBu
• AES/EBU Digital Outputs: 2 x 2 channel outputs per card
• Sample Rates: 44.1, 48, 88.2, 96kHz, user selectable
• Connectors: Phoenix/Combicon removable screw connectors
• Digital Resolution: 24 bit
• Frequency Response: 15Hz to 20kHz (+-0.5dB)
• THD: <0.01% (20Hz to 20kHz, +10dBu output)
• Dynamic Range: 105dB typ. (22Hz to 22kHz unweighted), 108dB typ. (A-weighted)
• Crosstalk: <-75dB

Control Ports: 8 Inputs and 8 Outputs

• Control Input Voltage: 0 to 4.5v
• Control Input Impedance: 4.7kOhms to +5V (2-wire mode); >1MOhm (3-wire mode)
• Logic Output Voltage: 0 or +5V unloaded
• Logic Output Impedance: 440 Ohm

Watchdog Output: Phoenix/Combicon connector for failsafe control

• Opto Output Current: 14mA maximum
• Withstanding Voltage: 80V maximum (Off)
• Series Impedance: 220 Ohms (isolated)

Other Info

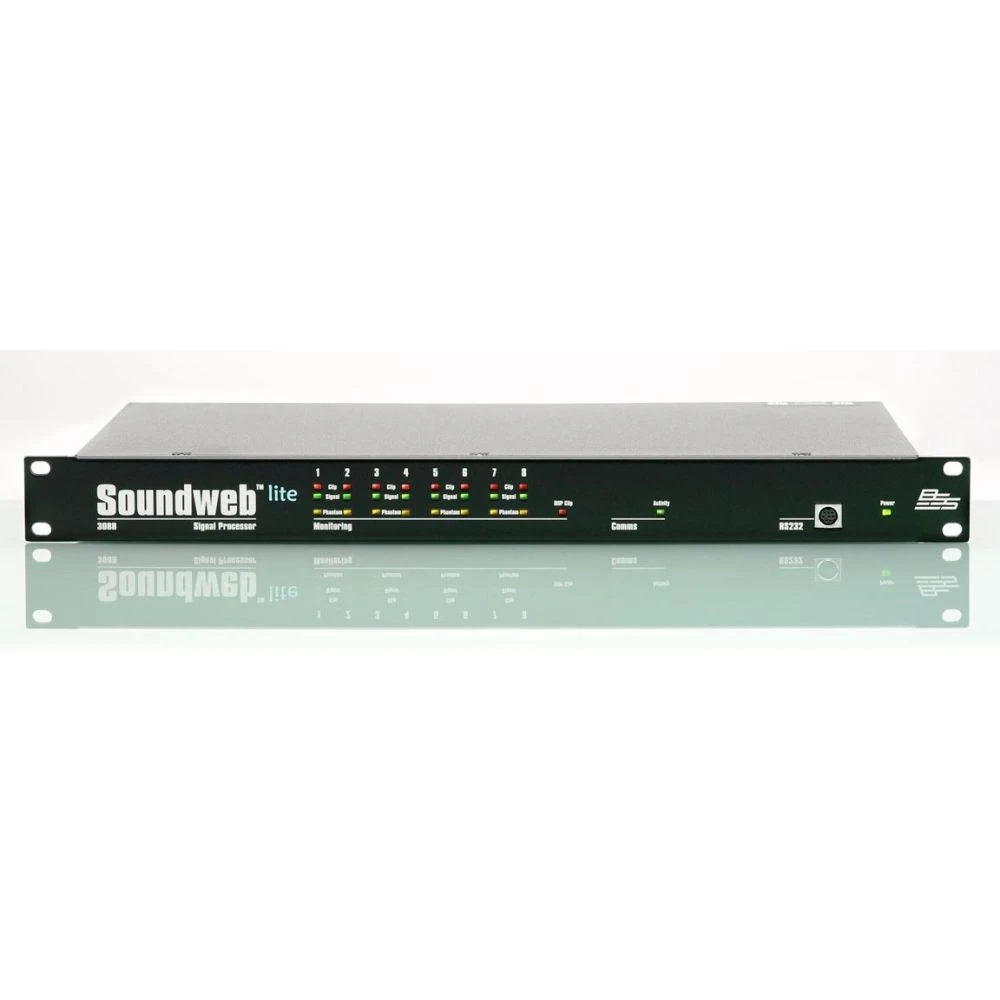

• Panel LED Indicators: Signal Present (per input), CLIP (per input)
• Mains Voltage: 85-270V AC, 50/60Hz
• Power Consumption: <35VA
