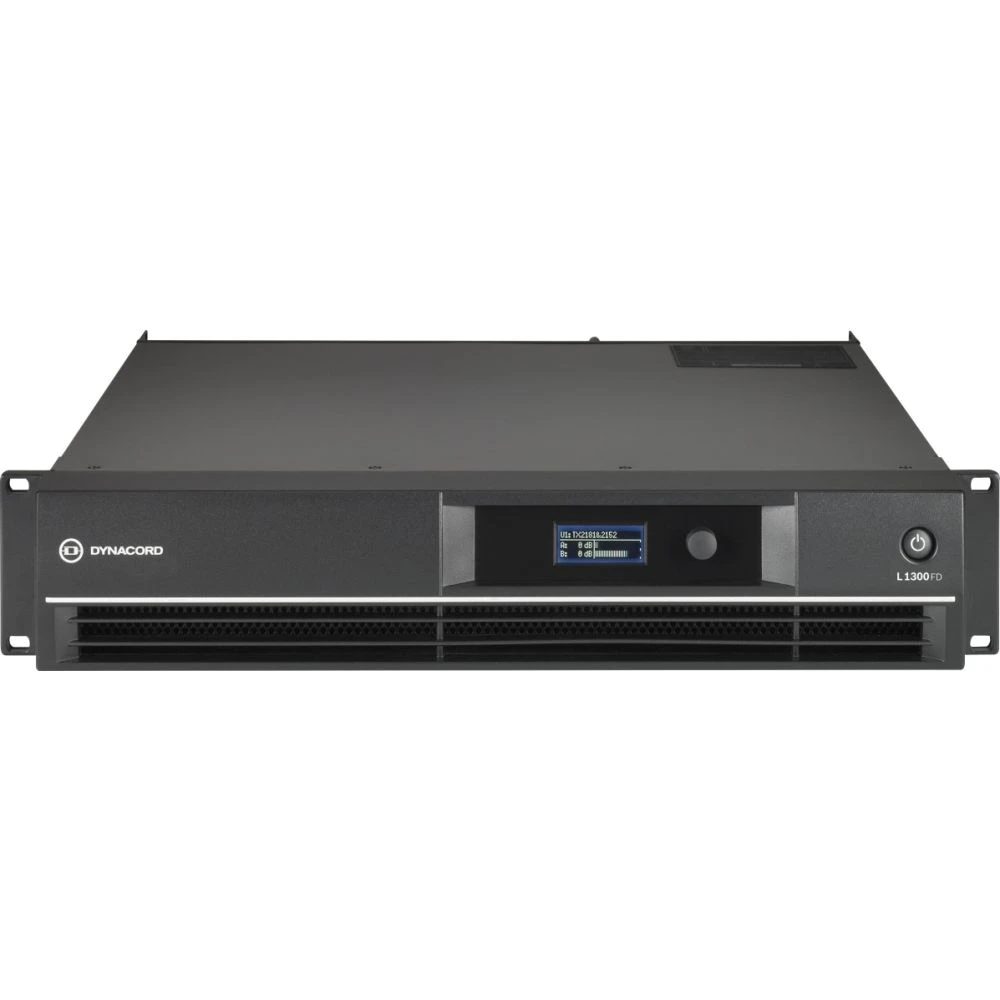

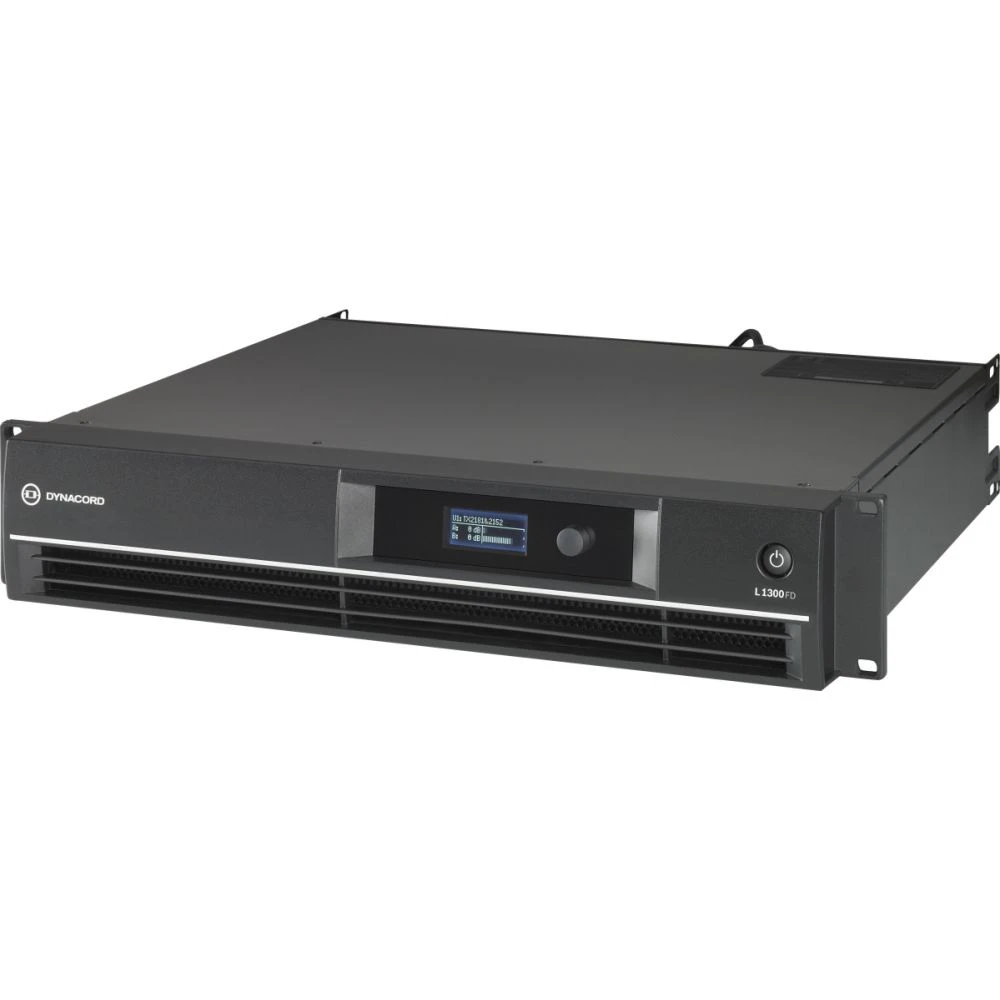

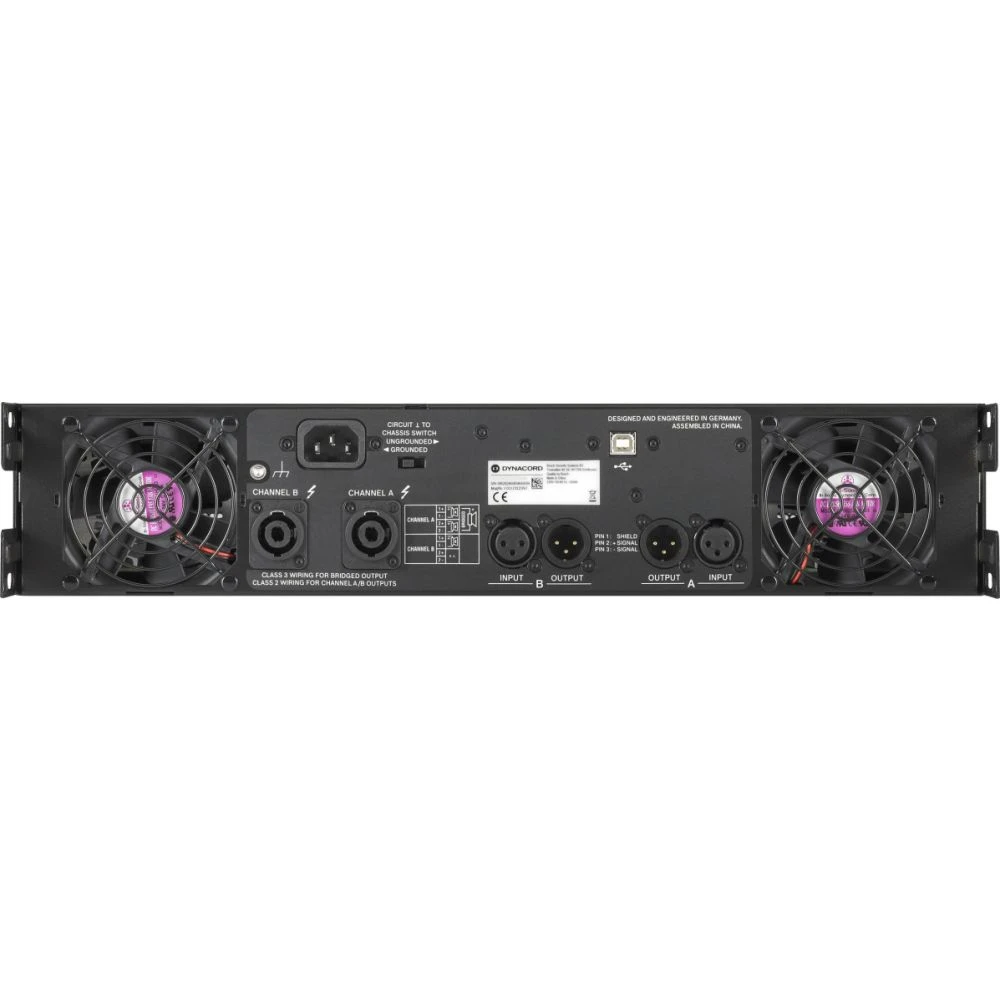

Dynacord L1300FD DSP 1300W Dual Channel Power Amplifier

Designed to handle live applications with ease and simplicity, the L1300FD is a professional-standard dual-channel audio amplifier that boasts a powerful integrated DSP that makes your life that much easier.

Boasting market-leading performance, reliability and connectivity, the L1300FD has been optimized to meet the needs of mobile applications, allowing for a fast system setup alongside flexible system control options and comprehensive supervision.

Dynacord L1300FD DSP 1300W Power Amplifier Key Features:

• Professional DSP Amplifier – Designed for both live and mobile applications, the compact design makes for easy transport and installation.
• Fully Integrated Speaker Processing – The built-in digital signal processing (DSP)utilizes innovative FIR drive technology to improve and correct your speakers for every environment.
• Market-Leading Performance – Utilizing Class A/B topologies, the L1300FD provides market-leading acoustic performance and rock solid reliability.
• Intuitive Interface – Designed to simplify set-up, control and operation, the versatile SONICUE sound system software makes light work of even the most demanding of situations.

Specifications:

• Maximum RMS Voltage Swing THD = 1%, 1 kHz: 55.3 V
• Voltage Gain Ref.1 kHz: 32.0 dB
• THD at 450 W/4 O MBW = 80 kHz, 1kHz: < 0.05%
• IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
• DIM30, 3.15 kHz, 15 kHz: < 0.05%
• Maximum Input Level: +21 dBu
• Crosstalk ref. 1 kHz, at 100W/4 O: < -80 dB
• Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
• Input Impedance, Active Balanced: 20 k O
• Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 O: >104 Db
• Output Noise, A-weighted: < -68 dBu
• Output Stage Topology: Class AB
• Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
• Power Consumption ? MaximumOutput Power @ 4 O: 550 W
• Mains Fuse: 240 V/230 V: T10AH; 120 V/100 V: T20AH
• Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
• Cooling: Front-to-rear, 3-stage-fans
• Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
• Safety Class: I
• Color: Black
• Dimensions (W x H x D), mm: 483 x 88 x 462.4
• Weight: 12.9 kg (28.4 lb)
• Signal Processing: FIR filters, audio limiters, output and array delay, 10-band user PEQ, 5-band array PEQ per channel, load impedance
• Remote Control: SONICUE sound system software
• Accessories: RMK15 (rear rack mount kit)
