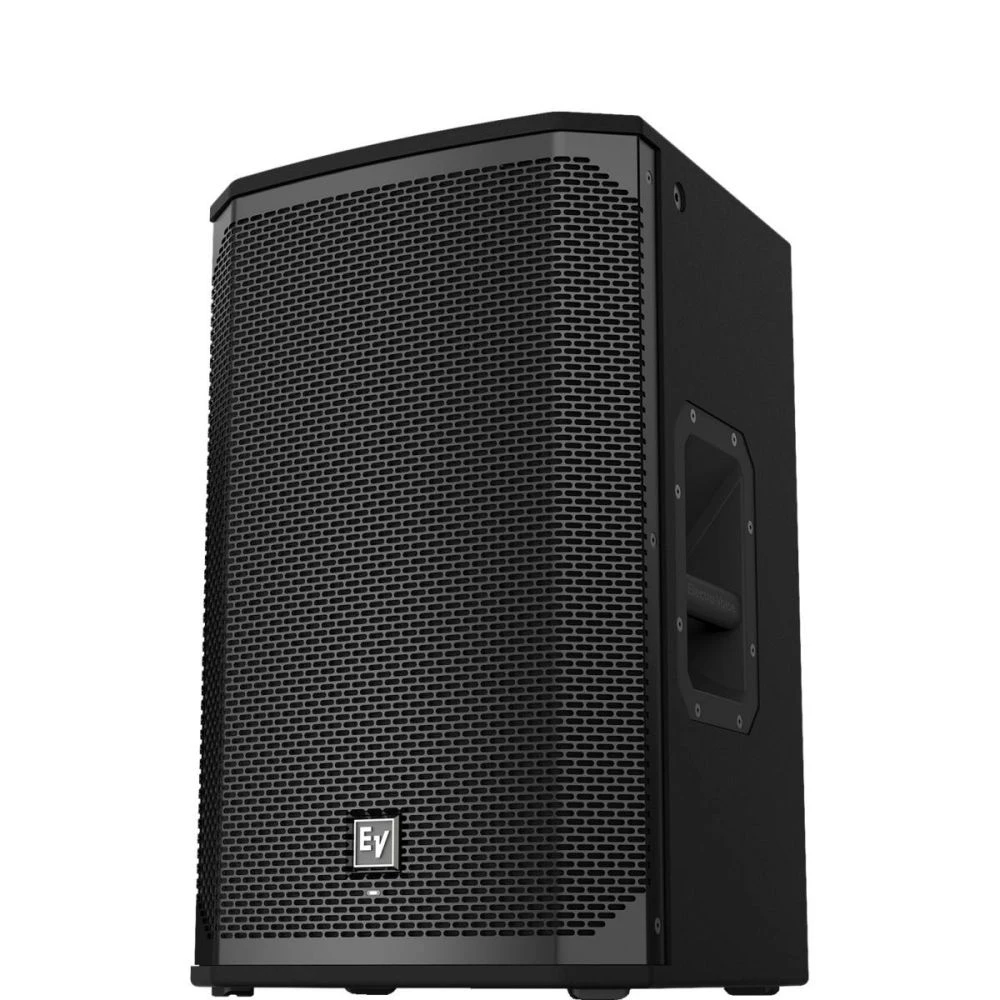

Electro-Voice EKX-12P 12″ Powered PA Loudspeaker

Designed to achieve maximum sonic impact with minimum effort, the EV EKX Series of loudspeakers ensures easy optimization for the perfect performance.

Maximum Sonic Impact, Minimum Effort

Boasting a compact and lightweight package that’s suitable for a wide range of sound reinforcement scenarios, the EKX-12P is a result of Electro-Voice’s engineering and innovation department working together in perfect harmony.

Featuring a wide range of professional features not often found at this price point – it’s the obvious choice for musicians and DJs for small-to-medium live sound environments.

Producing a whopping 1500 watts of Class D power, the high-efficiency amplifier and high-sensitivity transducers deliver up to 132 dB SPL. Utilizing EV’s signature single-knob LCD user interface and intuitive menu navigation system, all of the power is refined by the best-in-class QuickSmartDSP on-board processing and EV-patented Signal Synchronized Transducers (SST) which provide a precise and consistent coverage.

Complete with an intelligent thermal management system, sensor-controlled variable-speed fans ensure superior performance and reliability throughout even the most demanding of performance conditions.

Electro-Voice EKX-12P 12″ Powered PA Loudspeaker Key Features:

• High-Efficiency Active Loudspeaker
• 12″ Speaker, 1″ Tweeter
• 1500 Watts of Class D Amplification
• 132 dB Max SPL
• 50 Hz – 20 kHz Frequency Range
• QuickSmartDSP Processing
• Intelligent Thermal Management
• LCD Screen
• Lightweight 15.6 kg Design
• Compact 15mm Wood Enclosure with Internal Bracing
• Durable EVCoat Finish

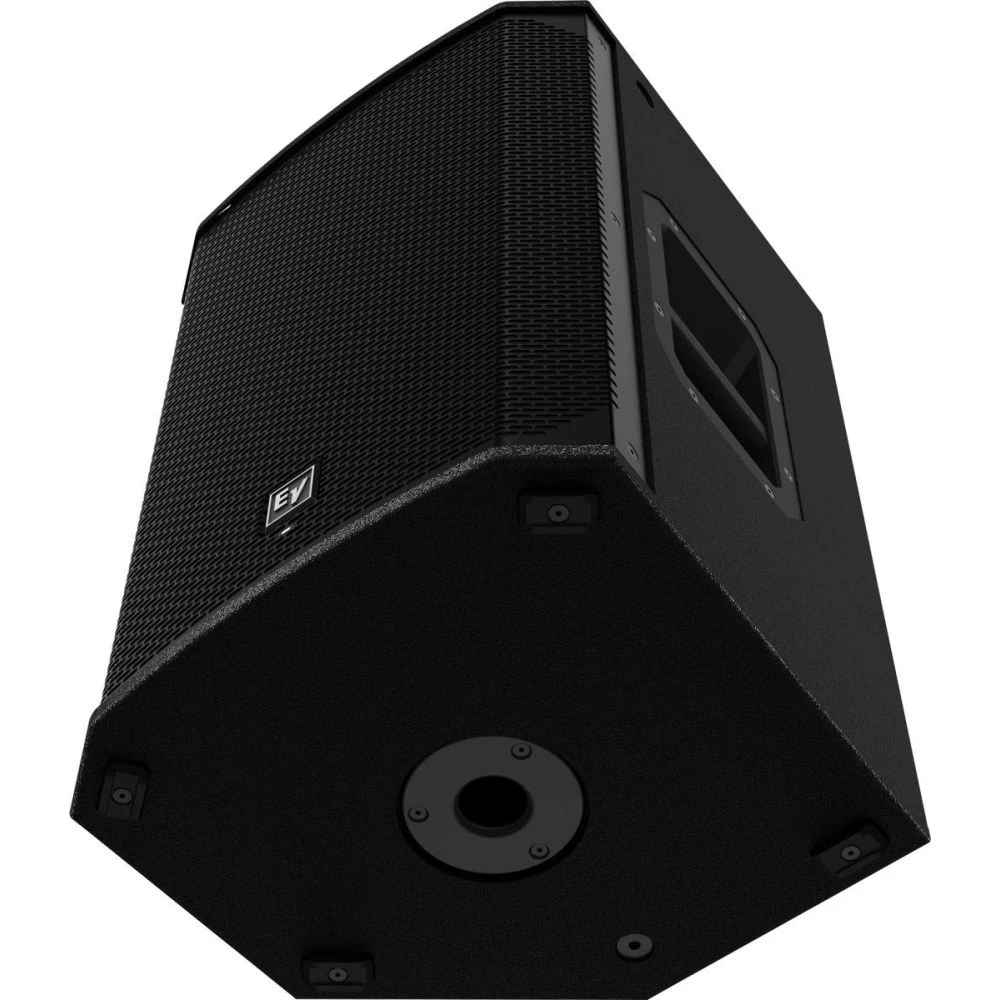

• Eight M10 Threaded Mounting Points#
• Aluminum Pole Mounts
• All-Metal Handles

Electro-Voice EKX-12P 12″ Powered PA Loudspeaker Specifications:

• Frequency Response: 60 Hz – 18 kHz
• Frequency Range: 50 Hz – 20 kHz
• Maximum SPL: 132 dB
• Coverage (Hort. x Vert.): 90° x 60°
• Power Rating: 1500 Watts
• LF Transducer: EVS-12M, 300 mm (12 in) Woofer
• HF Transducer: DH-1M 1-inch titanium compression driver
• Crossover Frequency: 1.7 kHz

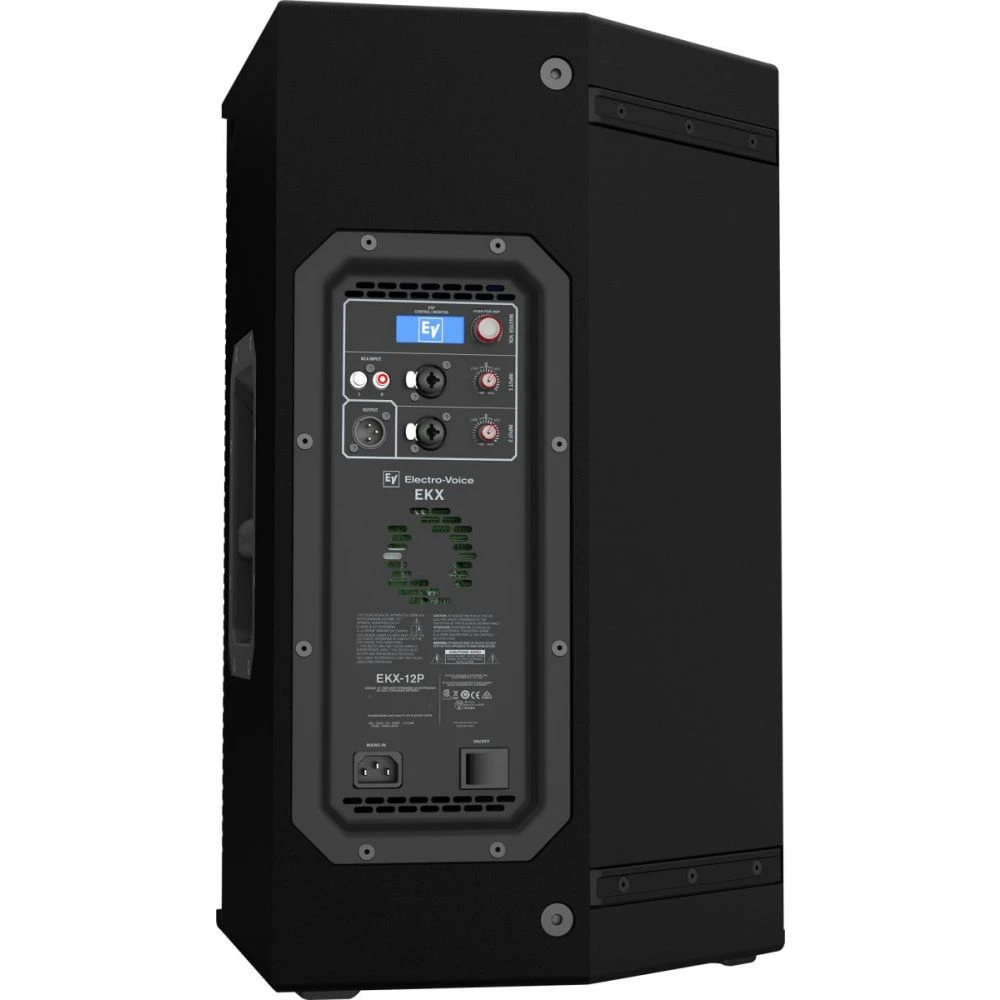

• Connectors: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Enclosure: 15 mm plywood with EVCoat
• Grille: 18 AWG steel with powdercoat
• Dimensions (H x W x D): 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)
• Net Weight: 18.8 kg (41.4 lb)
• Shipping Weight: 22.9 kg (50.4 lb)
