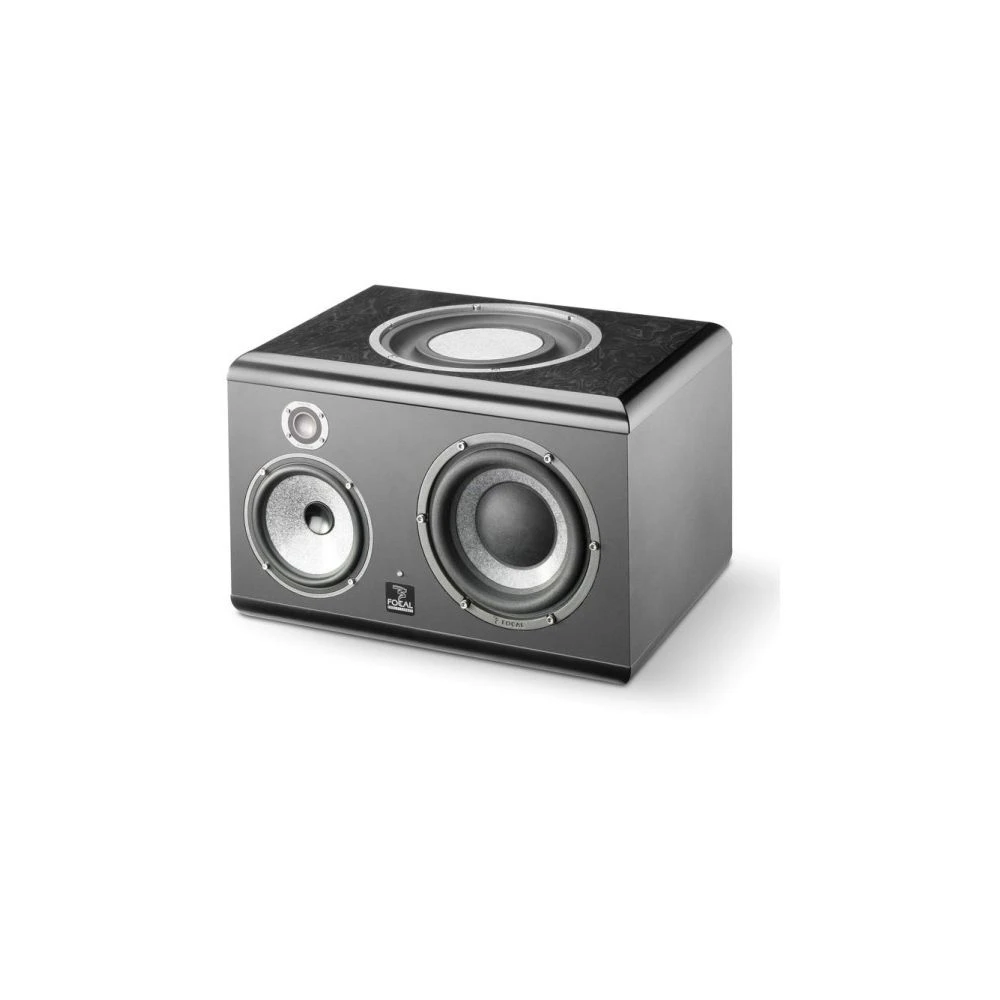

Focal SM9R Active Studio Monitor – Right

Every studio speaker you could need, large main 3-way monitor and standard 2-way nearfield speaker in one. Further tuning is possible with extensive EQ options for tailoring the SM9 to your listening environment. All this is underpinned by some of the finest speaker design available from award winning, masters of audio Focal.

The Focal SM9 garnered a glowing review in Sound On Sound

There is no doubt in my mind that the Focal SM9 is one of the finest monitors in its class available today. The level of performance packed into its modestly sized cabinet is extremely high and more than justifies its asking price. If you are in the fortunate position of being in search of a nearfield monitor at anywhere around or above its price point, the SM9 is a monitor that you really have to audition. For my part, I’ve started saving already!

* Additional Shipping Charges may apply for this item. Please call us on 0151 448 2089 and we’ll be happy to advise.

Specifications

Frequency response

• 3-way mode: 30Hz – 40kHz (+/- 3dB) / 40Hz – 20kHz (+/- 1dB)
• 2-way mode (Focus): 90Hz – 20kHz (+/- 3dB)

Maximum SPL:

• 3-way mode: 116dB SPL (peak @ 1m)
• 2-way mode (Focus): 106dB SPL (peak @ 1m)

Input

• Type / Impedance: Electronically balanced / 10 kOhms
• Connector: XLR
• Sensitivity: Adjustable, +4dBu or -10dBV
• Bass: 400W, class AB
• Midrange: 100W, class AB
• Treble: 100W, class AB
• Power – Local supply: 230V (3.15A fuse) 115V (6.3A)
• Connection: IEC inlet and detachable power cord

Rear Panel

• Input sensitivity selector (+4dBu / -10dBV)
• High-pass crossover (full range, 45, 60, 90Hz @ -6dB)
• Low frequency shelving (+/- 3dB from 30 to 250Hz per step of 0.5dB)
• High frequency shelving (+/- 3dB from 4.5 to 40kHz per step of 0.5dB)
• Low frequency EQ (+/- 3dB per step of 0.5dB @ 50Hz, Q factor = 2)
• Low-mid frequency EQ (+/- 3dB per step of 0.5dB @ 160Hz, Q factor = 1)
• Mid frequency EQ (+/- 3dB per step of 0.5dB @ 1kHz, Q factor = 0.6)

Side Panel

• Stand By / On switch
• Direct switch
• Focus switch
• Light indicator: Power On, clipping and default on front panel LED

Transducers

• Passive radiator: 11WPP52, 11″ (27cm) Focal “W” composite sandwich cone piston, extra wide inverted surround radiator
• Subwoofer: 8W7571, 8″ (20cm) Focal “W” composite sandwich cone driver
• Midrange: 6W0452, 6.5″ (16.5cm) Focal “W” composite sandwich cone driver
• Tweeter: TB872, 1″ pure Beryllium inverted dome tweeter

Cabinet

• Construction: 0.88″(22mm) and 1.2″ (30mm) panels with internal braces
• Finish: Black natural veneering top and bottom panels, black body
• Dimensions: (HxLxD) 12.8″ x 19.6″ x 15.6″ (320mm x 490mm x 390mm)
• Weight: 77lb (35kg)
