Korg Nu:Tekt NTS-2 DIY Oscilloscope Synth Bundle

Combining the all-new Korg NTS-2 Oscilloscope with a copy of the ‘Patch & Tweak with Korg’ book, you’ve got the perfect do-it-yourself kit for any synth enthusiast – developed together to deliver a hands-on guide to inspire synth lovers at every stage of their journey.

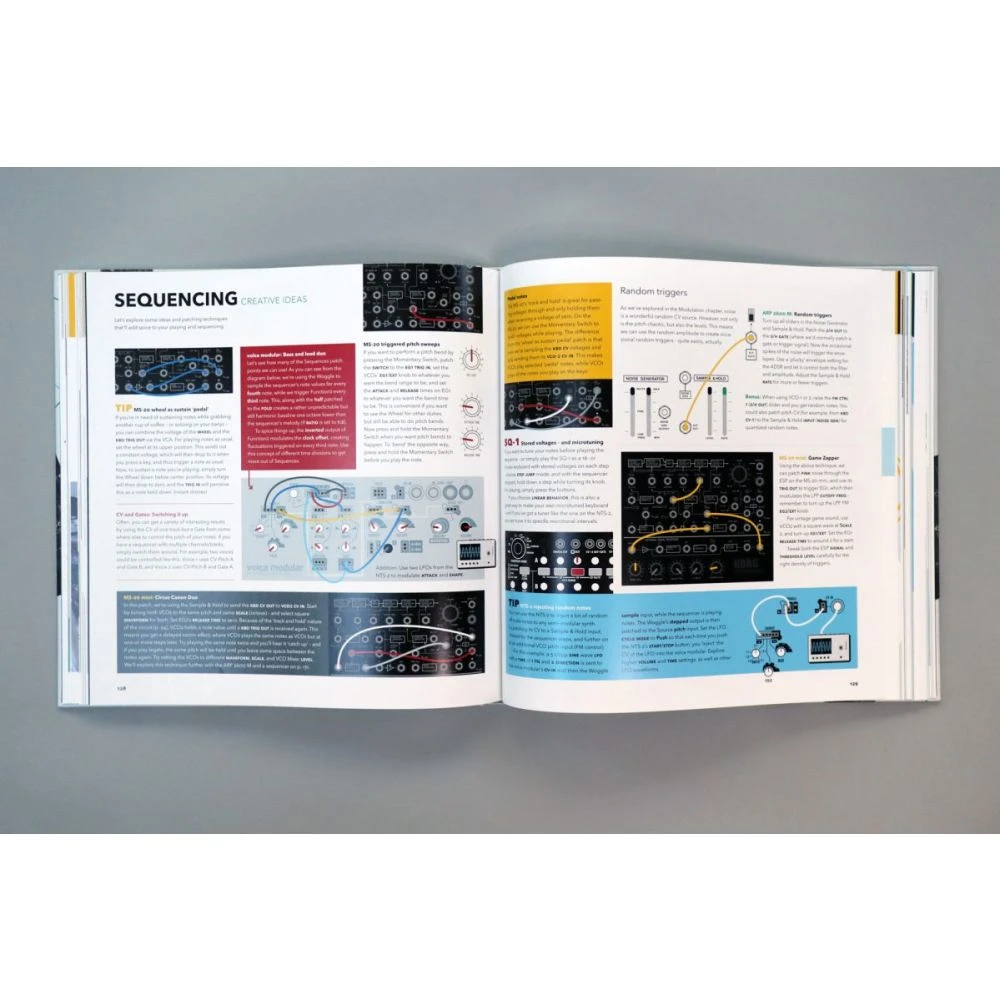

Exploring the world of semi-modular synthesis, the 216-page hardback book boasts a range of guides and interviews from the likes of Townshend, Jean-Michel Jarre, Richard Devine and more. With exclusive tutorials for your Nu:Tekt NTS-2, you’ll build it from scratch, without the need for any soldering, and soon begin a range of experiments before venturing out into the vast world of semi-modular synthesis.

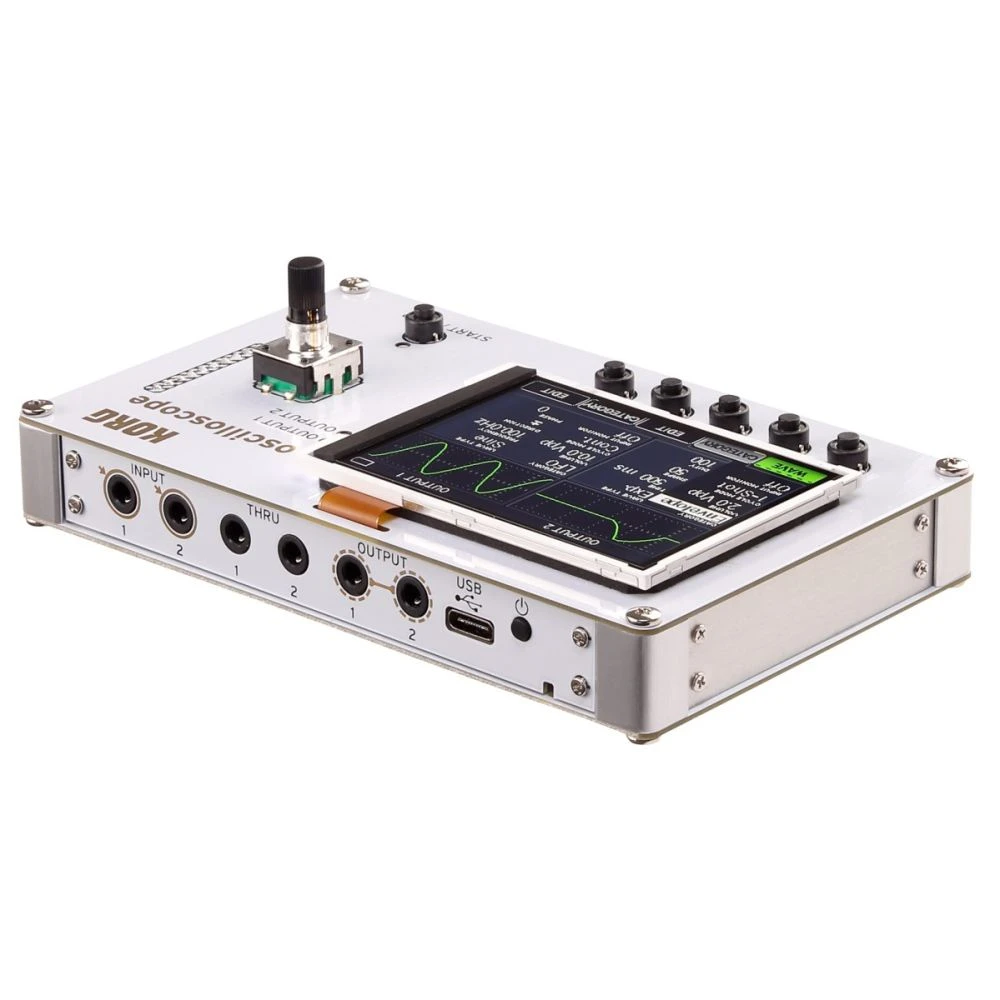

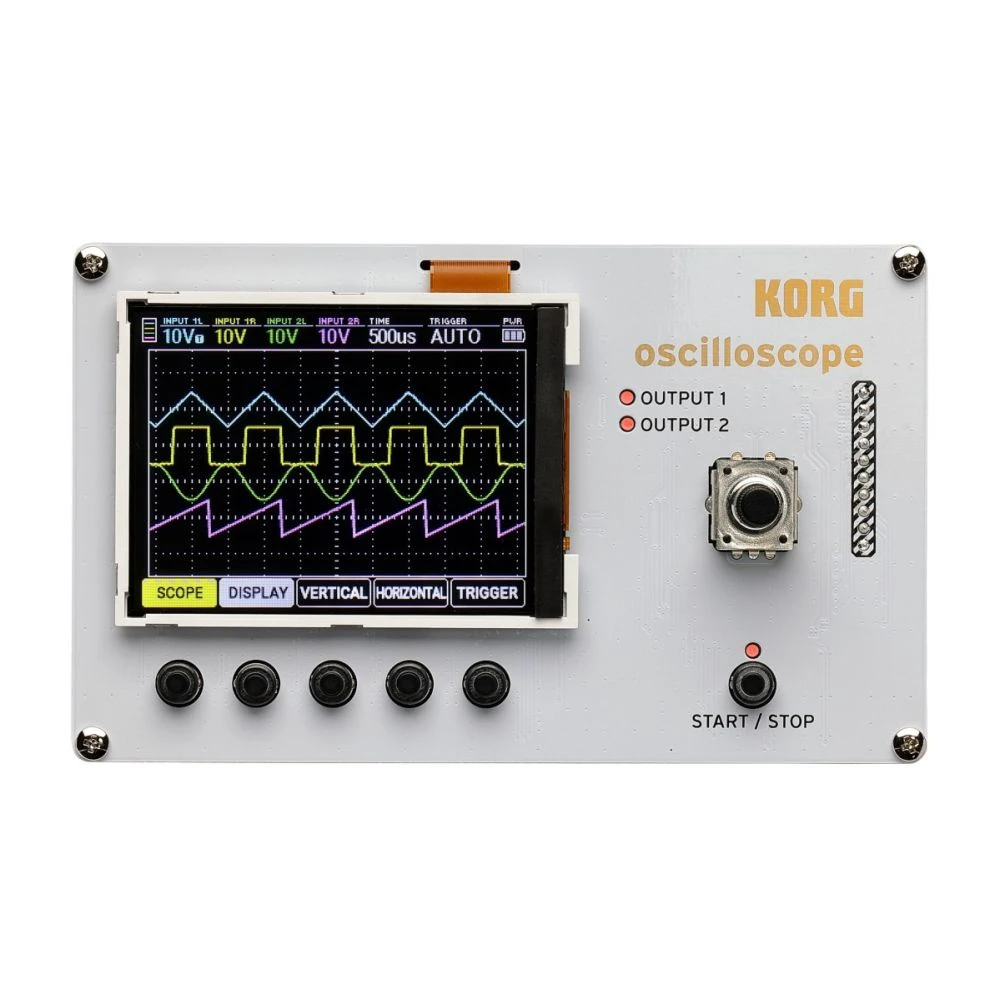

Boasting a 4-channel oscilloscope, the NTS-2 includes a flexible waveform generator, spectrum analyzer and even a tuner – making it a practical addition to any studio. Ideal for visualizing signals and voltages, the NTS-2’s interface is simple, clean, and easy to use with a large screen and intuitive controls.

As well as tutorials, tips, and tricks that cover everything from synth basics to advanced sound design, you’ll find sections for the Korg MS-20 Mini, Volca Modular, reimagined ARP 2600 M, and the SQ-1 and SQ-64 sequencers, you’re guaranteed to come away with a plethora of synthesis-based knowledge and waveform-induced happiness!

Korg Nu:Tekt NTS-2 DIY Oscilloscope Synth Kit Key Features:

• Limited Edition Bundle – Conceived and developed to complement each other, the NTS-2 kit and book provide a fascinating insight into synth usage and history as well as the tools and to guide several tutorials.

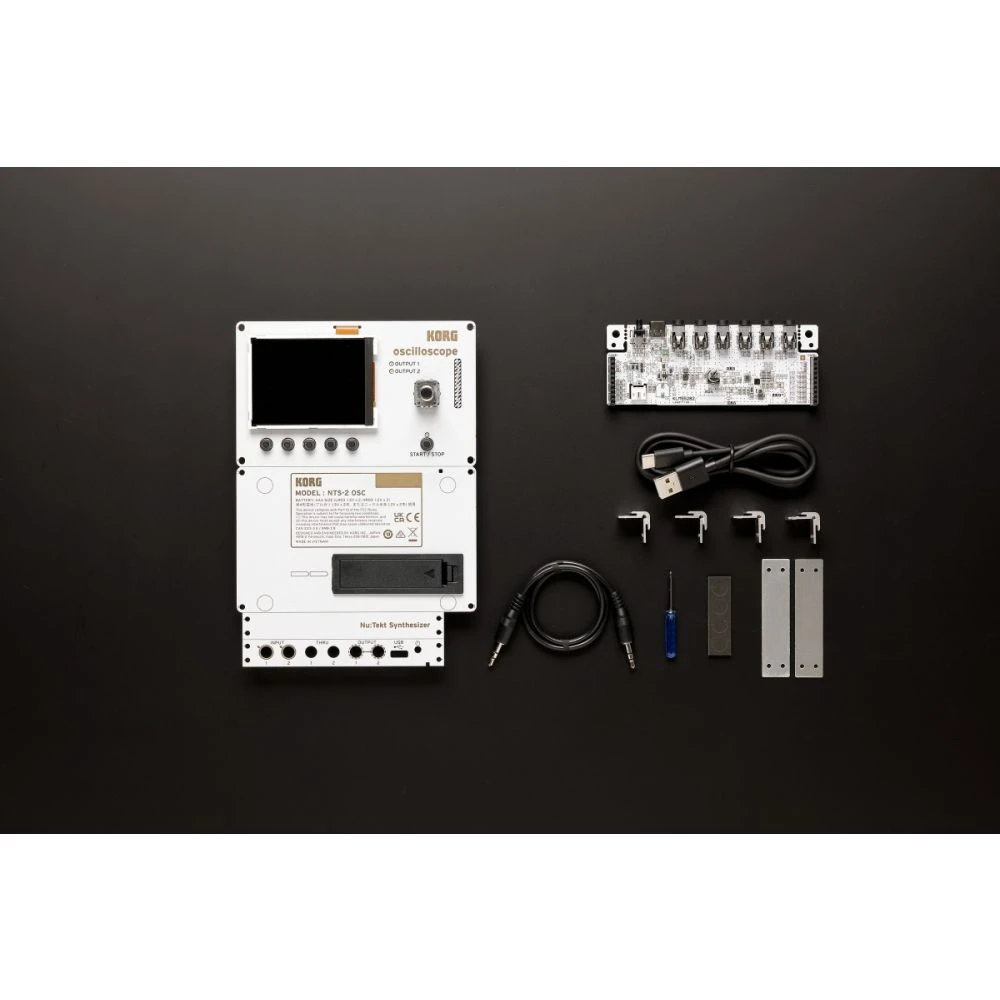

• Do It Yourself – Usually taking no more than 10 minutes, the NTS-2 comes in kit form and can be easily built without any soldering.
• Feature-Filled – An all-in-one oscilloscope, tuner, FFT and spectrum analyzer, the NTS-2 is accurate, intuitive, and incredibly useful.
• Patch & Tweak with Korg – 216 pages of dedicated semi-modular synth content, you’ll find guides, tutorials, interviews, experiments and much, much more!

Korg Nu:Tekt NTS-2 DIY Oscilloscope Synth Kit Specifications:

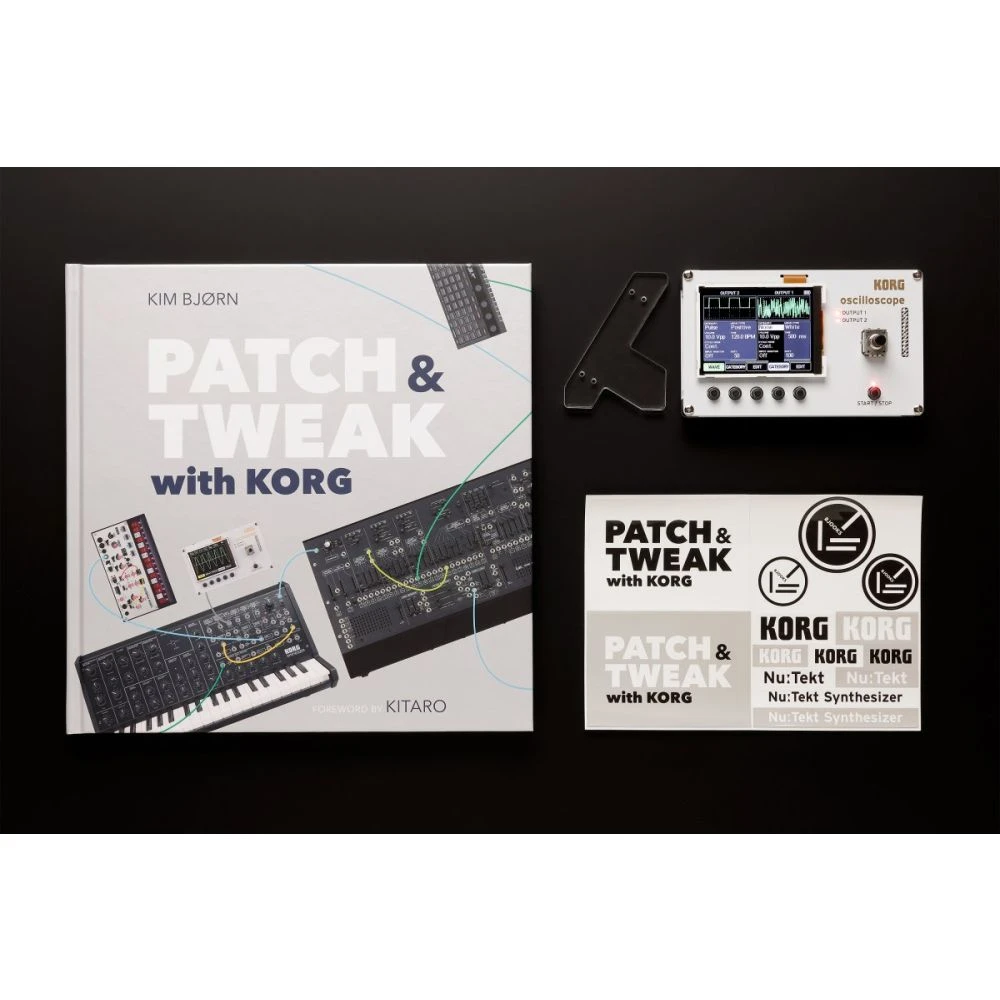

• Included Items: NTS-2, ‘Patch & Tweak with Korg’ book, side panels for NTS-2, Stickers
• Bundle Weight: Gross 1.480kg, Net 1.320kg
• Bundle Dimensions: 26.3 x 6.5 x 27.3cm
• Book Number of Pages: 216
• Oscilloscope Modes: Single, Stereo (Input1L-INPUT1R, Input1L – Input2L, Input2L – Input2R), 4ch, XY(Lissajous, 2ch)
• Oscilloscope Vertical: 10mV~5V/div, AC/DC MODE switchable
• Oscilloscope Horizontal: 50us~1s/div
• Oscilloscope Trigger: Auto, Rise, Fall, Single(rise), Single(fall)
• Spectrum Analyser Input: Mono (1L, 1R, 2L, 2R)
• Spectrum Analyser Frequency: 20Hz~20kHz
• Tone Generator Types: sine, square, triangle, saw, noise, pulse, envelope
• Tone Generator Frequency: 1Hz~10kHz, Hz/NOTE mode switchable [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
• Tone Generator Output: 10Vpp max, V/dB mode switchable
• Tuner Modes: Needle, meter
• Tuner Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
• Tuner Calibration: 410-480Hz
