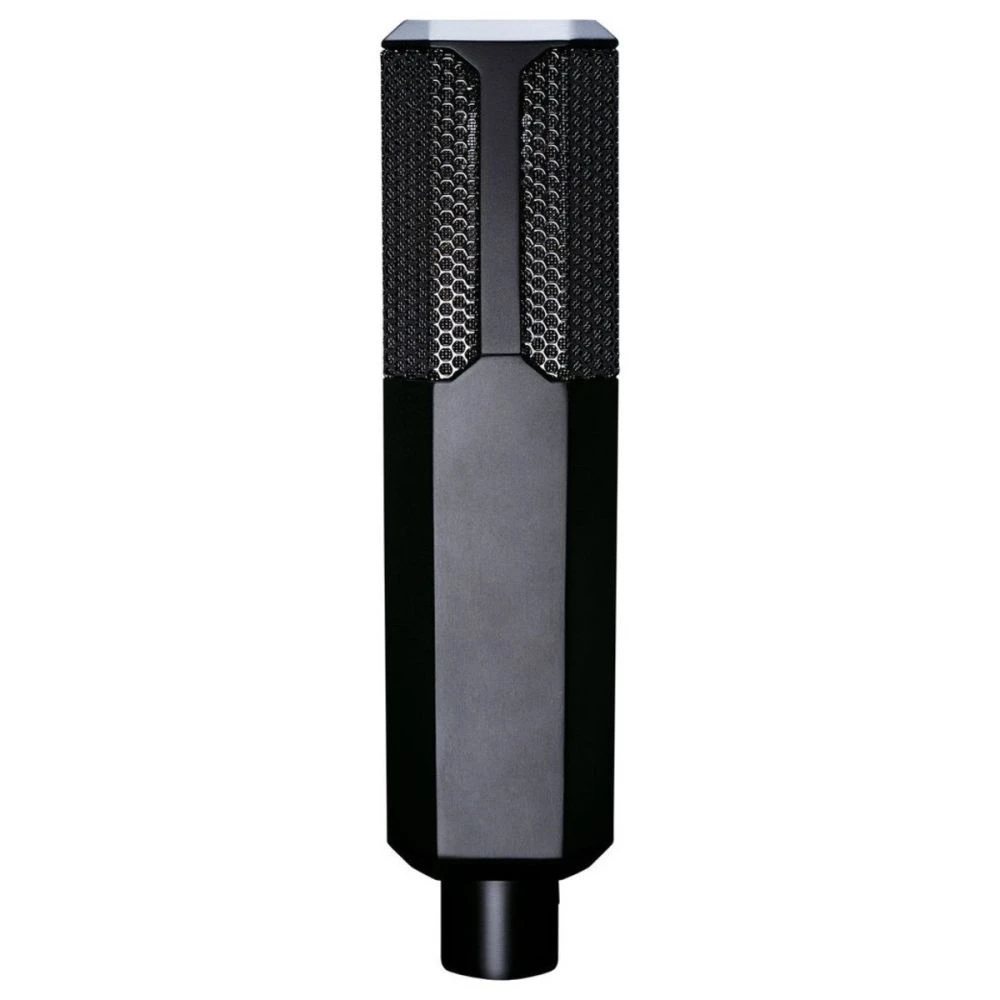

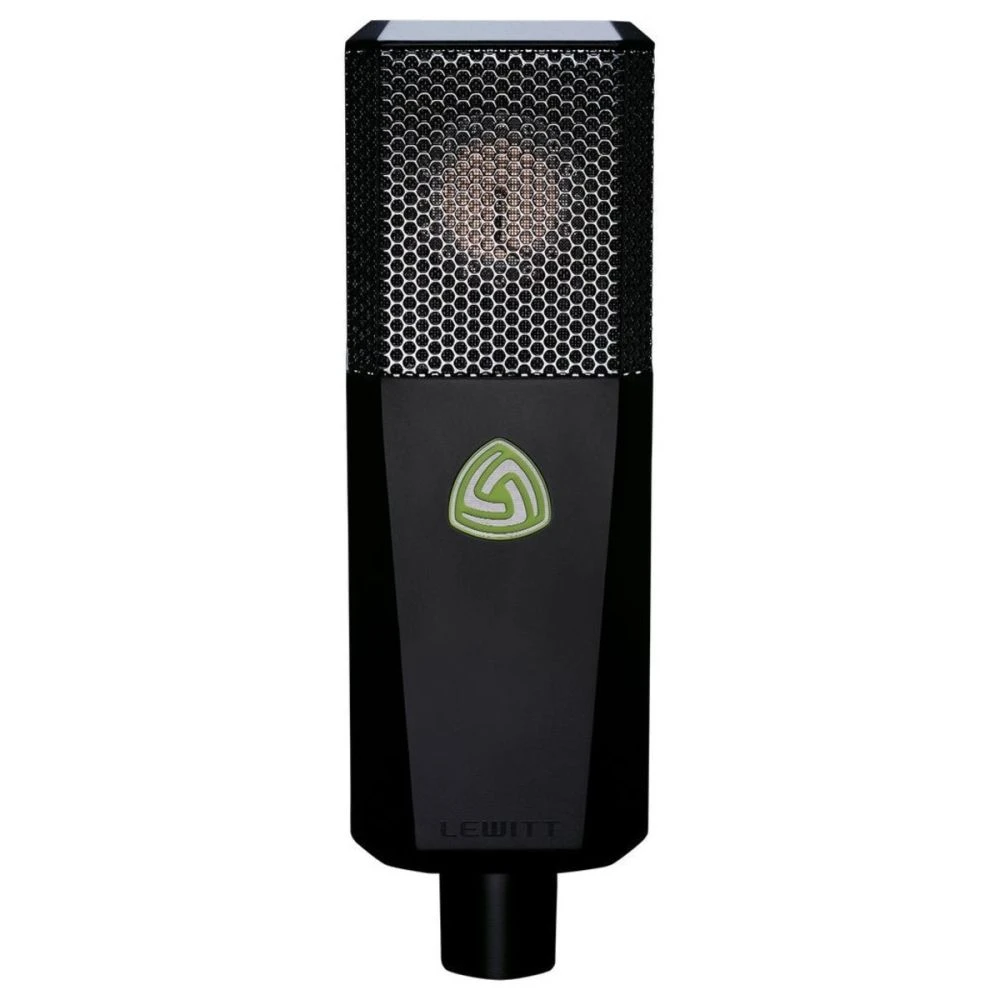

Lewitt LCT 940 FET Condenser/Tube Microphone

Get sublime sound source clarity with the Lewitt LCT 940 FET Condenser/Tube Microphone, a top-of-the-line offering from the audio hardware masters that combines FET condenser circuitry with premium tubes to deliver exceptional studio quality results.

Perfect for literally any recording scenario thrown the user’s way, track everything from vocals, instruments, and much more and experience crystal clear dynamic precision straight out of the box.

Key Features:

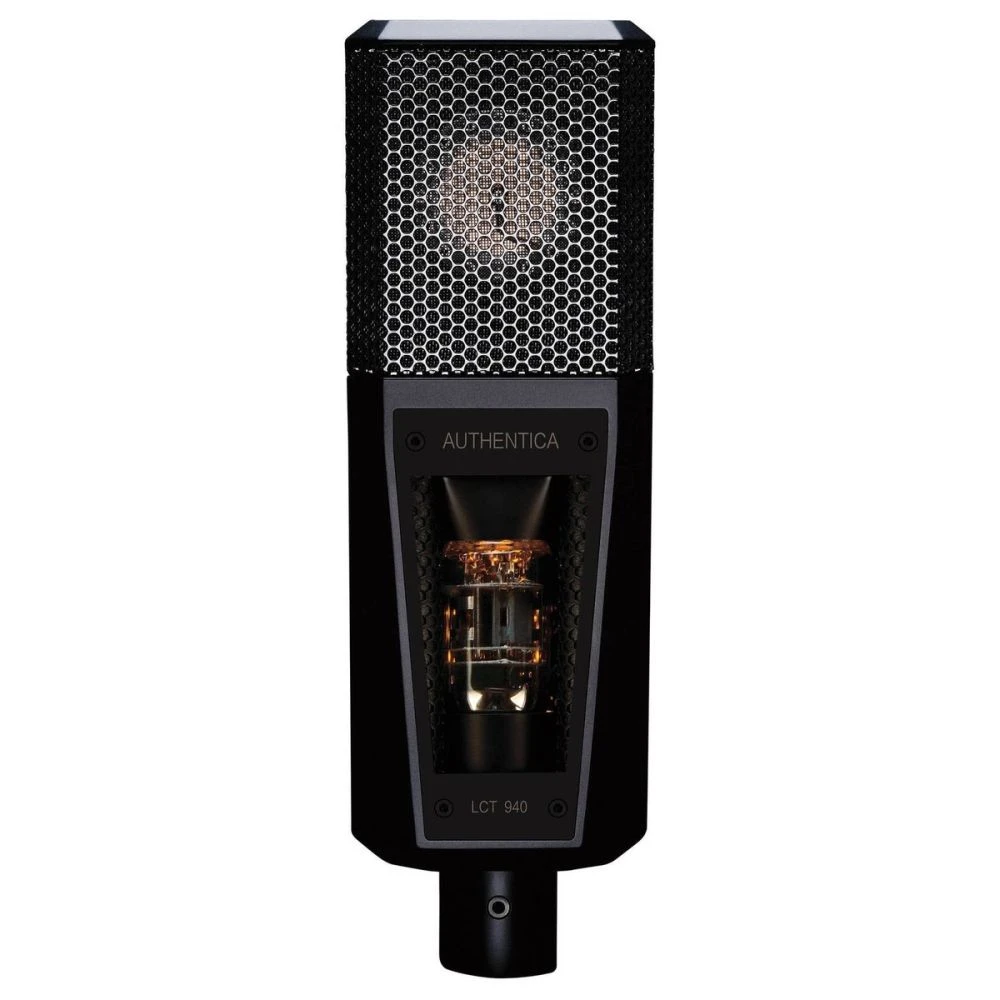

Dual Triode 12AX7 Tube Circuit: Showcasing a dual triode 12AX7 tube that provides low-self-noise and a vast dynamic range, the LCT 940 captures every finer nuance from the sound source to take your projects to the next level.

FET Condenser Circuit: Adding further sharpness and shimmer that’s associated with latter-day mic offerings, the FET condenser circuitry features a 1-inch capsule which picks up every finer detail of performances. With a 3-micron, gold layered, low-mass diaphragm, the LCT 940 FET can essentially handle any sound or scenario effortlessly.

9 Selectable Polar Patterns: In addition, the included remote control unit allows users to navigate between the 9 selectable polar patterns. Consisting of Omnidirectional, Wide Cardioid, Cardioid, Supercardioid, Figure-8 and 4 intermediate patterns. Not only that, users can blend between certain patterns to create unique tonality.

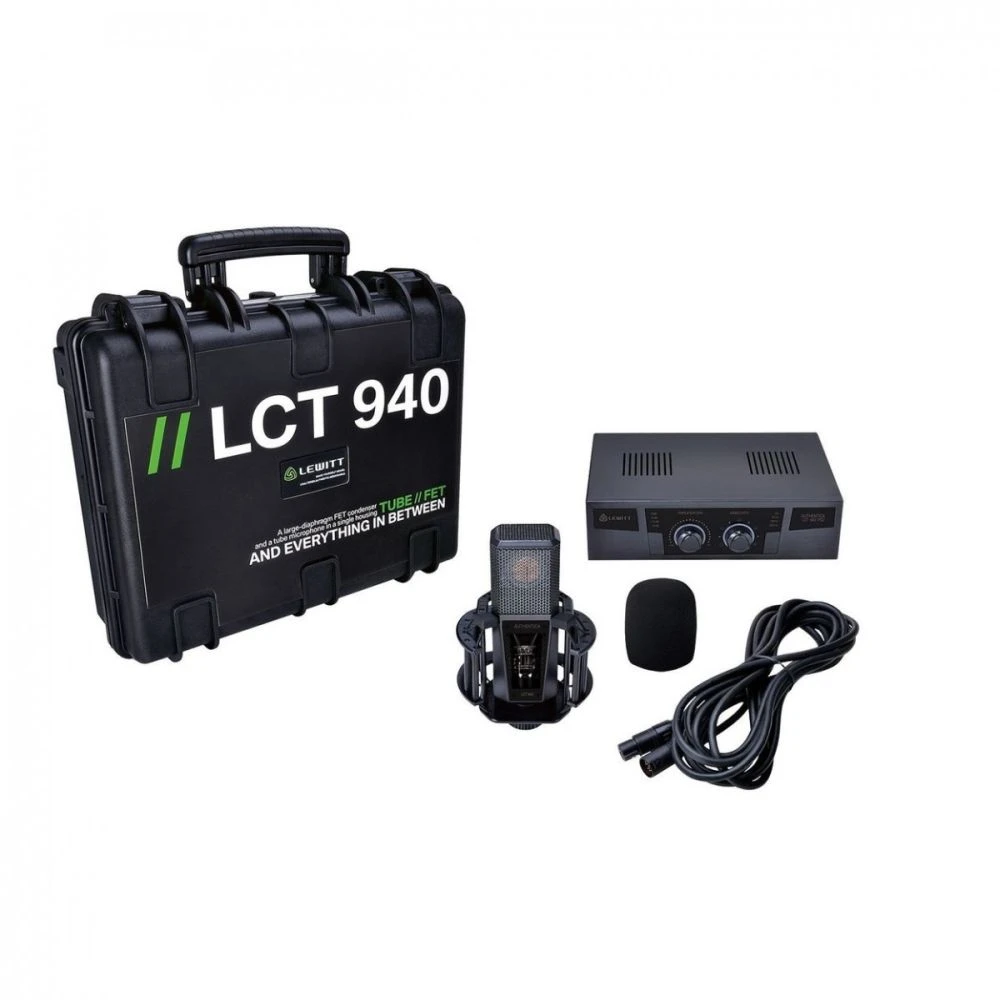

Robust Design: Crafted to handle the demands of the modern producer, the LCT 940 comes with its very own dedicated shock mount, ensuring enhanced stability and minimal noise.

Lewitt LCT 940 FET Condenser/Tube Microphone Specifications:

• Type: Condenser, externally polarized
• Acoustical Operating Principle: Pressure gradient transducer
• Transducer Ø: 25.4 mm, 1 in
• Polar Pattern: Omni, wide cardioid, cardioid, super cardioid, figure-8, four intermediate patterns
• Frequency Range: 20 … 20,000 Hz
• Sensitivity: 23 mV/Pa, -33 dBV/Pa (cardioid), 20 mV/Pa, -34 dBV/Pa (omni), 23 mV/Pa, -33 dBV/Pa (figure-8)
• Equivalent Noise Level (FET): 8 dB (A), cardioid, 9 dB (A), omni, 8 dB (A), figure-8
• Equivalent Noise Level (Tube): 12 dB (A), cardioid, 13 dB (A), omni, 12 dB (A), figure-8
• Max. SPL for 0.5 percent THD (FET): 143 dB SPL, 0 dB pre-attenuation
• Max. SPL for 0.5 percent THD (Tube): 140 dB SPL, 0 dB pre-attenuation
• Signal / Noise Ratio (FET): 86 dB (A)
• Signal / Noise Ratio (Tube): 82 dB (A)
• Dynamic Range Of FET mic. Amp.: 135 dB
• Dynamic Range Of Tube mic. Amp: 128 dB
• Pre-attenuation Pad: 0 dB, -6 dB, -12 dB, -18 dB
• Low-cut Filter: Linear, 40 Hz (12 dB/oct), 150 Hz (6 dB/oct), 300 Hz (6 dB/oct)
• Internal Impedance: 200 Ohms
• Rated Load Impedance: 1,000 Ohms
• PSU – Supply Voltage: 230 V, 50 Hz, 110 V, 60 Hz
• Current Consumption: 170 mA
• Connector: Gold plated 11-pin XLR
• Microphone Dimensions: 192 x 60 x 46 mm, 7.5 x 2.4 x 1.8 in
• PSU Dimensions: 250 x 150 x 70 mm, 9.8 x 5.9 x 2.8 in
• Microphone Net Weight: 662 g, 23.3 oz
• PSU Net Weight: 1930 g, 68.1 oz
