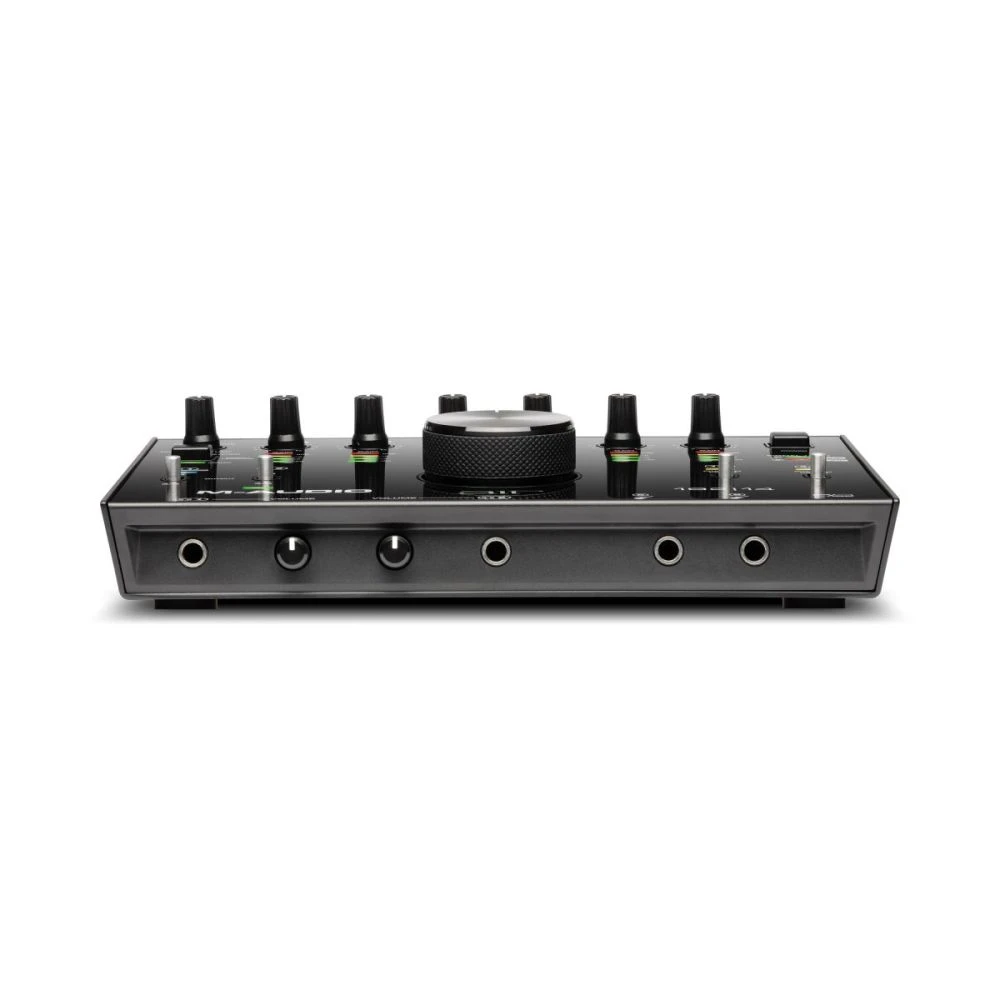

M-Audio AIR 192 14 Audio Interface

Are you looking to record and mix studio-quality audio, and need a new, easy to use, and versatile interface to help get the job done? Then the M-Audio AIR 192 | 14 Audio Interface could well be for you!

8-In / 4-Out USB Audio Interface

This intuitive interface is housed in a professional-grade metal chassis, is packed full of high quality components, and can be yours now for a fantastic price!

M-Audio AIR 192 | 14 Audio Interface Highlights

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-speed USB circuitry for fastest connection, with classleading round-trip latency of 2.59ms
• Transparent CrystalTM preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialling in the perfect level
• (4) XLR+ 1/4-inch TRS combo inputs, (2) 1/4-inch instrument inputs and (2) 1/4-inch line inputs
• MIDI input/output for connecting virtually any external MIDI gear
• Stereo 1/4-inch with direct mono/stereo switch; (2) 1/4-inch assignable auxiliary outs
• (2) 1/4-inch headphone outputs with independent source and level controls
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal

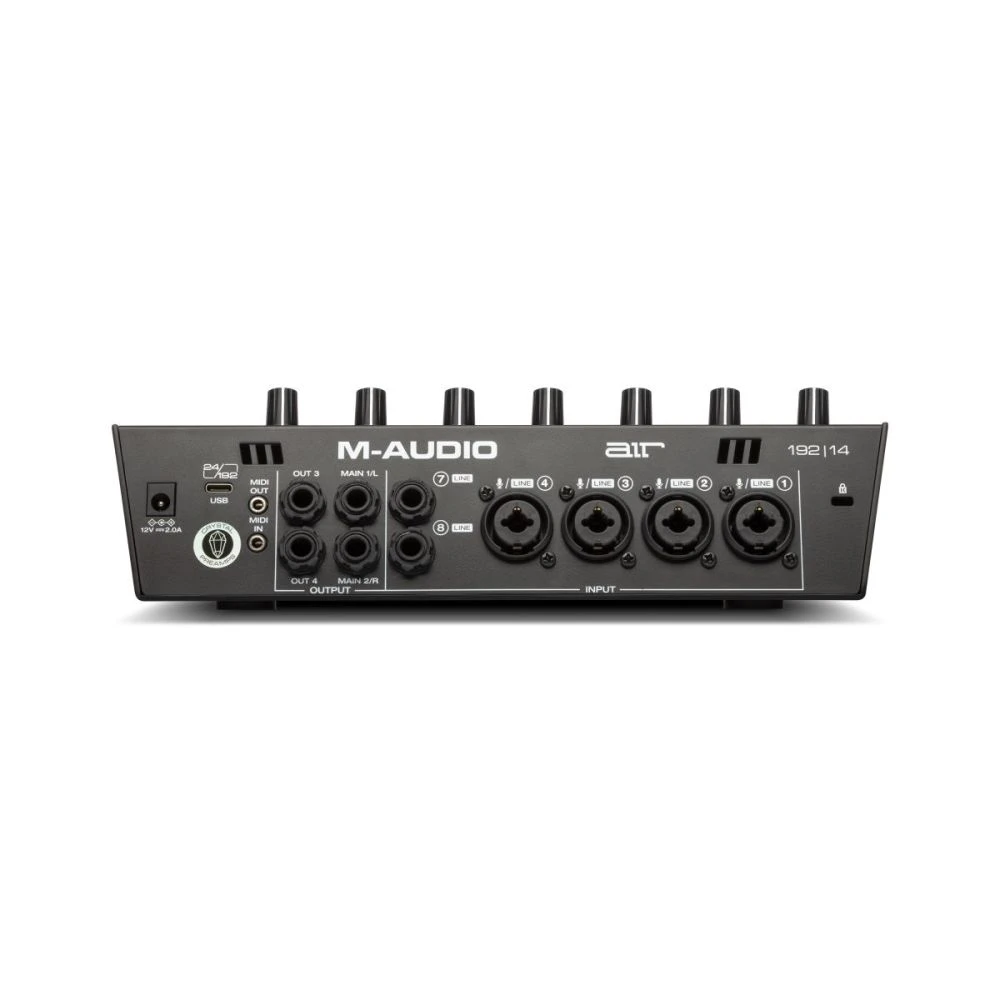

Connect Anything You Want

With 8 inputs, and the capability of recording up to 8 channels simultaneously, the M-Audio AIR 192 | 14 is sure to meet all of your studio recording needs.

Four of the inputs are dedicated XLR/TRS Mic/Line combo sockets, each with Crystal Pre-amps and phantom power, making them suitable for vocals, acoustic guitars, or even micing up the core elements of a drum kit and a bass amp!

In addition to this, there’s two 1/4″ dedicated instrument inputs, which use specially designed gain and impedance staging to ensure the cleanest possible signal.

And finally there’s a pair of 1/4″ dedicated Line inputs, for a pure uncoloured signal from your tube amp, keyboard, synth, or mixer, alongside MIDI I/O for any boutique synth gear you may want to record.

High Quality Construction

To ensure the very best sound from your microphone, the AIR 192 | 14 features M-Audio’s exclusive Crystal Preamps.

These preamps are designed to be transparent and low-noise, making sure your recordings are exactly as you want to hear them.

In addition to this, there’s a set of pristine A/D converters, which offer 24-bit resolution digital audio, with an incredible dynamic range that translates every nuance and subtlety of your performance.

Not only that, but this combines with class-leading sample rate of up to 192kHz, ensuring you get the very best sound possible.

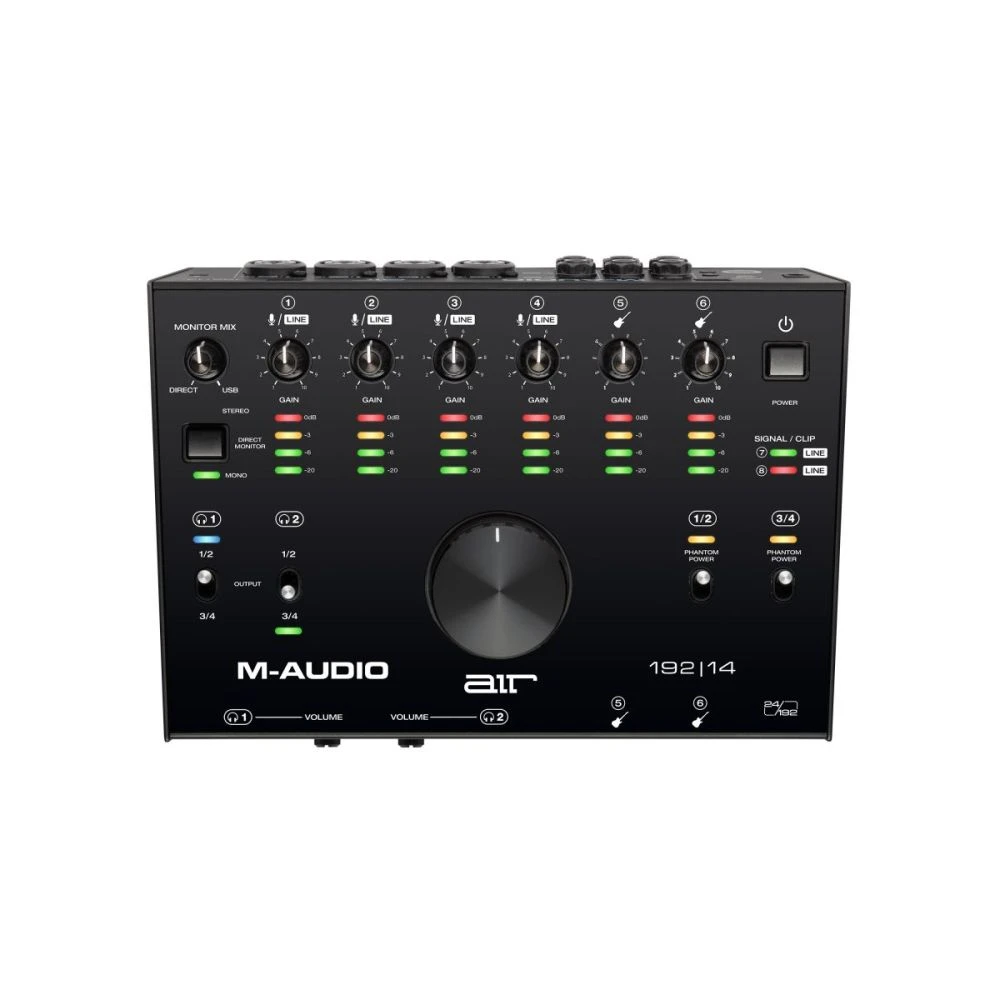

Mix And Monitor

Sitting (quite noticeably) in the centre of the AIR 192 | 4 is a large metal monitor volume knob, with a comfortable textured grip, that allows you to smoothly dial in the output of your monitors.

Both the monitor and headphone outputs are equipped with a direct mono/stereo switch, along with a direct/USB mix knob, and the headphone sockets also feature independent volume controls, alongside a source select switch, allowing you to mix according to your needs.

Dial In Your Best Signal

Thanks to the inclusion of the AIR 192 | 14’s segmented input VU LED’s, you can easily attain the best levels possible for your mix. These LED’s cover from -20db through to 0dB, taking the guesswork away from optimising your signal for the perfect recording.

Ultra-Low Latency

As an audio-producer, there are few things more irritating than unwanted clicks, pops, and latency on your recordings.

Thankfully though, the AIR 192 | 14 comes equipped with a high-speed USB connection that offers an incredibly-low round trip latency (just 2.59ms) between your machine and hardware.

In addition to this, it also comes equipped with a monitor mix control, which allows you to listen directly to the source inputs – in other words, it gives you zero latency technology.

Includes Premium Software Suite

A good audio interface will always need a good software package for you to make full use of it – and the AIR 192 | 4 comes complete with a cracker.

Within this software package you’ll find a free copy of industry-leading DAW, Ableton Live Lite.

In addition to this, there’s also a package packed full of Effects Plugins, Virtual Instruments, and loops – enough to cater to all of your production needs.

Package Includes:

• Ableton Live Lite
• AIR Music Tech Creative FX Collection Plus
• AIR Music Tech Xpand!2
• AIR Music Tech Mini Grand
• DB33
• Strike
• Hybrid 3
• 2GB of Touch Loops Content
• Revalver
• MPC Beats

Mic Inputs 1–4 (balanced XLR) Dynamic Range 113dB (A-weighted)

• THD+N: 0.001% (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Preamp EIN: -137dBu (40 source, A-weighted) -129dBu (150 source, unweighted)
• Max Input Level: +14dBu
• Gain Range: 62dB

Line Inputs 1–4 (balanced 1/4″ TRS)

• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.001% (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +30dBu
• Gain Range: 61dB

Inst Inputs 5-6 (unbalanced 1/4″ TS)

• Dynamic Range: 110dB (A-weighted)
• THD+N: 0.001% (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +16dBu
• Gain Range: 59dB
• Input Impedance: ~1 M

Fixed Line Inputs 7–8 (balanced 1/4″ TRS)

• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.001% (1kHz, +4dBu, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.1dB)
• Max Input Level: +17dBu

Line Outputs 1–2 (balanced 1/4″ TRS)

• Dynamic Range: 112dB (A-weighted)
• THD+N: 0.002% (1kHz, -1dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Output Level: +17dBu

Fixed Line Outputs 3–4 (balanced 1/4″ TRS)

• Dynamic Range: 113dB (A-weighted)
• THD+N: 0.002% (1 kHz, -1 dBFS)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Output Level: +17dBu

Headphone Outputs (stereo 1/4″)

• Dynamic Range: 111dB (A-weighted, 32 load)
• THD+N: 0.002% (1kHz, -1 dBFS, 10mW/channel into 32 load)
• Frequency Response: 20Hz – 20kHz (+/-0.2dB)
• Maximum Power Delivered: 160mW (<1% THD, 32 load)
• Maximum Output Level: +15 dBu (unloaded)
• Impedance Range: 32 – 600

General

• Other Connectors: (1) 1 8″ (3.5mm) MIDI input, (1) 1 8″ (3.5mm) MIDI output, (1) USB Type-C port, (1) Power adapter input
• Power Adapter: 12VAC, 2A, centre-positive (included)
• Dimensions (W x D x H): 3.24″ x 10.2″ x 7.44″/ 8.22 x 25.9 x 18.9cm
• Weight: 3.9 lbs. / 1.8kg
