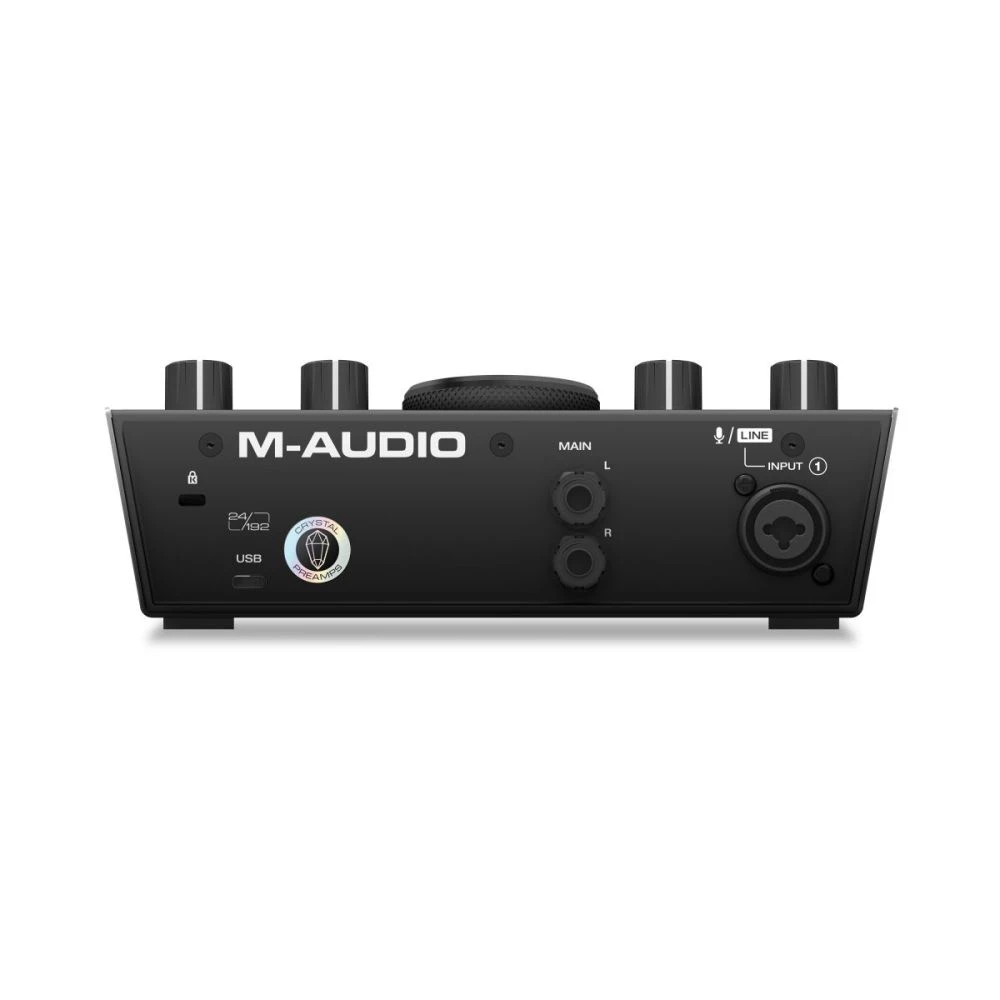

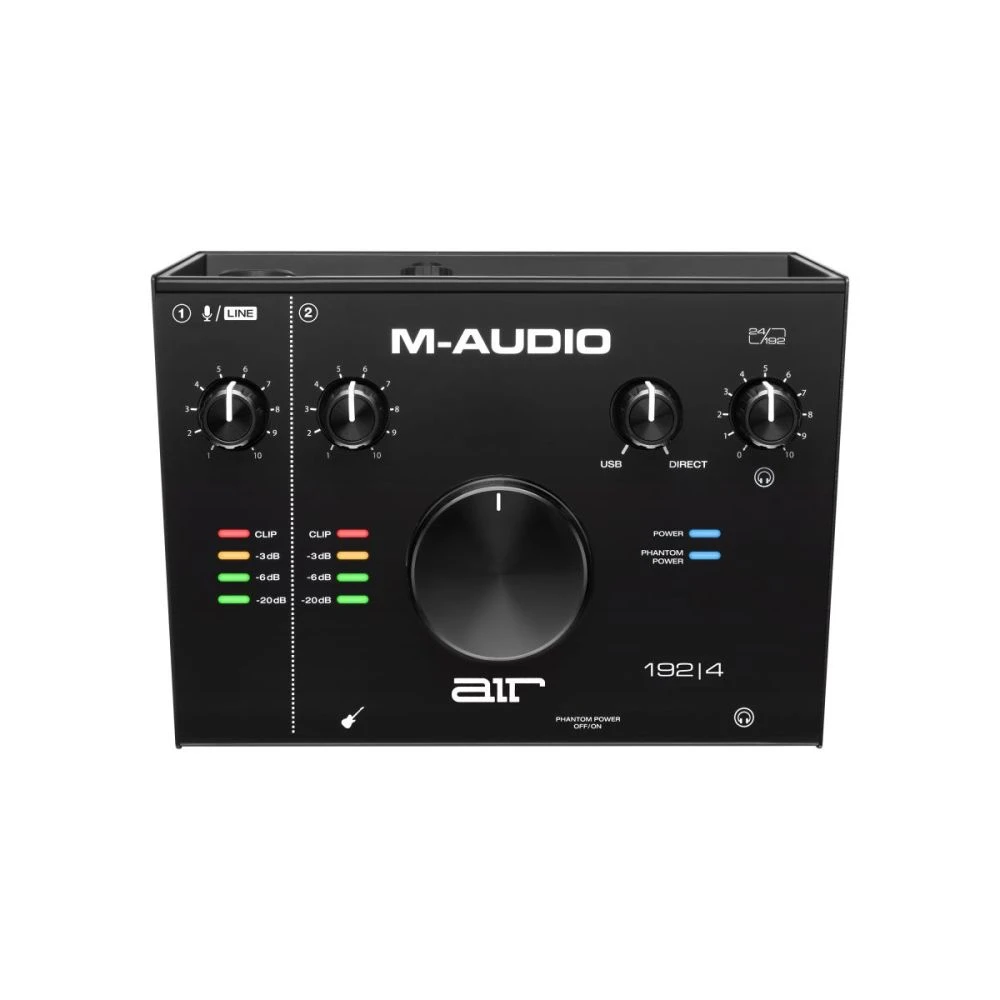

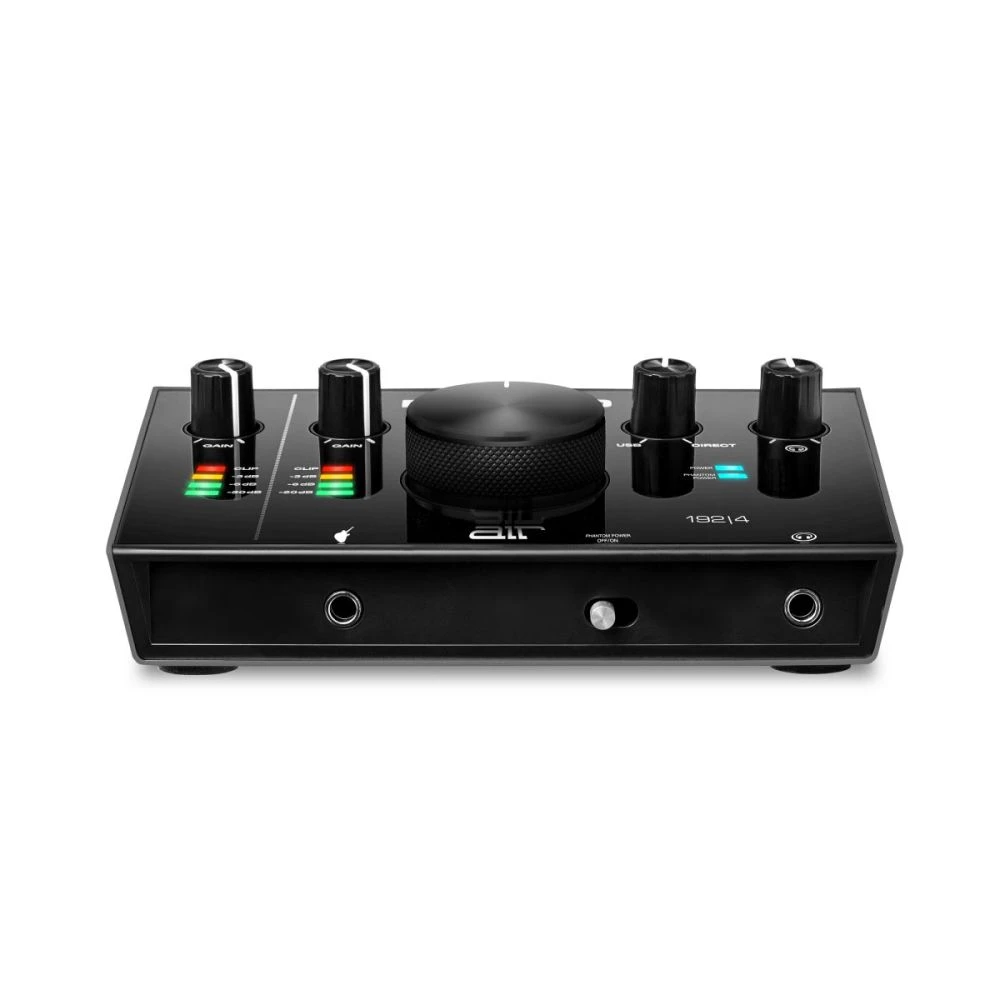

M-Audio AIR 192 4 Audio Interface

The M-Audio AIR 192 | 4 Audio Interface is a brand new, superb option for home producers looking for professional audio quality and low latency at a great price.

Perfect For Solo Performers

With its elegant pro-grade metal chassis, large central volume knob, exclusive Crystal low-noise pre-amps and pristine A/D converters, the AIR 192 | 4 delivers the highest levels of audio performance in its class.

M-Audio Air 192 | 4 Highlights

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-speed USB circuitry for fastest connection, with classleading round-trip latency of 2.59ms
• Transparent Crystal preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialling in the perfect level
• (1) XLR + 1/4-inch TRS combo input with dedicated signal circuit and (1) 1/4-inch instrument input with dedicated signal circuit for the most accurate sound available
• Stereo 1/4-inch outs; 1/4-inch headphone out with independent level control
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal

Studio Quality Recordings

The awesome AIR 192 | 4 allows you to record up to two channels at the same time.

In addition to the XLR+1/4″ balanced combo input, the AIR 192 | 4 also features an all-new 1/4″ instrument input, with a specially-designed gain and impedance stagem ensuring you get an accurate representation of your guitar or bass when they’re plugged in.

Premium Components

To ensure the very best sound from your microphone, the AIR 192 | 4 features pristine Crystal Preamps.

M-Audio’s engineers designed these preamps to be transparent and low-noise, making sure your recordings are exactly as you want to hear them.

In addition to this, there’s a set of pristine A/D converters, which offer 24-bit resolution digital audio, with an incredible dynamic range that translates every nuance and subtlety of your performance.

Not only that, but this combines with class-leading sample rate of up to 192kHz, ensuring you get the very best sound possible.

Ultra-Low Latency

As an audio-producer, there are few things more irritating than unwanted clicks, pops, and latency on your recordings.

Thankfully though, the AIR 192|4 comes equipped with a high-speed USB connection that offers an incredibly-low round trip latency (just 2.59ms) between your machine and hardware.

In addition to this, it also comes equipped with a monitor mix control, which allows you to listen directly to the source inputs – in other words, it gives you zero latency technology.

Includes Premium Software Suite

A good audio interface will always need a good software package for you to make full use of it – and the AIR 192 | 4 comes complete with a cracker.

Within this software package you’ll find a free copy of industry-leading DAW, Ableton Live Lite.

In addition to this, there’s also a package packed full of Effects Plugins, Virtual Instruments, and loops – enough to cater to all of your production needs.

Package Includes

• Ableton Live Lite
• AIR Music Tech Creative FX Collection
• AIR Music Tech Xpand!2
• AIR Music Tech Mini Grand
• 2GB of Touch Loops Content
• Revalver
• MPC Beats

M-Audio AIR-192 | 4 Technical Specs

Mic Input 1 (balanced XLR)

• Frequency Response: 20Hz– 20kHz (+0.1dB)
• Dynamic Range: 104dB (A-weighted)
• Signal-to-Noise Ratio: 104dB (+1.0dBu, A-weighted)
• THD+N: 0.003%
• Preamp EIN: -128dBu (max gain, 150 source, A-weighted)
• Max Input Level: +1.5dBu
• Gain Range: 55dB

Line Input 1 (balanced 1/4″ [6.35mm] TRS)

• Line Input 1 (balanced 1/4″ [6.35mm] TRS): 20Hz – 20kHz (+0.05dB)
• Signal-to-Noise Ratio: 101dB (1kHz, +4dBu, A-weighted)
• THD+N: 0.003%
• Max Input Level: 16dBu
• Gain Range: 55dB

Inst Input 2 (unbalanced 1/4″ [6.35mm] TS)

• Inst Input 2 (unbalanced 1/4″ [6.35mm] TS): 20Hz – 20kHz (+0.05dB)
• Dynamic Range: 100dB (A-weighted)
• Signal-to-Noise Ratio: 102dB (+ 4dBu, A-weighted)
• THD+N: 0.004%
• Max Input Level: 6dBu
• Input Impedance: 1M
• Gain Range: 24dB

Main Outputs, L and R (imped-ance-balanced 1/4″ [6.35mm] TRS)

• Frequency Response: 20Hz – 20kHz (+0.06dB)
• Dynamic Range / Signal-to-Noise Ratio: 102dB (A-weighted)
• THD+N: 0.005%
• Max Output Level: +7dBu (1kHz, -1dBFS)

Headphone Output (1/4″ [6.35mm] TRS)

• THD+N: 0.005%
• Output Impedance: 10
