M-Audio AIR 192 4 Vocal Studio Pro

If you’re in the market for an all-in-one home studio kit, that’s perfect for recording instruments and vocals, and even doing podcasts, you’re in luck. Introducing the new M-Audio AIR 192 | 4 Vocal Studio Pro: a great new home recording system that has everything you need to get you started.

The Ultimate All-In-One Solution For Computer Recording Projects

This Vocal Studio Pro package brings together the awesome M-Audio AIR 192 | 4 audio interface with a set of monitoring headphones and a condenser mic, and it can be yours now for a fantastic price!

M-Audio AIR 192 | 4 Vocal Studio Pro Highlights

• 24-bit/192kHz resolution for professional recording and monitoring
• Hi-speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms (dependent on buffer settings, and computer hardware)
• Transparent Crystal preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
• VU LED meters for dialling in the perfect level
• XLR+1/4-inch TRS combo input with dedicated signal circuit and (1) 1/4-inch instrument input with dedicated signal circuit for the most accurate sound available
• Stereo 1/4-inch outs; 1/4-inch headphone out with independent level control
• Rugged metal chassis; large central control for easy volume adjustment
• USB/Direct knob for balancing between the input signal and the computer signal
• Includes Condenser Mic, Closed Cup monitoring headphones, and premium software package

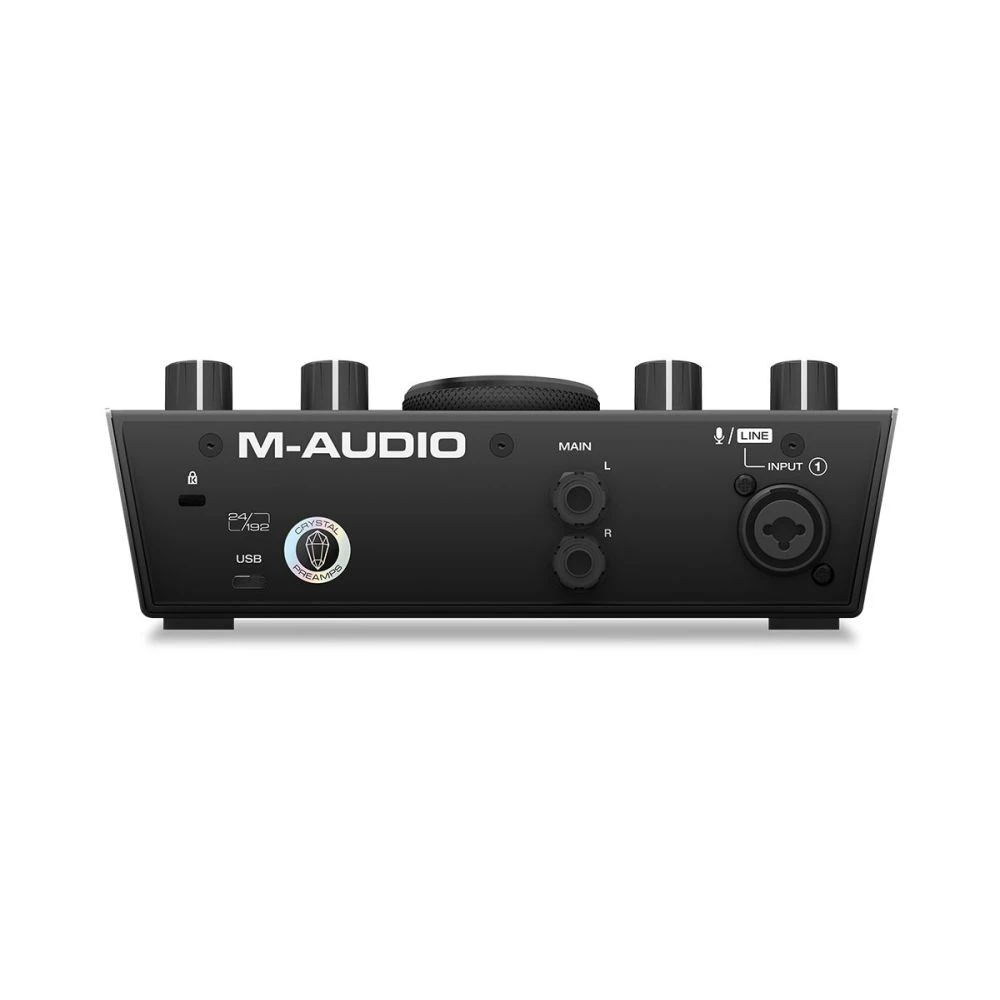

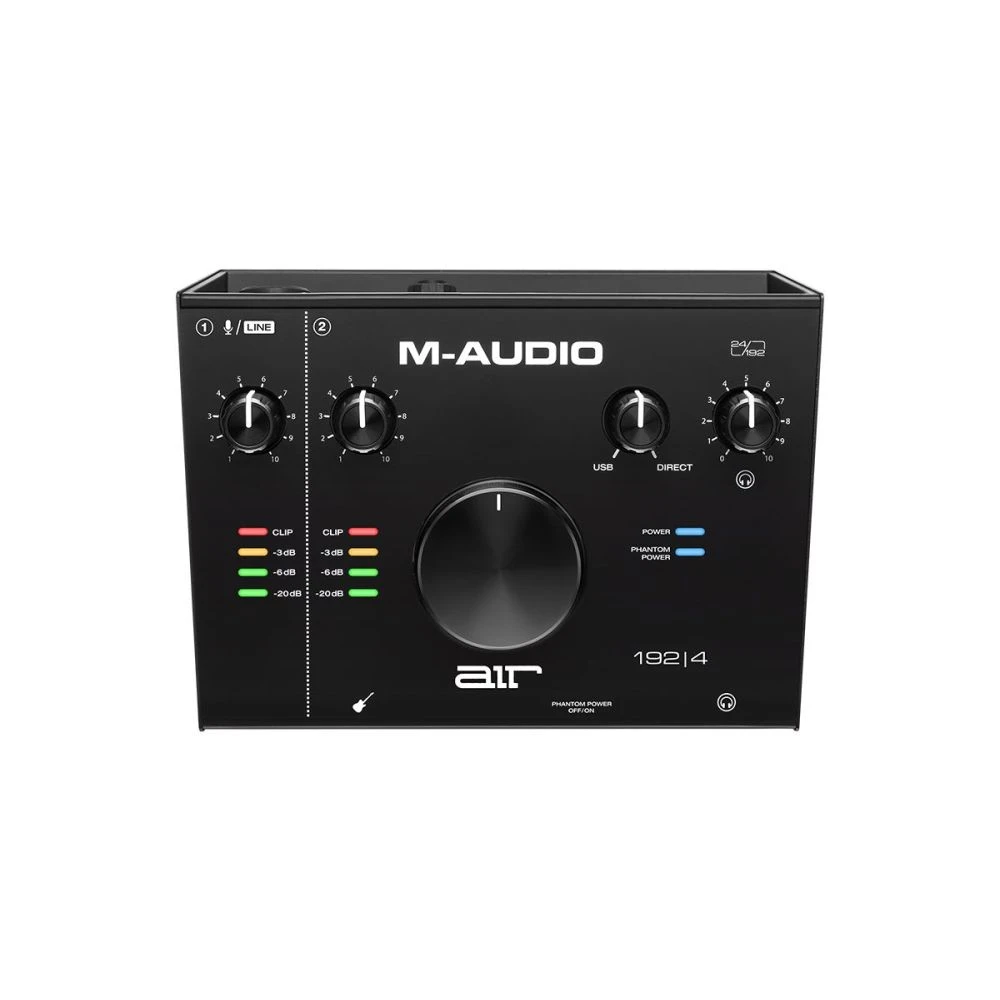

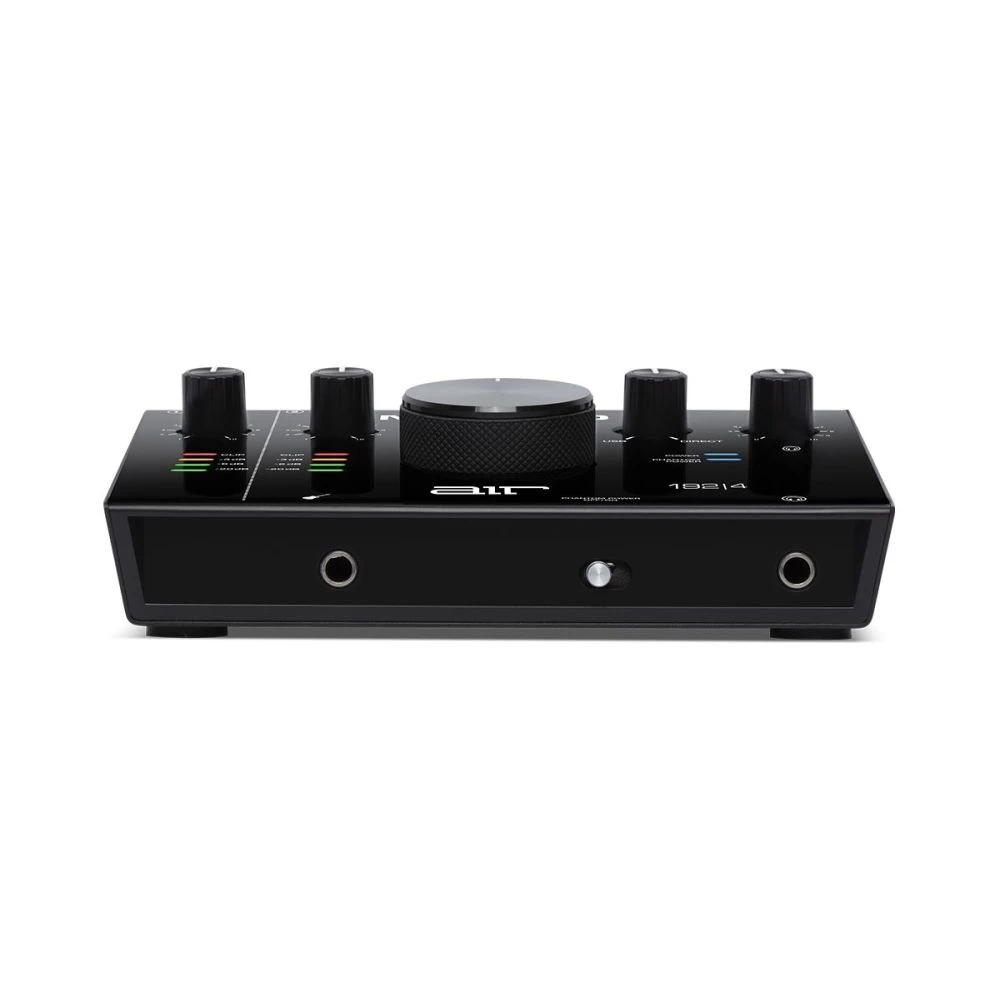

AIR 192 | 4 Audio Interface

Crafted from some truly incredible components – including pristing Crystal Preamps – and as easy to use as you could wish, the M-Audio AIR 192 | 4 offers studio grade production every time.

This easy-to-use audio interface makes the perfect tool to record and produce natural-sounding, 24-bit/192kHz recordings on up to two channels at the same time.

The AIR 192 | 4 comes equipped with an XLR+1/4″ balanced combo input, along with a new, dedicated 1/4″ instrument input. This combination will allow you to simultaneously record a mic or line level output alongside the guitar or bass of your choice.

In addition to this, the AIR 192 | 4 comes housed in a pro-grade metal chassis, with USB & USB-C connection cables, and the highest audio performance in their class.

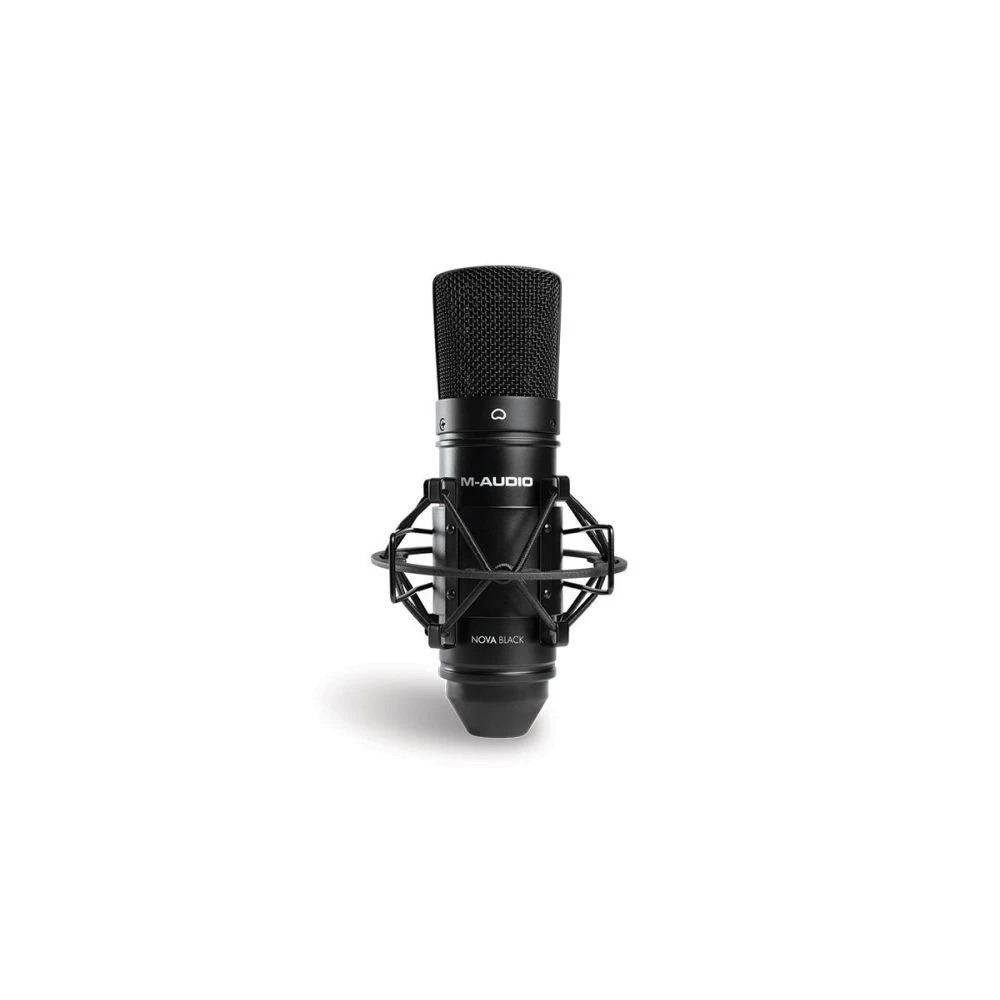

Condenser Microphone

M-Audio’s Nova Black is a large diaphragm condenser mic that’s ideal for capturing high-quality vocal/instrument audio, and is simply perfect for podcasting with.

This mic features a pure aluminium condenser capsule with a directional cardioid polar pattern, and delivers a wide range frequency response, is highly sensitive, and offers an accurate transient response.

In other words: this mic will capture even the most subtle of nuances with ease, and with minimal ambient interference.

Includes Premium Software Suite

A good recording setup will always need a good software package for you to make full use of it – and the AIR 192 | 4 Vocal Studio Pro comes complete with a cracker.

Within this software package you’ll find a free copy of industry-leading DAW, Ableton Live Lite.

In addition to this, there’s also a package packed full of Effects Plugins, Virtual Instruments, and loops – enough to cater to all of your production needs.

Package Includes

• Ableton Live Lite
• AIR Music Tech Creative FX Collection
• AIR Music Tech Xpand!2
• AIR Music Tech Mini Grand
• 2GB of Touch Loops Content
• Revalver
• MPC Beats

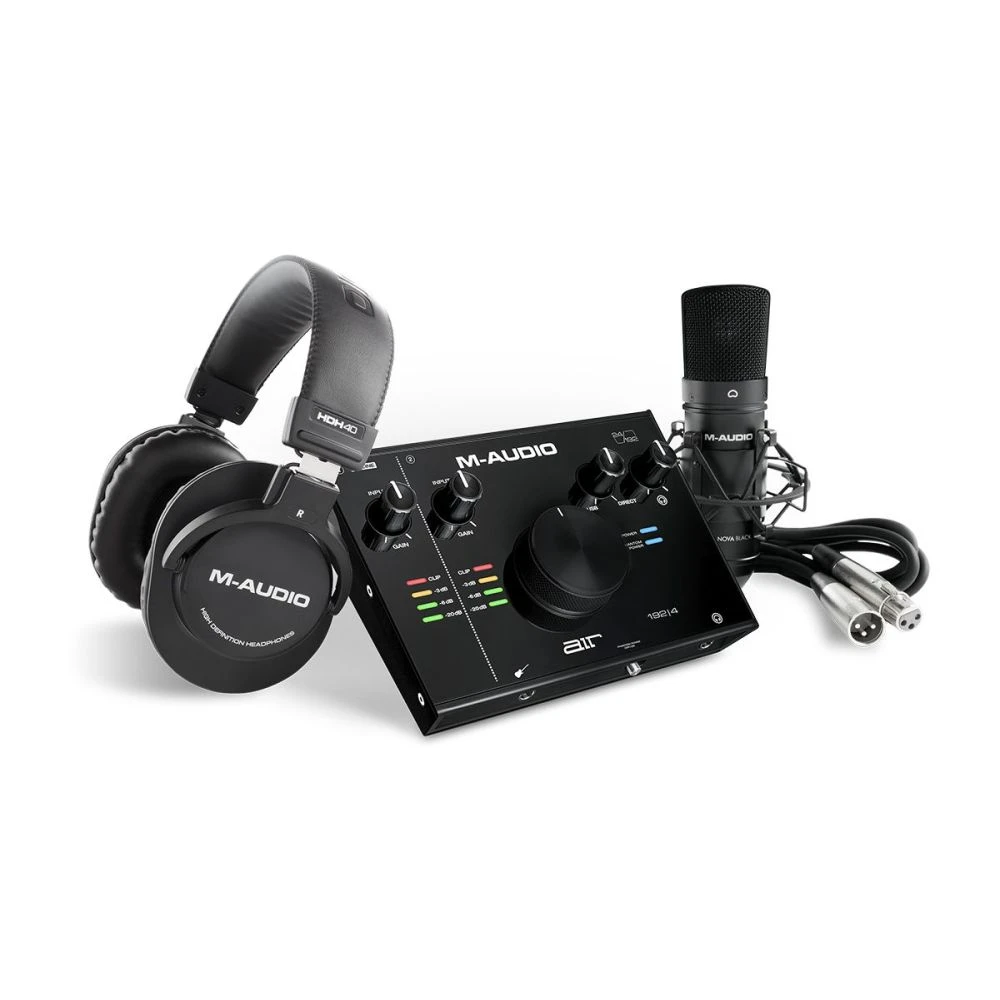

Pack Includes:

• M-Audio AIR 192 | 4 USB Audio Interface
• NOVA Black condenser microphone
• HDH40 monitoring headphones

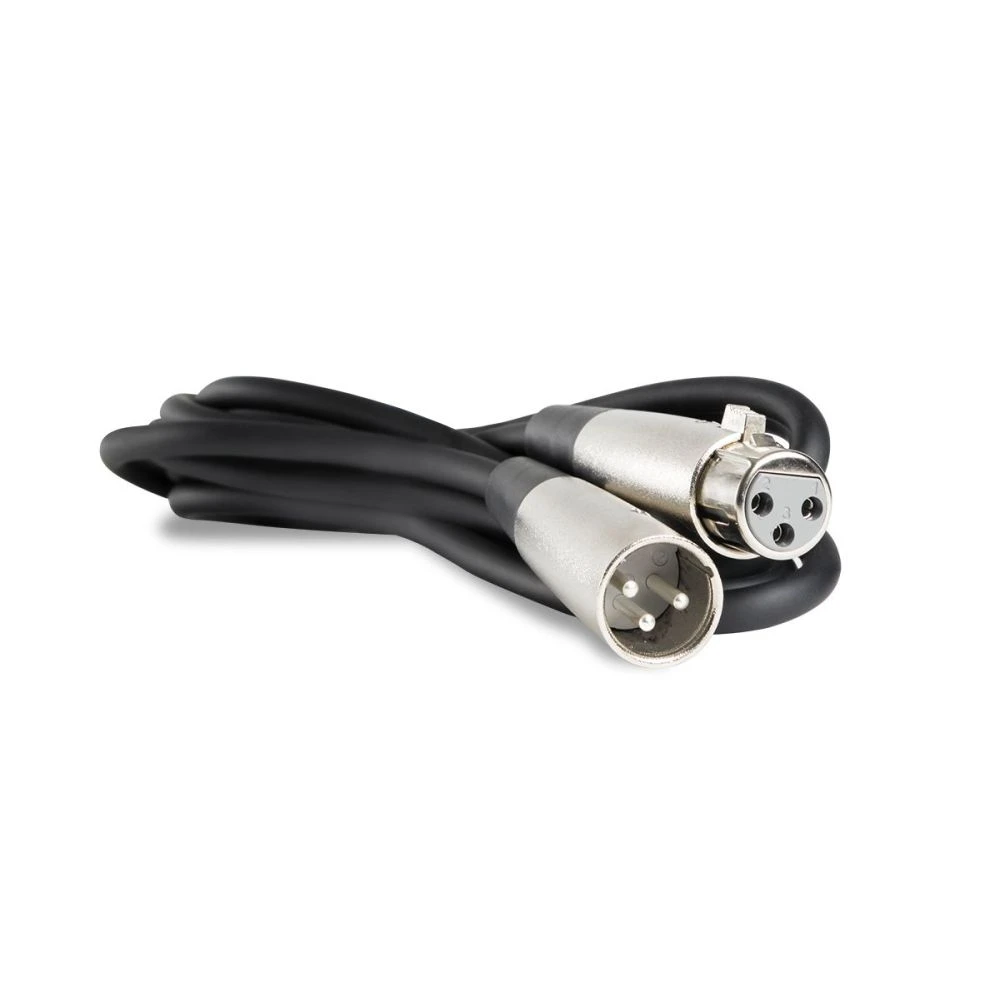

• XLR Cable
• Mic wind screen
• Shock-mount

M-Audio AIR 192 | 4 Vocal Studio Pro Technical Specs

Audio Interface

Mic Input 1 (balanced XLR) Frequency Response 20Hz– 20kHz (+0.1dB)

• Dynamic Range: 104dB (A-weighted)
• Signal-to-Noise Ratio: 104dB (+1.0dBu, A-weighted)
• THD+N: 0.003%
• Preamp EIN: -128dBu (max gain, 150 source, A-weighted)
• Max Input Level: +1.5dBu
• Gain Range: 55dB

Line Input 1 (balanced 1/4″ [6.35mm] TRS)

• Line Input 1 (balanced 1/4″ [6.35mm] TRS): 20Hz – 20kHz (+0.05dB)
• Signal-to-Noise Ratio: 101dB (1kHz, +4dBu, A-weighted)
• THD+N: 0.003%
• Max Input Level: 16dBu
• Gain Range: 55dB

Inst Input 2 (unbalanced 1/4″ [6.35mm] TS)

• Inst Input 2 (unbalanced 1/4″ [6.35mm] TS): 20Hz – 20kHz (+0.05dB)
• Dynamic Range: 100dB (A-weighted)
• Signal-to-Noise Ratio: 102dB (+ 4dBu, A-weighted)
• THD+N: 0.004%
• Max Input Level: 6dBu
• Input Impedance: 1M
• Gain Range: 24dB

Main Outputs, L and R (impedance-balanced 1/4″ [6.35mm] TRS)

• Frequency Response: 20Hz – 20kHz (+0.06dB)
• Dynamic Range / Signal-to-Noise Ratio: 102dB (A-weighted)
• THD+N: 0.005%
• Max Output Level: +7dBu (1kHz, -1dBFS)

Headphone Output (1/4″ [6.35mm] TRS)

• THD+N: 0.005%
• Output Impedance: 10

General

• Power: USB-bus-powered
• Dimensions (W x D x H) 6.0″ x 2.8″ x 7.8″ / 15.2cm x 7.1cm x 19.8cm
• Weight: 2.0 lbs. / 0.9kg

NOVA Black Microphone

• Type: Back Electret condenser microphone
• Element: 18mm pure aluminium diaphragm capsule
• Polar Pattern: Cardioid
• Frequency Response: 20Hz– 20kHz
• Sensitivity: -38dB (0dB = 1V/Pa @ 1kHz)
• Rated Impedance: 200
• Maximum SPL: 136dB
• Phantom Power Required: +48V
• S/N Ratio: 77dB
• Current Consumption: 3mA

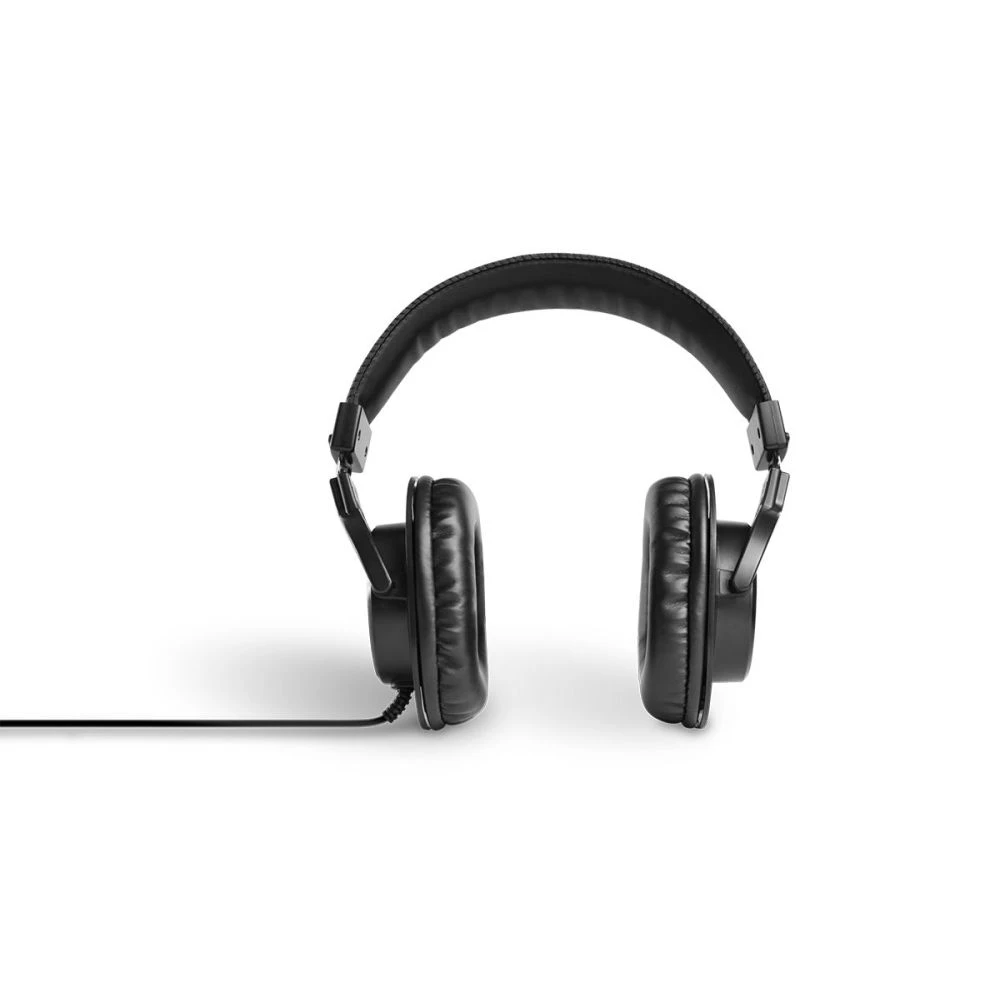

HDH40 Headphones

• Acoustic Design: Dynamic, Closed
• Driver: 40mm, neodymium
• Frequency Response: 15Hz – 22kHz
• Sensitivity: 95dB ±3dB
• Rated Impedance: 32
• Earpad: Leatherette
• Cable Length: 9.8ft. / 3m
