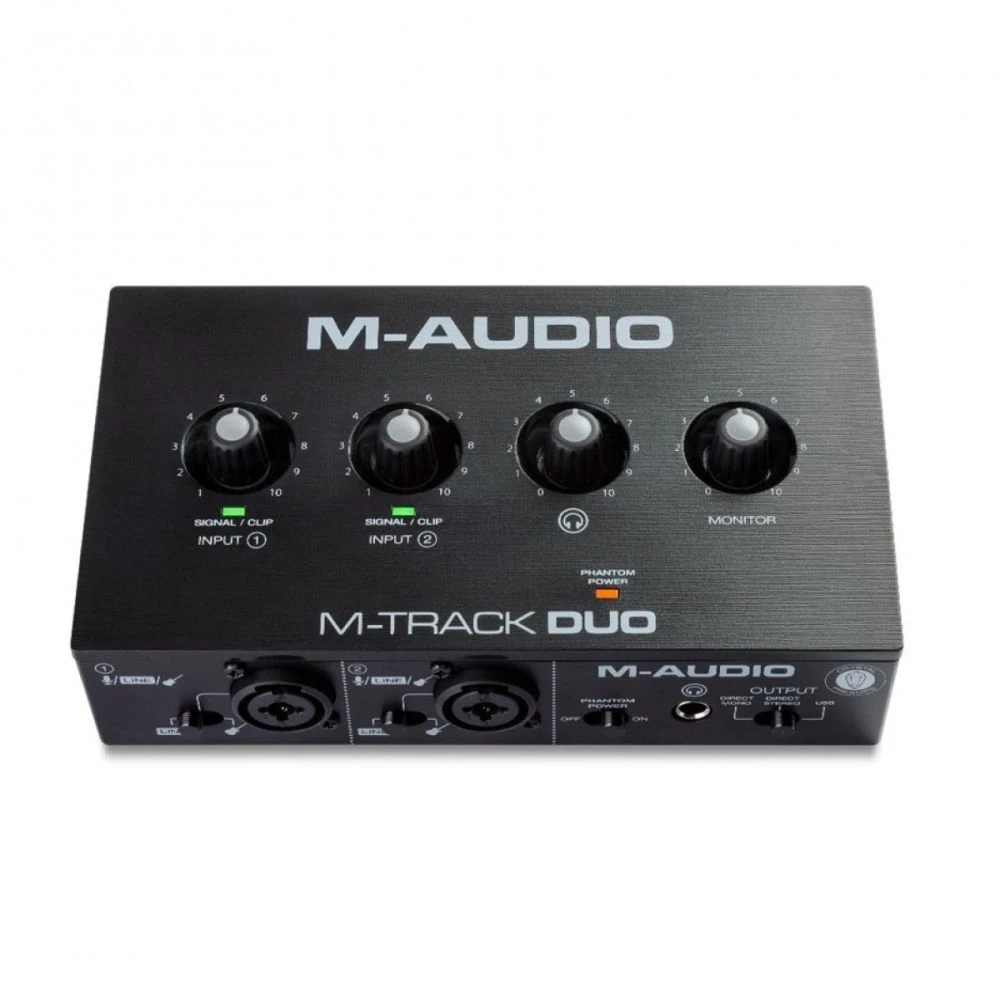

M-Audio M-Track Duo 2-channel USB Audio Interface

A portable and compact, 2-channel USB Audio Interface with 2 Combo Inputs, featuring Crystal Preamps for amazing audio quality and Phantom Power for connecting a range of microphones.

Crystal Clear Audio in a Compact Design

Delivering 16-bit audio resolution in a compact and easy to use format, connect directly to any PC, Mac or iOS device to start easily recording a variety of sound sources,

With incredible audio quality from a pair of premium Crystal Preamps, you’ll benefit from their clarity and accuracy, whether you recording a line-level input, an instrument-level input, a digital piano, a drum machines or any other stereo 1/4″ inch line-level device – you’ll be up and running in no time thanks to the incredibly intuitive control layout and design.

M-Audio M-Track Duo 2-channel USB Audio Interface Features:

• 2-Channel USB Recording Interface
• Mac and PC and iOS Compatible
• 2 Combo Inputs with Crystal Preamps
• Dedicated Mic, Inst & Line Level Switches
• +48V Phantom Power Switch
• Stereo 1/4” Outs & a 1/4” Headphone Out with Independent Level Controls
• USB/Direct Mono/Direct Stereo Switch for Direct Monitoring
• Includes MPC Beats & Revalver Software Bundle

M-Audio M-Track Duo 2-channel USB Audio Interface Specifications:

Mic Input (balanced XLR)

• Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
• Signal-to-Noise Ratio: 109 dB (A-weighted)
• THD+N: 0.003% (min. gain, 0 dBu out, A-weighted)
• Preamp EIN: -128 dBu (max. gain, 40 O source, A-weighted)
• Gain Range: Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB

Line Input (balanced 1/4″ [6.35 mm] TRS)

• Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
• Sensitivity: -43 dBu
• THD: 0.002% (min. gain, 0 dBu out, A-weighted)
• Gain Range: Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Instrument Input (unbalanced 1/4″ [6.35 mm] TS)

• Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
• THD+N: 0.005% (min. gain, 0 dBu out, A-weighted)
• Input Impedance: 1 MO
• Gain Range: Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB

Main Outputs, L and R (impedance-balanced 1/4″ [6.35 mm] TRS)

• Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
• Signal-to-Noise Ratio: 109 dB (A-weighted)
• THD: 0.002% (0 dBu out, A-weighted)
• Max Output Level: +4 dBu

Headphone Output (1/4” [6.35 mm] TRS)

• Power: 60 mW/Ch, 32 O
• Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
• THD+N: 0.02% (A-weighted)
• Signal-to-Noise Ratio: 100 dB (A-weighted)
