Moog MAVIS Monophonic Semi-Modular Analog Synth Kit

Build-it-yourself and begin your fun-filled exploration into the world of analog synthesizers with this compact and feature-packed instrument kit from Moog.

Quickly assemble your very own analog synthesizer, with minimal tools and experience, and experience the power of MAVIS’ semi-modular design, complete with a single octave keyboard to get you started.

The MAVIS is suited to users of all skill levels, from budding beginners to synth aficionados, with a simple assembly and instructions to boot.

Boasting the unmistakable Moog sound and quality, the standalone MAVIS can easily be removed from its protective case and transformed into a 24-point CV controllable module (44hp), slotting perfectly into any pre-existing Eurorack system.

Complete with an expansive range of features such as Moog’s legendary oscillator and filter circuits, the MAVIS features the first analog wavefolder to appear on a Moog instrument – combining traditional subtractive synthesis with additive wavefolding to deliver exciting new sounds mixed with some classic Moog character.

Moog MAVIS Key Features:

• Do-It-Yourself – With a simple guided assembly that users of any skill level can achieve, you’ll start your learning experience before you’ve even assembled it.
• Get Started – Complete with informative patch overlays and a quick start guide, you’ll soon be out of the head-scratching stage and into the synth-wizard frame of mind.
• Built-In Keyboard With Glide & KB Scaling – Whether using standalone or as a 44HP Eurorack module, the built-in keyboard with glide and scale knob offers intuitive control over your sound output.
• Full Range Analog Oscillator – Complete with Pulse Width Modulation (PWM), Waveform mixing & Mod Source mixing, the Voltage Controllable Oscillator delivers rich harmonic character and motion.
• Voltage Controlled Filter – Providing the sonic sculpting power behind the distinct sounds of Moog basslines and leads, the -24-dB Moog Low Pass Ladder Filter helps to fill your sound out.
• Audio Rate LFO & 4-Stage Envelope Generator – Utilizing a crossfader in it’s modulation routing instead of just switches, the MAVIS allows you to create interesting and unusual modulation contours between the variable shape LFO and four stage envelope generators.
• Wavefolding and Modular Utilities – Featuring Moog’s first-ever wavefolding circuit, the MAVIS utilizes both additive synthesis and more traditional subtractive synthesis, complete with a broad modular utilities section.
• Patchable Sample and Hold (S+H) Circuit – Generate random CV patterns to both modulate parameters and introduce random sequencing.
• 24-Point Patch Bay – Perfect for hooking up to other voltage-controlled devices such as Moog’s other semi-modular instruments.

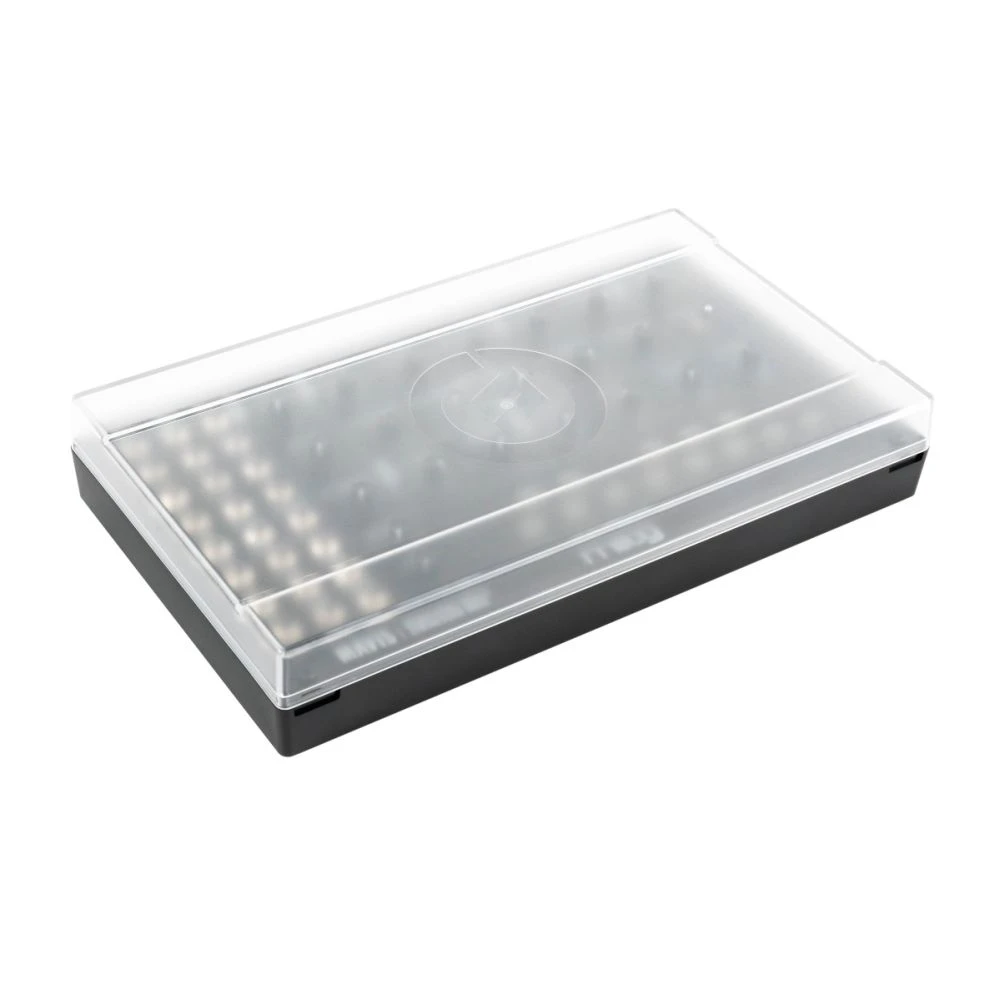

• Protective Cover – Perfect for both protection and portability, the cover can be easily removed when performing.

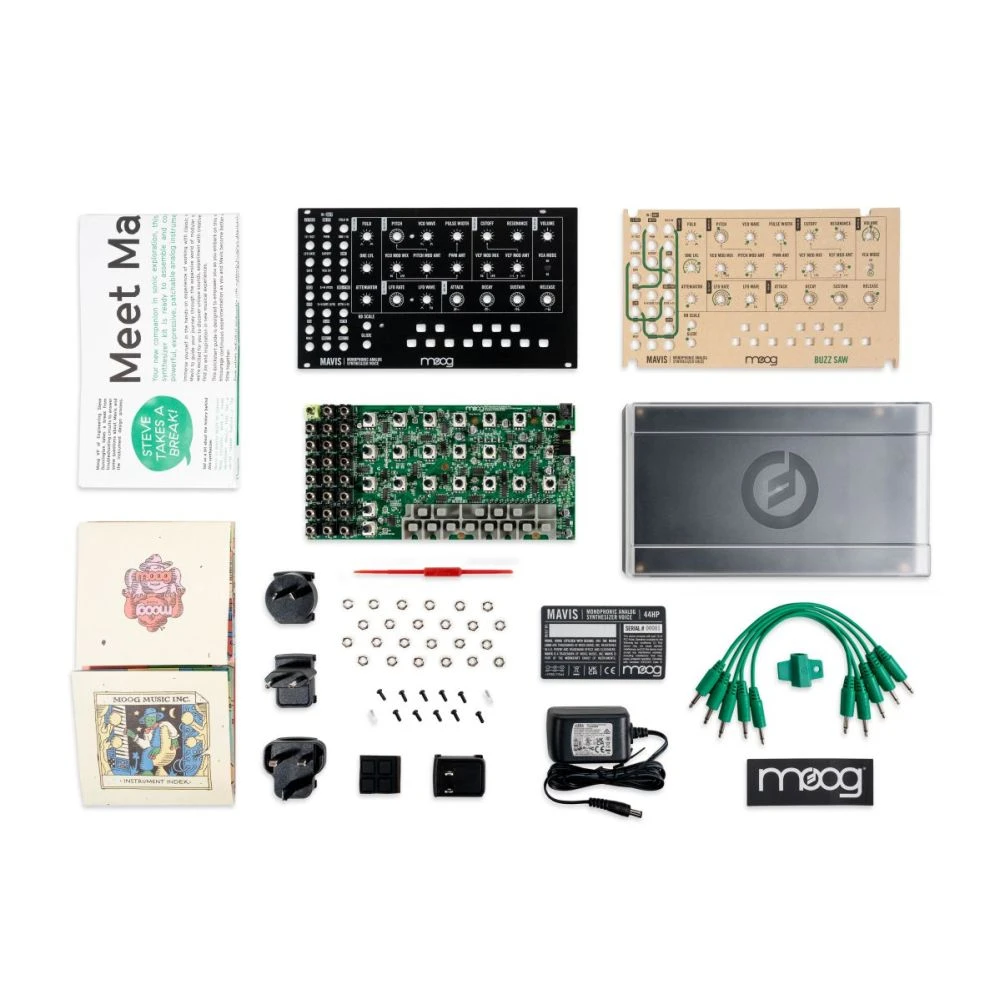

Moog MAVIS Includes:

• Mavis PCB
• Front Panel
• Bottom Enclosure
• Protective Cover
• Calibration Tool
• Nut Driver
• Fastener Kit
• Power Supply
• Package of 3.5mm cables (6″ x5)
• Assembly Instructions / Quickstart Guide
• Patch Overlays
• Product Catalog
• Registration Card

Specifications:

• Operate standalone or as 44hp Eurorack module
• Analog Voltage Controlled Oscillator (Mixable Saw/Square)
• Analog –24dB Moog Low Pass Ladder Filter
• 4-stage Analog EG (Envelope Generator)
• Diode Wavefolder
• Analog LFO (Mixable Triangle / Square)
• Pulse Width Modulation
• Modular Utilities (Attenuators, Offsets, Mults, and a flexible DC-Coupled Mixer)
• Sample & Hold
• Analog Voltage Controlled Amplifier
• 24-Point Patch Bay (3.5 mm)
• 1 Octave Keyboard w/ Glide and Scaling
• Protective Cover Included
• Patch Cables Included
• 3.5mm Output
• Weight (lbs) .94 lbs
• Weight (kg) .43 kg
• Imperial (in) 9″ x 5.25″ x 1.5″
• Metric (cm) 22.86cm x 13.34cm x 3.81cm
