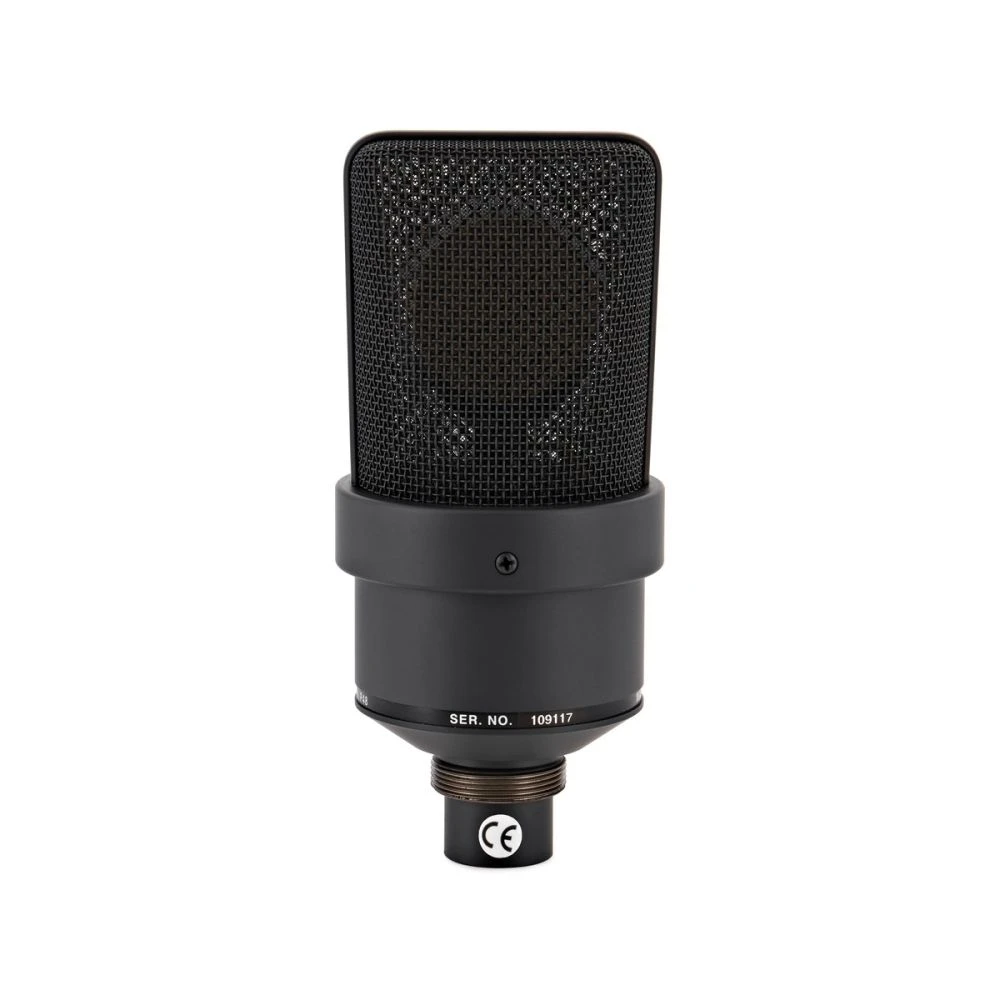

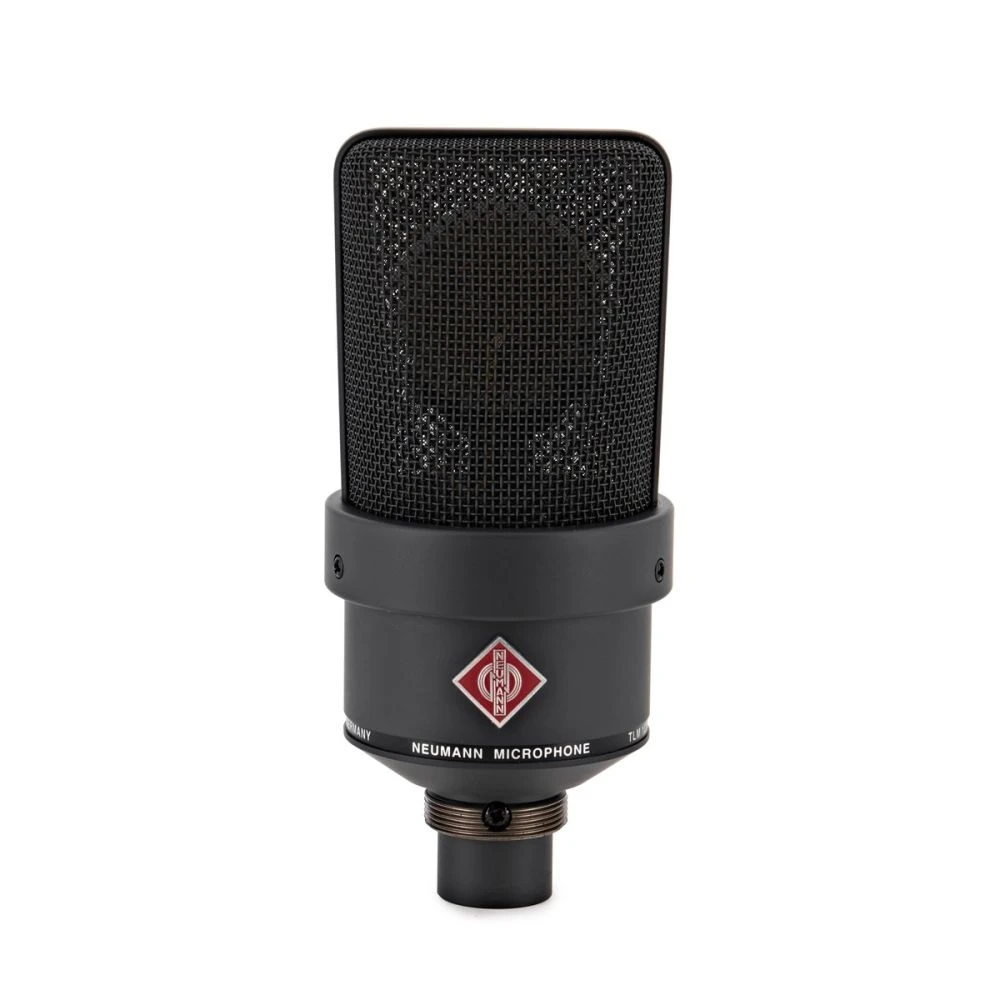

Neumann TLM 103 MT Large Diaphragm Microphone Condenser

Exceptional in immersive audio optimisation, the Neumann TLM 103 is a professional condenser microphone that’s essential for everything from home studios to more premium and professional spaces.

Channelling the classic Neumann design along with a large diaphragm and cardioid directional pattern, the TLM 103 supplies a broad frequency response of 20Hz to 20kHz along with a 4dB boost above 5kHz. Not only that but the transformerless circuit enables users to achieve impressively low self-noise, which reduces the chances of colouration or any general unwanted interference.

Crafted to handle higher sound pressure levels whilst still maintaining audio precision, the Neumann TLM 103 condenser mic is perfect for capturing everything from vocals to even drums and guitar amplifiers.

Key Features:

• Large-diaphragm cardioid microphone
• Pressure gradient transducer with one-diaphragm capsule
• Accurately captures instruments and vocals
• Transformerless circuitry
• Extremely low self-noise and high sound pressure level
• Designed for home recording and professional studios

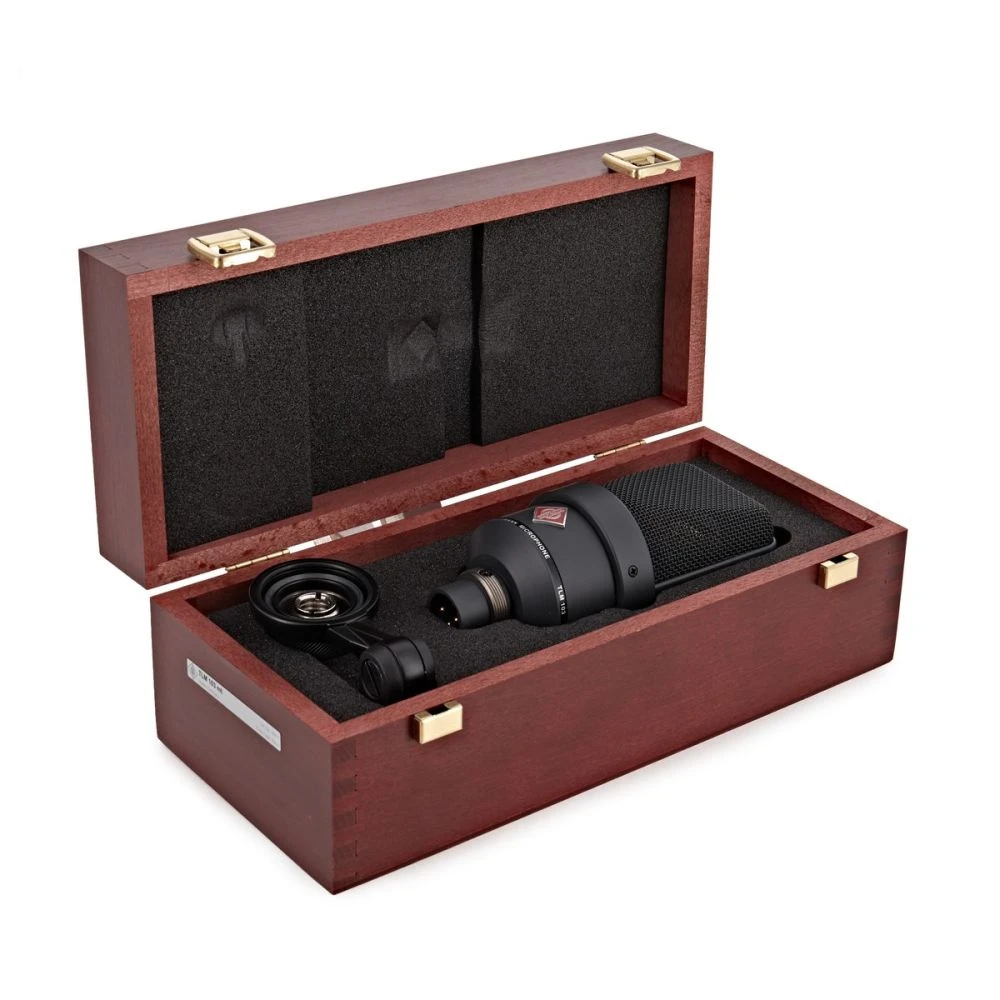

• Includes an elastic suspension mount

Neumann TLM 103 Microphone, Black Specifications:

• Acoustic Operating Principle: Pressure Gradient Transducer
• Directional Pattern: Cardioid
• Frequency Range: 20Hz – 20kHz
• Sensitivity: 23mV/Pa @ 1kHz into 1 Ohms
• Rated Impedance: 50 Ohms
• Rated Load Impedance: 1 kOhms
• Equivalent Noise Level, CCIR: 17.5dB
• Equivalent Noise Level, A-Weighted: 7dB-A
• Signal-to-Noise Ratio, CCIR: 76.5dB
• Signal-to-Noise Ratio, A-Weighted: 87dB
• Maximum SPL: 138dB
• Maximum Output Voltage: 13dBu
• Supply Voltage: 48V, ±4V
• Current Consumption: 3mA
• Connector: 3-Pin XLR
• Weight: 450g
• Dimensions: 60mm x 132mm (D x L)
