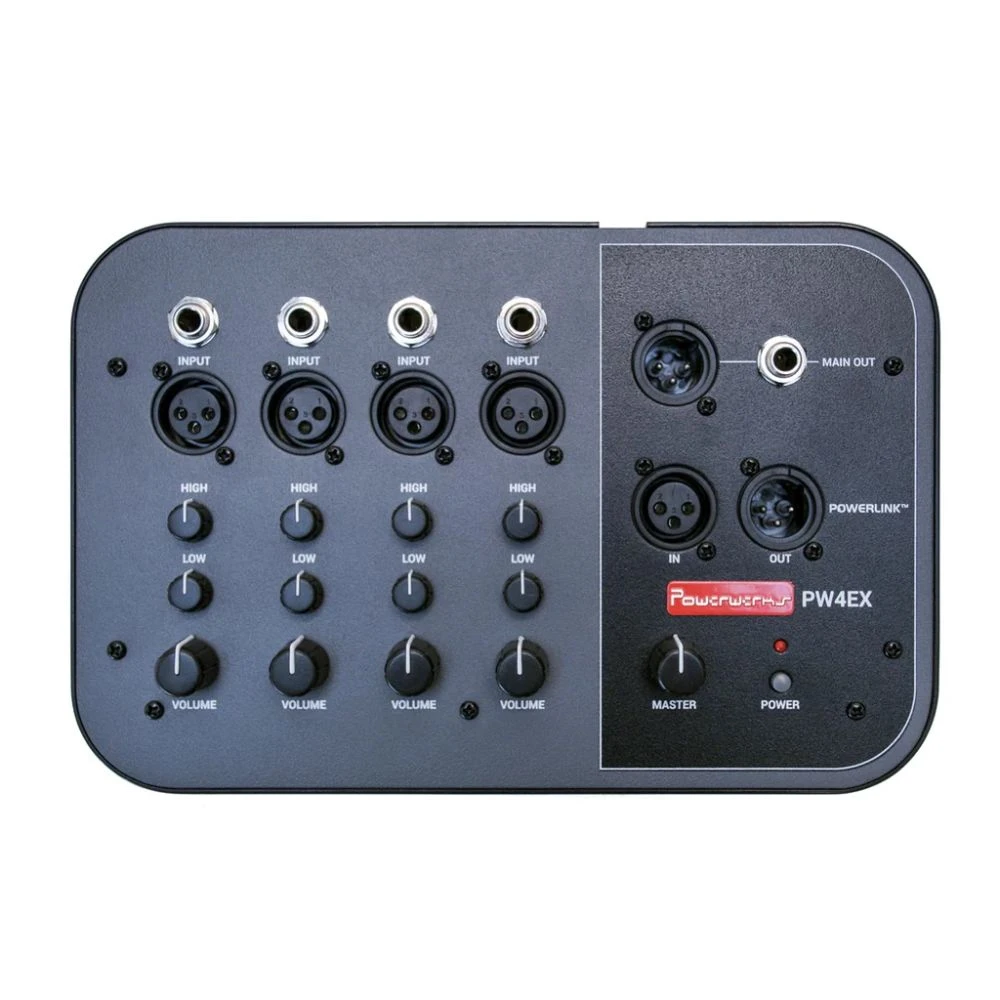

Powerwerks PW4EX is a 4 Channel MIC/LINE mixer with a MONO output. The PW4EX model draws on decades of electronic design and manufacturing experience at Powerwerks. This model was built from the ground up, offering useful features, high signal-to-noise ratio and reliable performance.
The PW4EX works as standalone mixer also. Use the MAIN XLR or 1/4″ OUT to send a ‘sub mix’ to any powered speaker or input of another mixer. (4 drum mics for example). The PW4EX gives you extra channels you need for a perfect mix.
Features
- 4 individual Mic/Line Inputs
- Phantom Power
- Compact size, very light, only 2 lbs
- Rugged, Gig-ready Design
- POWERLINK IN/OUT for expanding your Powerwerks PA System
Powerwerks 4 Channel Specifications
- Inputs: Mic XLR Balanced. Line level 1/4 Unbalanced, Nominal line level of -10 dBV
- Frequency Response: 43 Hz to 20 kHz: Channel volume knobs set at 3/4 full scale
- Signal to Noise Ratio: 74 dB, All controls set at maximum unclipped level, bandwidth 22 kHz
- Signal Gain: 1 kHz 21 dB: Line input to master output, 38 dB: MIC input to master output
- Channel EQ (high, low) 2.6 kHz and above, 0.9 kHz and below, Low boost/cut: +/- 9.8 dB at 63 Hz, High boost/cut: +/- 2.0 dB at 8.0 Hz
- Powerlink IN: Accepts a pre-master volume signal from another PW4EX or PW50/100/150 product, or a line level input from another audio product, OUT: Exports a pre-master volume signal to another PW4EX or PW50 / 100 / 150 product
- Recommended use: Linking to any PW50 / PW100 / PW150 for expanding the number of channels
- Phantom Power: 17V, Available on all MIC inputs. Current limited to 5 mA
- Power Requirements: 18 Vdc, Wall adapter is included
