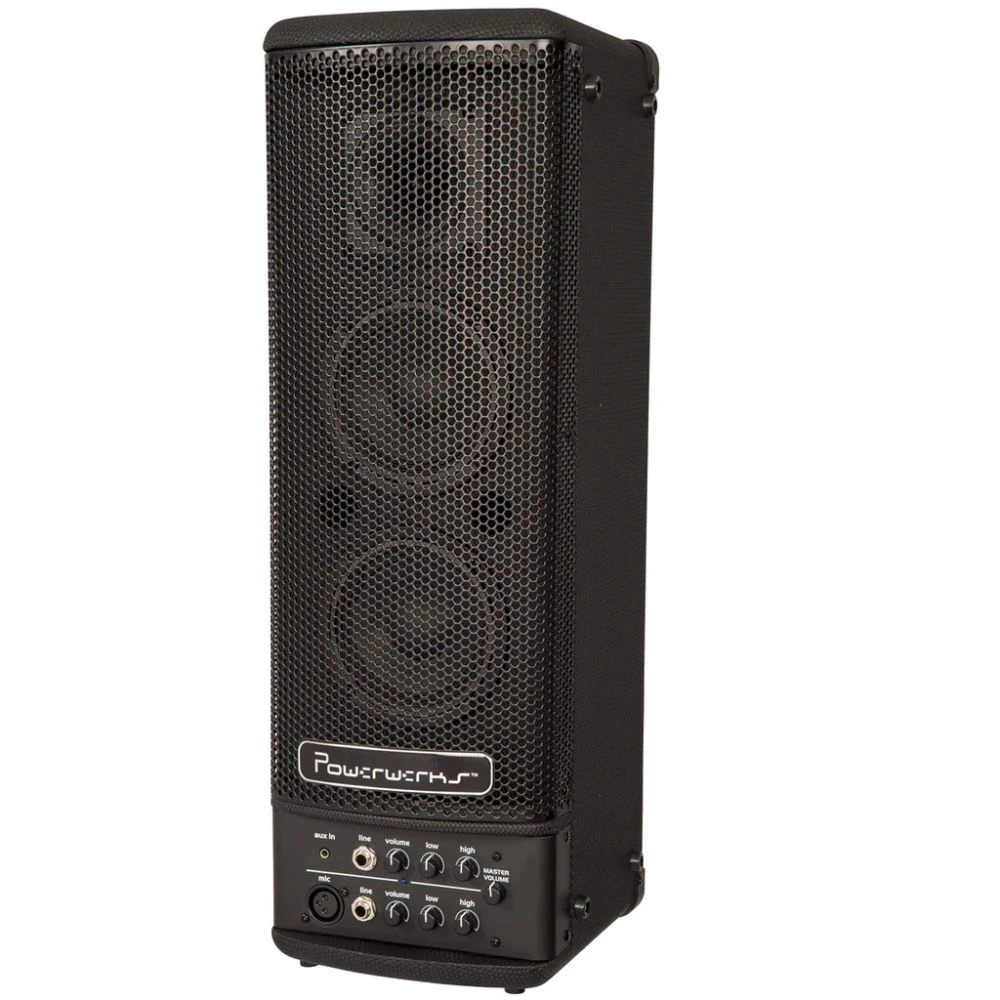

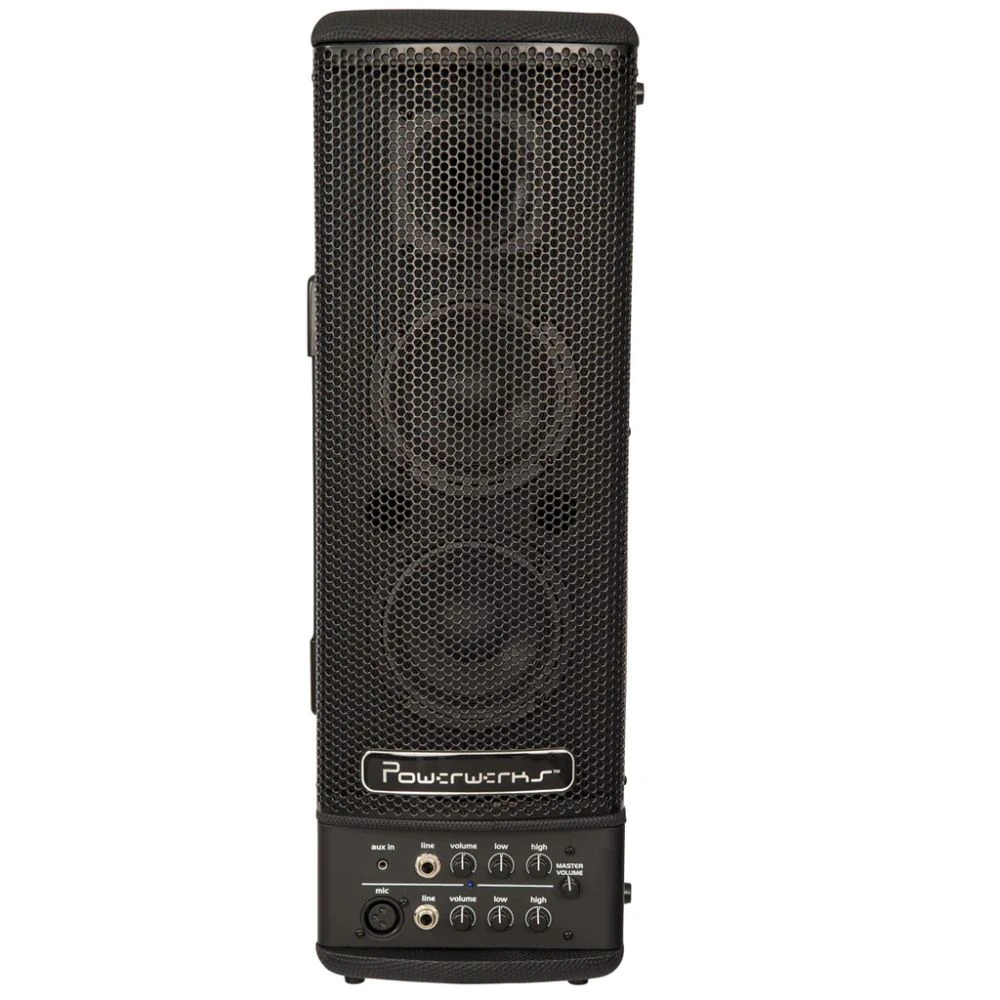

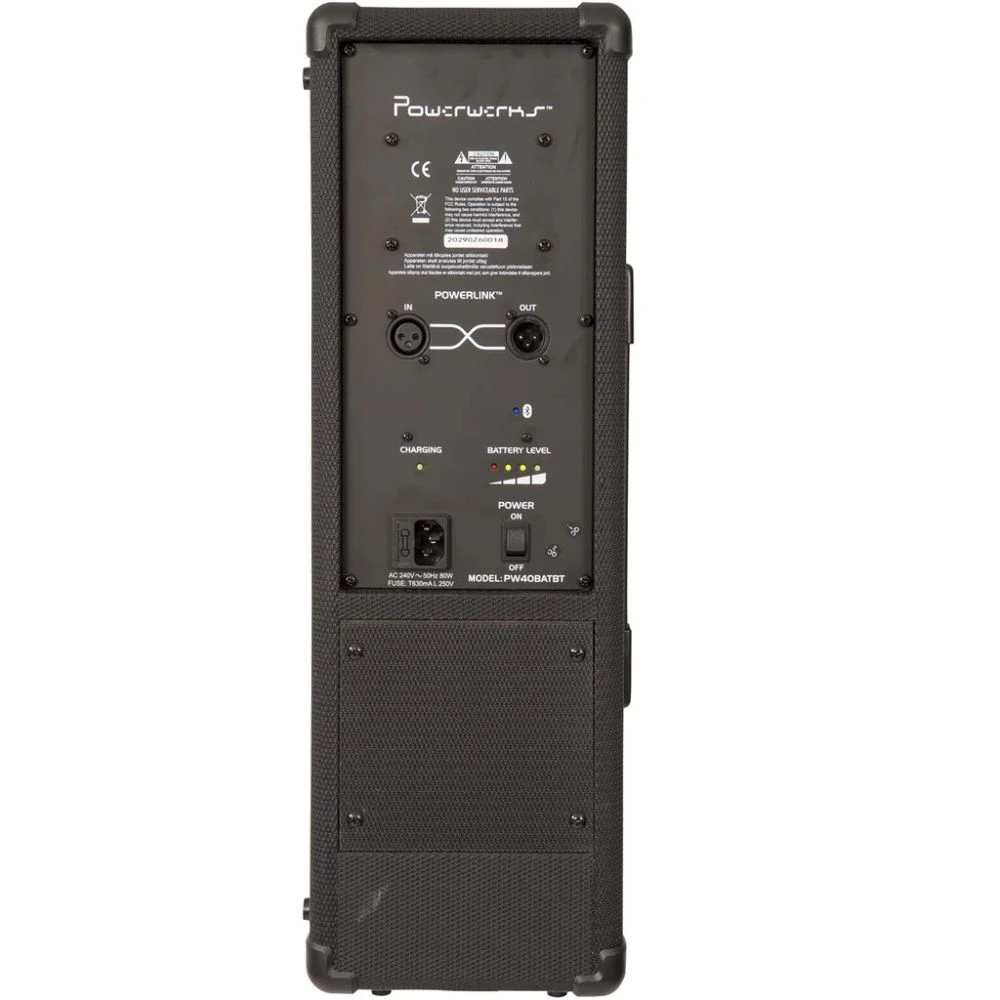

Powerwerks 40W Tower PA Battery Powered

The Powerwerks PW40BATBT battery powered 40 Watt P.A. system combines quality performance and convenient features into an extremely portable all-in-one package. With a built-in rechargable battery and portable design, the PW40BATBT allows you to take your music anywhere you need it.

Hooking up to Bluetooth has been made easier than ever before. Once the unit is on, simply connect through your device. With no confusing set-up, you will be ready to use the Powerwerks Portable Monitor seconds after powering on.

Key Features:

• Equipped with Eminence speakers
• Rechargable battery for up to 10 hours of uninterrupted music
• 2 input channels on the front for easy access
• Available with or without Bluetooth®
• POWERLINK for ease of system expansion

Powerwerks 40W Tower PA Battery Powered Specifications:

Output Power

• 40 Watts  /  36 Watts battery powered

Accepted Inputs

• Channels 1 and 2: Mic XL, line level 1/4″ un-balanced, 1/8″ line level, mixed mono

Hum and Noise

• -56 dB: Residual noise, all level controls 0% (minimum)
• -52 dB: Nominal system noise, all level controls at 50%

System Gain (Measurements made at 1 kHz)

• +70 dB: Mic to speaker output (Channel 1 and 2)
• +50 dB: Line to speaker output (Channel 1 and 2)
• +40 dB: AUX in to speaker output

Channel EQ  (High, low)

• 4 kHz and above: 800 Hz and below

Powerlink (In and out)

• Both jacks accept a balanced input and sends a pre-master volume output mix of channels.
• Recommended use. Linking two PW40BATBT units together

Phantom Power

• +15 V: Mic inputs (Channel 1 and 2)

Speakers

• 2 x 4.5″

Power Requirements

• Europe: 230VAC / 50 Hz, 80W Nominal
• UK: 230VAC / 50 Hz, 80W Nominal

Horn

• 3.5″ piezo driver

Power capacity

• 40 Watts RMS

Frequency Response

• 70 Hz-20kHz: 92 dB 1 W- 1 M nominal

Bluetooth Module Features
Bluetooth 3.0EDR compliant Typical +2 dBm Class 2 output power audio DAC 94 dB SNR A2DP profile support

Top Hat Speaker Connector: 35mm / 1 3/8″ diameter

Dimensions

• 7.2″ W x  18.8″ H x 7.3″ D
• 192mm W x 478mm H x 185 D mm

Weight:

• 16 lbs
• 7.2 kg
