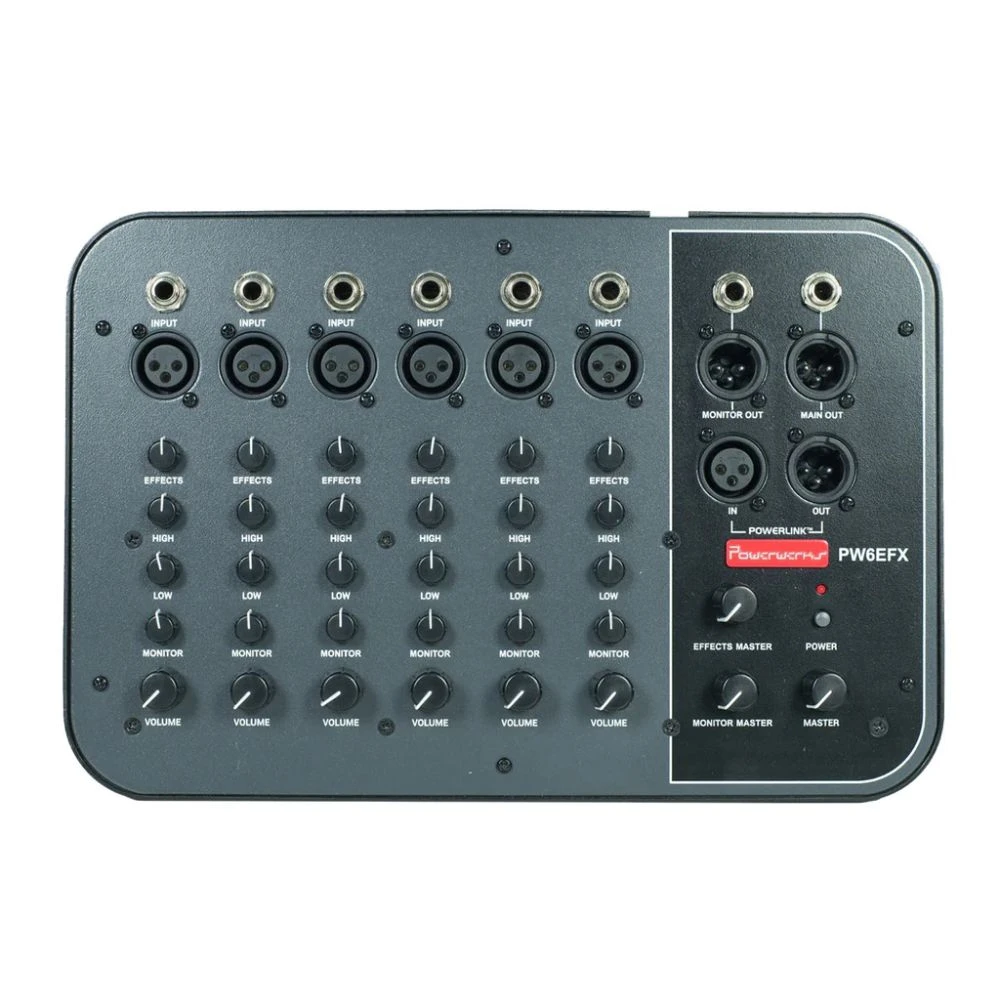

Powerwerks 6 Channel Mixer With Digital Fx

The PW6EFX draws on decades of electronic design and manufacturing experience of Powerwerks. This model was built from the ground up offering useful features, high signal-to-noise ratio, and reliable performance.

Features

• Digital Effects
• 6 Individual Mic/Line Input and Channels
• Phantom Power
• Compact Size – Only 3.5lbs
• Rugged, Gig Ready Design
• POWERLINK IN/OUT for Expanding Your Powerwerks Tower System
• Main and Monitor Outputs

Powerwerks 6 Channel Mixer Specifications

• Inputs: Mic XLR Balanced. Line Level 1/4″ Unbalanced Nominal Line Level of -10 dBV.
• Signal to Noise Ratio: 74 dB, All controls set at maximum unclipped level, bandwidth 22 kHz
• System Gain @ 1 kHz: 21 dB, Line Input to Master Output
• 38 db, MIC Input to Master Output
• Channel EQ (high, low): 2.6 kHz and above, 0.9kHz and below
• Low boost/cut: +/- 9.8 dB at 63 Hz High boost/cut: +/- 2.0 dB at 8.0 Hz
• Powerlink IN: Accepts a pre-master volume signal from other PowerWerks products, or a line level input from another audio product.
• Recommended use: Daisy chaining to another PW6FEX for expanding the number of channels
• OUT: Exports a pre-master volume signal to other PowerWerks products
• Recommended use: Linking to any PowerWerks powered speakers or daisy chaining to another PW6EFX
• Phantom Power: 17 V, Available on all MIC inputs. Current limited to 5 mA
• Power Requirements: 18 Vdc, Wall adapter included
• Effects: Reverb, 24-bit digital
