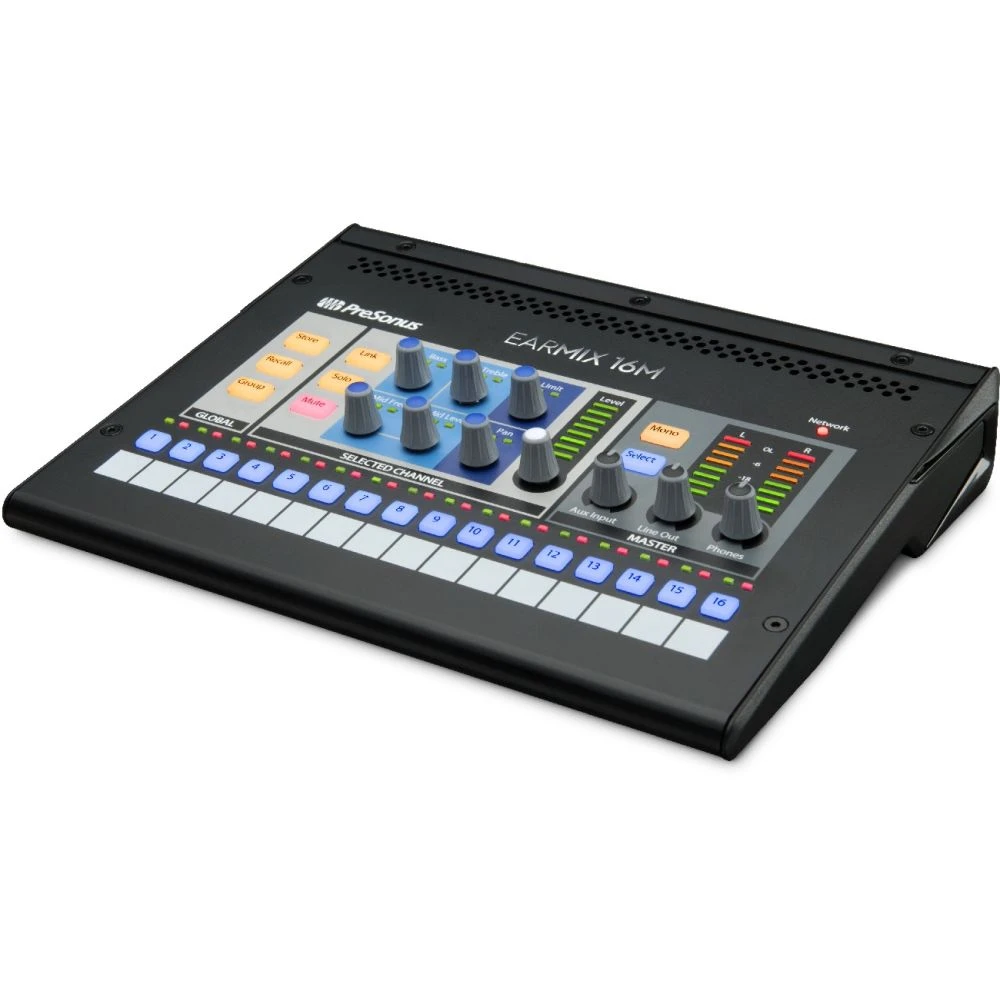

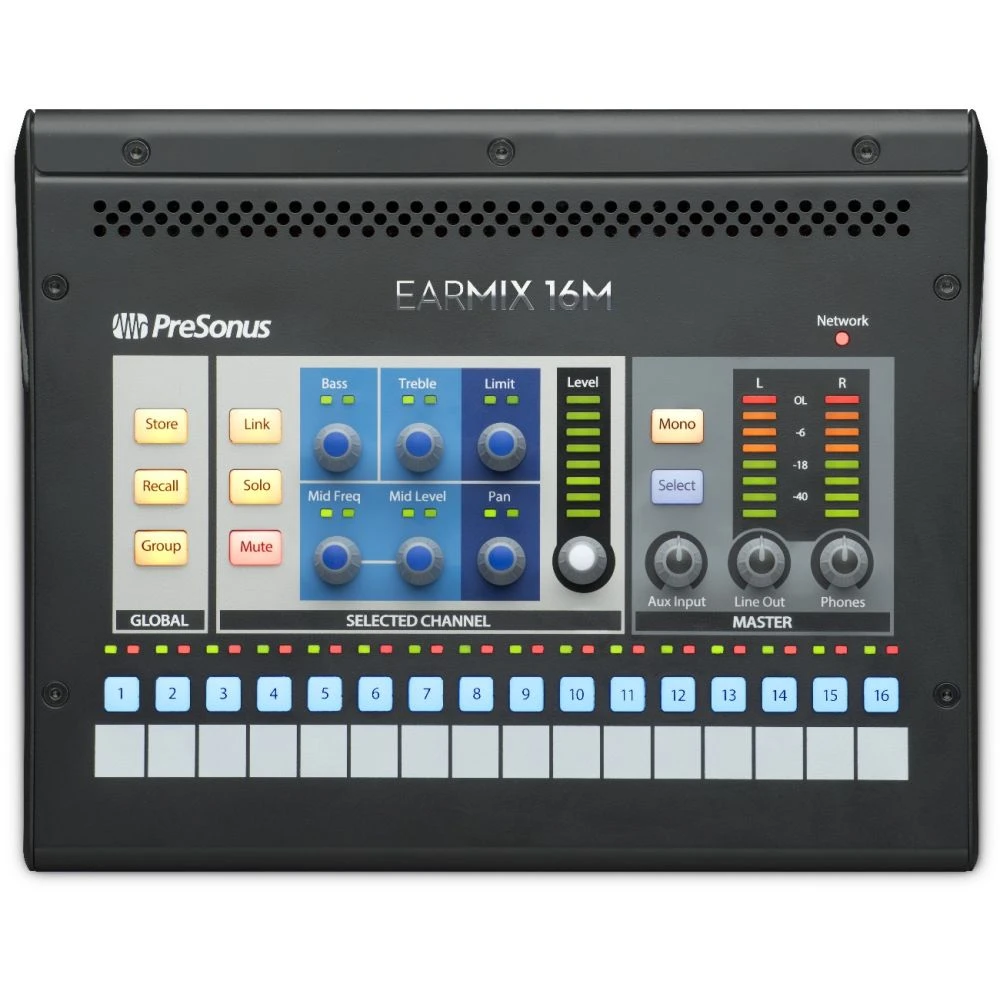

Presonus Earmix 16M Personal Stage Monitor System

The PreSonus EarMix 16M is a 16-channel personal monitor mixer with a loud, clear headphone amp designed to power in-ear monitors; can be powered over Ethernet (PoE); and offers stereo linking, groups, EQ and limiting, and the ability to chain multiple units.

16×2 AVB-networked Personal Monitor Mixer

Designed to work with PreSonus’ StudioLive Series III family of mixers, Earmix 16M is a revolution in the world of digital live performance. It’s also compatible with other AVB-enabled systems like the AVB Stage Box series, available separately.

The EarMix 16M provides 16×2 mixing, with 16 mono channels of input from an AVB network and support for PoE power.

Sonically, a world-class 3-band EQ and limiter on all channels and the main mix give you complete control over your sound on stage. Earmix also features stereo channel linking; channel grouping; a loud, clear headphone amp that can handle low-impedance, in-ear monitors.

The Earmix16 also features 2 AVB Ethernet ports on the rear, enabling chaining units network up to 24 units with a StudioLive Series III mixer.

Key Features:

• 16×2 AVB-networked personal monitor mixer
• Loud, clear headphone amp that can drive low-impedance in-ear monitors
• 3-band EQ and limiter on all channels and main mix
• Stereo channel linking and channel grouping
• Support for PoE power

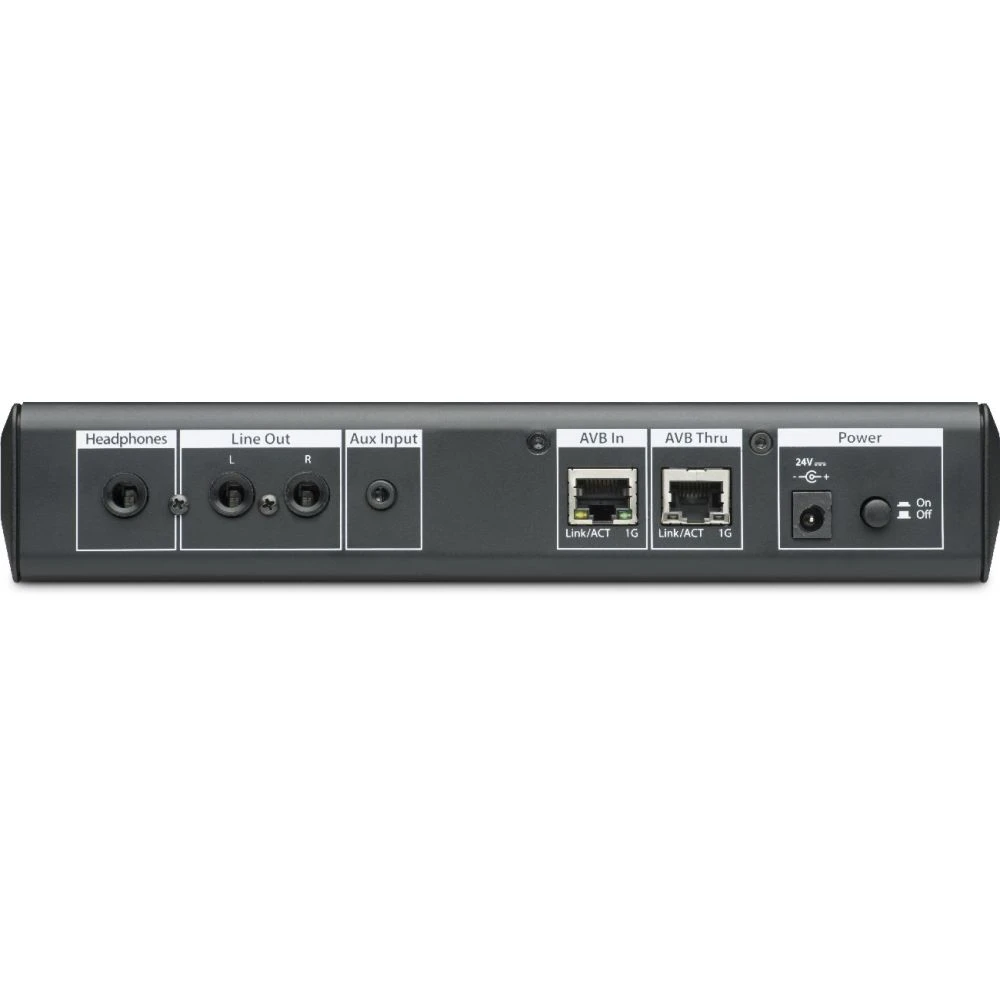

• 2 AVB Ethernet ports; network up to 24 units with a StudioLive Series III mixer
• 2 Balanced ¼-inch TRS line outputs
• 1/8-inch stereo aux input
• Store up to 16 mix scenes locally
• Signal present and clip LED for each input plus 8-segment stereo output meter
• 24 bit, up to 48 kHz operation
• Routing setup from StudioLive Series III consoles and UC Surface

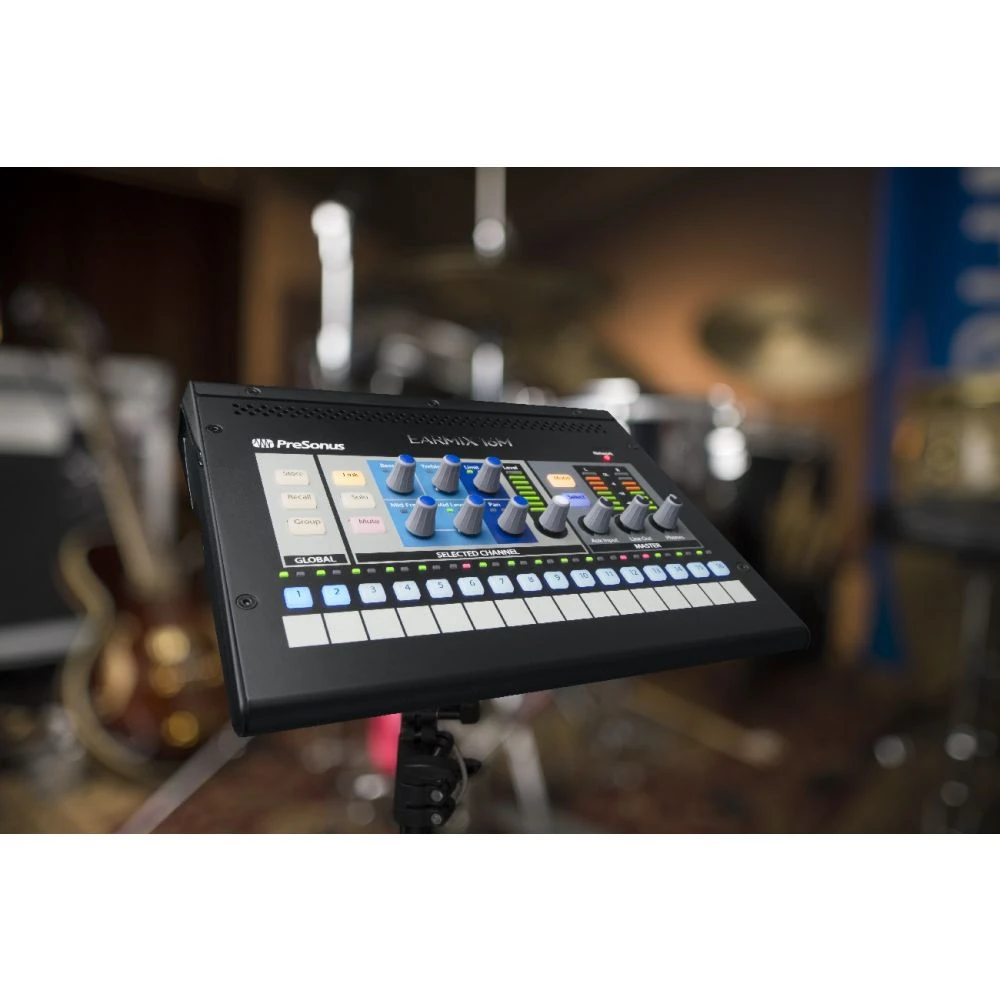

• Mic stand mounting option (sold separately)
