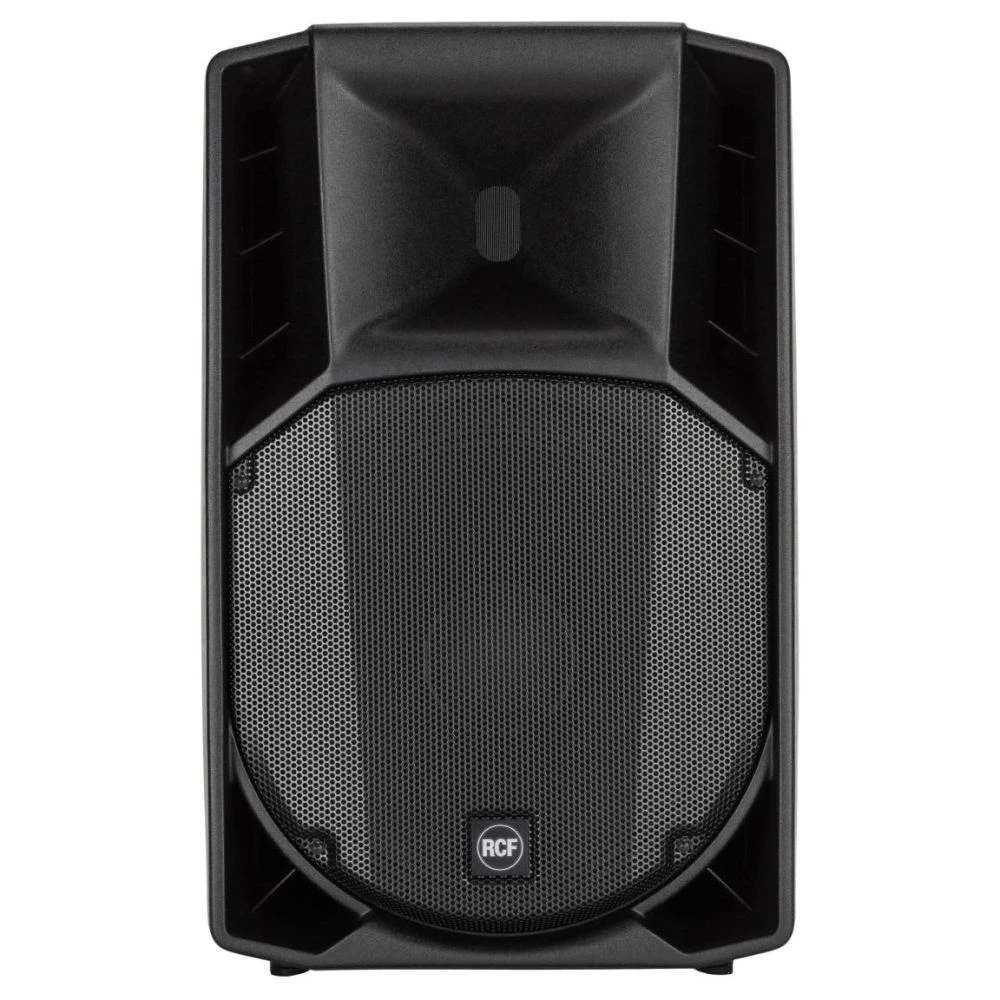

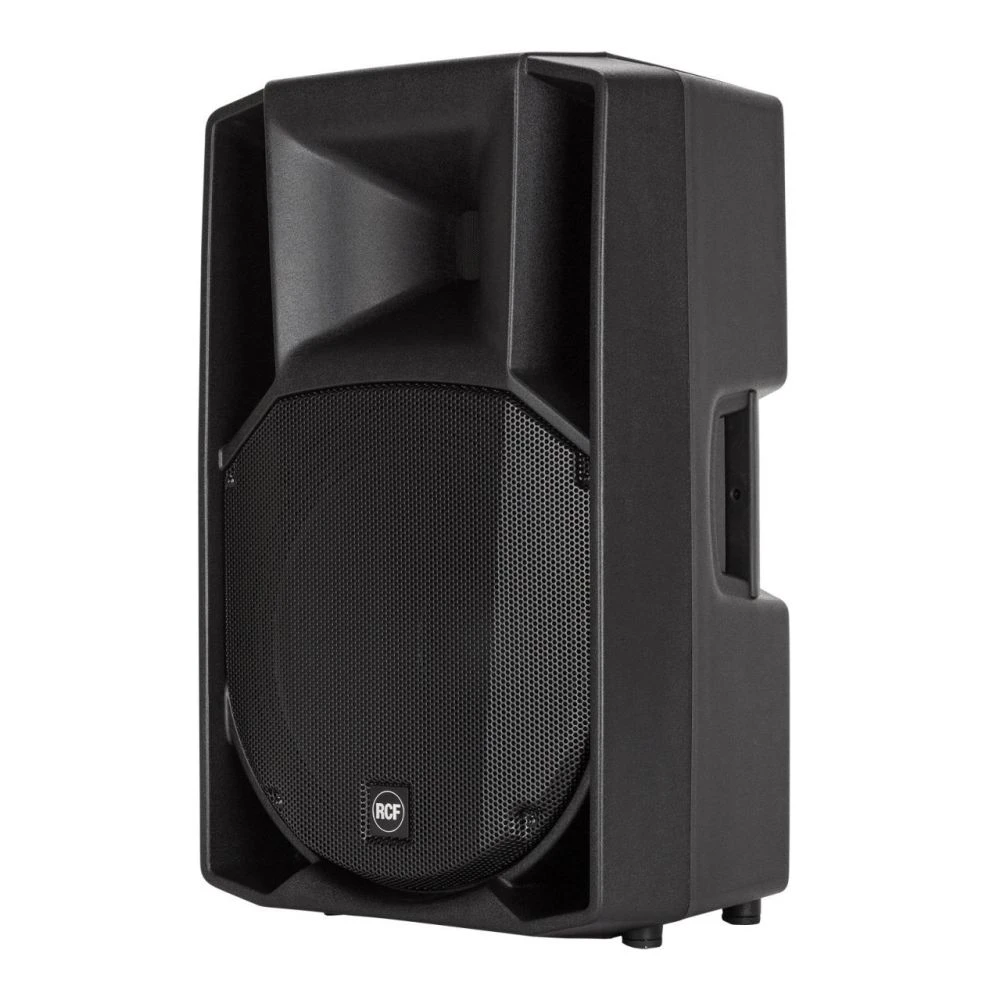

RCF ART 715-A Mk4 Digital Active Loudspeaker

The RCF ART 715-A Mk4 is a multi-purpose digital active PA speaker giving you professional level audio in a rugged, portable cabinet.

The ART Concept

With a professional level compression driver featuring a custom designed dome and a high power voice coil, the 715-A Mk4 delivers fantastic audio from a rugged composite cabinet.

A 15” neodymium woofer provides incredibly linear response with precise low frequency control.

1400 watts of power controlled by innovative DSP processing with FiRPHASE filtering technology allow the RCF ART 715-A Mk4 to deliver a high level of performance from a convenient, portable and durable enclosure.

RCF ART 715-A Mk4 Digital Active Loudspeaker Key Features:

• 130 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1″ Compression Driver, 1.75″ v.c.
• 15″ Woofer
• 90 degrees x 60 degrees, wide dispersion constant directivity horn
• FiRPHASE Technology

Powerful and Efficient Class D Amplifiers

Using RCF’s Class-D power amplifier technology, the RCF ART 715-A is able to deliver huge impact with a powerful performance while keeping weight low.

Powered by an SMPS power supply, the amplifier is able to deliver the high output required for fantastic performance while helping to maintain that low weight.

Furthermore, with a solid aluminium structure, the amplifier benefits from passive, fan-less cooling while being kept stable during transport.

Simple Controls, Great Results

The ART 715-A has a useful set of controls which keep things simple while giving you great results.

Two EQ mode are instantly accessible. The Boost mode delivers enhanced bass response which is great for low volume scenarios. Switch over to Flat for the best response when dealing with a live mix.

A mic/line switch allows you select the suitable option for your source while a volume knob gives you direct and convenient control over your output level.

Red Dot Design Award Winner

The RCF ART 7 series has earned the prestigious Red Dot Design award for Product Design which is great testament to their quality.

Two M10 suspension points are found on the ART 715-A so it can be suspended but it’s also pole mountable, giving you versatile positioning options for different venues and applications.

Furthermore, RCF have designed the ART 715-A Mk4 to work well not just as a loudspeaker but as a stage monitor. It has a specially designed rear profile and internal reinforcement making it perfect for the task.

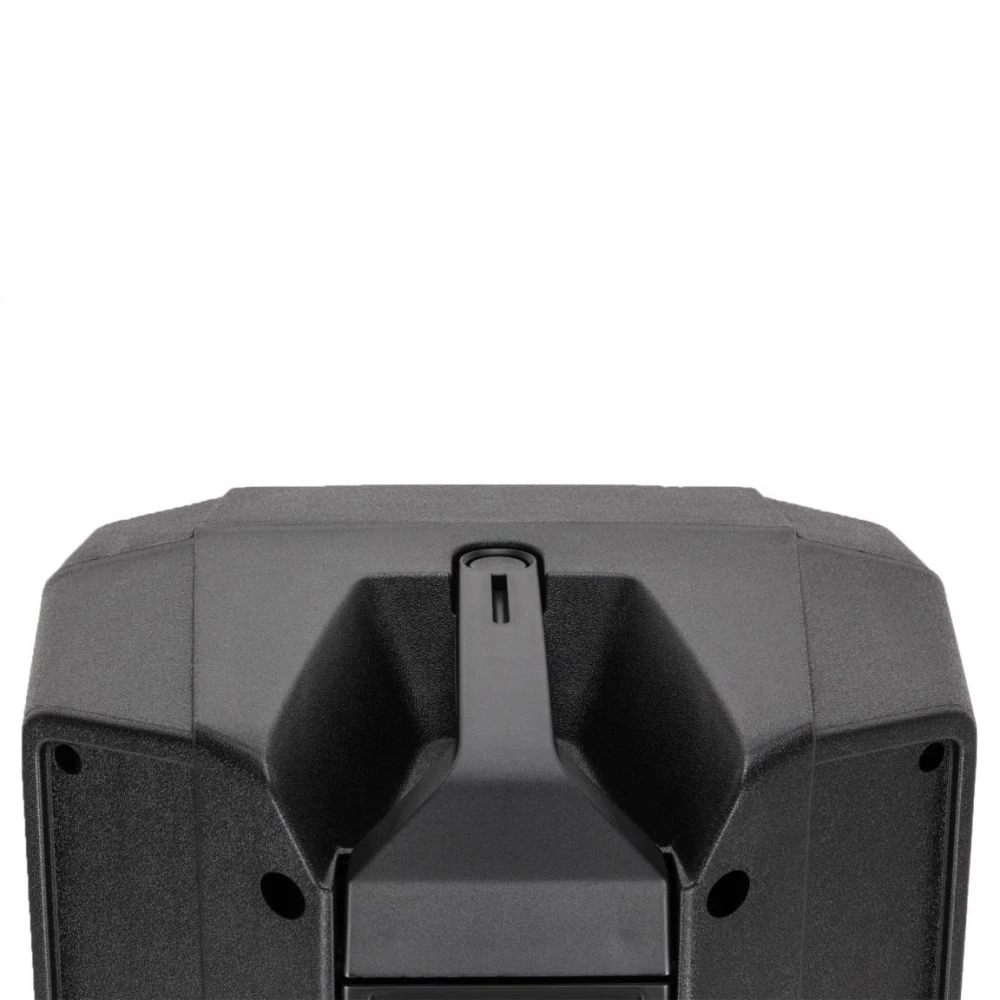

Adding to the portability of this great active speaker are three hand grips. With one on top and two on the sides, these strong, rubber covered handles make carrying the ART 715-A Mk4 easy.

Buy the RCF ART 715-A Mk4 digital active loudspeaker from PMT Online for a live sound solution that delivers professional audio suitable for virtually any scenario.

RCF ART 715-A Mk4 Digital Active Loudspeaker Specs:

Acoustical Specifications

• Frequency Response 45 Hz – 20 kHz
• Max SPL @1M: 130 dB
• Horizontal Coverage Angle: 90 Degrees
• Vertical Coverage Angle: 60 Degrees

Transducers

• Compression Driver: 1.0”, 1.75” v.c
• Woofer: 15”, 2.5” v.c

Input/Output Section

• Input Signal: Bal/Unbal
• Input Connectors: XLR, Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor Section

• Crossover Frequencies: 1600 Hz
• Protection: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Power Section

• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Physical Specifications

• Cabinet/Case Material: PP Composite
• Hardware: 2 X M10
• Handles: 1 Top, 2 Side
• Pole Mount/Cap: Yes
• Grille: Steel
• Colour: Black

Size

• Height: 708mm/27.87”
• Width: 437mm/17.2”
• Depth: 389mm/15.31”
• Weight: 19.6kg/43.21lbs
