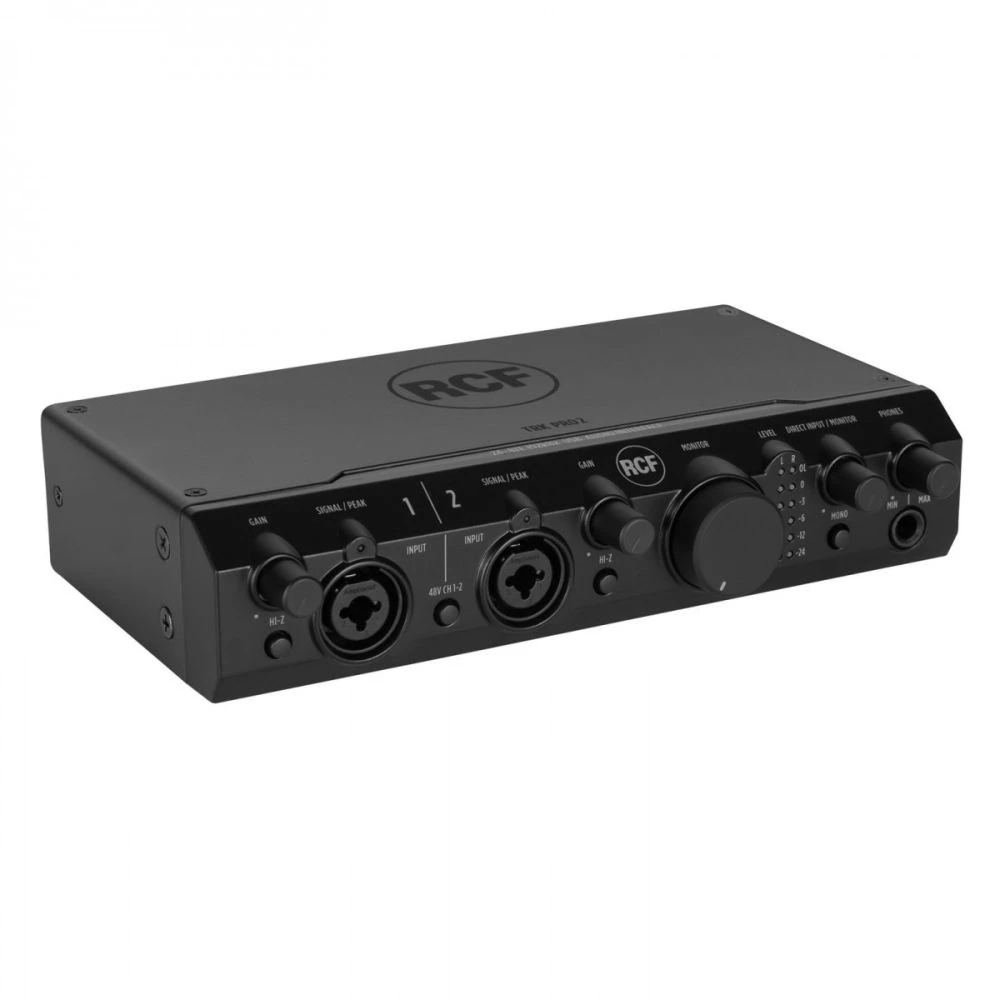

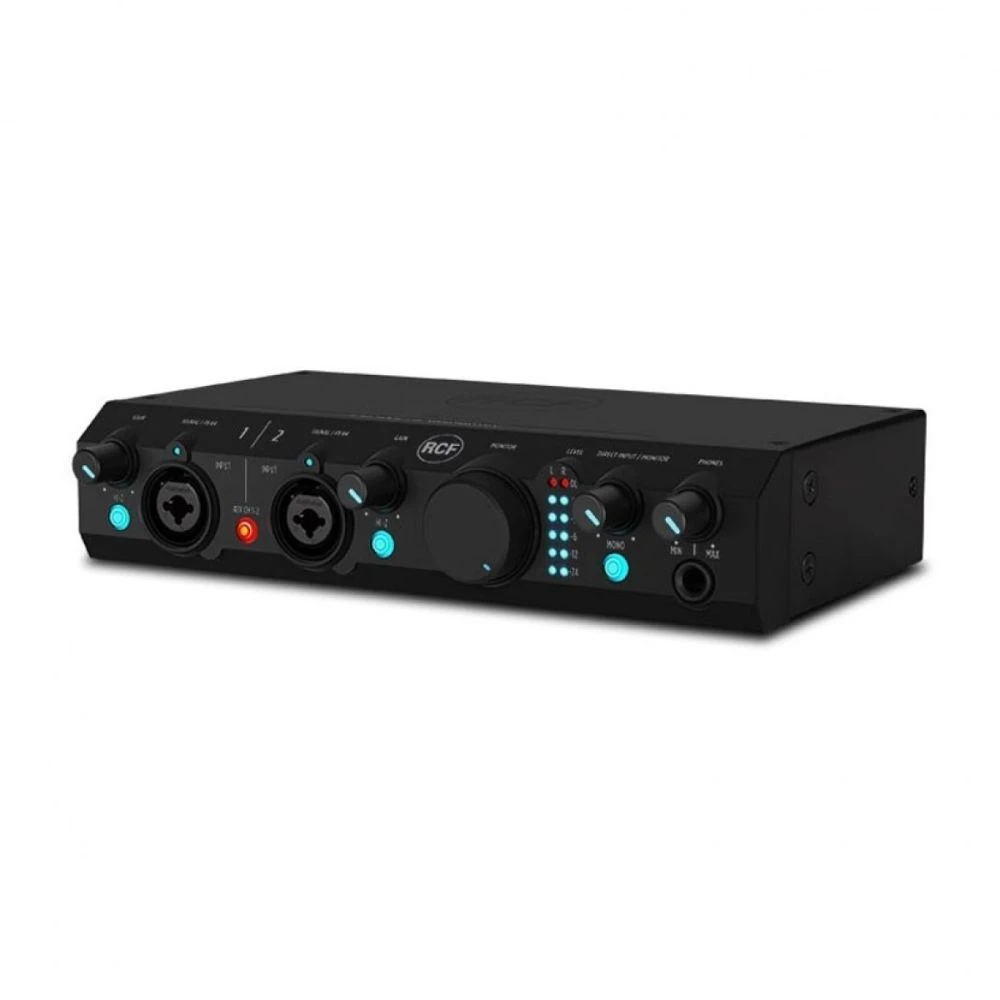

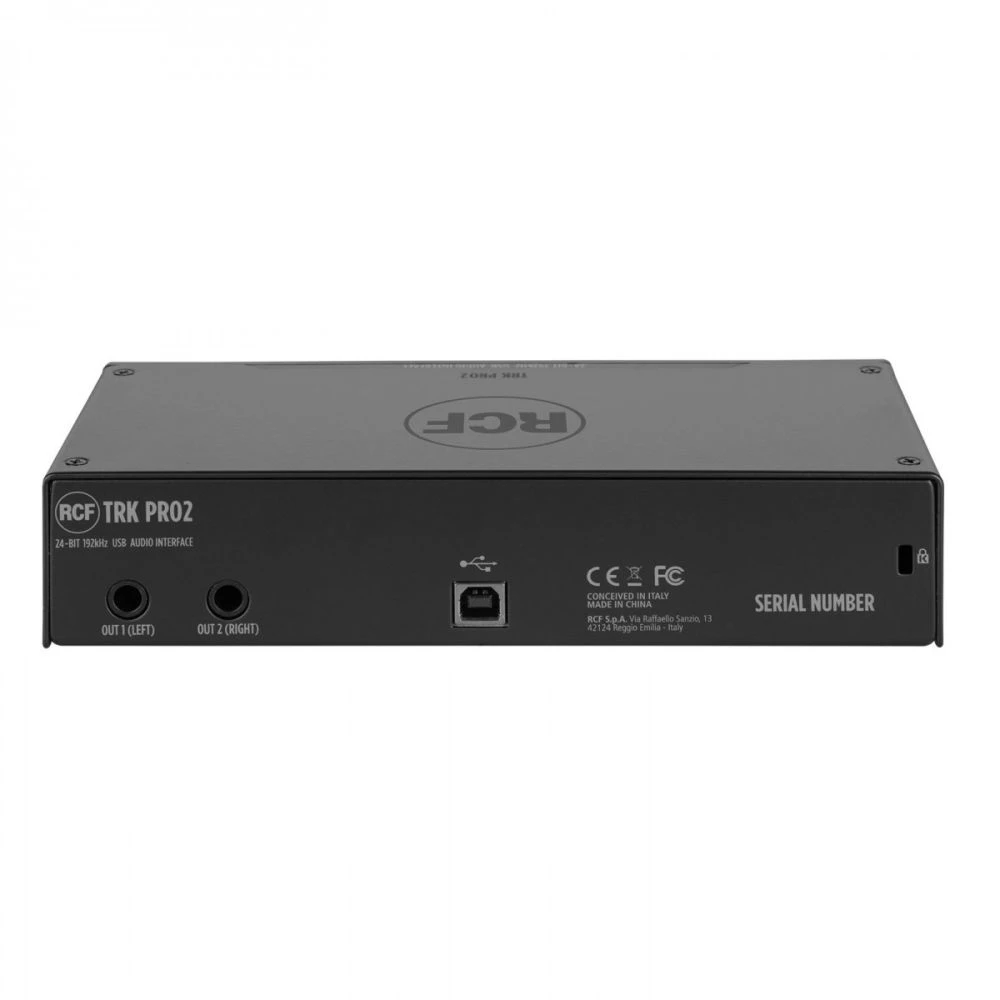

RCF TRK PRO2 USB Audio Interface

Boasting a pair of high quality combo input to ensure the perfect capture, balanced output connections to ensure maximum versatility and a rugged design to survive a hard life on the road,  the RCF TRK PRO2 USB Audio Interface provides all the tools necessary to achieve studio-quality recordings with ease!

The perfect companion for the creative on the move – this compact little 2 In 2 Out USB 2.0 Bus-Powered Audio Interface is ideal for producers, singer-songwriters, musician and podcasters on the go!

With zero-latency monitoring, capture your best performances straight into your computer-based DAW or tablet using the ultra-linear mic preamps and high-grade, low-noise 24-Bit/192 kHz converters – guaranteed to enhance your performances and inspire your creativity AND

Complete with a range of features and enhancements such as independent headphone and input gain controls, complete with Signal-Peak LED feedback, the rugged and compact TRK PRO2 is the perfect travelling companion for the modern creative!

RCF TRK PRO2 USB Audio Interface Key Features:

• High-Quality Inputs – This 2 In / 2 Out USB 2.0 Bus-Powered Audio Interface is capable of performing up to 24-Bit/192kHz to deliver studio-quality recordings on-demand in combination with its high-quality preamp.
• Combo Inputs – Whether you’re laying down a guitar, vocals or both, with the Instrument/line Combo input, you’re able to easily switch from XLR to 1/4″ recording inputs.
• Balanced Output – Providing professional connections that allow you to connect to anything from an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.
• Zero-Latency Monitoring – Hear your live performance as it should sound, with high accuracy and fidelity – no matter your computers hardware capabilities.
• Independent Gain Control – Complete with an informative Signal-Peak LED, nothing is more important than being able to monitor your input gain for that perfect recording.
• Independent Headphone Volume Control – Quickly and efficiently set your output levels on the unit.
• Robust Metal Case – Designed to survive a life on the road, to durable outer casing will stand up to the toughest of abuse.
• 48V Phantom Power Supply – Power your favourite microphone or Hi-Z level instrument with this industry-standard addition.
• RDNet Measures – Perfect for use in conjunction with the RDNet dual-channel FFT audio analyser software to calibrate PA systems.
• Includes Rack Mount Ears – Optionally house your TRK PRO2 in your rack mount system.

RCF TRK PRO2 USB Audio Interface Specifications:

MIC INPUT (Balanced)

• Freq. Response: 20Hz-20kHz, +/-0.1 dB
• THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
• Noise EIN: < -120dB
• Dynamic Range: 107dB (A-weighted)
• Input Impedance: 3.5KOhm
• Gain Range: -9 dB +47 dB
• Maximum Input Level: +9 dBu

LINE INPUT (Balanced)

• Freq. Response: 20Hz-20kHz, +/-0.1 dB
• THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
• Dynamic Range: 107dB (A-weighted)
• Input Impedance: 15 kOhm
• Gain Range: -20 dB +36 dB
• Maximum Input Level: +20 dB

INSTRUMENT INPUT (Unbalanced)

• Freq. Response: 20Hz-20kHz, +/-0.1 dB
• THD+N: 107dB (A-weighted)
• Input Impedance: 1MOhm
• Gain Range: -10 dB +46 dB
• Maximum Input Leve: +10 dBu

ANALOG OUTPUT (Balanced)

• Maximum Output Level: 0dBFS=12dBu
• Freq.Response: 20 Hz 20 kHz, +/-0.2
• THD+N : <0.0012 , -1dBFS, 20 Hz-20 kHz
• Dynamic range: 107 dB (A-weighted)

HEADPHONES OUTPUT (Unbalanced)

• Output Impedance: <10 Ohm
• Max Output Level: 500 Ohm – 114 mW

SUPPORTED SAMPLE RATES

• 44.1 kHz
• 48 kHz
• 88.2 kHz
• 96 kHz
• 176.4 kHz
• 192 kHz

SUPPORTED BIT DEPTH

• 16 Bit
• 24 Bit

• CE marking: Yes
• Cabinet/Case Material: Steel
• Colour: Black – RAL 9005
• Height: 46 mm / 1.81 inches
• Width: 2100 mm / 8.27 inches
• Depth: 125.8 mm / 4.95 inches
• Weight: 0.85 kg / 1.87 lbs
