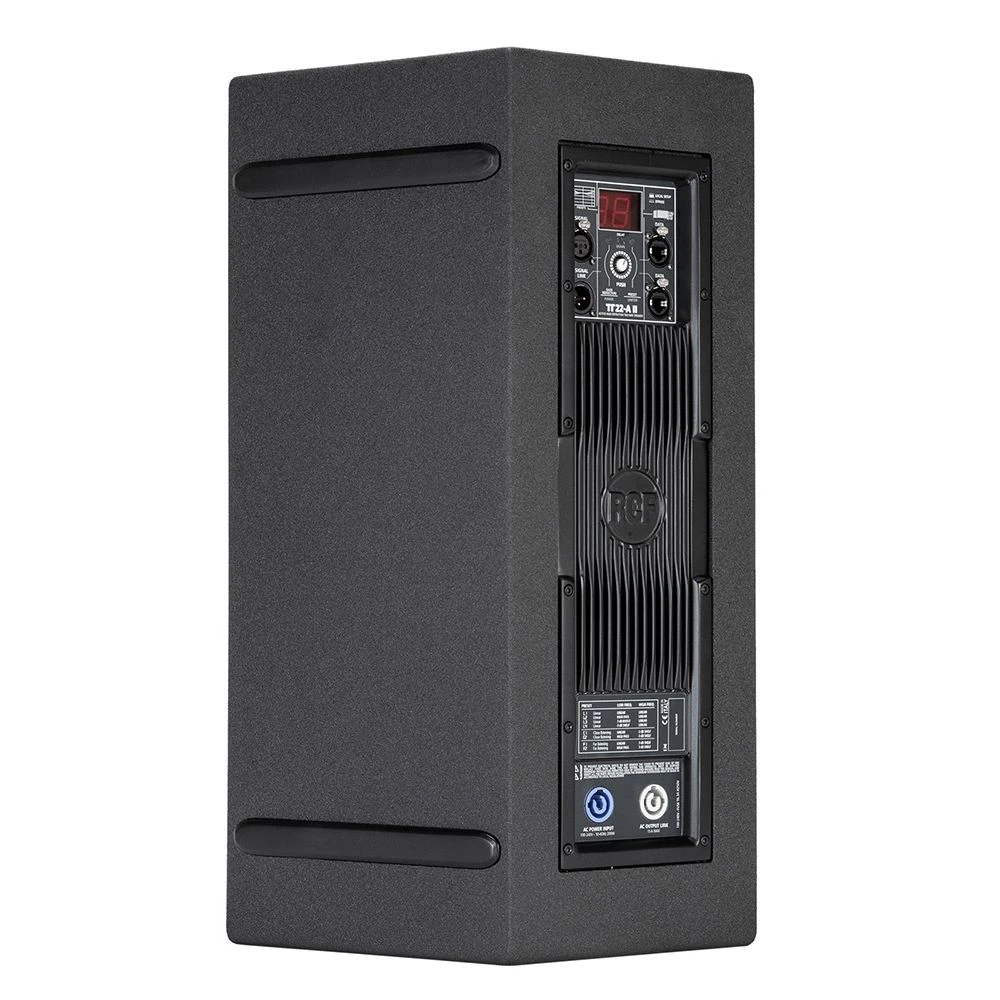

RCF TT22A MKII Active PA Loudspeaker

Designed to meet the demands of touring sound engineers and music venues, the TT+ series delivers a new level of loudspeaker performance, reliability and versatility. Extremely high sound pressure levels, customisable DSP processing settings and an array of mounting points make the TT22A MKII a serious contender for any scale of front-of-house installation.

Unrivalled sonic performance. The perfect portable loudspeaker!

The design philosophy of the new products in the TT+ Series is based upon offering ready-to-use solutions and tools to the sound engineer. A key advantage is the ability to sustain very high power with efficient sound pressure levels. Intense sound levels are created with remarkably high definition and extended dynamic range.

Class D – State of the Art Power

Two independent digital amplifiers – 800 W low frequencies, 300 W for the high frequency driver – deliver an astonishing output power making the TT22-A II one of the most powerful 2-way speakers in its category. RCF’s Class-D amplifiers offer hi-fi sound, extremely low distortion with negligible quiescent noise and stable burst response.

Lightweight

Modern construction materials result in light mechanical weight ratios, for practical flying and portability. The TT22-A II loudspeakers are very easy to move and transport, for unparalleled user’s comfort. Designed to be as versatile as possible, the TT22A MKII can be fly-mounted in a fixed installation, mounted on standard speaker stands, or used in a wedge stage monitor configuration. It includes Top M20 insert, Pole Mount on the bottom, Top and bottom fly tracks (6x), Side quick-lock pins (4x) and Side M10 rigging points (4x). Use it anywhere, any time!

DSP Processing – RDNet

The TT22A MKII also features some of RCF’s latest loudspeaker technology, including RDNet. A dedicated on-board processing area is available through the included RDNet input board. Remote monitoring, special custom equalisations, high and low pass, single way Solo and Mute, and many other options are all available for permanent installation or versatile touring applications. You can also tailor precise delay settings for multi-room or outdoor rigs. Using the RDNet protocol is possible to monitor all the system parameters, from the input to the status of each single amplifier. With the integrated DSP board of each unit, it is possible to address to single cabinets or groups of cabinets specific presets via the RDNet GUI software.

60 Years – The RCF Legacy

RCF is one of only a few loudspeaker manufacturers worldwide that have the ability to completely design and manufacture transducers, speakers systems, as well as electronics for amplification and control. More than 60 years of heritage in Audio, combined with their state-of-the-art research and development and manufacturing processes, allow them to seamlessly integrate all the ingredients to design and build the TT+ Series.

Key Features:

• 1100 W Class D Amplifier
• 90 x 60 constant directivity coverage angle
• 12″ neo woofer, 3.5″ voice coil
• 1.5 ” neo c. driver, 3.0″ voice coil
• DSP Processing
• Onboard RDNet Control
• Multifunctional cabinet
• Very high output

Acoustic Specifications

• Frequency Response (-3 dB):  50 Hz ÷ 20000 Hz
• Max SPL:  131 dB
• Horizontal coverage angle:  90°
• Vertical coverage angle:  60°
• Compression Driver:  1.5 ” neo, 4.0″ voice coil
• Woofer:  12″ neo, 3″ voice coil

Input/Output Section

• Input signal:  Bal/unbal
• Input connectors:  XLR, RDNet onboard
• Output connectors:  XLR, RDNet onboard
• Input sensitivity:  -2 dBu / + 4 dBu

Processor Section:

• Crossover frequencies:  750 Hz
• Protections:  Thermal, HF
• Limiter:  Fast limiter, dynamic
• Controls:  proces., 8 sel. presets

Amplifier Specifications:

• Total power:  1100 W RMS
•    High frequencies:  300 W RMS
•    Low frequencies:  800 W RMS
• Cooling:  Convection
• Connections:  Powercon in/out

Cabinet

• Cabinet Material:  Baltic birch
• Hardware:  6xFly tracks, quick lock, pole mount
• Handles:  2 on side
• Pole Mount/Cap:  Yes
• Colour:  Black

Physical Specifications

• Height:  600 / 23.62 mm/inch
• Width:  365 / 14.37 mm/inch
• Depth:  379 / 14.92 mm/inch
• Net Weight:  23.3 / 51.36 kg/lbs

Shipping Information

• Shipping weight:  25.5/56.21 kg/lbs
