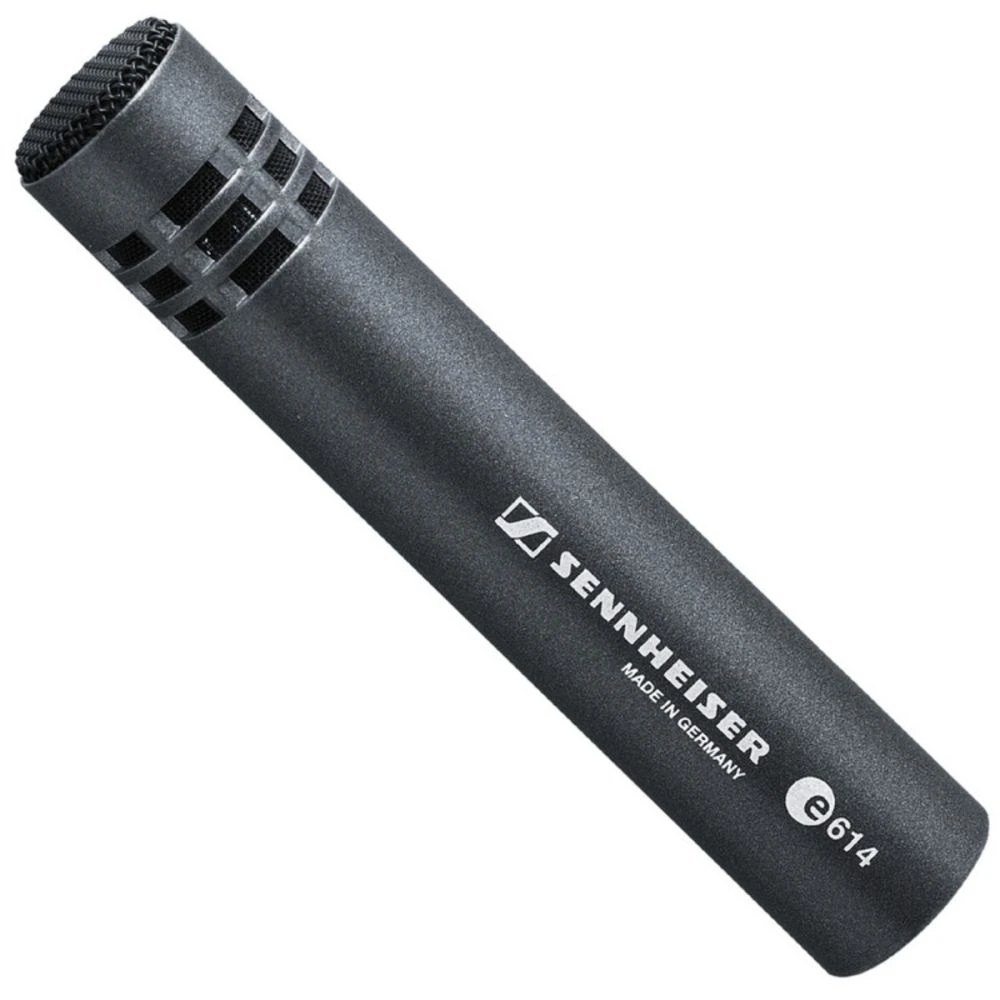

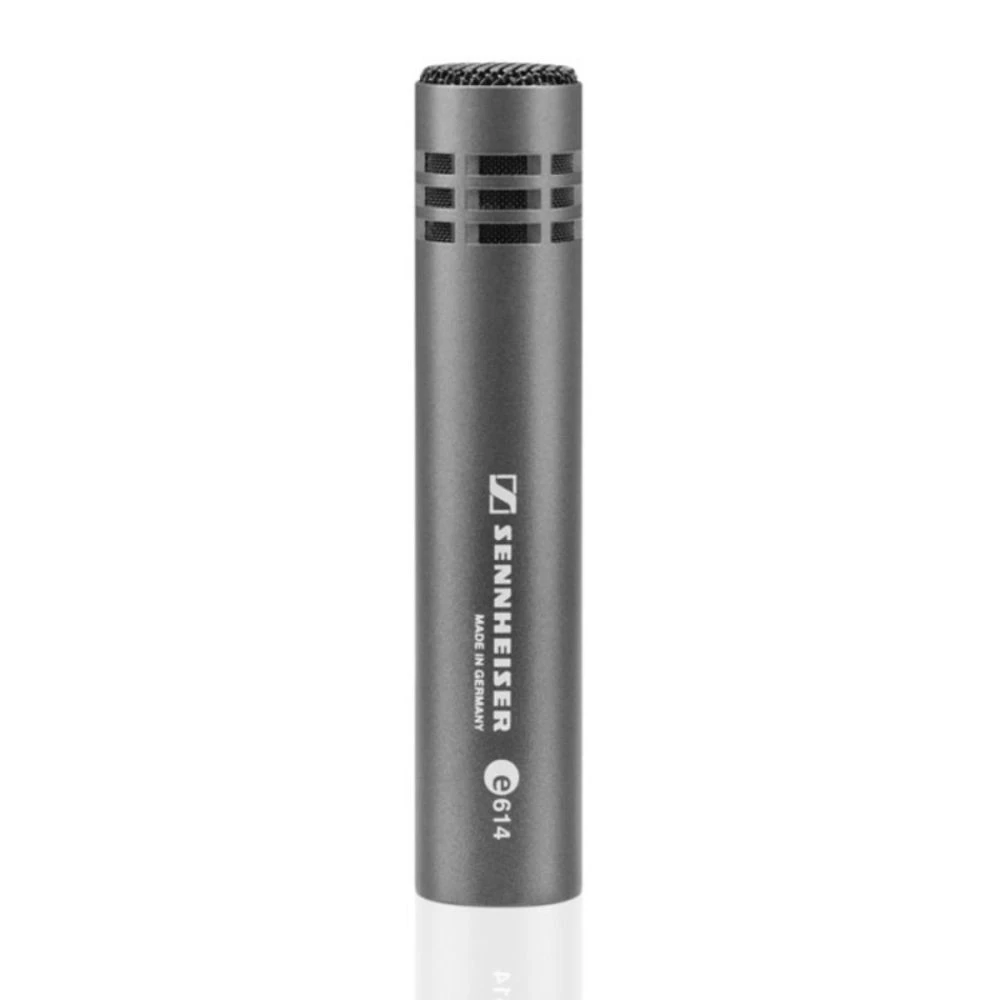

Sennheiser E614 Overhead Condenser Microphone

Looking to compliment your studio setup with a new overhead mic that’s specially-designed to withstand high sound pressure levels? Then we have just the thing for you!

High-Quality, Compact Mic

With the Sennheiser e614 you get a premium-quality, supercardioid, back-electret condenser microphone.

This mic is ideal for demanding instrument recordings which require extended frequency response, high SPL, fast transient response and compact mic size.

Sennheiser E614 Overhead Condenser Microphone Features

• 40-20,000 Hz frequency range
• Extended frequency Range
• High sound pressure levels
• Fast transient response
• Constructed with robust material

Versatile Application

While percussion overhead miking was the first design priority, the e614 also works exceptionally well on woodwind and string instruments.

This mic is also a good choice for flute and sax where it captures the full body of the instrument.

Reliable Performance

The Sennheiser e614 can handle high SPLs and features a medium sensitivity, which ensures reduced bleed from other instruments on stage.

Because of its excellent acoustic properties this mic is also ideal for home recording.

Pack Includes

• 1 x e614 Overhead Microphone
• 1 x Microphone Pouch
• 1 x MZQ 100 Microphone Clip

Sennheiser E614 Overhead Condenser Microphone Specs

• Dimensions: 20mm, L = 100mm
• Connector: XLR-3
• Frequency Response: 40 – 20000 Hz
• Transducer Principle: Pre-polarised condenser microphone
• Weight (Without Cable): 93 g

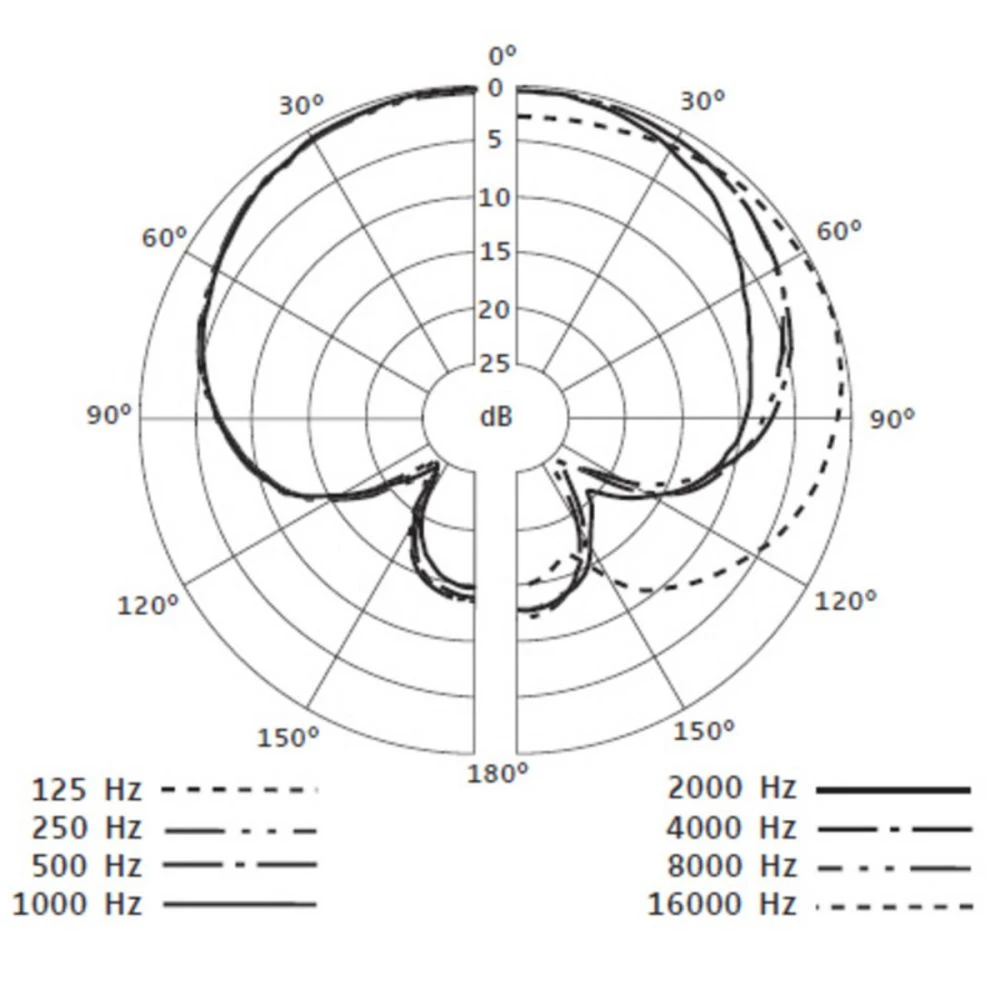

• Pick-Up Pattern: Supercardioid
• Sensitivity In Free Field, No Load (1kHz): 3 mV/Pa = – 50dB (0 dB = 1 V/Pa)
• Nominal Impedance: 50 Ohm
• Min. Terminating Impedance: 1000 Ohm
• Phantom Powering: 12 – 52 V / 3 mA
• Equivalent Noise Level: 24 dB(A)
• Equivalent Noise Level Weighted As Per CCIR 468-3: 35 dB
• Maximum Sound Pressure Level (Passive): 139 dB/SPL
