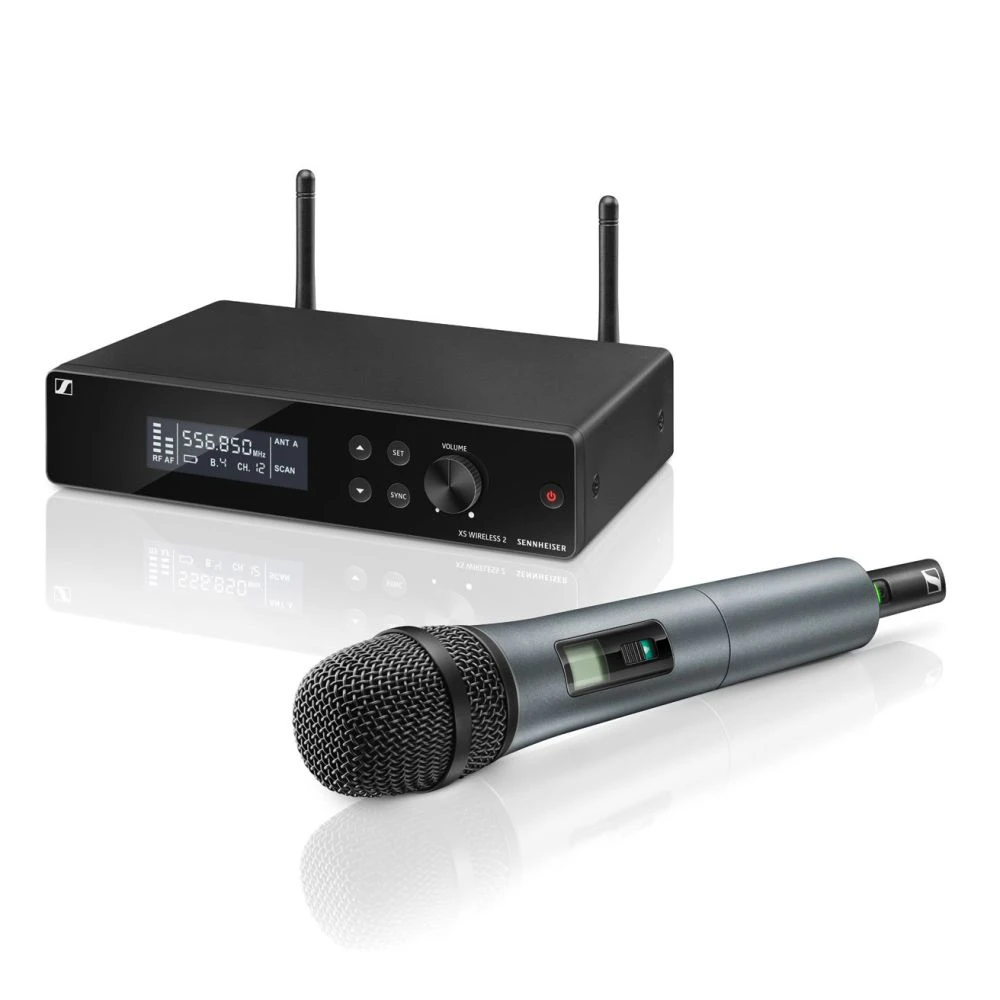

Sennheiser XSW 2-835 Wireless Vocal Microphone Set

Get a wireless mic set that goes the extra mile with the Sennheiser XSW 2-835, an all-in-one wireless vocal system crafted specifically for singers and presenters.

Featuring a practical LCD display for effortless navigation and 12 compatible channels for versatile use at all times, the XSW 2-835 goes above and beyond to handle live stage conditions.

Key Features:

Excellent Live Sound: Boasting Sennheiser’s prestigious E835 microphone capsule with a cardioid polar pattern, vocalists can experience an impressive dynamic clarity that captures every finer nuance.

True Diversity Receiver: Coming with a Metal exterior, the receiver has been optimised to handle the aggressive demands of the road with ease.

Remote Channel for Easy Setup: Offering impressive frequency management and synchronisation from a remote channel, the onboard antennas and antenna switching diversity reception make getting up and running easier than ever.

What’s Included:

• 1 x Receiver EM-XSW 2
• 1 x Handheld transmitter SKM 835-XSW
• 1 x Microphone clamp MZQ 1
• 1 x Power supply NT 12-5 CW
• 2 x AA batteries
• 1 x Rackmount kit
• 1 x Pouch
• User Manual

Sennheiser XSW 2-835 Vocal Set (606 – 630 MHZ) Specifications:

• Dimensions: Approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
• Weight: Approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal, microphone: robust ABS
• AF frequency response: 50 to 16,000 Hz (–3 dB)
• Microphone: Dynamic
• Frequency response: 50 to 16,000 Hz (–3 dB)
• THD, total harmonic distortion: = 0.9%
• Pick-up pattern: Cardioid
• Signal-to-noise ratio: = 103 dBA
• RF output power: 10 mW
• Switching bandwidth: Up to 24 MHz
• Operating time: Approx. 10 hrs
• Modulation: Wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range: GB: 606-630 MHz
• Sensitivity: < 3 µV at 52 dB(A)rms S/N
• Squelch: Switchable from 3 dBµV to 28 dBµV (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Line: 20 dB, switchable
• Input sensitivity: 1.5 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Temperature Range:
• operation: 0°C to +40°C
• storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: True Diversity
