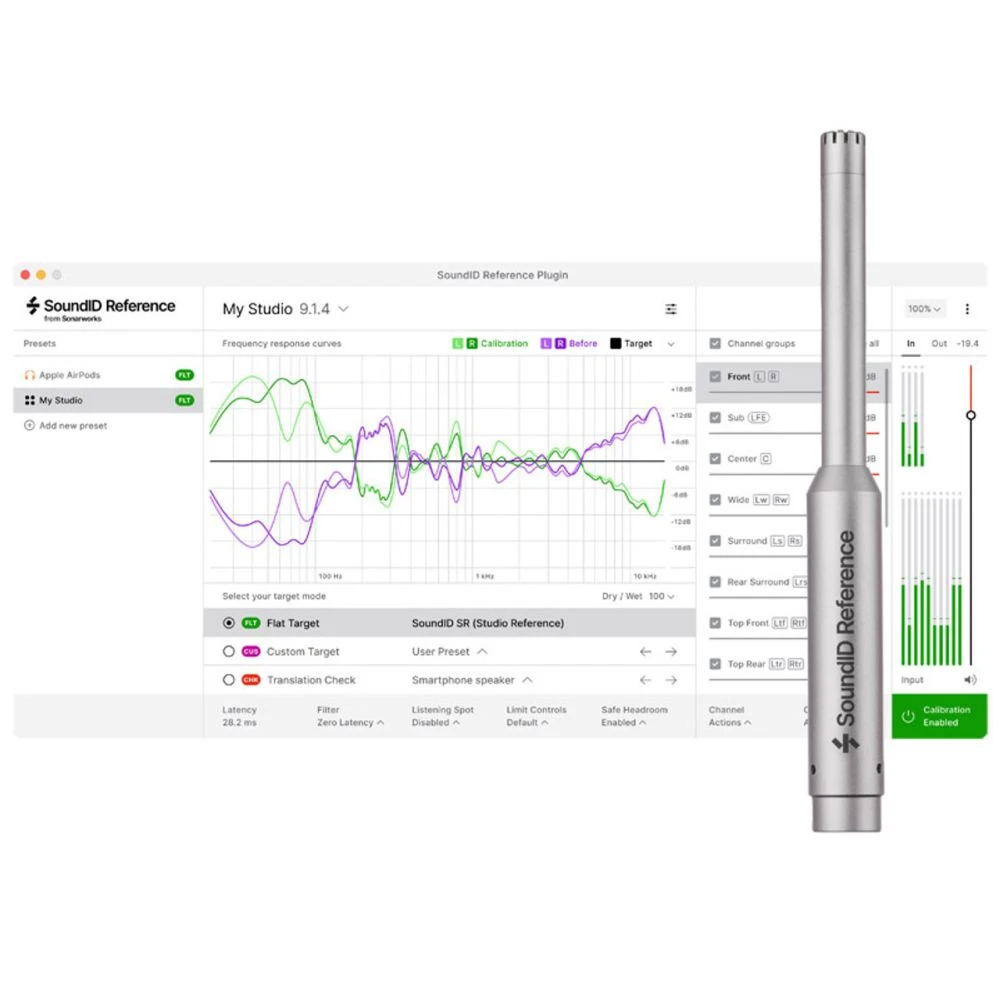

Sonarworks SoundID Reference For Multichannel With Measurement Microphone

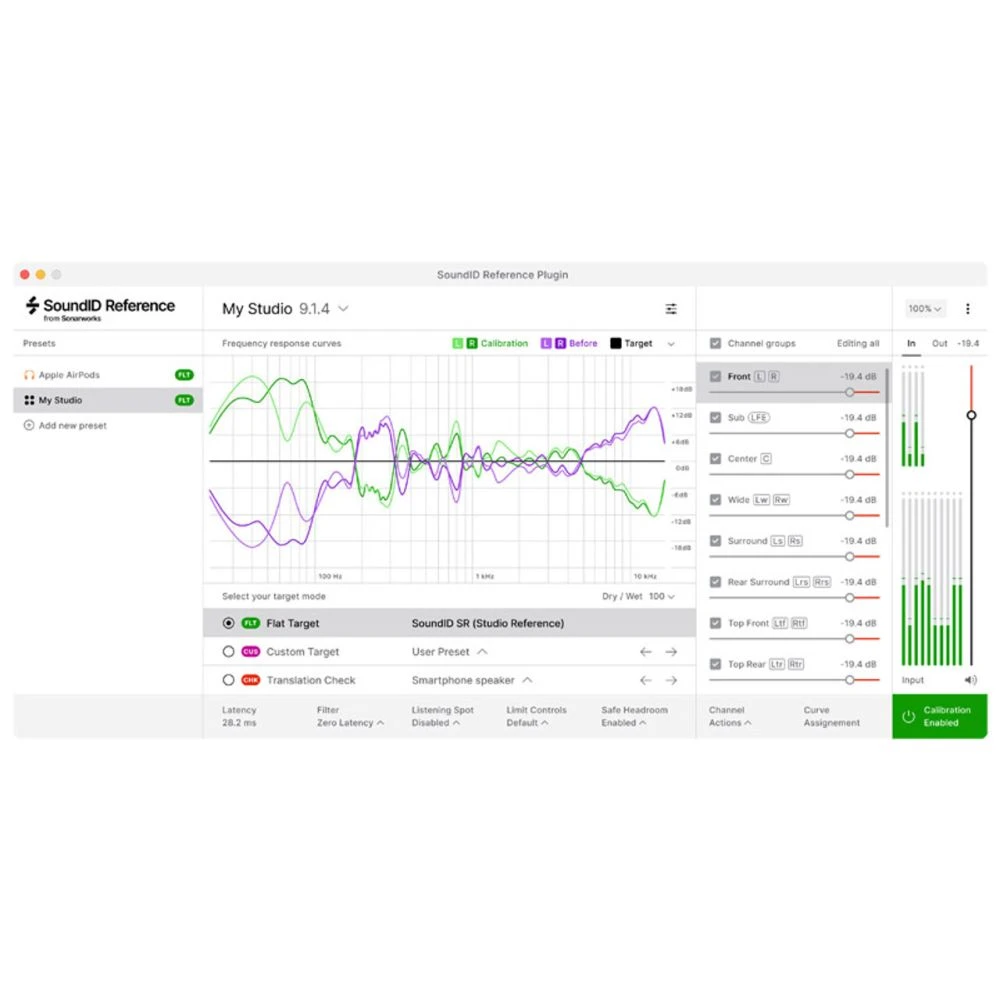

SoundID Reference for Multichannel provides precise and dependable reference sound calibration for a wide range of speaker configurations, ranging from basic stereo setups to advanced 9.1.6 Atmos systems.

Additionally, it extends its capabilities to headphones, allowing you to calibrate any of the 480+ headphone models available in our expanding headphone profile database. This ensures a consistent reference sound experience across both your headphones and speakers.

Key Features:

• Intuitive speaker measurement process
• Compatible with multichannel systems
• Setup in less than an hour even for Atmos
• SoundID Reference Measurement Microphone included
• Phase-based time alignment with sub-millisecond accuracy
• Compatible with major DAWs and hardware
• Supports VST2, VST3 AAX, and AU
• Also includes support for headphone calibration

Sonarworks Soundid Multichannel W/ Measurement Mic Specifications:

Performance

Supported Configurations:

• 2.0, 2.1, 2.1.2, 3.0, 3.1, 3.1.2, 4.0, 4.1, 4.1.2, 4.1.4, 5.0, 5.1, 5.1.2, 5.1.4, 7.1, 7.1.2, 7.1.4, 7.1.6, 9.1.2, 9.1.4, 9.1.6

Sample Rates:

• 44.1kHz, 48kHz, 88kHz, 96kHz, 192kHz

System Requirements

• Windows: 10, 11
• MacOS: 10.15, 11, 12 (Support for Apple M1)
• Plugin Formats: VST 2.4v, VST3, AU, AAX

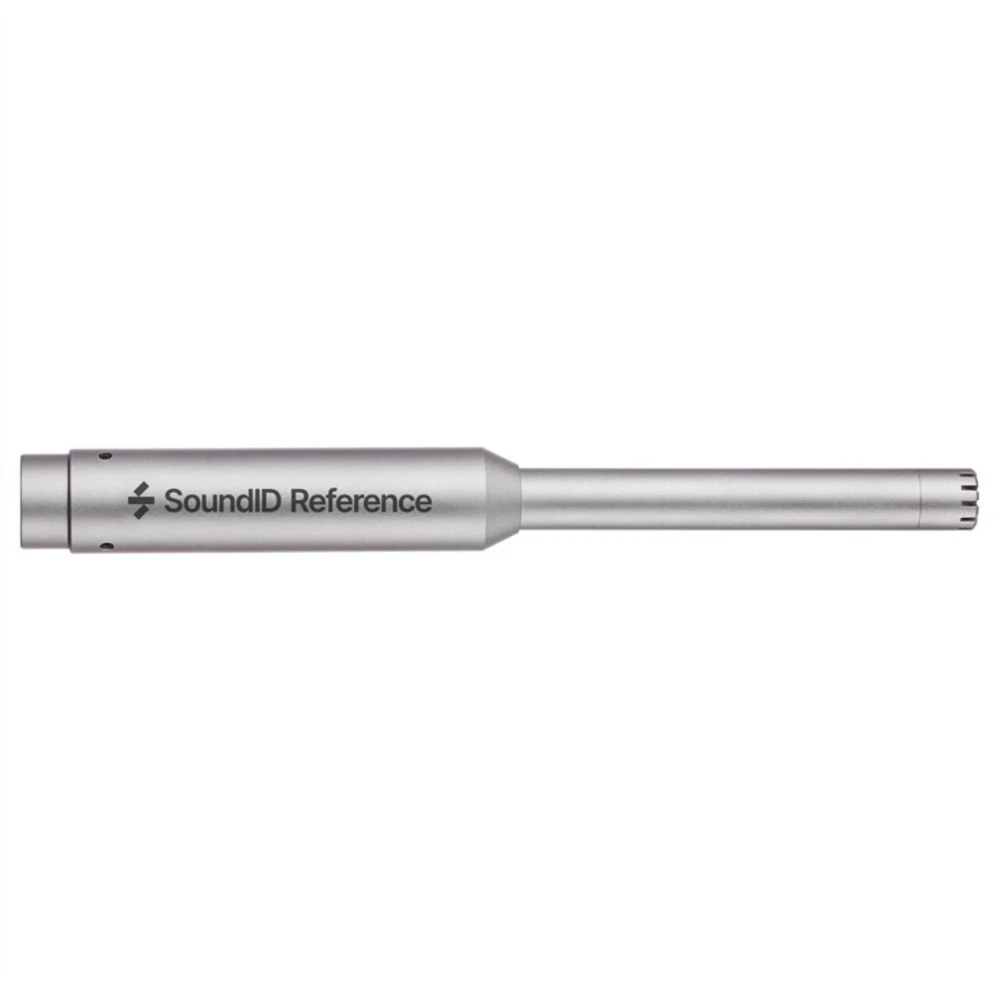

Microphone Specification

• Houses a pre-polarized electret-condenser capsule
• Frequency response: 20 Hz – 20 kHz with a supplied calibration profile
• Omnidirectional polar pattern
• Sensitivity is rated at -37 dB/Pa (14 mV)
• Self noise: 24 dB
• S/N ratio: 70 dB
• Dynamic range: 106 dB
• Maximum SPL: 132 dB
