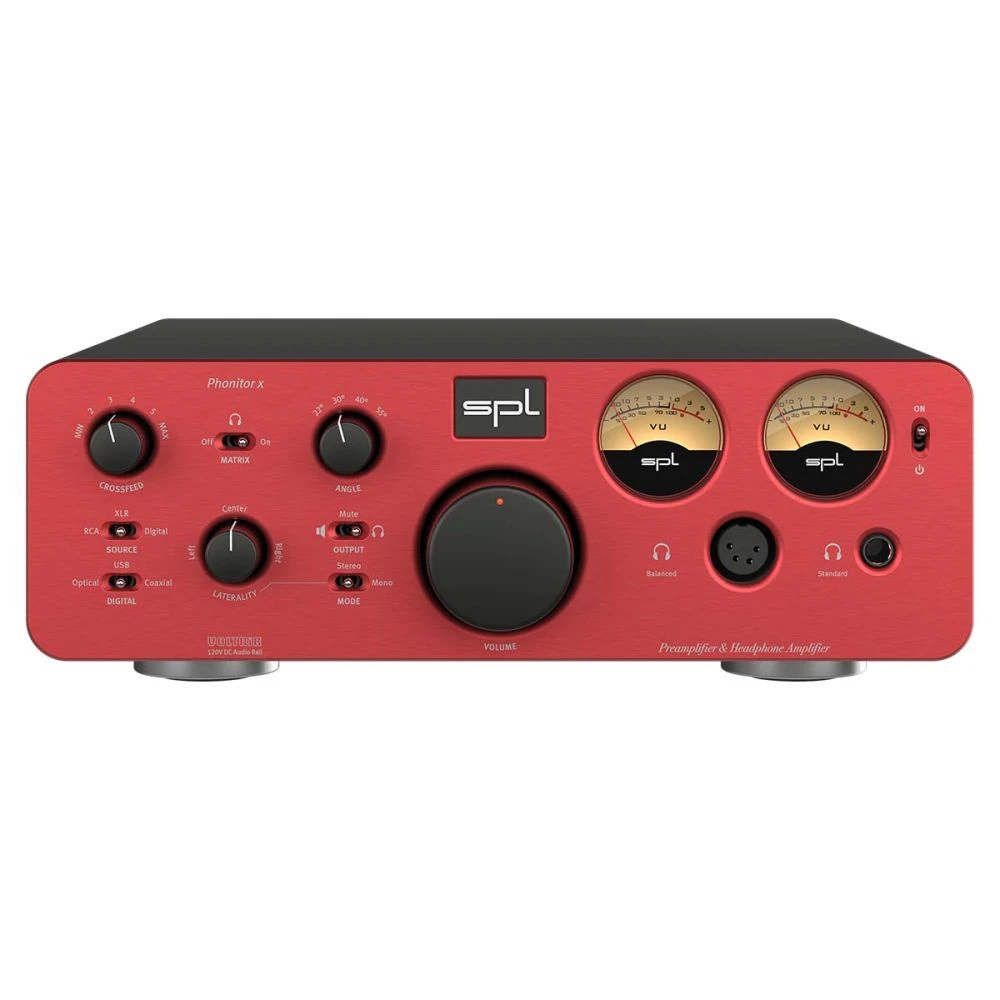

SPL Phonitor X Headphone Amplifier And Preamp, Red

The SPL Phonitor X Headphone Amplifier and Preamp, seen here in Red, stands as the ultimate headphone amplifier that bridges the realms of professional and consumer audio. It serves as a versatile tool, capable of being utilized for audio engineering tasks like mixing and mastering on headphones, as well as being a valuable component of a desktop Head-Fi listening system.

In addition to its exceptional headphone amplifier section, the Phonitor X also functions as a comprehensive preamplifier, perfect for driving power amplifiers and active studio monitors. Powered by SPL’s innovative 120v rail technology, known as VOLTAiR, the Phonitor X supplies a remarkable 120 volts (as implied by its name) while delivering an expansive dynamic range exceeding 140 dB.

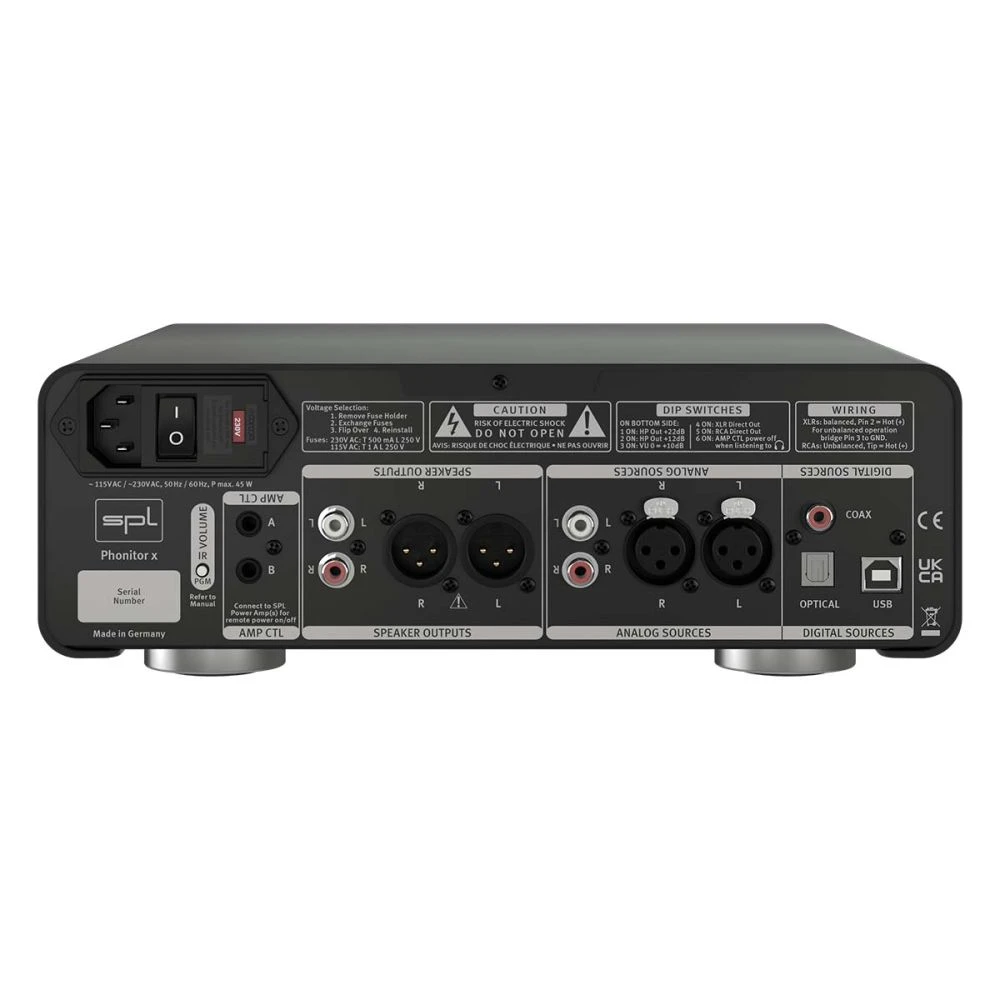

The Phonitor X provides support for up to five input sources, accommodating both balanced and unbalanced options. Analogue inputs are available through XLR and RCA connectors, while the inclusion of SPL’s optional DAC upgrade board offers digital inputs in the form of coaxial, optical, and USB connections.

At maximum output, the Phonitor X showcases an impressive 3.7W of power, delivering a stunning playback experience with tightened bass response and a transparent reproduction of mids and high frequencies.

The Phonitor X incorporates Phonitor Matrix technology, allowing intelligent crossfading of channels to faithfully emulate the experience of listening to monitors within a studio control room.

To enhance user control and customization, the Phonitor X model features a streamlined control set, including four switchable speaker angle settings. Additionally, an adjustable crossfade function provides the ability to modify interaural level differences, effectively adjusting the influence of room size characteristics during playback. This feature is available in six stepped settings, granting users greater flexibility and precision in tailoring their listening experience.

Key Features:

• 120V powered headphone amplifier and preamplifier
• Dedicated headphone driven balanced and unbalanced connectors
• Suited for all headphones with impedance 10 ohms and above
• Balanced and unbalanced analogue I/O
• Speaker-equivalent listening with Phonitor Matrix
• Super-fine lateral balance control
• Switchable mono function
• Volume remotely adjustable (learns any IR remote control)
• Optional DAC board available for USB, coaxial and optical connectivity

SPL Phonitor X Headphone Amplifier and Preamp Specifications:

• Max Gain: 32.5 dBu
• Input Impedance: 20 kOhm (XLR/RCA)
• Output Impedance: 75 kOhm
• Common Mode Rejection: 82dB
• Frequency Range: 4 Hz – 300 kHz (-3dB)
• THD: 0.00085% (10 Hz – 22 kHz, 0 dBu)
• Noise: -103.8 dBu (A-weighted)
• Crosstalk: -106 dB (1 kHz)
• Dynamic Range: 136.3 dB
• Source Impedance: 0.36 ohm XLR, 0.18 ohm Jack
• Damping Factor: 180 (40 ohms)
• Frequency Range: 10 Hz – 300 kHz (-3dB)
• Output Noise: -98 dBu XLR, -103dBu Jack (A-weighted)
• Crosstalk: -90 dB (1 kHz)
• Output Power: 2 x 8W XLR, 2 x 2.7W Jack (1 kHz, 1% THD, 600 O)
• Dimensions: 278 x 100 x 300mm (WxHxD), 4.4kg
