SSL X-Desk 16 Channel SuperAnalogue Summing Mixer

Combining idyllic versatility with a premium performance that’s instantly familiar with Solid State Logic, the SSL X-Desk is a 16-channel mixer with eight dual input mono Line channels and eight insert send/returns, delivering a  world-class sound that’s sure to up your recording game instantly.

The Ultimate Studio Centrepiece

Enabling engineers, producers and artists alike with an elite 16 channel console experience that includes an adaptable input and output configuration, the Solid State Logic X-Desk Mixer also enables users with various monitor outputs and controls for exceptional sonic performance.

Applicable for a vast array of different recording scenarios, the X-Desk SuperAnalogue provides a stunning clarity and dynamic detail, so every finer nuance in your session can be heard spectacularly. With a built-in talkback system also included, this 16-channel mixer is everything you could need in your studio.

SSL X-Desk 16 Channel Super Analogue Summing Mixer Features:

• 8x dual input Mono Line channels: 16 channel mixdown
• Independent Main and Alternate stereo monitor outputs
• SSL Stereo Mix Buss with External summing and Inserts
• Analogue purity at the highest level with SuperAnalogue
• 8x Insert Send/Returns on channels

Pristine Audio Performance

Priding itself on containing the same premium functionality that can be found on some of the larger SSL consoles such as the AWS 900+, Duality and Matrix, the SSL X-Desk showcases the ‘SuperAnalogue’ technology for a show stopping audio performance within the confines of a compact mixer design.

All-in-One Powerhouse

The ultimate all-in-one solution for mixing, the Solid State Logic X-Desk SuperAnalogue comes with D-Sub connectors that has an elevated versatility on the input and output, allowing users to use the mixer in multiple ways with ease. Not only that but the two stereo returns includes level, pan, bus assignment, along with two Mono auxiliary sends for heightened usability.

High-Quality Design

Deluxe in every way, the X-Desk has been articulately crafted to act as the centrepiece of your studio rig. With elite-grade controls and components such as slick 100mm faders and an included talkback system, communicate with artists during sessions with absolute ease.

Allowing you to take control of your session, the highly accurate bar graph level metre enables you to visually monitor your session, so making decisions on your mix and levels are effortless.

SSL X-Desk 16 Channel Super Analogue Summing Mixer Specifications:

Performance:

• Channel Line/Alt In to Channel Out (post fader):
• Frequency Response: 10Hz – 40kHz ±0.2dB
• THD+N:
• Noise:
• Headroom: > +24dBu (into 10k ohms)
• Channel Line/Alt In to Mix Buss (single fader):
• Frequency Response: 10Hz – 40kHz ±0.3dB
• THD+N:
• Noise
• Headroom: > +24dBu (into 10k ohms)

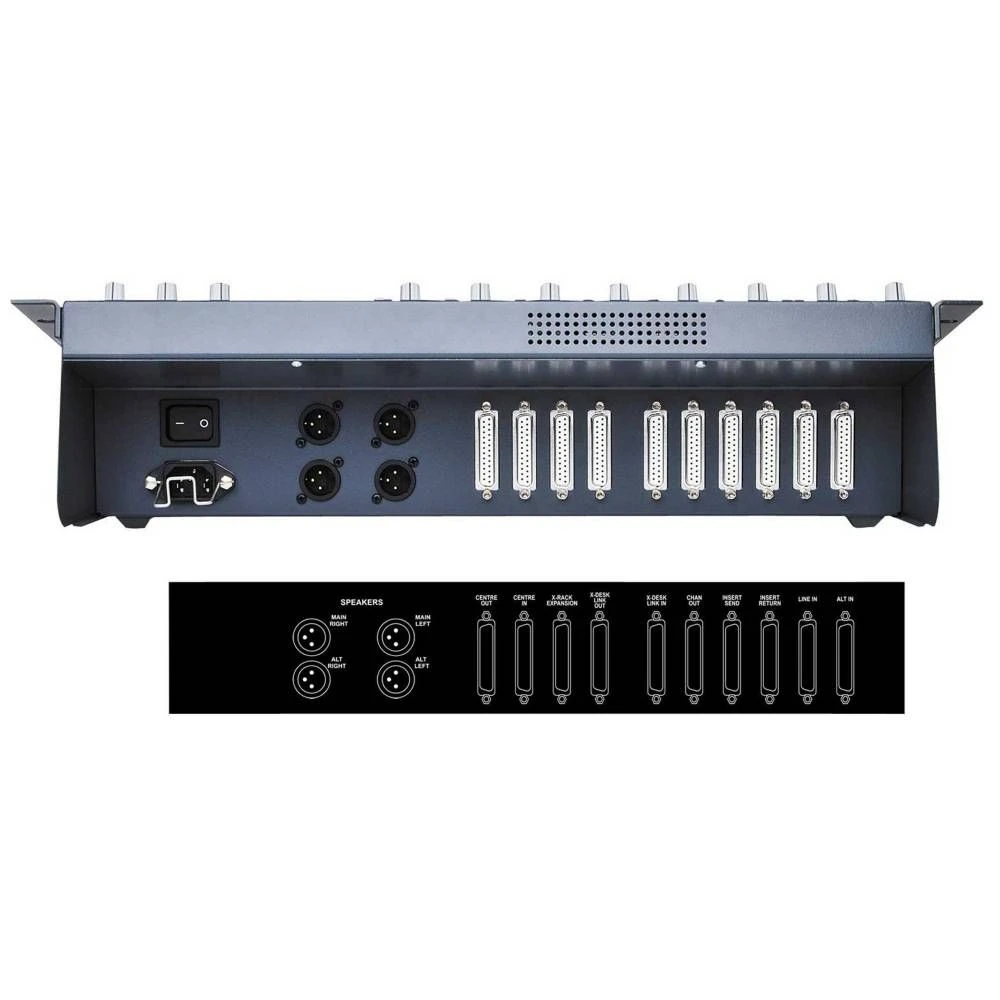

Connections:

• Power: IEC320 3-pin connector, 100 – 240 Vac, 50 – 60 Hz
• I/O: 25-pin D-type socket, Zi > 10kohms
• iJack: Un-balanced, 3.5mm Stereo Jack, Zi > 47k ohms, +12dB gain
• Speakers: Balanced, 3-pin XLR-M, Zo ˜ 50 ohms
• Headphones Un-balanced, 0.25″ Stereo Jack, Zo ˜ 40 ohms

Physical:

• Dimensions (DxHxW): 310mm x 120mm x 434mm (casing only)
• Weight: 4.8kg / 10.5 pounds
• Power:
• Boxed Size: 500mm x 385mm x 190mm
• Boxed Weight: 6.6kg

Environmental:

• Temperature:
• Operating: +5 to 30 deg. C
• Non-operating: –20 to 50 deg. C
• Max. Gradient: 15 deg. C/hour
• Relative Humidity:
• Operating: 20 to 80 percent
• Humidity Non-operating: 5 to 90 percent
• Max. Wet Bulb: 29 deg. C
