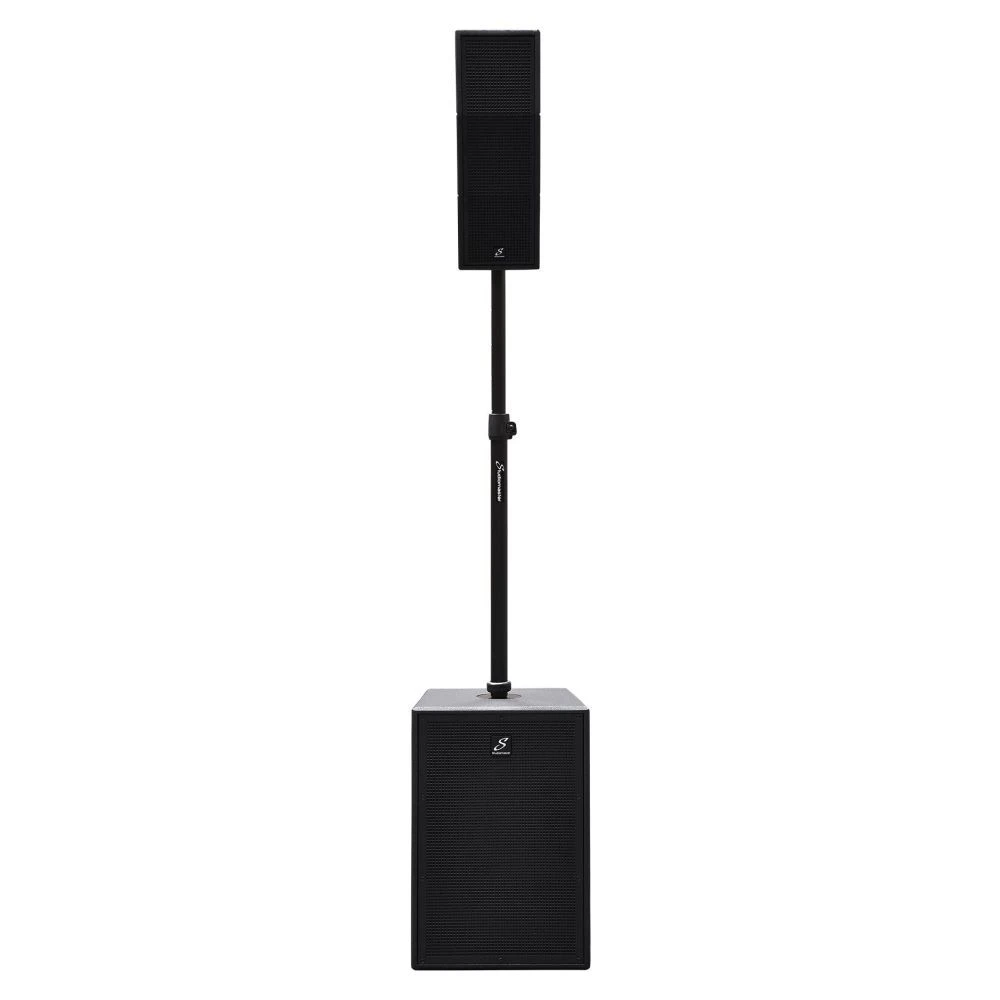

Studiomaster Core121 Portable 12 Line Array PA System

Articulately designed to meet the needs of the modern performer, the Studiomaster Core121 Portable 12″ Line Array PA System is a perfect choice for artists, DJs and public speakers alike who want big sound whilst still being portable.

An amalgamation of a curved array with a mighty bass-reflex subwoofer to give up to 700W of low-end presence along with an overall 1000W, the CORE model comes with a built-in 4-channel mixer that includes both Bluetooth connectivity and DSP Control for unrivalled user practicality.

Simple to use and navigate, the air-suspension adjustable speaker pole includes internal wiring for seamless setup and packing down in any scenario thrown your way. Once set up, simply plug in and start performing, the Core121 will do the rest.

Presented with a wooden cabinet design that’s been designed to ensure the finest standards, the Core121 uses a durable paint finish and large easy-to-grip handles for simple transportation.

Studiomaster Core121 Portable 12″ Line Array PA System Specifications:

SUB SPECIFICATION:

Speaker: 1×12” low frequency driver
Rated power (SUB): 700W (rms)
Amplifier power: 700W (LF) + 300W (MF/HF) (rms)
Max SPL: 128dB
Dimensions: 405mm x 590mm x 470mm
Net weight: 27kg

CURVE ARRAY SPECIFICATION:

Speaker MF: 3×5” Neodymium full range driver
Speaker HF: 9×1” dome tweeter
Rated power: 300W
Coverage: 100° (h) x 70° (v)
Dimensions: 185mm x 495mm x 220mm (315mm max)
Net weight: 8kg

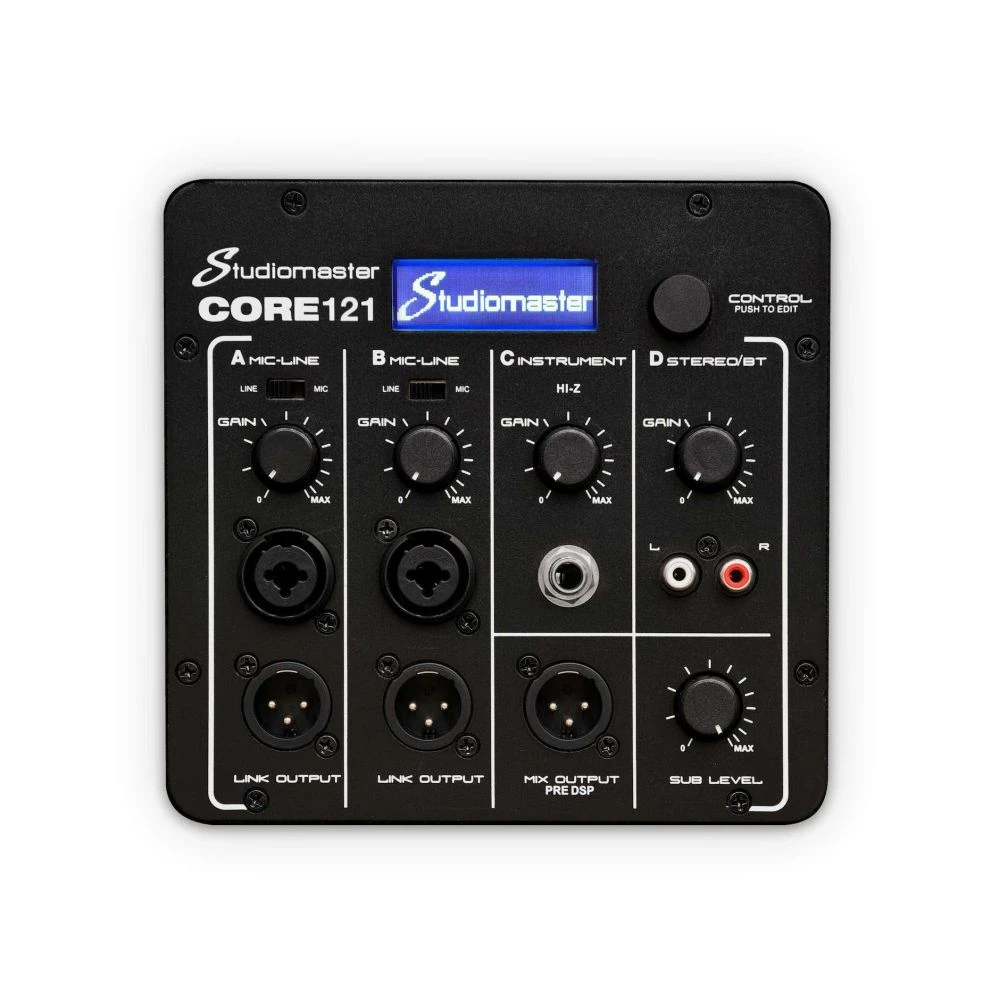

MIXER SPECIFICATION:

DSP: 24bit module with mode, EQ, limiter, delay and mix level control
Inputs: 2x mic (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth®
Outputs: 2x balanced line / link output (XLR), 1x balanced line / link MIX output (XLR)
