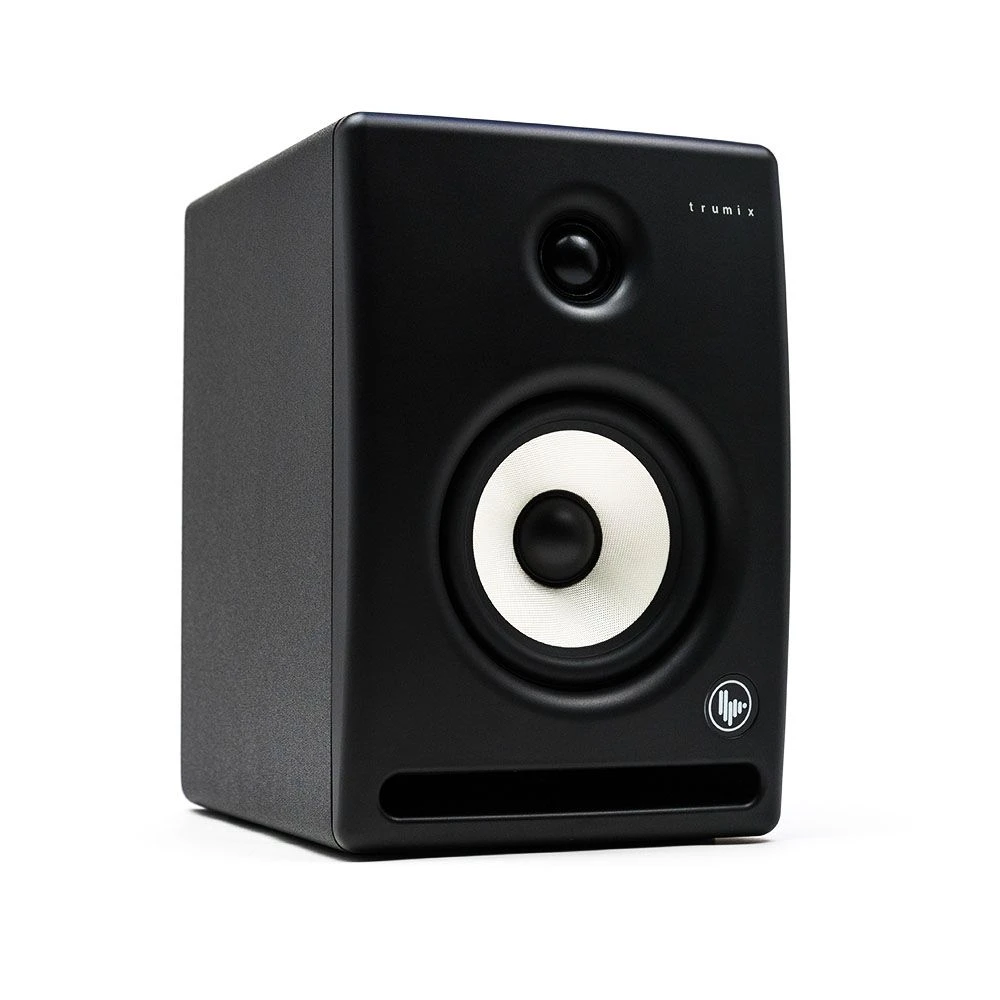

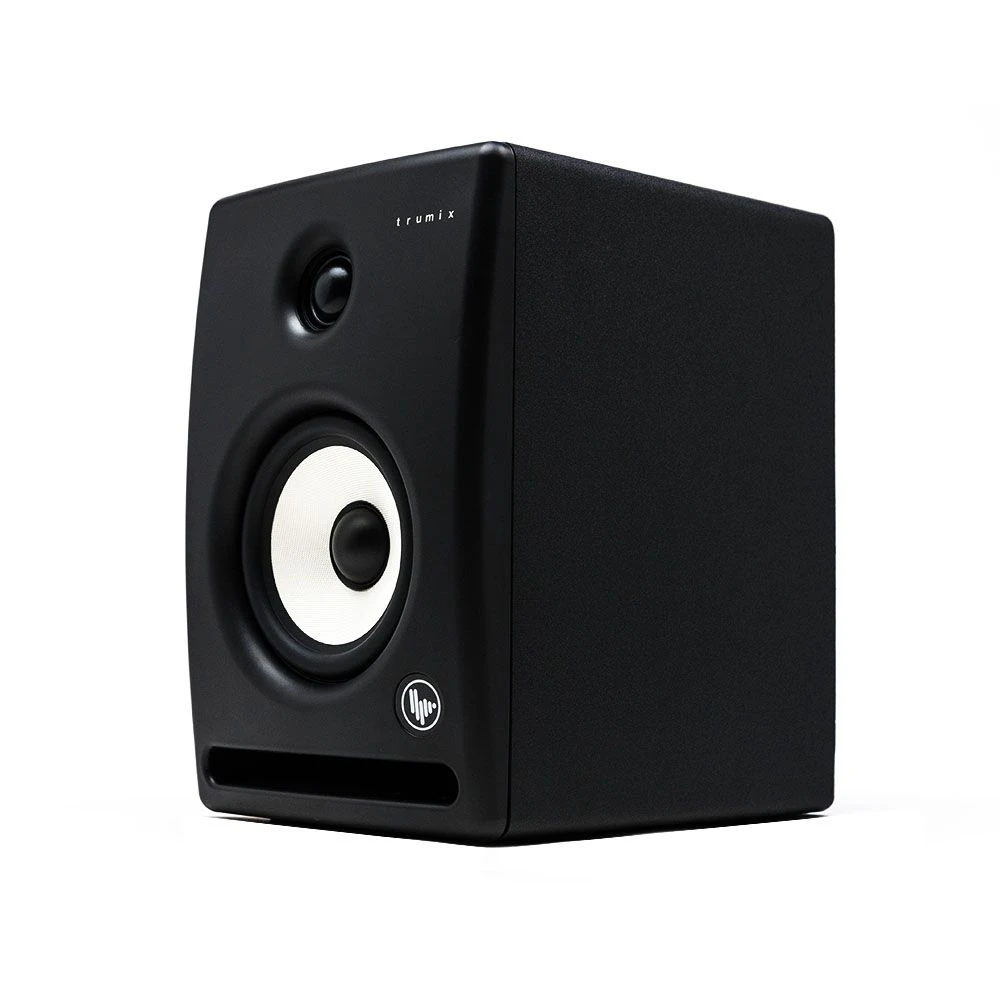

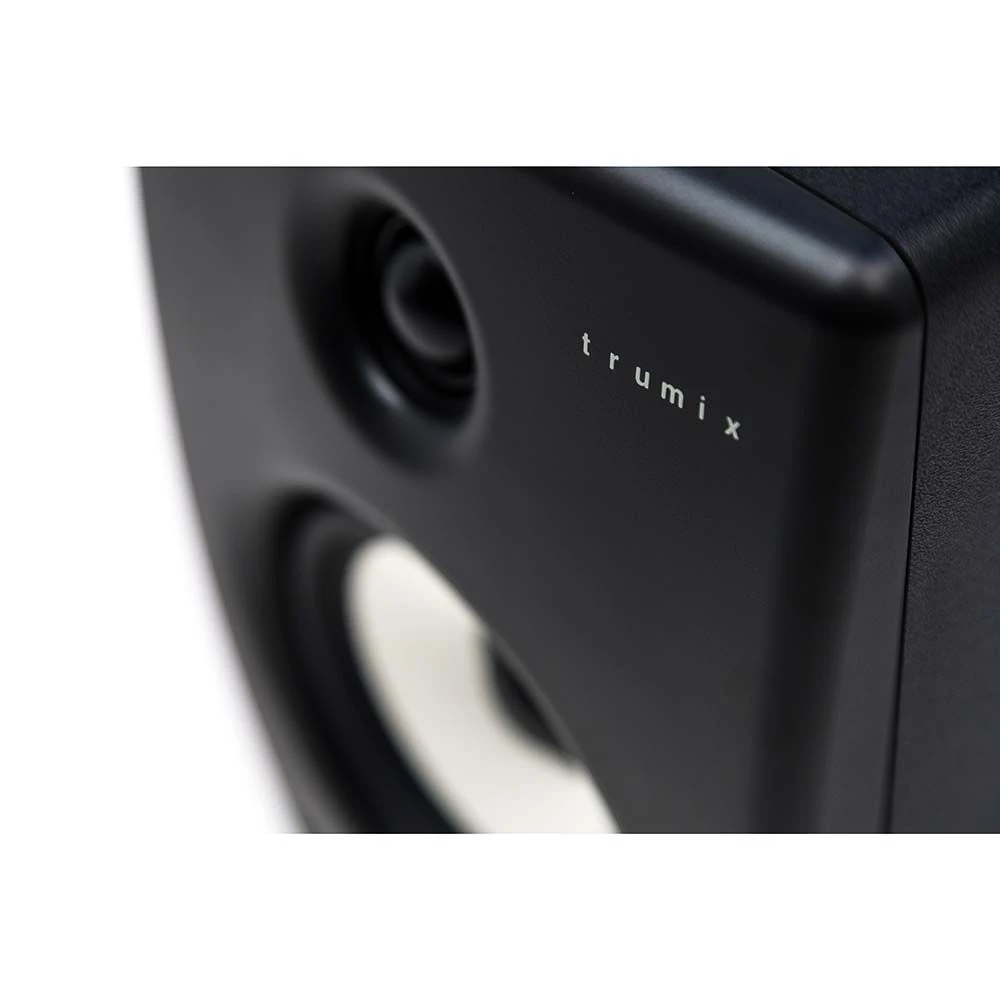

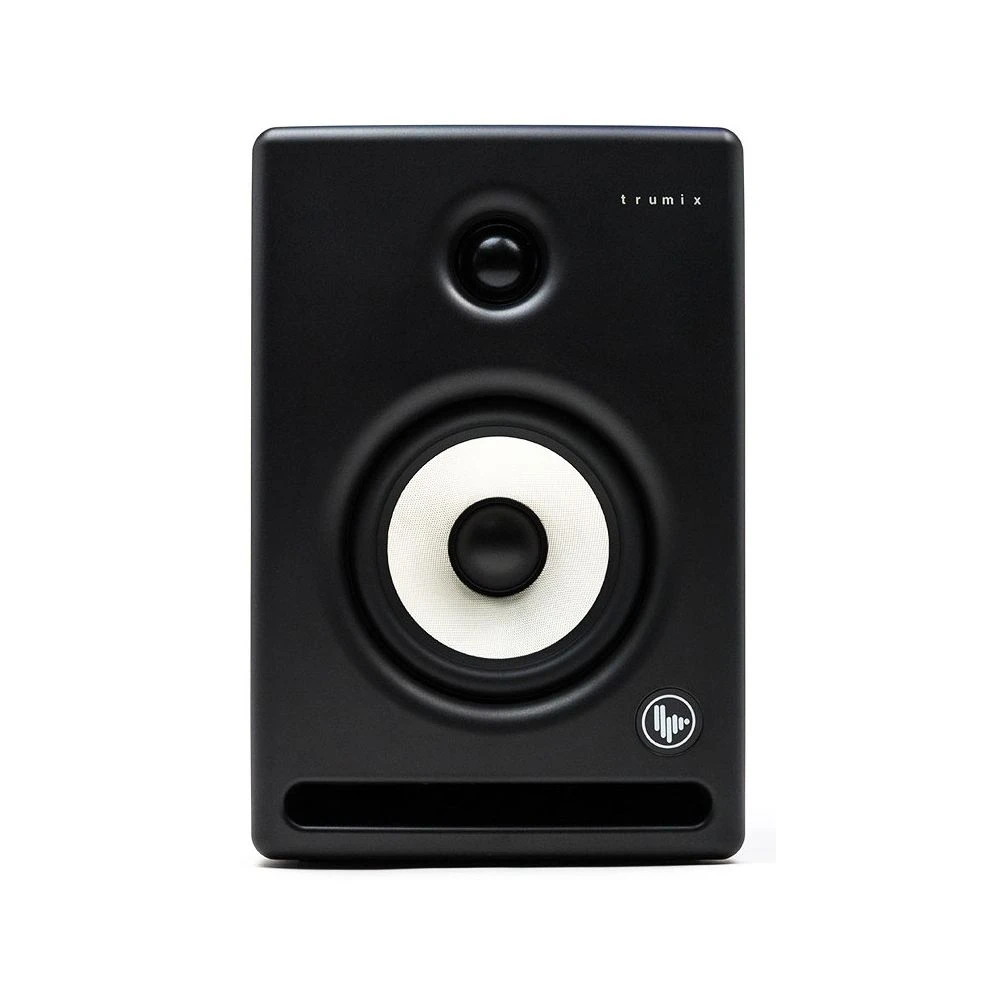

Trumix AR5 Active Studio Monitor, Single

The Trumix AR5 is a compact, versatile studio monitor speaker, perfect for beginners starting out with home recording or music production.

The Ultimate Entry-Level Audio Monitor

The Trumix AR-5 is fitted out with all the features you need to start mixing and making music on a budget. Simply plug into your laptop, PC, Mac, Audio Interface or SmartPhone, and you’ll hear why these affordable audio monitors are highly recommended for value by PMT Experts.

Whether you’re a budding beatmaker, producer, a DJ or even a podcaster, the AR5 gets our vote as the best-in-class studio monitor, at a fraction of the price of well-known brands.

Trumix AR5 Key Features:

• Affordable and Compact Studio Monitors – Perfect for Beginners
• Bi-Amplified Design – Built-In Amps Deliver Combined 55W of Power
• Punchy Bass Response – Courtesy of a 5.25″ Fibreglass Woofer with 1″ Voice Coil
• Crystal Clarity – Thanks to a 1.48″ Natural Silk Dome Tweeter
• Mix with Confidence – 55Hz-20KHz Frequency Response
• Maximum SPL 106dB – Volume and headroom when you need it

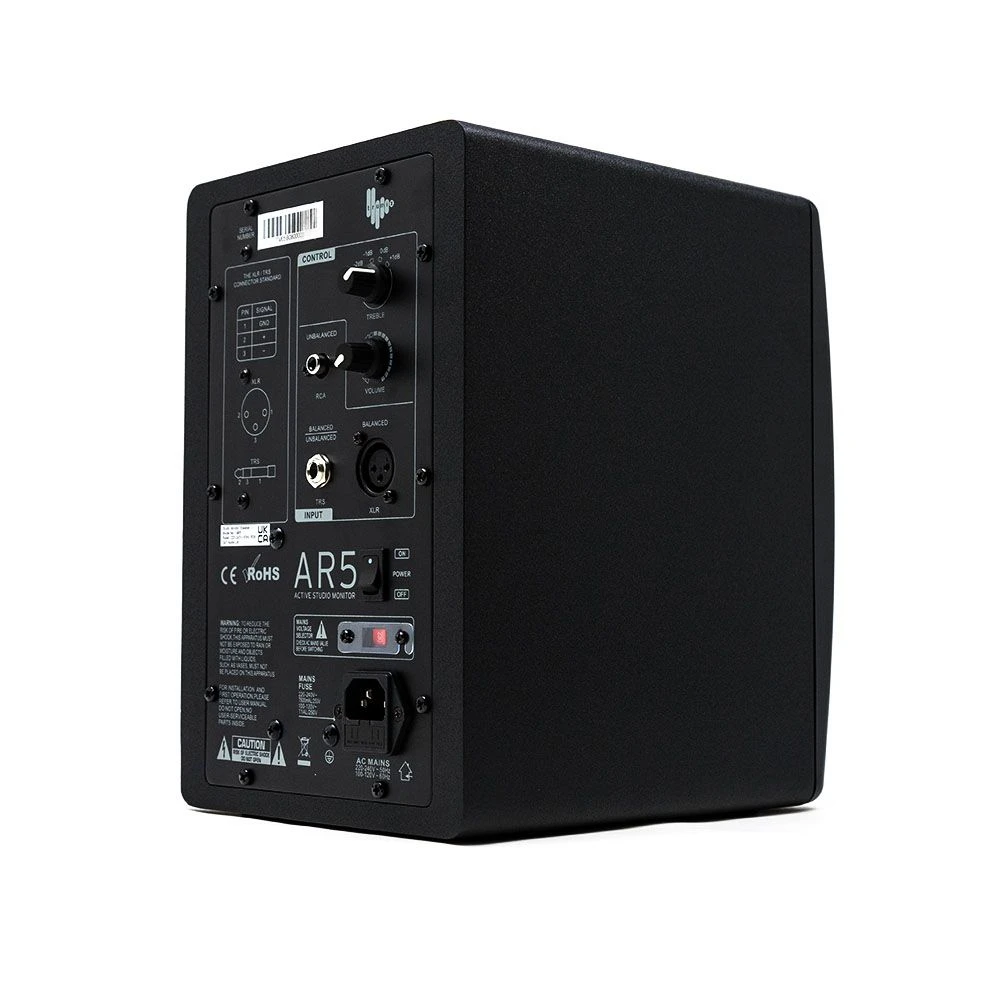

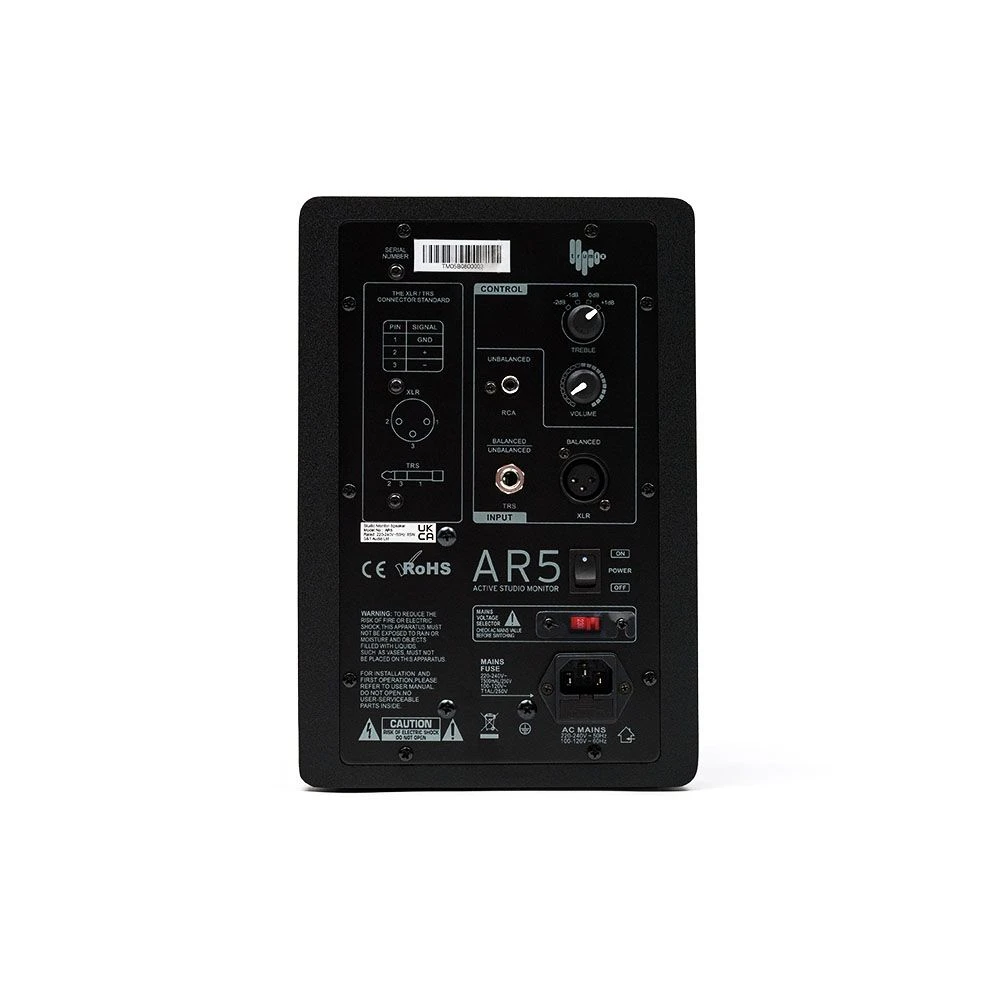

• Fully Adjustable Rear Panel – Features Gain & High Frequency Controls
• Versatile Audio Inputs – XLR, 1/4″ TRS & RCA Phono
• Front Firing Bass Port – Great for small-room or bedroom studio setups
• Bang for your Buck – Incredible performance-to-price

Meticulously tuned within the UK by experienced Trumix engineers, the Trumix AR5 utilizes a classic bi-amped design to deliver a natural and detailed frequency response – at a price suited for any budget.

Power & Clarity, Perfectly Balanced

Designed to please the ears of every single musical professional, from tight lows to crisp highs – with a maximum SPL of 106dB and a frequency response ranging from 55Hz, right up to 20KHz, you’ve got detail and clarity in absolute abundance.

Boasting a sophisticated bi-amplified design that delivers 20 Watts (RMS) of power to the soft-dome natural silk tweeter and 35 Watts (RMS) to the high-strength fiberglass composite woofer, the resulting 55 Watts of combined power ensures a consistent and balanced sound output with a crossover frequency at 2.1kHz – perfect for producing a tight and controlled low-end throughout every scenario.

Fine-Tuned & Responsive

Ensuring that every single speaker delivers an optimal performance straight out of the box, each AR5 undergoes a rigorous testing and optimization process by Trumix’s experienced team of in-house engineers.

However, everybody’s listening environments can vary and Trumix knows this only too well – equipping out the back control panel with a handy High-Frequency Adjustment Control, allowing you to finetune the AR5 to perfectly suit your listening environment so that your mix accuracy is never compromised.

Versatile Connectivity

Complete with a trio of input options to choose from, whether you require XLR, TRS or RCA connections, the AR5 has you covered – ideal for all professional installations where versatility is invaluable and reliability is king.

So if you’re looking for an adaptable option that aims to inspire your creativity through its perfect balance of technology, affordability and ease of use, then the Trumix AR5 Active Studio Monitor is the perfect choice for you – Available Now at PMT Online! Or why not visit one of our 15 UK Nationwide Stores, where our in-store experts are always on-hand to offer their friendly and informed advice!

Trumix AR5 Active Studio Monitor, Single Specifications:

Woofer

• Quantity: 1
• Diameter: 5.25″ (147mm)
• Voice Coil Diameter: 1″ (25mm)
• Cone Material: Fibreglass

Tweeter

• Quantity: 1
• Type: Silk Dome Tweeter
• Diaphragm Area: 1.67inch² (1074.7mm²)
• Equiv. Diaphragm Diameter: 1.48″ (37mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.14g
• Waveguide: HPS

Amplifier Section

• Design: Bi-Amped
• Type: Analog Amplifier
• Amplifer(s) Power RMS: 35W / 20W

Control Section

• Input Sensitivity: -2dBU
• Gain Control: Yes
• High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
• Low Shelf EQ < 300 Hz: None
• Control Panel: Rear

Inputs

• Analog: XLR, TRS, RCA
• Input Impedance: 20kohm

General

• Frequency Response: 55Hz-20KHz±3dB
• THD > 80 Hz: 0.30%
• Max. SPL per pair at 1m: =106 dB
• Crossover Frequency: 2.1kHz
• Max. Power Consumption: 85W
• Single Unit Weight: 13.7lbs (6.2kgs)
• Packaged Weight: 15.9lbs (7.2kgs)
• Dimensions (Height x Width x Depth): 10.9″ x 7.4″ x 9.4″ / 278 x 187 x 240mm
• Warranty: Factory Warranty 2 Year
• Delivery Contents: 1 x Speaker 1, 1 x Power Cord, 1 x Manual
