Trumix AR7 Beginners Home Studio Monitor Pack

Combining a pair of Trumix’s Bi-amped AR7 Active Studio Monitors with Trumix’s versatile TM-12 USB Audio Interface, this bundle gives everything you need to record and monitor studio-quality audio on your desktop and start unleashing your creative potential. With both the monitors and the interface being incredibly user friendly straight out of the box – this bundle does the hard work so you don’t have to!

Pro-Level Sound Without All The Hassle

Designed and specially tuned in the UK by professional TruMix engineers, the Trumix AR7 Active Studio Monitors deliver a natural and detailed response – all without breaking the bank! Bundled together with Trumix’s compact and concise Trumix TM-12 USB Audio Interface AND  a pair of cables to connect everything together, you’ll soon be making studio-quality recordings, no matter your experience level!

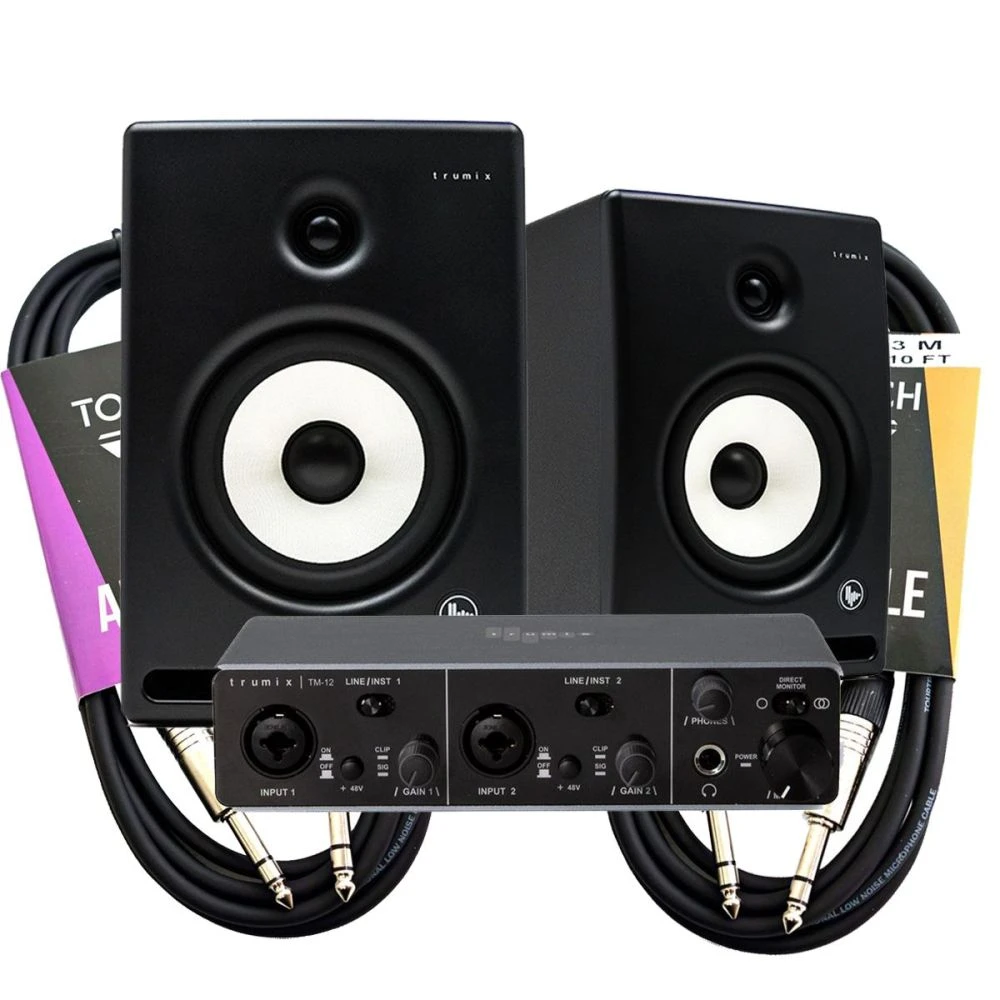

Trumix AR7 Monitor & TM-12 Interface Desktop Starter Bundle Includes:

• 2 x Trumix AR7 Active Studio Monitors
• 1 x Trumix TM-12 USB Audio Interface

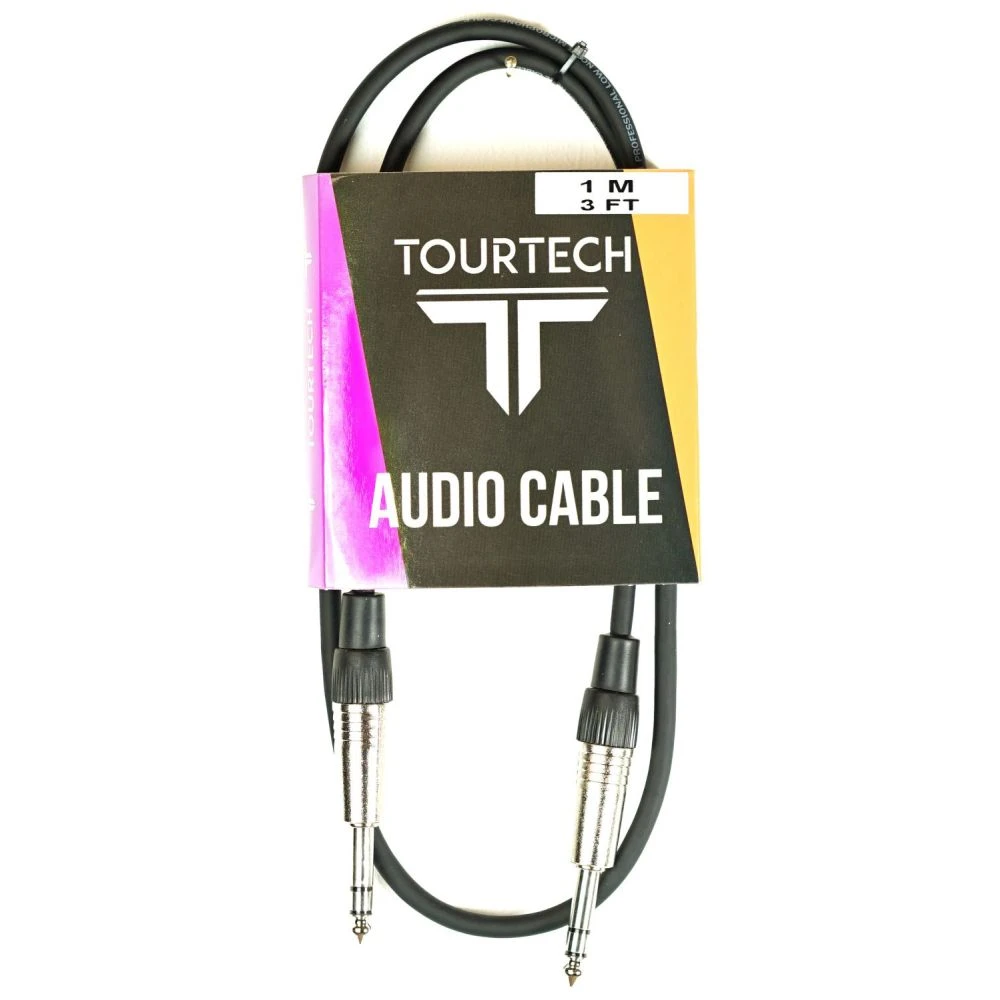

• 2 x TourTech 1 Meter Audio Cables

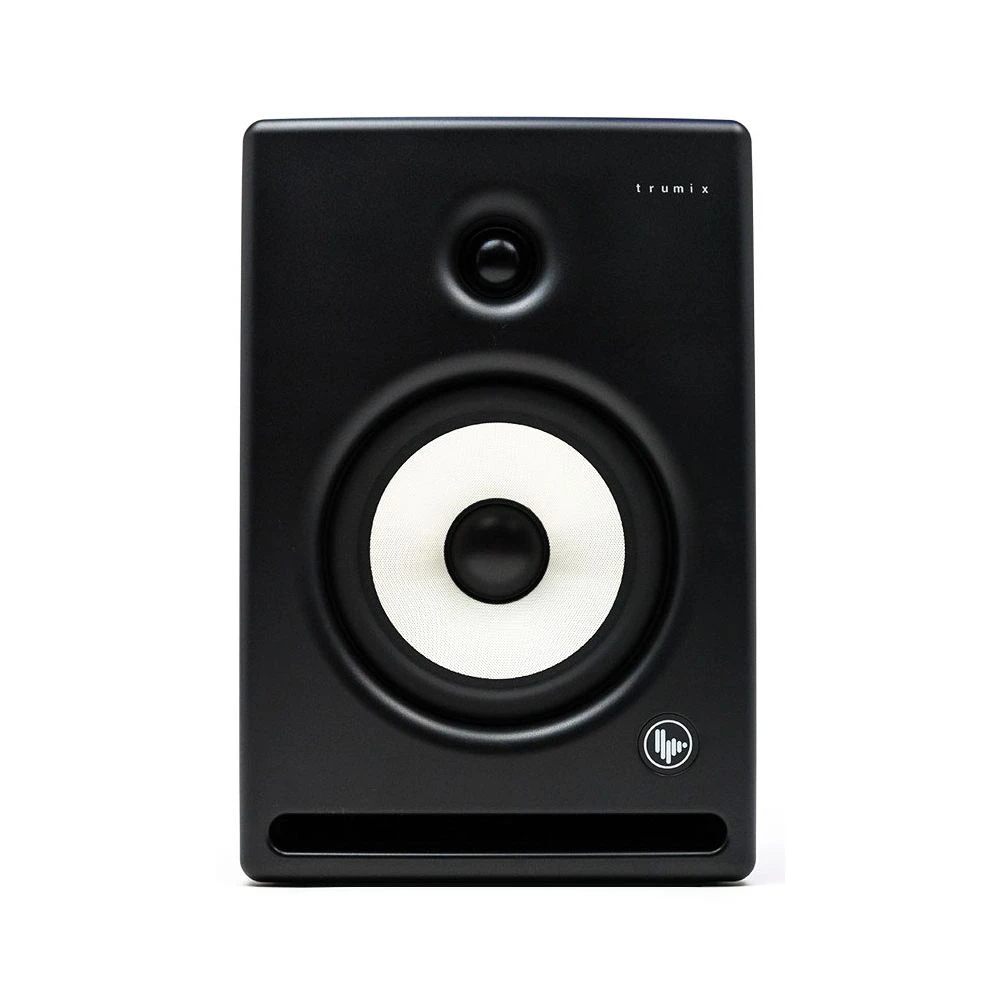

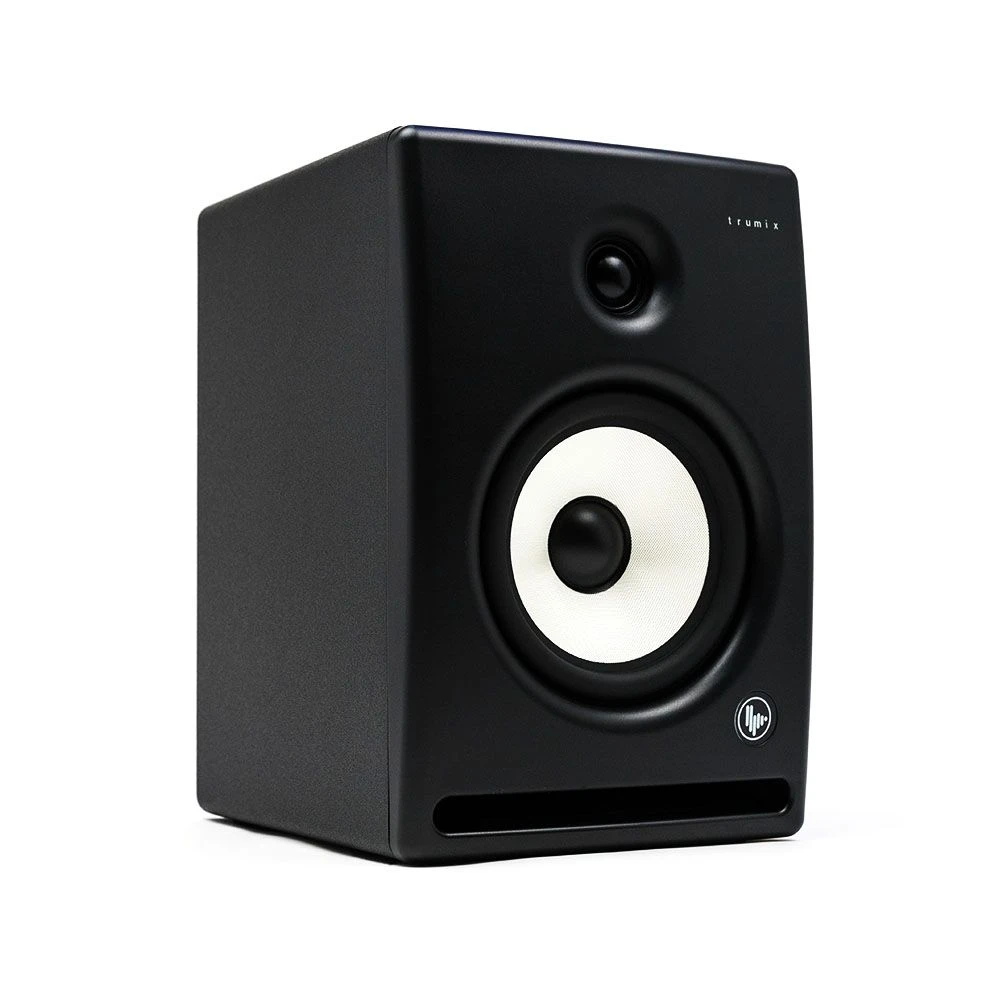

Trumix AR7 Active Studio Monitors Key Features:

• Power & Clarity, Perfectly Balanced – Designed to please the ears of every single musical professional, from tight lows to crisp highs – with a maximum SPL of 108dB and a frequency response ranging from 50Hz, right up to 20KHz, you’ve got detail and clarity in absolute abundance.
• Professional Design – Boasting a sophisticated bi-amplified design that delivers 25 Watts (RMS) of power to the soft-dome natural silk tweeter and 50 Watts (RMS) to the high-strength fiberglass composite woofer, the resulting 75 Watts of combined power ensures a consistent and balanced sound output with a crossover frequency at 1.9kHz – perfect for producing a tight and controlled low-end throughout every scenario.
• Fine-Tuned & Responsive – Ensuring that every single speaker delivers an optimal performance straight out of the box, each AR7 undergoes a rigorous testing and optimization process by TruMix’s experienced team of in-house engineers.

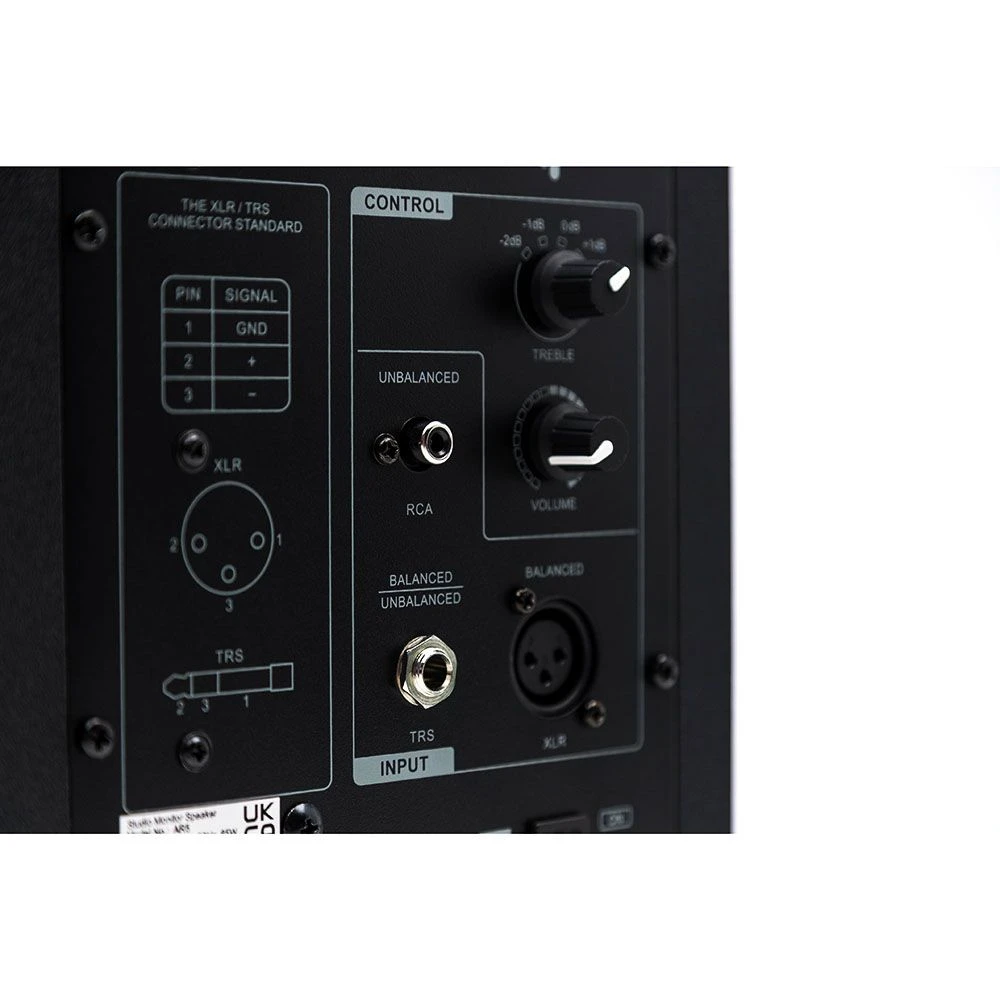

• Match Your Room – Everybody’s listening environments can vary and TruMix knows this only too well – equipping out the back control panel with a handy High-Frequency Adjustment Control, allowing you to finetune the AR7 to perfectly suit your listening environment so that your mix accuracy is never compromised.
• Versatile Connectivity  – Complete with a trio of input options to choose from, whether you require XLR, TRS or RCA connections, the AR7 has you covered – ideal for all professional installations where versatility is invaluable and reliability is king.

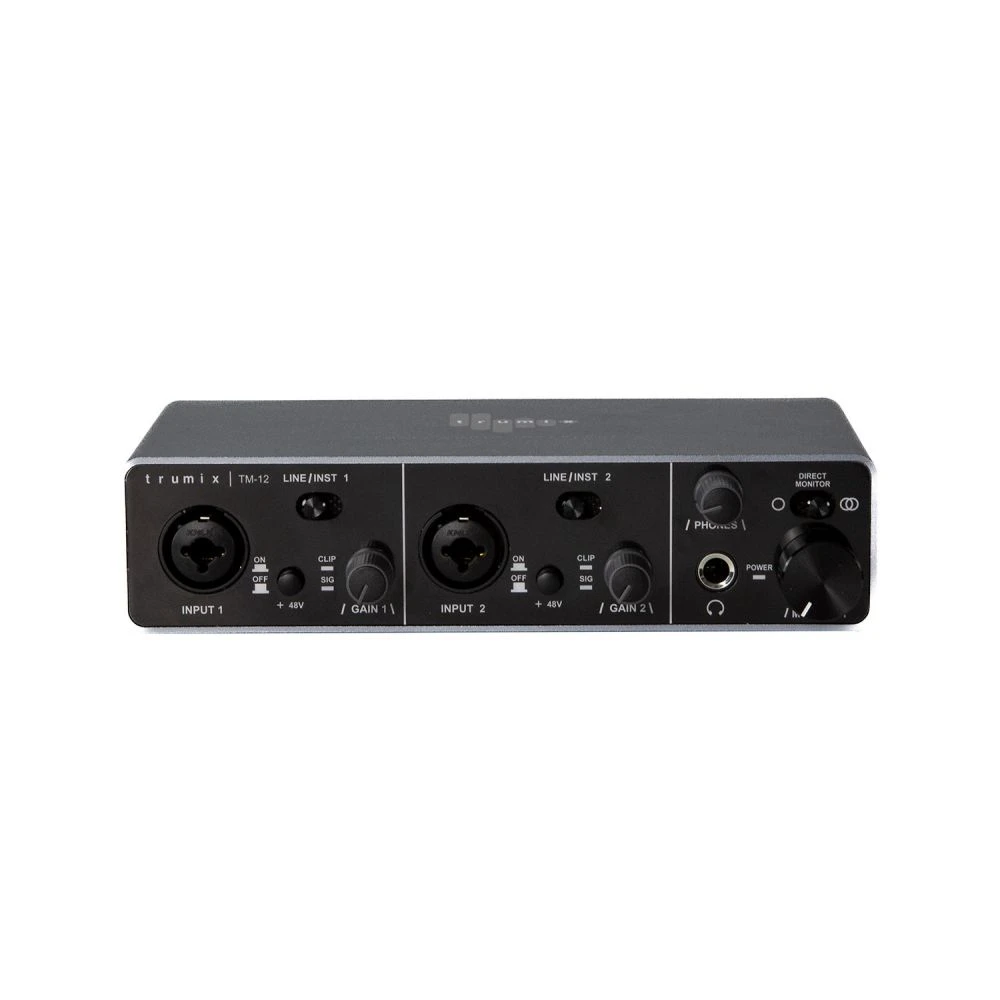

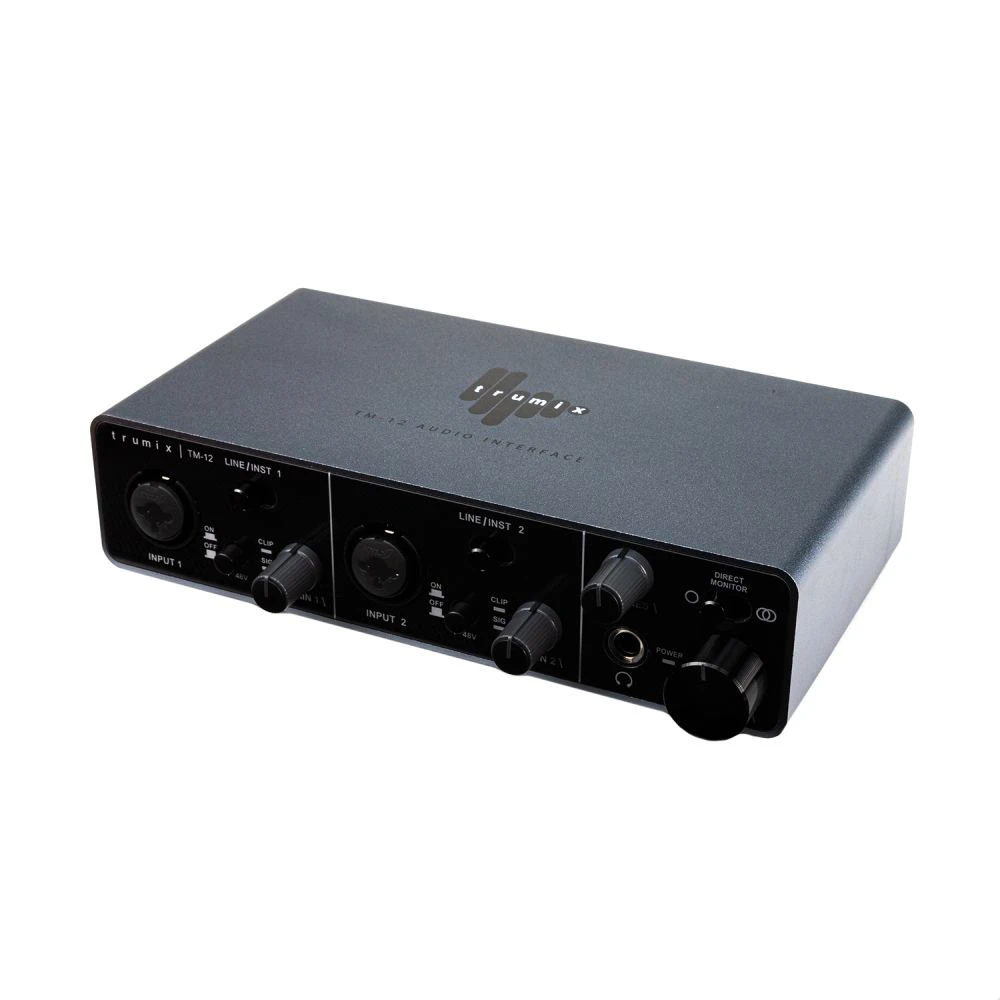

Trumix TM-12 USB Audio Interface Key Features:

• Switchable Dual Inputs For Mic & Instrument – Allowing for simultaneous recording of both a microphone, an instrument or two of the same, the pair of switchable inputs can accommodate both 1/4″ jack and XLR inputs.
• High-Performance Mic Preamps – Meticulously engineered to bring out the best of your instrument or mic, the built-in preamps deliver the clarity and precision required to produce pristine, studio-quality recordings.
• High Headroom Recording – Designed to effortlessly handle a wide range of hot signalled instruments such as electric guitars and active basses, Trumix have ensured you’re able to squeeze every little drop of detailed tone from your instrument!
• Compact & Lightweight Design – Designed for maximum portability and flexibility, the slim design of the TM-12 will allow it to easily slip into your bag for on-the-go recording.
• USB-C Compatibility – Universally compatible with any USB-C device (including by MAC OSX & Windows), the TM-12 offers low-latency connectivity to a wide range of devices.
• Balanced Stereo Outputs – With an emphasis on reducing signal hum and interference, the duo of balanced stereo outputs allow for clean connectivity with any monitor or amplifier.

Trumix TM-12 USB Audio Interface Specifications:

• PMT Recommendation: For Microsoft Windows users, we recommend a simple download of the latest ASIO4ALL drivers to ensure the best performance/compatiblity from your new Trumix interface.
• Sampling Precision: 16Bit & 24Bit ADC and DAC
• Supported Sample Rates: DAC: 44.1 kHz, 48 kHz / ADC:44.1 kHz, 48 kHz, 96kHz
• USB: 1 x USB 2.0 Type C connector
• LEDS: Red/Green Gain Indicators

Analogue Input 1

• Connector: Balanced, via female 3-pin XLR on front panel / INST mode: unbalanced, 2-pole (TS) / LINE mode: balanced (TRS)
• Phantom power: 48 V phantom power switch

Analogue Input 2

• Connector: ¼ (6.35 mm) jack socket on front panel / INST mode: unbalanced, 2-pole (TS) / LINE mode: balanced (TRS)
• Line/Instrument Switching: Front panel switch

Microphone Input

• Dynamic Range: 95 dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.01% (1kHz@0dBu)
• Noise EIN: -110dBu (A-Weighted)
• Maximum Input Level: +8 dBu at Minimum Gain
• Gain Range: 50 dB
• Input Impedance: 3 kohms

Line Input

• Dynamic Range: 95 dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.01% (1kHz@0dBu)
• Maximum Input Level: +19 dBu at Minimum Gain
• Gain Range: 50 dB
• Input Impedance: 20 kohms

Instrument Input

• Dynamic Range: 95dB (A-Weighted)
• Frequency Response: 20 Hz to 20 kHz ±1 dB
• THD+N: <0.03% (1kHz@0dBu)
• Maximum Input Level: +11dBu at Minimum Gain
• Gain Range: 45 dB
• Input Impedance: 1 Mohms

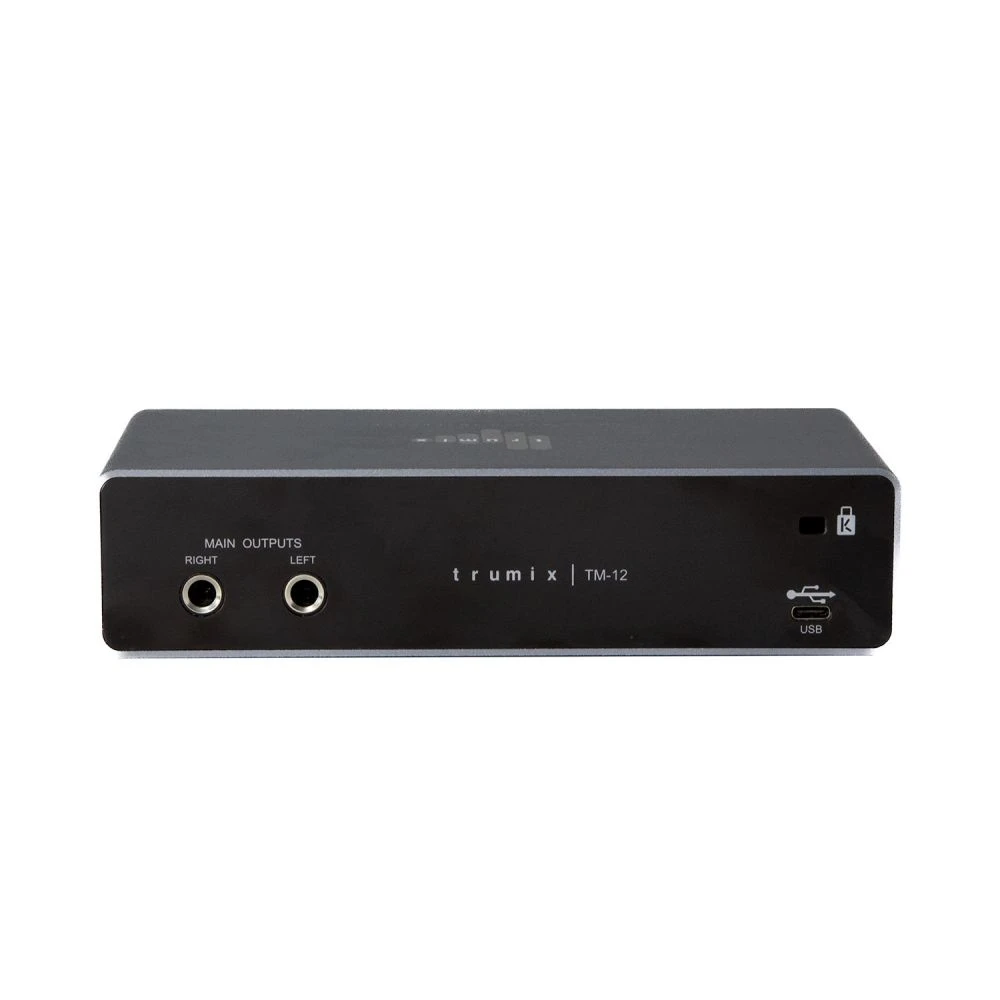

Analogue Outputs

• Main Outputs: Balanced, 2 x ¼” TRS jacks on rear panel
• Stereo Headphone Output: ¼” TRS jack on front panel
• Output Level Control (main and headphone): On front panel
• Direct Monitoring: Front panel switch; allows zero-latency monitoring of inputs

Line Outputs

• Dynamic Range: 95 dB (A-Weighted)
• Maximum Output Level (0 dBFS): +14 dBu  Balanced Outputs
• THD+N: <0.01%
• Output Impedance: 221 ohms

Headphone Output

• Dynamic Range: 90 dB (A-Weighted)
• Maximum Output Level: +12 dBu
• THD+N: <0.01%
• Headphone Impedance: 30-300ohm



TruMix AR7 Active Studio Monitor Specifications*:

(*Specifications per individual monitors)

Woofer

• Quantity: 1
• Diameter: 6.5″ (178 mm)
• Voice Coil Diamter: 1″ (25mm)
• Cone Material: Fibreglass

Tweeter

• Quantity: 1
• Type: Silk Dome Tweeter
• Diaphragm Area: 1.67inch² (1074.7mm²)
• Equiv. Diaphragm Diameter: 1.48″ (37mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.14g
• Waveguide: HPS

Amplifier Section

• Design: Bi-Amped
• Type: Analog Amplifier
• Amplifer(s) Power RMS: 50W / 25W

Control Section

• Input Sensitivity: -2dBU
• Gain Control: Yes
• High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
• Low Shelf EQ < 300 Hz: None
• Control Panel: Rear

Inputs

• Analog: XLR, TRS, RCA
• Input Impedance: 20kohm

General

• Frequency Response: 50Hz-20KHz±3dB
• THD > 80 Hz: 0.30%
• Max. SPL per pair at 1m: =108 dB
• Crossover Frequency: 1.9kHz
• Max. Power Consumption: 115W
• Single Unit Weight: 18.1lbs (8.2kgs)
• Packaged Weight: 21.2lbs (9.6kgs)
• Dimensions (Height x Width x Depth): 12.6″ x 8.5″ x 10″ / 321 x 216 x 255mm
• Warranty: Factory Warranty 2 Year
• Delivery Contents: 1 x Speaker 1,  1 x Power Cord, 1 x Manual
