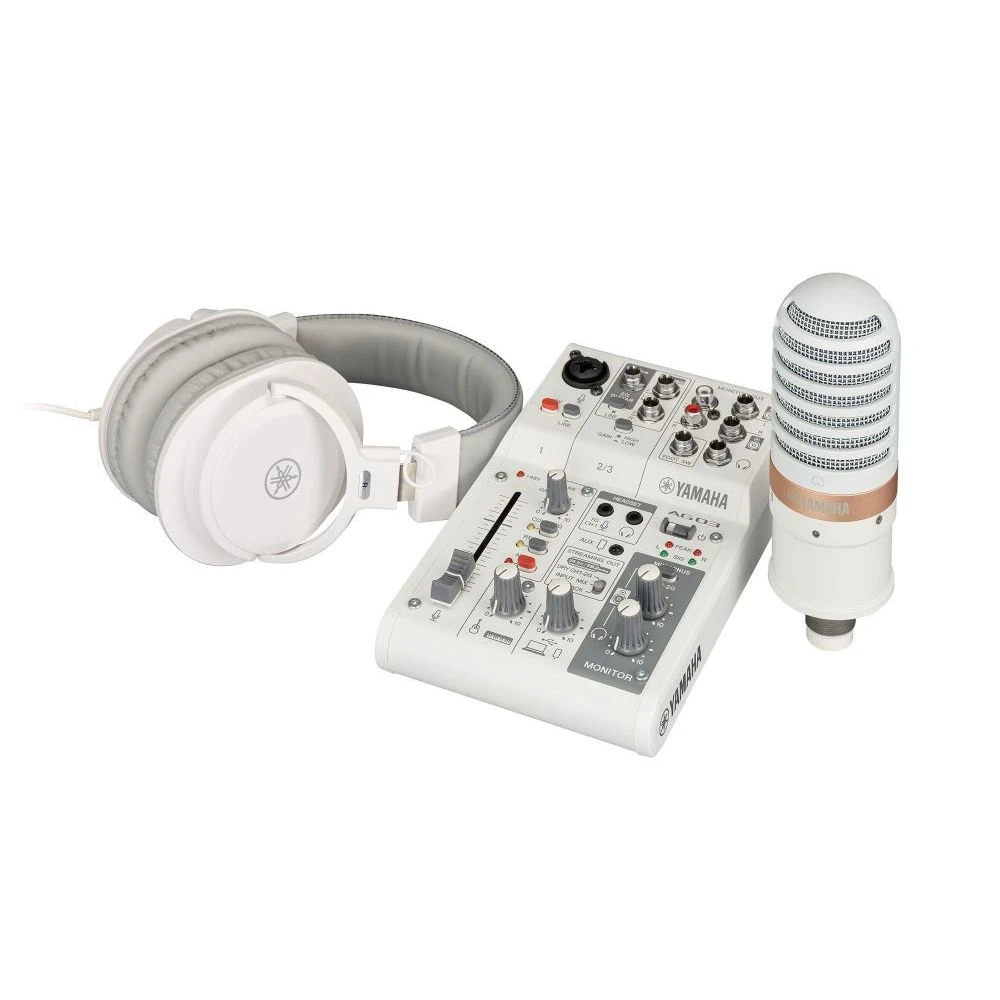

Yamaha AG03MK2 LSPK Live Streaming Pack, White

Offering live streamers and content creators alike with a bundle that has everything they need to achieve crystal clear and professional audio immediately, the Yamaha AG03MK2 LSPK, seen here in White, is a premium yet budget-friendly pack that revolves around the AG03MK3 3-channel mixer. This bundle also features the YCM01 Microphone, a cardioid condenser mic that’s perfect for live vocal and instrument tracking, along with the YH-MT1 high fidelity headphones and an XLR microphone cable.

The ideal choice for beginners looking to take a step into the world of streaming, podcasting and recording or simply someone looking to build a new system from the ground up, the LSPK package guarantees to take production level to the next level.

Key Features:

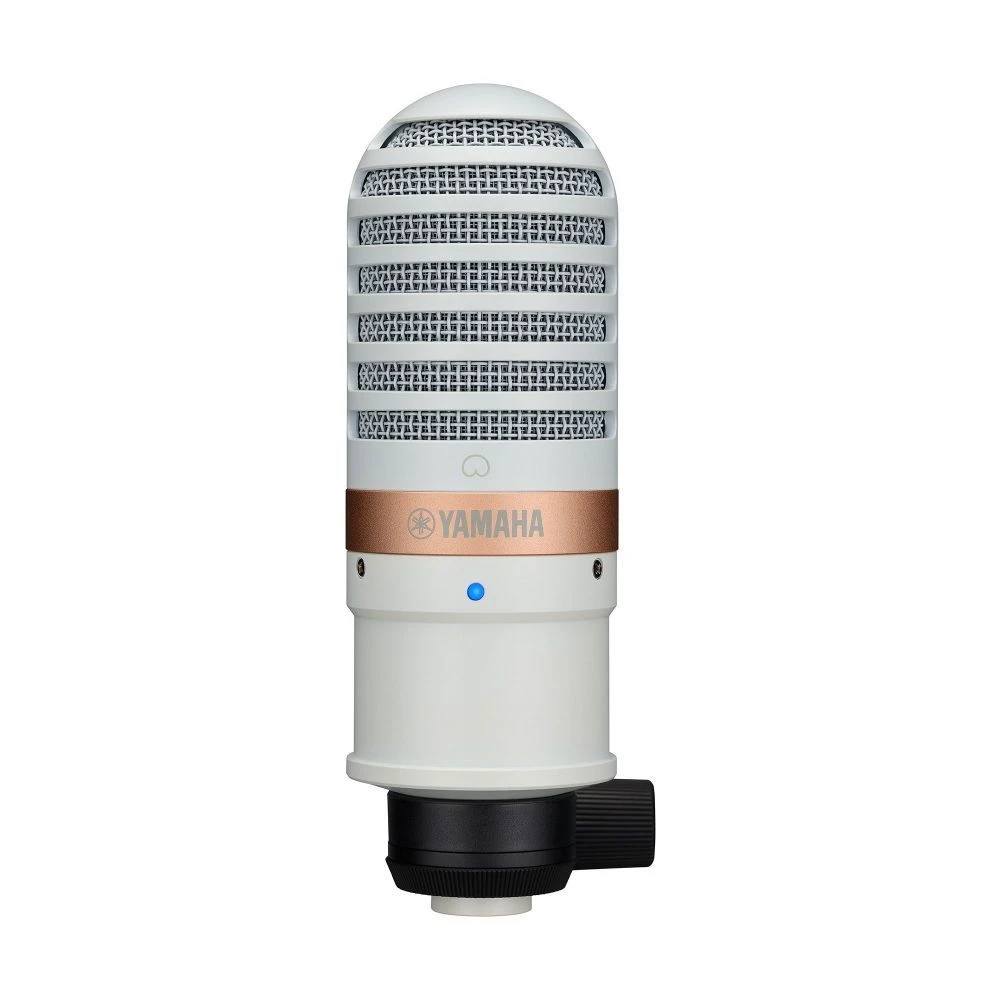

YMC01 Condenser Microphone: Stylish, compact and guaranteed to deliver the utmost clarity, the Yamaha YCM01 is a slick condenser microphone that offers high sensitivity whilst either recording vocals or speech. Easy to mount to the desk via a stand, desk arm or your standard microphone stand, the YMC01 can be adjusted to user’s exact requirements.

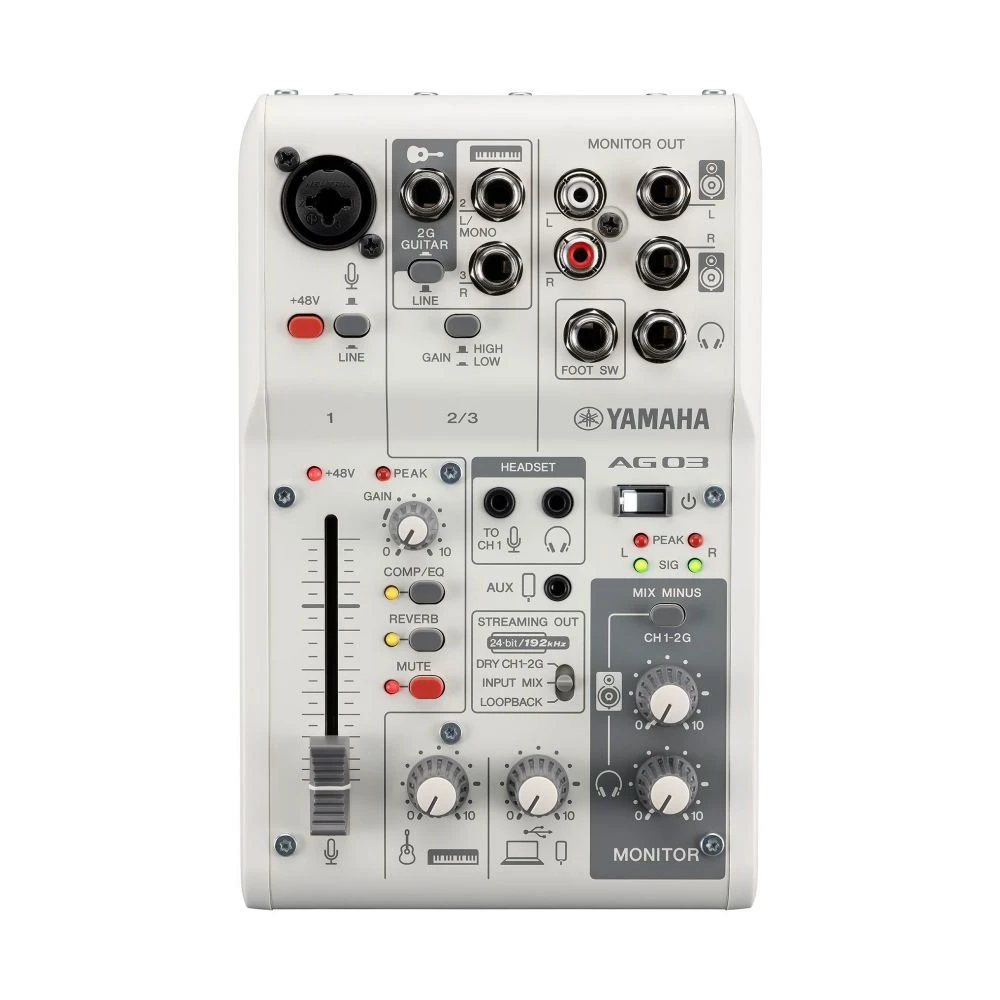

AG03MK2 USB Mixer: Functioning as both a mixing desk and a USB Audio interface, the Yamaha AG03 MK2 enables users to connect the mixer directly to their computer without the need of an audio interface. Allowing creatives to connect everything from mics, instruments, synths and other sources, users can easily monitor their levels via headphones without additional gear. Simple.

Smart Device Connection: In addition to being an adaptable USB audio interface, the AG03MK2 also includes a TRRS output that allows for mobile devices and tablets to connect via the headphone port.

Yamaha AG03MK2 LSPK Live Streaming Pack, Black Specifications:

AG03MK2

Input Channels:

• Mono[MIC/LINE]: 1 – Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
• Stereo[LINE]: 1 – Stereo Line / Guitar Input (Mono)
• Smartphone: 1 – 4-pole mini input/output (TRRS)
• USB: 1


Output Channels:

• PHONES: 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously
• Smartphone: 1 – 4-pole mini input/output (TRRS)
• MONITOR OUT: 2 – L/R Stereo: Phone, RCA
• USB: 1
• Bus: 1 Stereo
• Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-board processors: DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller

USB:

• USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power input: 1 – Type-C, 5 V DC, 900 mA

General

• Power requirements: 5 V DC, 900 mA
• Power consumption: Max. 4.5 W
• Dimensions (W/H/D): 126 mm (5.0″)/63 mm (2.5″)/201 mm (7.9″)
• Net weight: 0.8 kg (1.8 lbs)
• Included Accessories: USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Others: Operating Temperature: 0 to + 40 ?


YCM01 Microphone

• Microphone Unit: Back electret condenser type
• Polar Pattern: Cardioid
• Adress Type: Side
• Frequency Response: 30 Hz – 20 kHz
• Max Input SPL: 130 dB (THD ? 1.0 % at 1 kHz)
• Sensitivity: -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
• Connector: XLR
• Dimensions (Microphone Only): Ø55 x 166 mm (Ø2.2″ x 6.5″)
• Weight (Microphone Only): 0.4 kg (0.9 lbs)
• Included Accessories: YH-MT1 headphones, XLR microphone cable (3 m, Black), Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications
