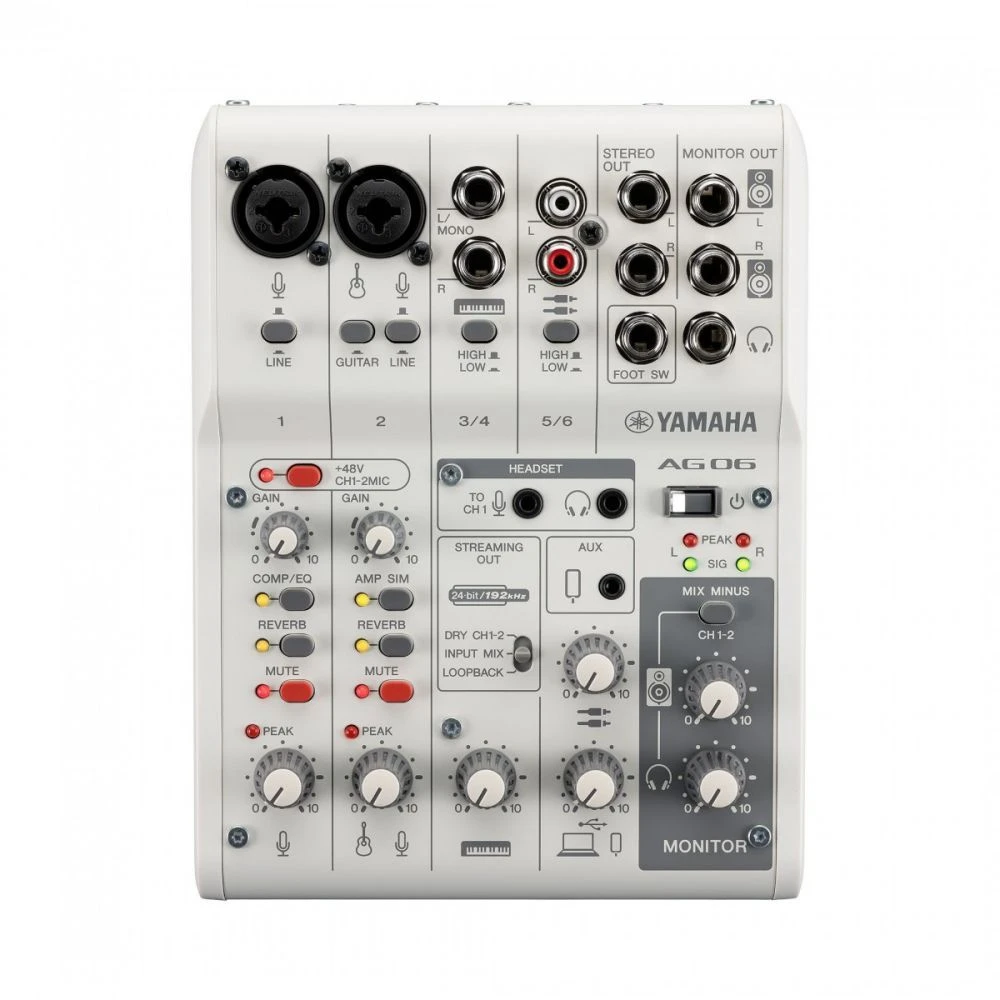

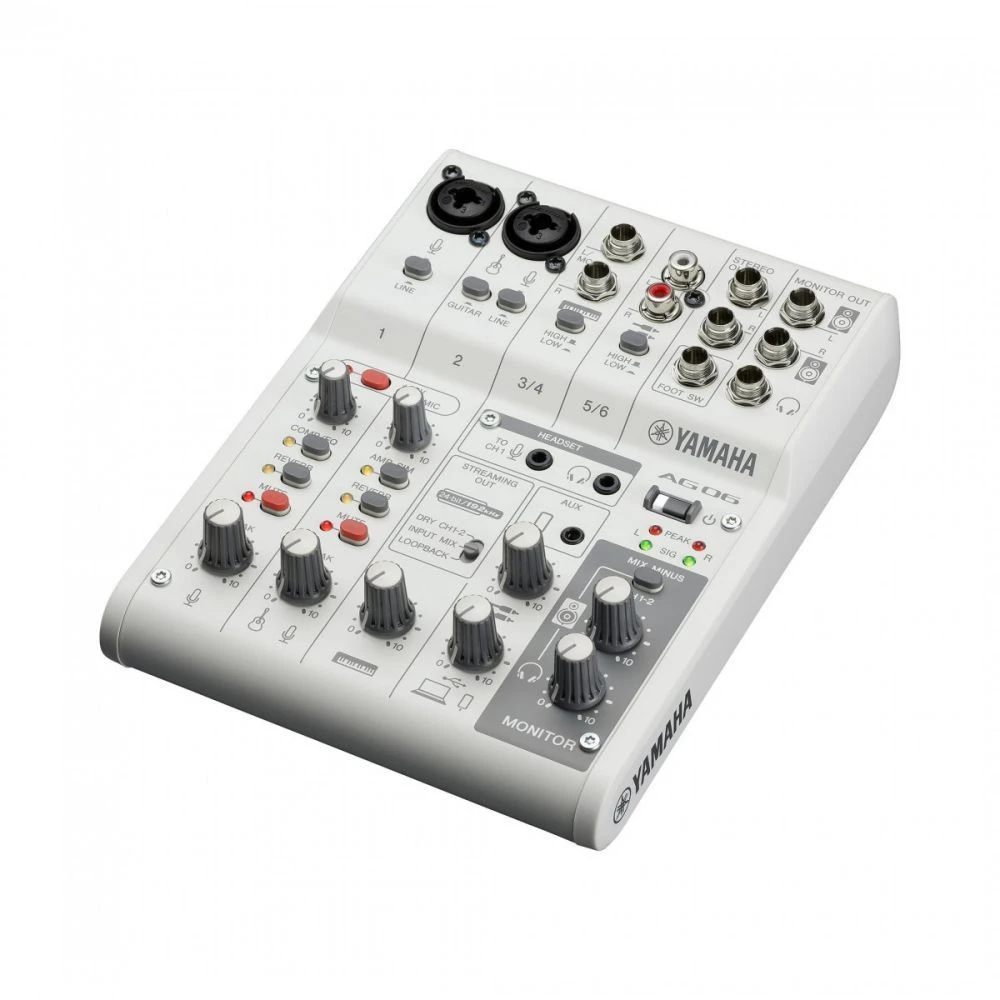

Yamaha AG06MK2 6-Channel Mixer With USB Interface, White

A must-have for live streaming, video content creators, podcasters and artists alike, the Yamaha AG06MK2 is a enhanced yet affordable 6-channel mixer that delivers sublime precision for creatives on smaller budgets.

Allowing users to plug in everything from condenser mics to instruments such as guitars, the AG06MK2 consists of two phantom-powered mono channels with combo jacks and two additional stereo line inputs, so other external instruments or audio devices can be connected to suit the user’s exact requirements with absolute ease.

Showcasing other practical features such as the popular loopback function, connect a phone, tablet or PC via USB to use the audio in the overall output. Ideal for creatives such as streamers looking to use sound effects or music, or alternatively musicians who need a backing track whilst performing.

Not only that but with one-touch effects at your disposal, create a more professional-sounding mix in no time at all, whether it’s with reverb or compression, or giving your guitar tone more presence with the amp simulation effect. Making the AG06MK2 a dream for creatives looking to take their production to new heights.

Key Features:

• Flexible and compact six-channel mixer
• Two microphone inputs with phantom power and two stereo line inputs
• Loopback mode allows you to include audio from USB devices
• High-quality one-touch reverb, compression and amp simulator effects

Yamaha AG06 MK2 6 Channel Mixer with USB Interface, White Specifications:

Input Channels:

• Mono (Mic/Line):
• Channel 1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8″) stereo mini (Headset mic, Plug-in power) (CH1 input and Headset mic cannot be used simultaneously)
• Channel 2: Combo (Mic, +48 V phantom power / Guitar input / Line)
• Stereo (Line): 1 x Phone, 1 x RCA
• Smartphone: 1 x Phones/Headset Phones (Cannot be used simultaneously)
• USB: 1

Output Channels:

• Phones: 1 x Phones, 1 x Headset Phones (Cannot be used simultaneously)
• Smartphone: 1 x 4-pole mini input/output (TRRS)
• Monitor Out: 1
• Stereo Out: 1
• USB: 1
• Bus: 1, Stereo
• Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
• On-Board DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM (Parameters adjustable via AG Controller software)
• USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power Input: Type-C, 5 V DC, 900 mA
• Power Requirements: 5 V DC, 900 mA
• Power Consumption: Max. 4.5 W

Dimensions:

• Width: 152 mm (6.0″)
• Height: 63 mm (2.5″)
• Depth: 201 mm (7.9″)
• Net Weight: 0.9 kg (2.0 lbs)
• Included Accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Operating Temperature: 0 – +40°C
