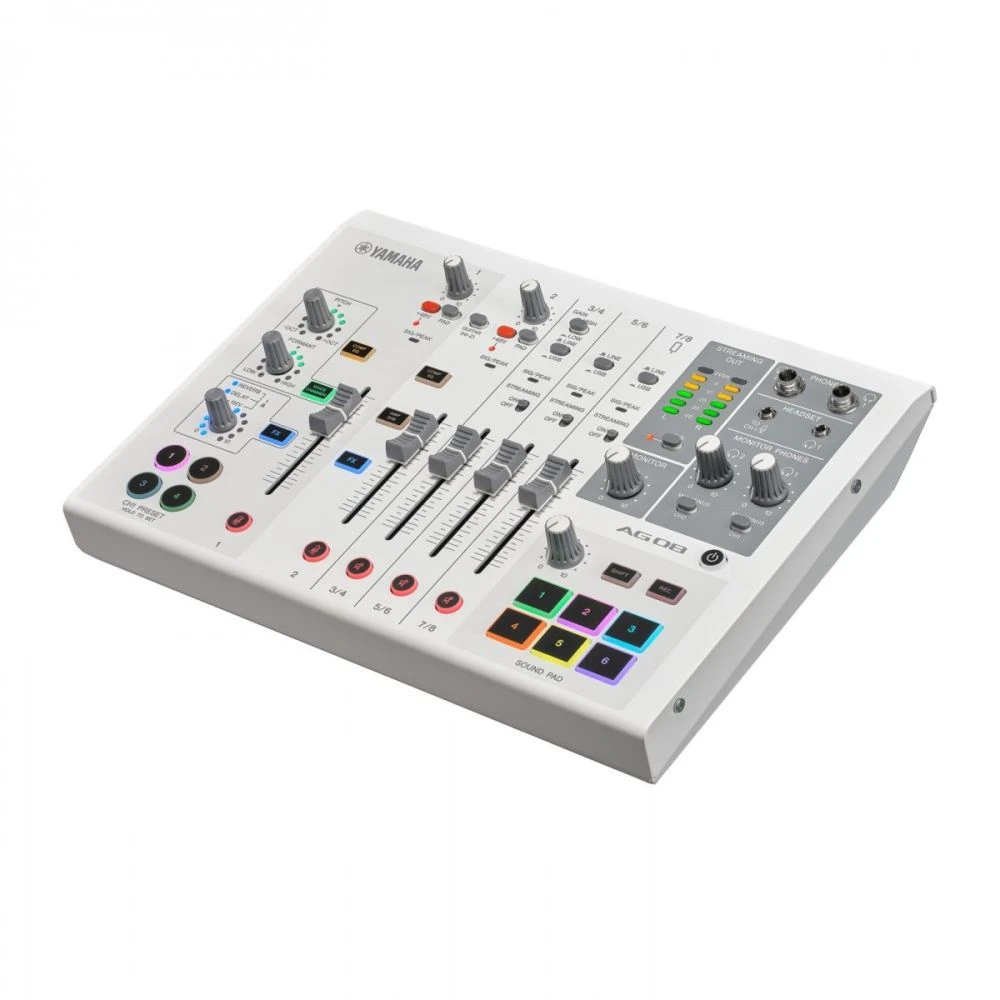

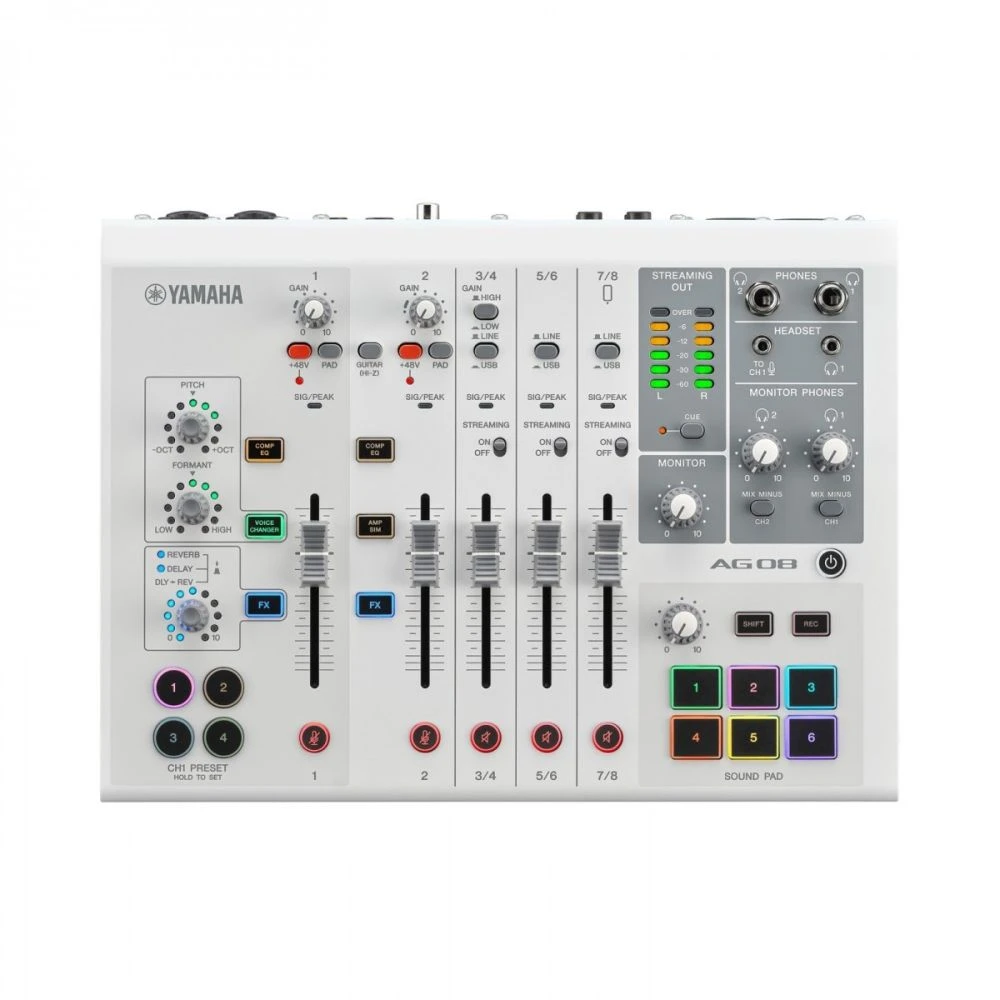

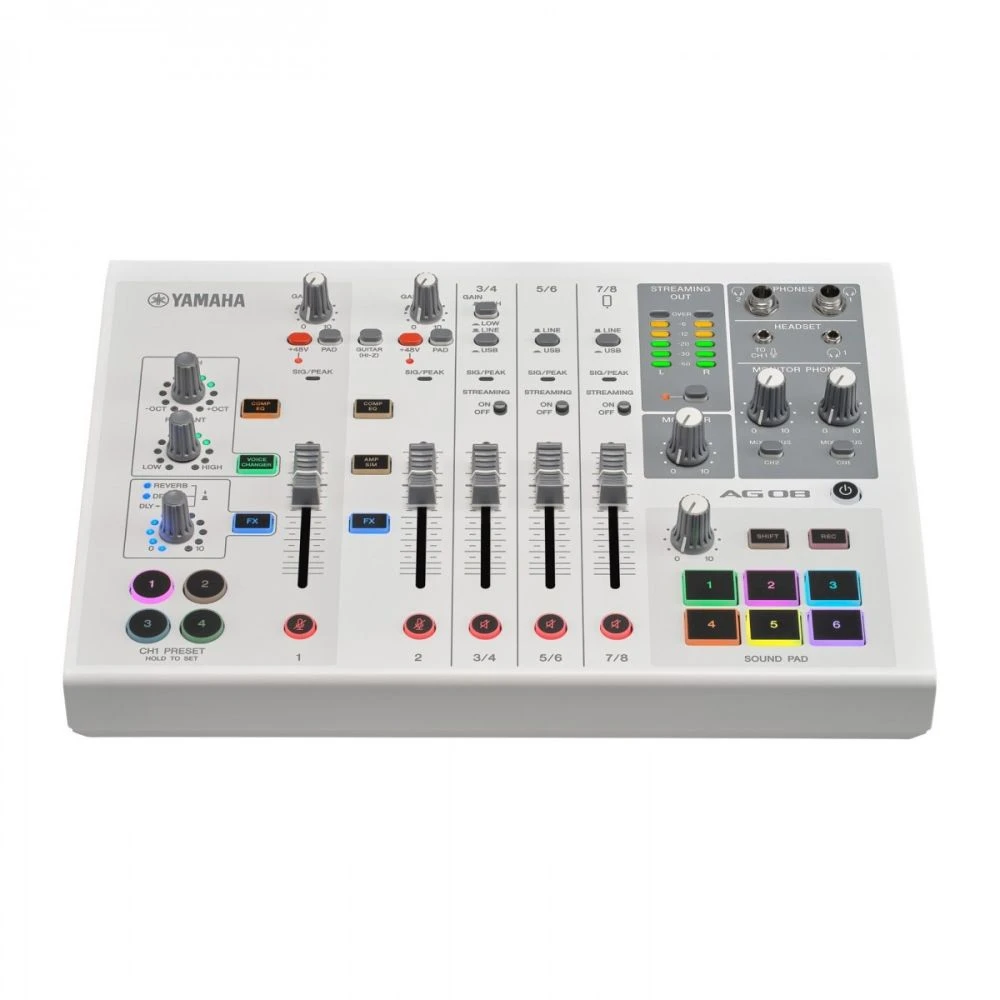

Yamaha AG08 Streaming Mixing Desk, White

Supplying a vast functionality that’s perfect for live streamers and other audio creation such as podcasts and vlogs, the Yamaha AG08 Streaming Mixing Desk, seen here in White, is an 8-channel live streaming mixer that consists of two phantom power inputs for condenser mics, a built-in USB audio interface, voice changer as well as a sampler. Making it simple to capture professional audio with guests and friends with the push of a button.

Delivering more versatile I/O and USB routing options along with an expanded foot switch functionality, the AG08 delivers an adaptable design that allows simple connectivity of everything from smartphones, guitars, keyboards and much more when combining the microphone channels to make a stereo line.

Key Features:

Eight-Channel Streaming Mixer: With two microphone input channels and six assignable stereo line channels, users can quickly set up two condenser microphones along with a guitar, keyboard, electronic drum kits, external drum kits and much more.

Loopback Mode: Loopback functionality lets you play back computer audio for gaming or voice calls, so streaming can be intricately crafted to your exact requirements.

Onboard Voice Changer and Effects: Jam-packed with an array of features to take your sound to new heights, the AG08 comes with built-in voice changer effects which enable users to adjust pitch along with reverb, compression and delay to help refine sounds, especially whilst recording with instruments.

What’s Included:

• 1 x Yamaha AG08 Streaming Mixer
• 1 x AC adapter PA-150B
• 1 x USB 2.0 cable (1.5 m)
• 1 x Quick Guide
• 1 x Safety Guide
• 1 x Wavelab Cast Download Information
• 1 x Cubase AI Download Information

Yamaha AG08 Streaming Mixer, Black Specifications:

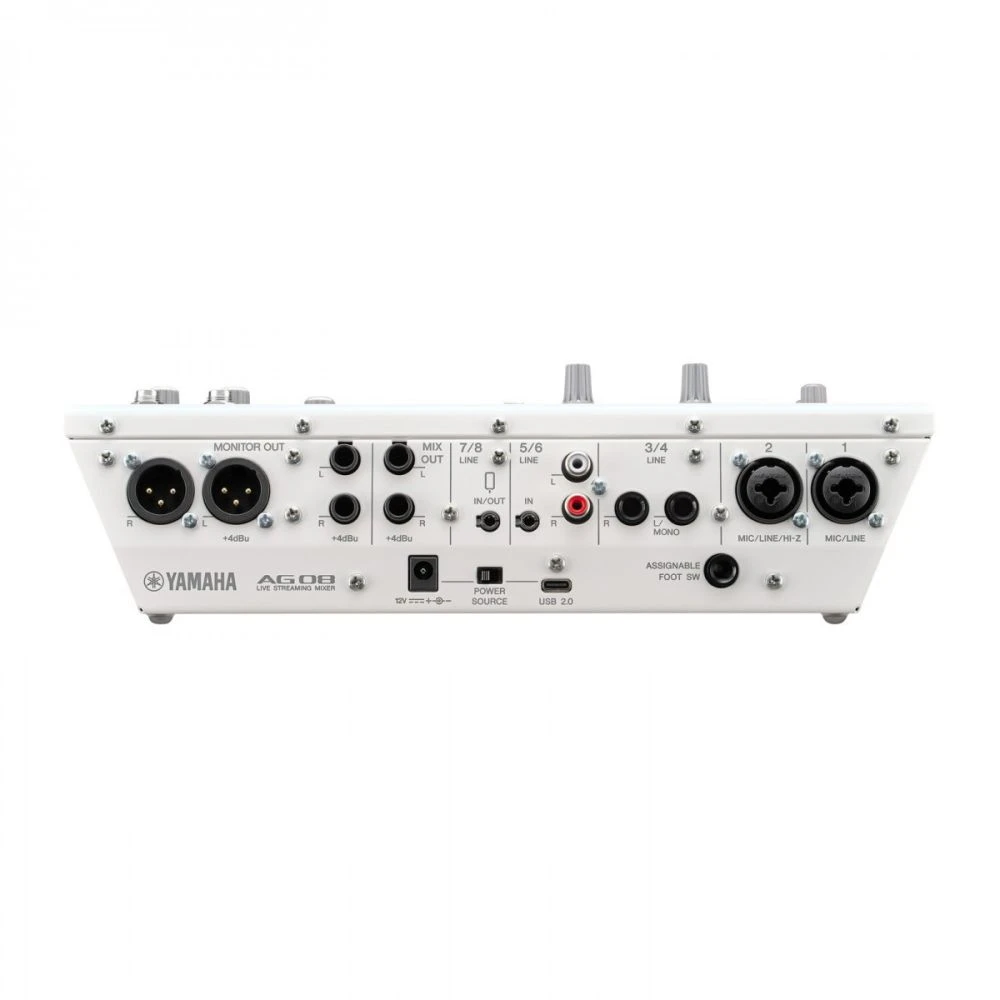

Input Channels:

• Mono (Mic/Line): 2 – CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
• Stereo (Line): 3 – CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
• Aux: 1 – Stereo mini
• Smartphone: 1 0 4-pole mini input/output (TRRS)
• USB: 1 – USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)

Output Channels:

• Phones: 2 – CH1: 6.3 mm (1/4″) Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
• Smartphone: 1 – 4-pole mini input/output (TRRS)
• MONITOR OUT: 2 – LR Stereo: XLR, 1/4 TRS Phone
• STEREO OUT: 1 – MIX: LR stereo TRS Phone
• USB: 1 – USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
• Bus: 4 Stereo

• Functions: MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
• DSP Effects: Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
• USB Audio: 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power Input: 1 – Type-C, 5 V DC, 1.5 A
• Power Requirements: DC 12 V, 1.5 A/USB-C 5 V, 1.5 A
• Power Consumption: Max. 7.5 W
• Dimensions (W x D x H): 290 x 88 x 222 mm (11.5″ x 3.5″ x 8.8″)
• Weight: 2.2 kg (4.9 lbs)
• Operating Temperature: 0 to +40° C
