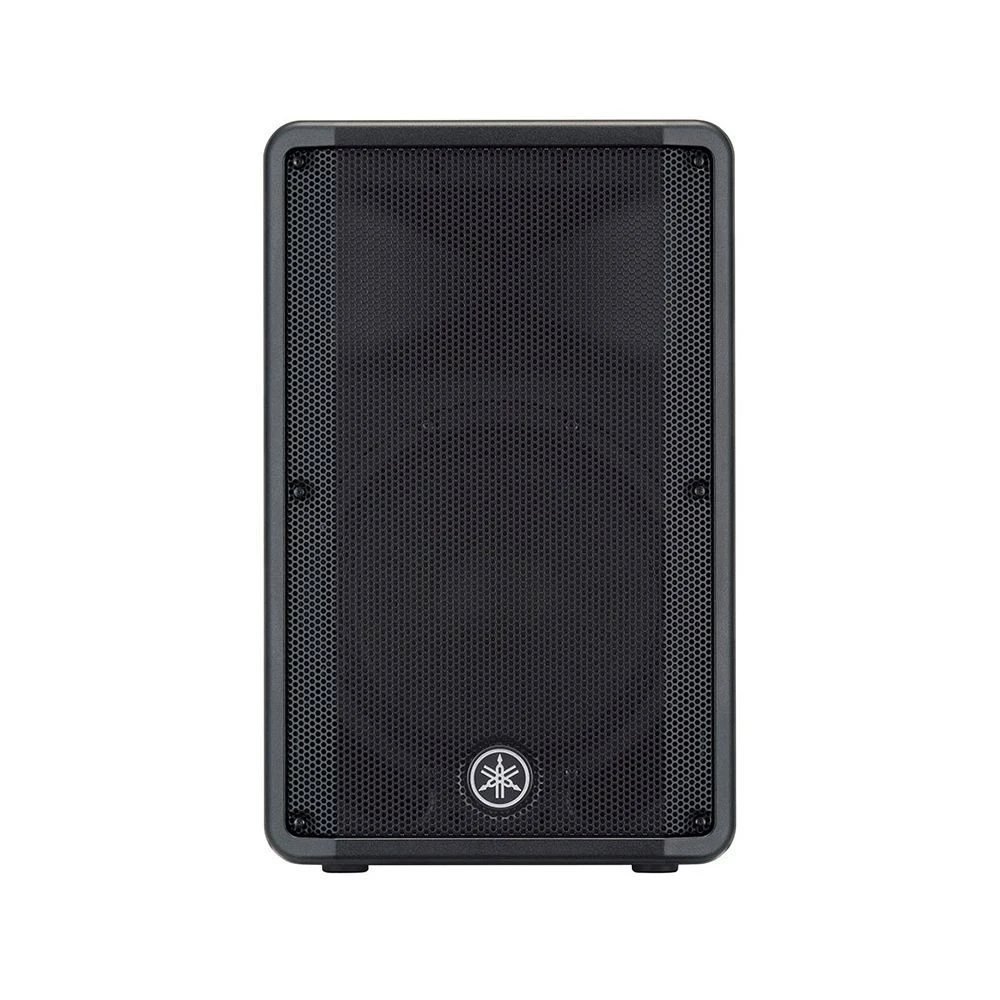

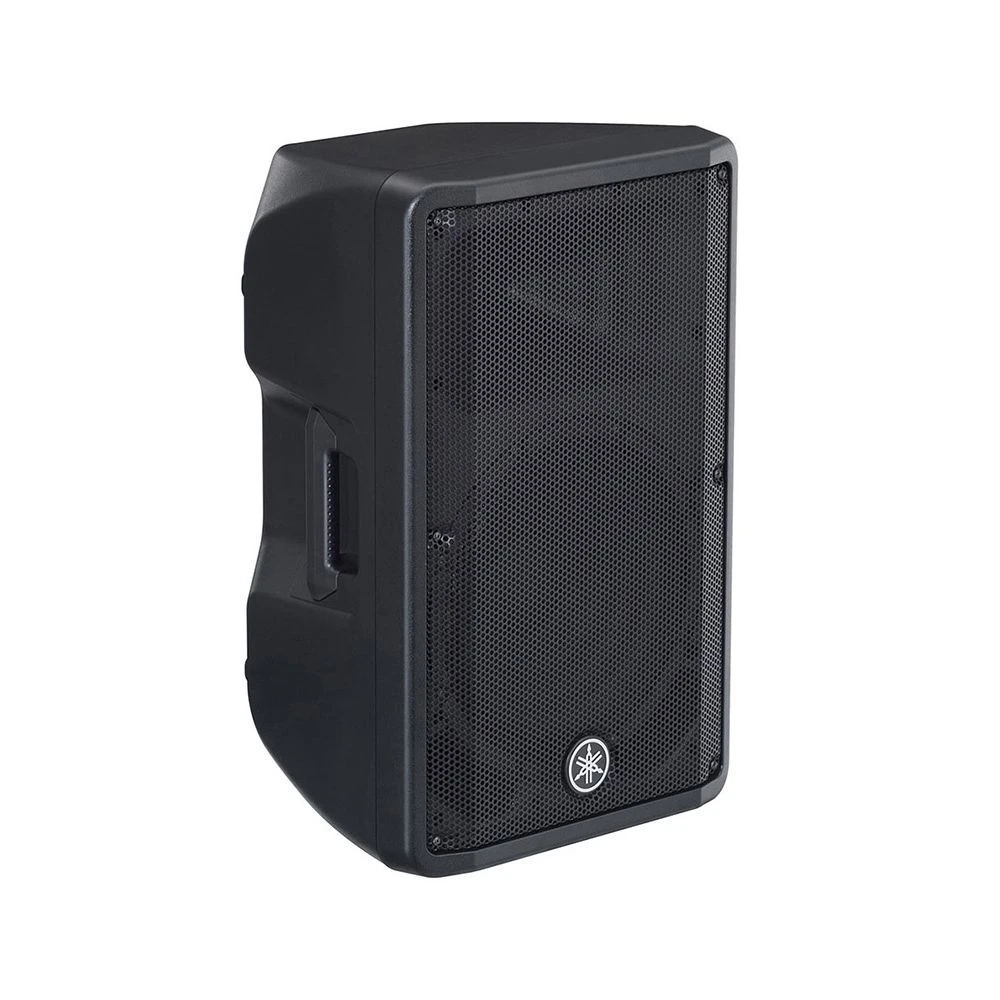

Yamaha CBR12 Passive PA Speaker

As a stereo pair or combined with a set of passive subwoofers, the Yamaha CBR12s are a versatile passive speaker capable of extraordinary volume levels and clear performance in a rugged, lightweight enclosure.

Power to Play

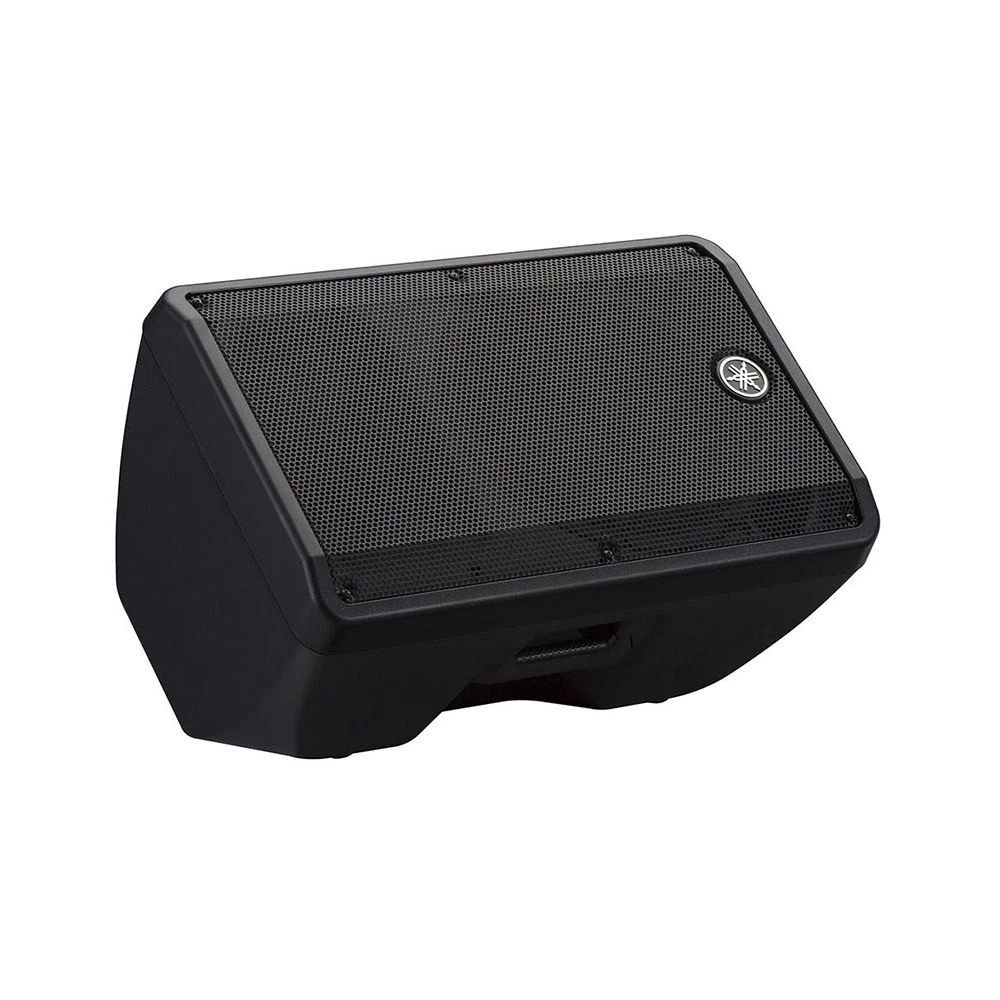

For portable PA, mobile DJ and installation applications, the CBR12 represents the perfect balance between portability and performance – easily mounted on a speaker stand or mounting rig for front-of-house sound. The CBR Series speakers feature an optimized 50 degree wedge angle for floor monitoring, enclosed in a rugged, lightweight cabinet design.

Powerful High-Definition Sound

The CBR 12 speaker comes equipped with a carefully selected and customized transducer. Featuring a highly responsive woofer and a precise 2″ compression driver, it delivers consistent high-definition sound with minimal distortion. For a 12″ speaker, the CBR12’s 350w programme output and 125dB SPL highlight just how efficient and powerful these portable speakers are.

Reliable Performance

CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.

• Speaker type 2-way Speaker, Bass-reflex Type
• Frequency range (-10dB) 48 Hz – 20 kHz
• Nominal coverage H 90°
• V 60°
• Components
• LF 12″ Cone, 2″ Voice Coil (Ferrite Magnet)
• HF 1.4″ Voice Coil, Compression Driver (Ferrite Magnet)
• Crossover 2.1 kHz
• Power rating NOISE 175W
• PGM 350W
• PEAK 700W
• Nominal impedance 8
• SPL Sensitivity (1W; 1m on axis) 96dB SPL
• Peak (Calculated) 125 dB SPL

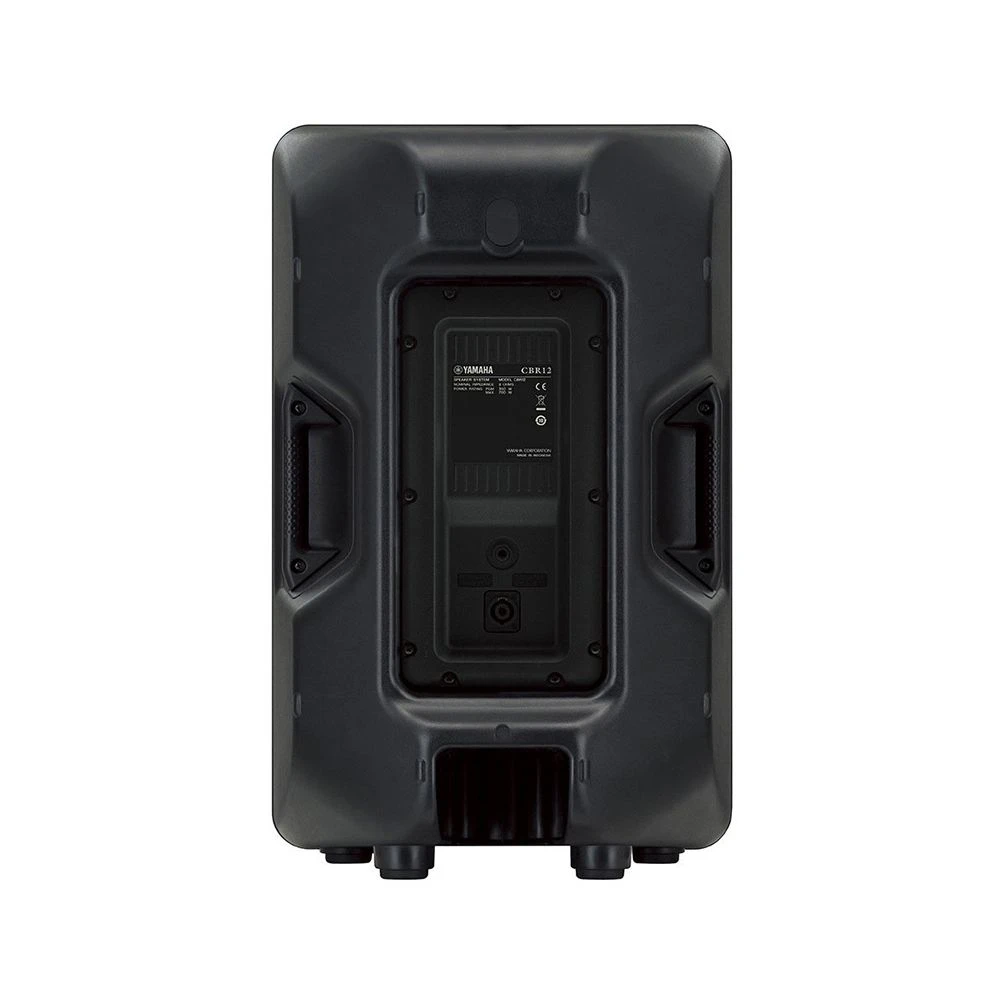

• I/O connectors 1/4″ Phone x 1, speakON NL4MP x 1
• Cabinet material Plastic
• Finish Black
• Handle Side x 2
• Flying and mounting hardware Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
• Pole socket 35 mm Bottom x 1
• Dimensions W 376mm (14.8″)
• H 601mm (23.7″)
• D 348mm (13.7″)
• Net weight 13.9 kg (30.6 lbs)
