Yamaha DXS18XLF Active Subwoofer

The Yamaha DXS18XLF is a bass-reflex type active subwoofer equipped with an 18” LF woofer and produces extended low frequency and best-in-class maximum SPL of 136dB SPL

Consistent, Fantastic Audio

Like you’ll find with the full-range Yamaha DZR loudspeakers, the DXS XLF subwoofers are also driven by 96kHz high power DSP and use dynamic EQ that adapts to your sound to give you consistent, professional level sound.

If you use the Yamaha DZR full-range speakers then you’ll find the DXS ZLF subwoofers to be the perfect complement to their already fantastic sound, really taking the performance to new heights.

Yamaha DXS18XLF Active Subwoofer Key Features:

• Powered 18” subwoofer with 4” Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-definition sound with super low latency
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Powerful DSP

Ensuring you get the best possible audio at all times, the DXS18XLF features powerful D-XSUB LF processing with three different modes.

Using NORMAL mode, the DXS18XLF will be set for ideally balanced low-frequency response while BOOST mode gives you a tighter, more focused bass sound which packs an extra punch.

Last, but not least, is XTENDED LF mode which brings the low-end frequencies down even further for some seriously chest-thumping, rib-rattling bottom end, delivering low frequencies that you just don’t find in cabinets of this size.

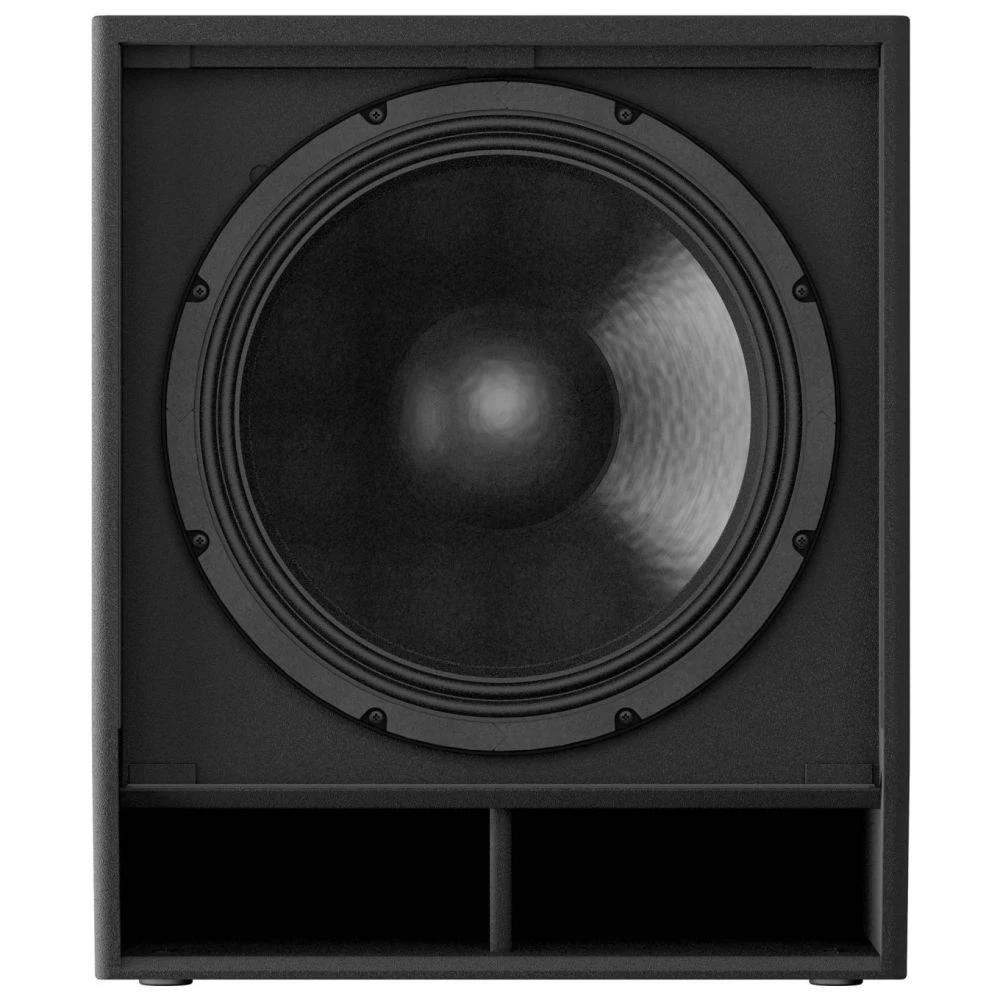

New Proprietary Transducers

The secret to achieving such impressive low frequency response it the new Yamaha proprietary transducers which comprise of a durable die cast aluminium frame and 4” voice coil.

A dual dumper is also in use, helping to control the low frequencies and eliminated unwanted vibration.

Combined, the result is fantastic audio, even at the most extreme output levels.

Ready for The Road

Designed for professional use and longevity, the DXS18XLF enclosure exterior has been given an ultra-durable Polyurea coating that provides extremely high damage resistance.

With the cabinet protected from scratch, bumps and severe weather conditions, the DXS18XLF will maintain its professional appearance and incredible performance for years to come.

Already a compact cabinet, there are also easy-to-grip aluminium handles on the sides, adding to its portability.

Furthermore, there are optional wheel kits and a speaker cover available for added portability and safety.

Take Your Sound to The Next Level

Boasting incredible, professional level audio with a huge max 136dB max SPL, powerful DSP processing, awesome low frequency handling and amazing dynamic EQ, the Yamaha DXS18XLF really takes your sound to the next level.

Buy the Yamaha DXS18XLF active subwoofer now to give your sound the great sounding low-end force it deserves.

Yamaha DXS18XLF Active Subwoofer Specs:

• Speaker Type: Powered Subwoofer, bass-reflex
• Frequency Range (-10dB): 30Hz – 150Hz
• LF Components: 18″ Cone, 4″ Voice Coil, Ferrite magnet
• Sampling Frequency Rate: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum Output Level (1m; on axis): 136dB SPL *1
• Power Rating – Dynamic: 1600W *2
• Power Rating – Continuous: 1230W
• I/O Connectors – Analogue I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kOhms, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
• I/O Connectors – Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
• I/O Connectors – AC: IEC AC inlet x1 (V-Lock)
• Amplifier Class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power Consumption: 40W (Idle), 180W (1/8)
• Handle: Aluminium die-cast, Side x2
• Pole Socket: 35 mm (depth 80mm), M20 Threaded (depth 25mm)

Weight and Dimensions:

• Width: 550mm (21.7”)
• Height: 657mm (25.9”) (with rubber feet)
• Depth: 720mm (28.3”)
• Net Weight: 48.9kg (107.8lbs)

*1: Measured peak SPL with pink noise @1m.
*2: Total peak power of individual outputs (AC 120V, 25 ). This value was measured at minimum load impedance, with protection released.
