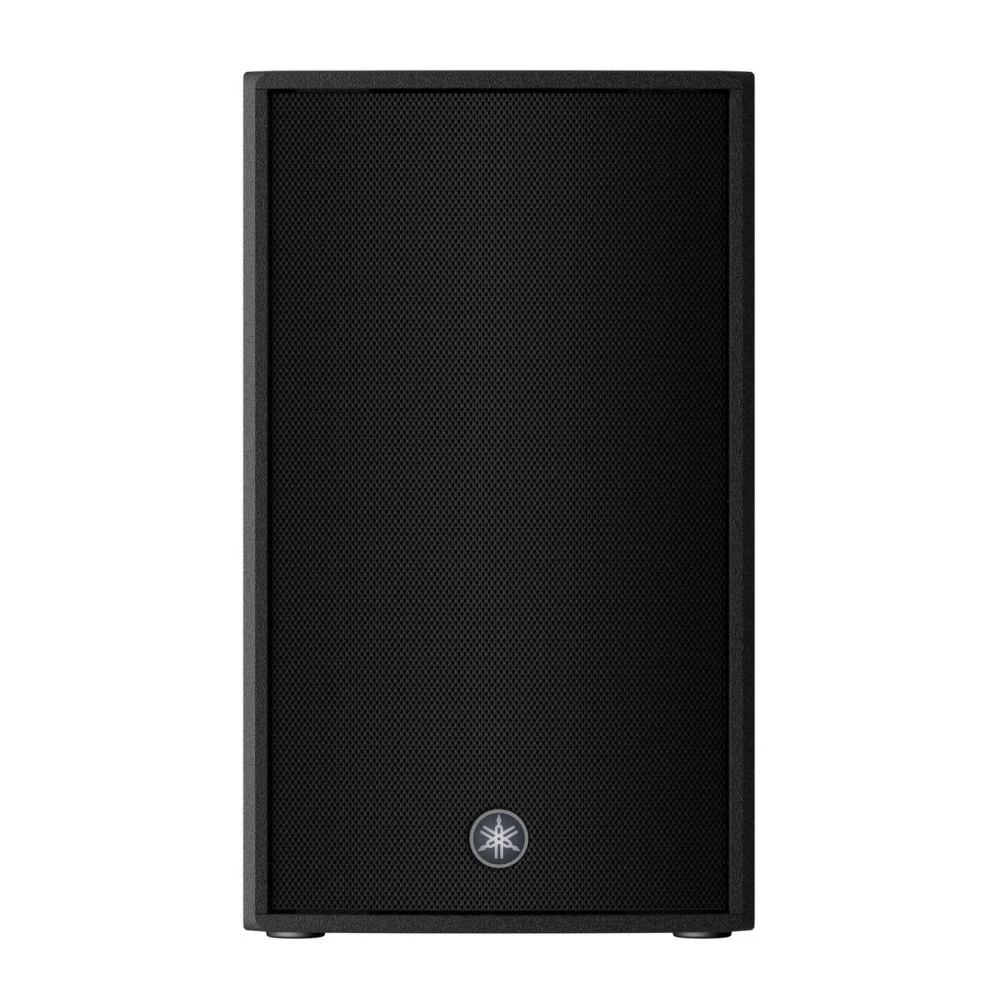

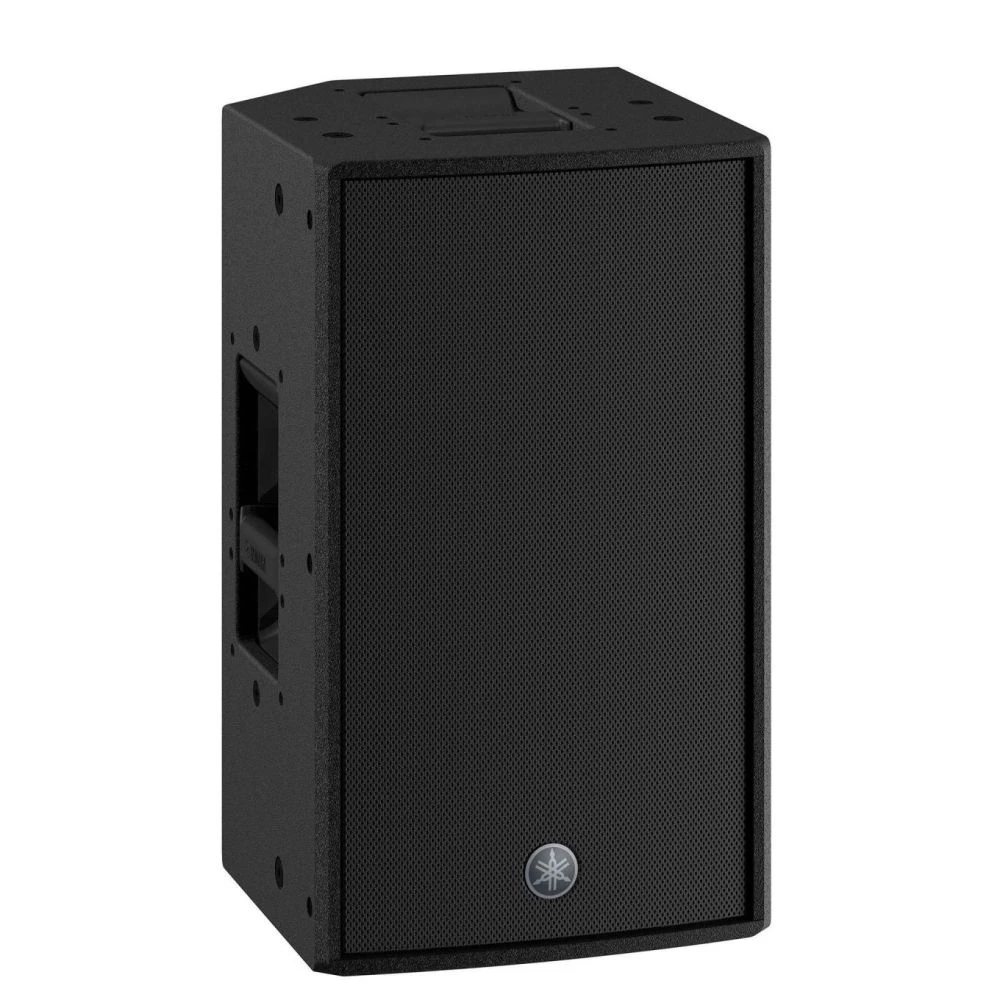

Yamaha DZR10-D 2-Way Bi-Amped Active Loudspeaker With Dante

The Yamaha DZR10-D is a 2-way bi-amped active loudspeaker equipped with a 10” woofer and Dante interface, delivering incredible audio with a powerful 137 dB SPL.

Power, Portability, Fantastic Sound and Dante I/O

Yamaha’s DZR10-D delivers best-in-class SPL performance with advanced DSP processing and amazing low-frequency sound reproduction with a huge level of power that defies its compact and lightweight design.

Being the “D” model of the DZR10, the DZR10-D is equipped with Dante I/O that gives you extremely flexible system control and expandability.

The first Dante-equipped professional SR loudspeakers, the Yamaha DZR “D” models push boundaries and raise the bar of smart system integration.

Yamaha DZR10-D 2-Way Bi-Amped Active Loudspeaker with Dante Key Features:

• 2-way powered loudspeaker with a 2” HF and a 10″ LF
• Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
• High power 2000W Class-D amplifier module
• 96kHz DSP and FIR filter for true high-resolution sound with super low latency
• Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
• Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• D-Contour and highly reliable protection circuits
• Floor monitoring setting
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DZR10)
• Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Dante I/O for Fantastic Flexibility

With Dante I/O, the Yamaha DZR10-D gives you incredibly flexible system control and expandability options.

System integration with Yamaha consoles and other Dante devices is a breeze due to the Dante I/O (2in/2out) that also provides you with sample rate conversion that provides 48kHz device compatibility.

Yamaha CL/QL digital mixing consoles can be connected via Dante with patching being super-streamlined due to the convenient I/O device display, while TF console owners are able to use Quick Config for quick, easy set up and use of even really sophisticated sound reinforcement systems.

Furthermore, Yamaha’s control panel software “ProVisionare Control” and “ProVisionare Control” for Windows and iPad respectively, are also Dante compatible, so you can get incredible remote management of your sound system.

96kHz DSP and Advanced FIR-X Tuning for Great Sound with Low Latency

With 96kHz DSP processors, the high power output of the DZR10-D is channelled into high-resolution sound with incredibly low latency.

The DZR10-D also boasts the newly developed Advanced FIR-X tuning, a significantly upgraded version of Yamaha’s proprietary FIR-X tuning technology.

Using FIR filters, the DZR10-D is able to provide amazingly smooth frequency response, delivering beautifully clear audio excellent sound imaging without phase distortion.

Accurate EQ filter is also on hand, allowing for precise adjustment to get optimum results and best-in-class SPL without signal degradation.

Using the built-in LCD screen, you get easy access to a wide variety of DSP functions and presets as well as be able to make fine adjustments to PEQ, delay and routing.

You can also store up to 8 user presets with all your own parameter adjustments or make use of the optimised factory presets.

D-CONTOUR Multi-Band Compressor

Making sure your sound stays clear and consistent, even when driven hard, the DZR10-D utilised the D-CONTOUR intelligent multi-band compressor.

It works by constantly monitoring multiple frequency bands of your signal and applying optimum equalisation to each one so that even the highest output levels are delivered with incredible clarity.

D-CONTOUR also gives you the choice of two different settings; FOH/MAN and MONITOR mode so you get optimum results for your chosen PA configuration.

Both presets have been designed and perfected with the results of countless listening tests performed by sound engineers to ensure you get consistent sound with low distortion whatever the output level.

When switched to FOH/MAIN mode, the lower frequencies are boosted to compensate for the low end that is usually lost when PA speakers are suspended or mounted on stands.

Switch over to MONITOR mode and the D-CONTOUR will give you sound that is optimised for floor monitoring, reducing low frequencies that can become problematic while soothing out a wide range of frequencies to deliver incredible clarity.

2000W High Power Class-D Amplification

The DZR10-D also boasts a new, highly efficient Class-D Amplification module which produces best-in-class 2000 watts of power with a hefty 143 dB SPL.

Power output is maximised with the use of a universal switching mode power supply with PFC so you get great, stable results while the amplifiers have been specially selected and optimised to match the full-range DZR10-D’s custom designed high and low frequency transducers.

Custom Designed HF and LF Transducers

Delivering pronounced, crisp and clear high frequencies is a HF transducer comprised of a 2” voice coil and 1” throat compression driver with a titanium diaphragm and powerful neodymium magnet houses within a heat-resistant and durable aluminium frame.

The proprietary 10” LF transducer has been newly developed for use with the DZR10-D and features a large 3” voice coil with a cast aluminium frame and an extremely strong yet lightweight neodymium magnet, which despite its lightweight construction can handle high power while delivering powerful low frequencies.

The result is powerful, distortion free audio, even at the highest outputs, with tightly controlled response and particularly sweet sounding mid-bass and vocal range frequencies for beautiful musicality in the sound.

Flexible Installation Options

Another great feature of the Yamaha DZR10-D powered loudspeaker is the rotatable horn that allows you to adapt for different mounting situations and the acoustics of the venue.

Yamaha’s constant directivity horns have been designed to provide smooth coverage over your desired coverage area while minimising roll-off, a common problem for conventional horn designs.

When mounting with a speaker pole, the DZR10-D gives you a choice of two sockets – one for standard level positioning and another that holds the speaker at a -7 degrees tilt.

You can also fly the DZR10-D via the 8 x M10 and 2 x M8 rigging points or mount it with a separately available bracket.

Covering 90×60 degrees dispersion, the rotatable horn allows you to get great sound however you want to place the DZR10-D.

Great Construction for Portability and Performance

The DZR10-D’s cabinet is constructed from high grade 15mm thick plywood that is then covered with a highly durable, military-grade Polyurea coating. Combined, these features ensure the DZR10-D can withstand all the rigours of life on the road.

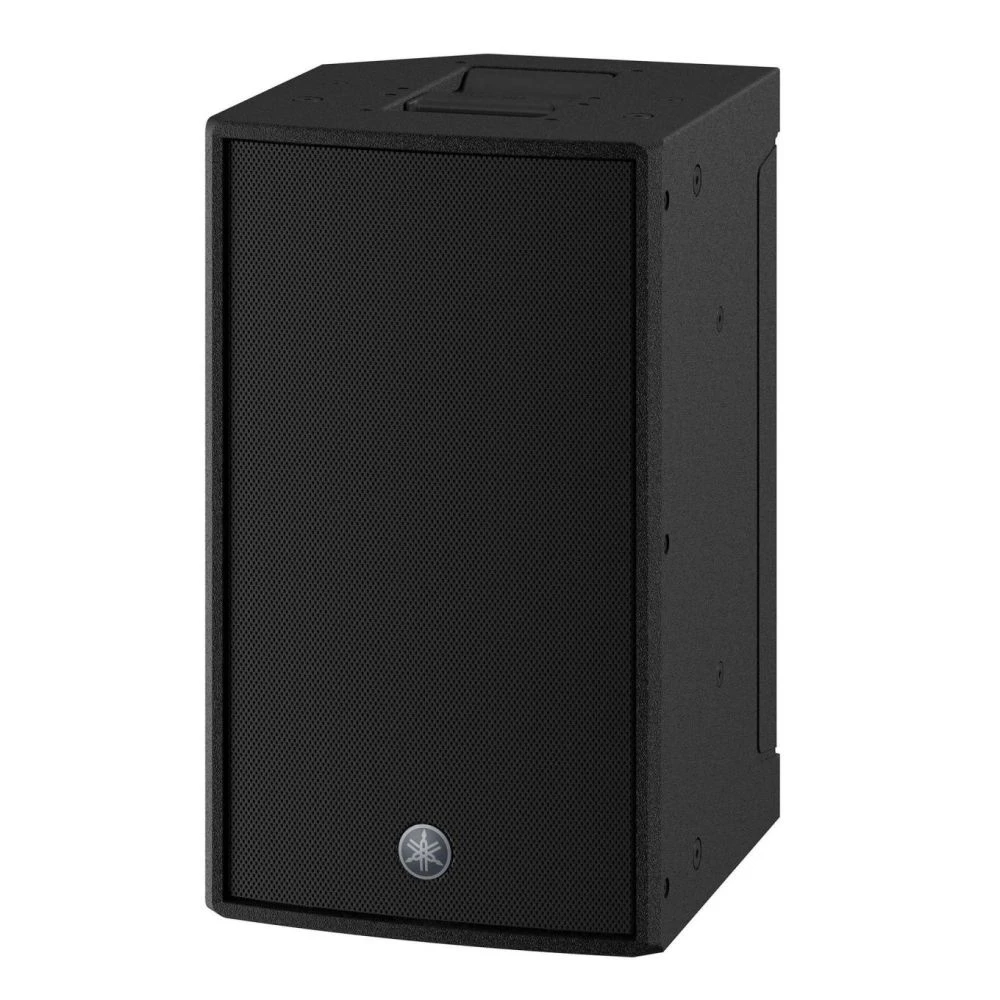

For added portability, the Yamaha DZR10-D loud speaker also comes equipped with die-cast aluminium handles found on the top and side of the enclosure.

Powerful Output and Perfect Audio

Yamaha’s DZR10-D raises the bar when it comes to portability, performance and convenience.

Packed with fantastic features for sound that is great every time with awesome power handling and fantastic portability, the Yamaha DZR10-D is one seriously formidable package.

Buy the Yamaha DZR10-D now and enjoy the fantastic sound that this incredibly well designed powered loudspeaker provides.

Yamaha DZR10-D 2-Way Bi-Amped Active Loudspeaker with Dante Specs:

• Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
• Frequency Range (-10dB): 44Hz – 20kHz
• Coverage Area: H90 Degree x V60 Degree (Rotatable)
• LF Components: 10″ Cone, 3″ Voice Coil, Neodymium magnet
• HF Components: 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
• Crossover: 1.8kHz (FIR-X)
• Sampling Frequency Rate: 96kHz and FIR Filter
• A/D D/A Converters: 96kHz AD/DA
• Maximum Output Level (1m; on axis): 137dB SPL *1
• SRC: Yes
• Power Rating – Dynamic: 2000W (LF:1000W, MF/HF: 1000W) *2
• Power Rating – Continuous: 1300W (LF: 920W, MF/HF: 380W)
• I/O Connectors – Analogue I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k , Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
• I/O Connectors – Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
• I/O Connectors – Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
• I/O Connectors – AC: IEC AC inlet x1 (V-Lock)
• Amplifier Class: Class-D
• Cooling: Fan cooling, Variable speeds
• Power Consumption: 45W (Idle), 150W (1/8)
• Handle: Aluminium die-cast, Top x1, Side x1
• Rigging: M10 x8, M8 x2
• Pole Socket: 35 mm x2 (0° or -7°)

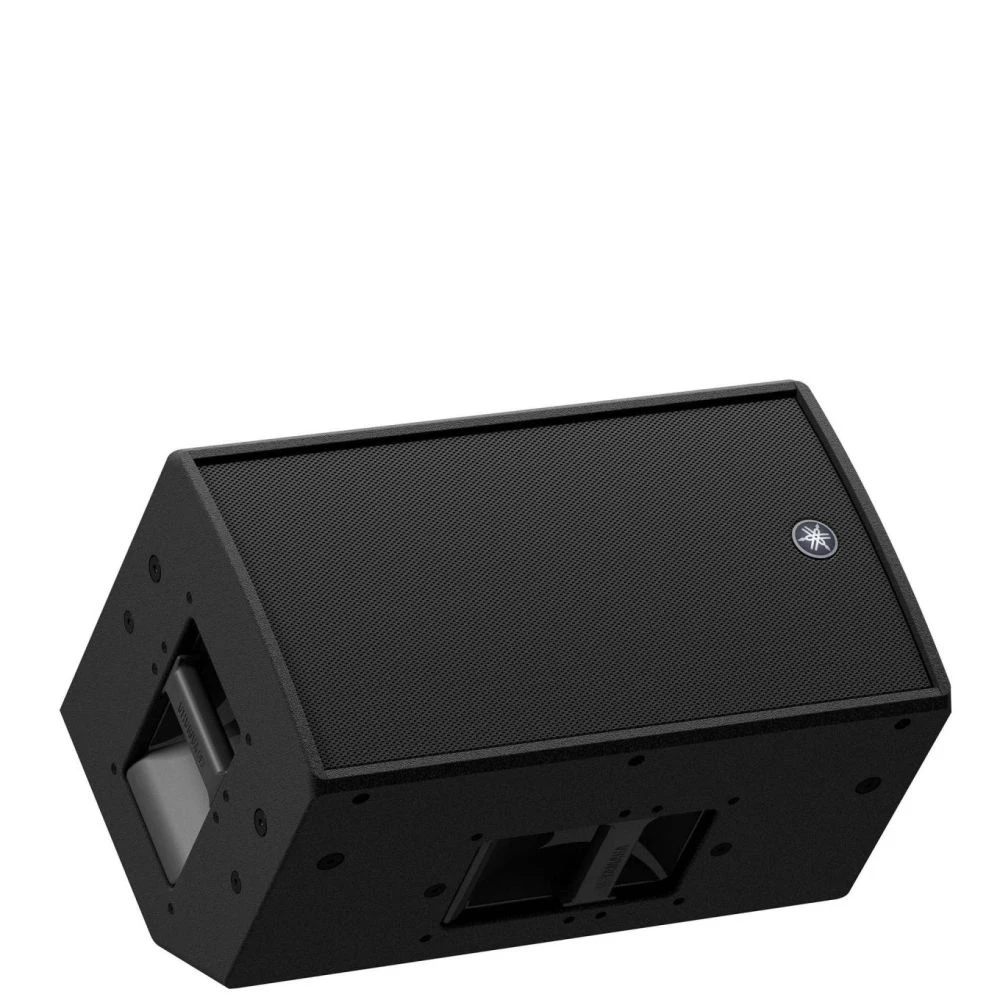

• Floor Monitor Angle: 50 Degrees

Weight and Dimensions:

• Width: 315mm (12.4”)
• Height: 537mm (21.1”) (with rubber feet)
• Depth: 345mm (13.6”)
• Net Weight: 17.9kg (39.5lbs)

• *1: With recommended DSP processing.
• *2: Total peak power of individual outputs (AC 120V, 25 ). This value was measured at minimum load impedance, with protection released.
