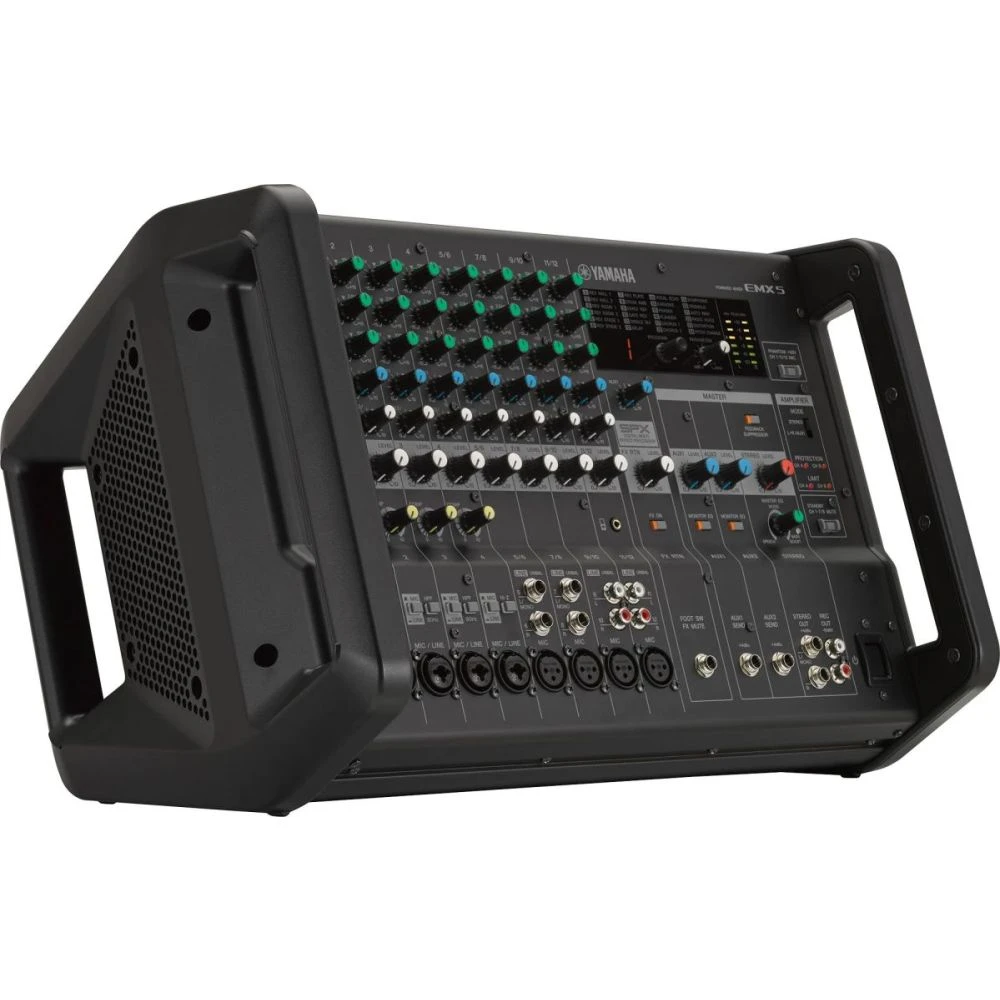

Yamaha EMX5 Powered PA Mixer Amplifier

Loaded with two highly-efficient 630 watt (peak) Class D Amplifiers, the Yamaha EMX5 Powered Analogue Mixer is efficient offering a decent output in lightweight housing.

Portable Design

The portable design is robust and can be easily transported. Perfect for small bands, single artists, speakers, DJs and more.

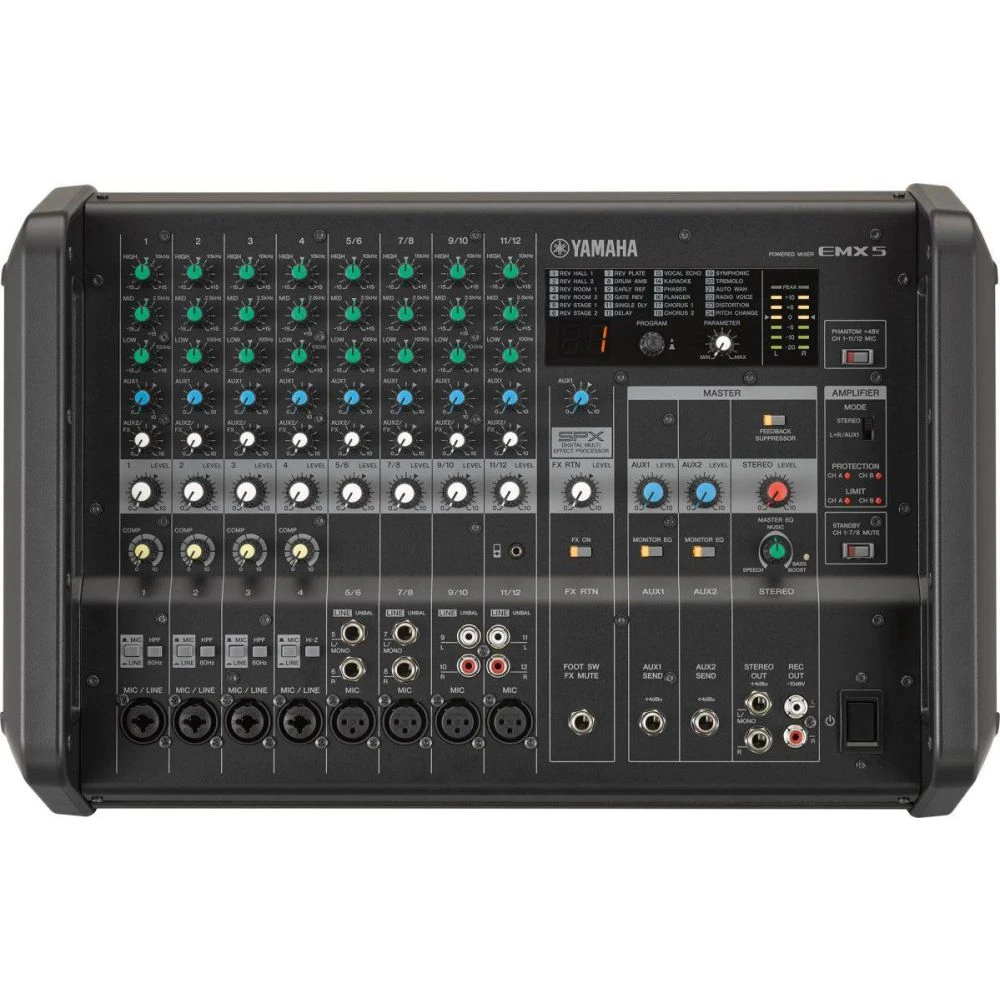

User-Friendly Controls

The front panel is user-friendly with everything clearly positioned and labelled. Featuring four mono input channels and four mono/stereo input channels, allowing up to 8 microphones, and line-level devices such as keyboards and portable playback devices such as smartphones and tablets.

Each model is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.

Speaker Processor Function

The speaker processor function allows you to select the speaker type so it matches the speakers you’re using.
Arriving with presets specifically focused on each model in Yamaha’s lineup of passive speakers, including CBR, Club, A and R series.

1-Knob Master EQ

The 1-Knob Master EQ allows you to optimize the EMX5’s EQ settings with the turn of a knob. Speech, Music and Bass Boost all work perfectly with the desired application, Speech for talks, music for bands and artisits, and bass boost for DJs.

Yamaha Emx5 Powered Analogue Mixer Specs:

• 2x 630W [4O], 2x 460W [8O] (1kHz THD+N less than 10% CEA2006)
• 2x 500W [4O], 2x 370W [8O] (1kHz THD+N less than 1% CEA2006)
• Powerful & High Efficiency Class-D Amplifier
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• 1-Knob Master EQ
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations
• Optional rack-mount kit available
