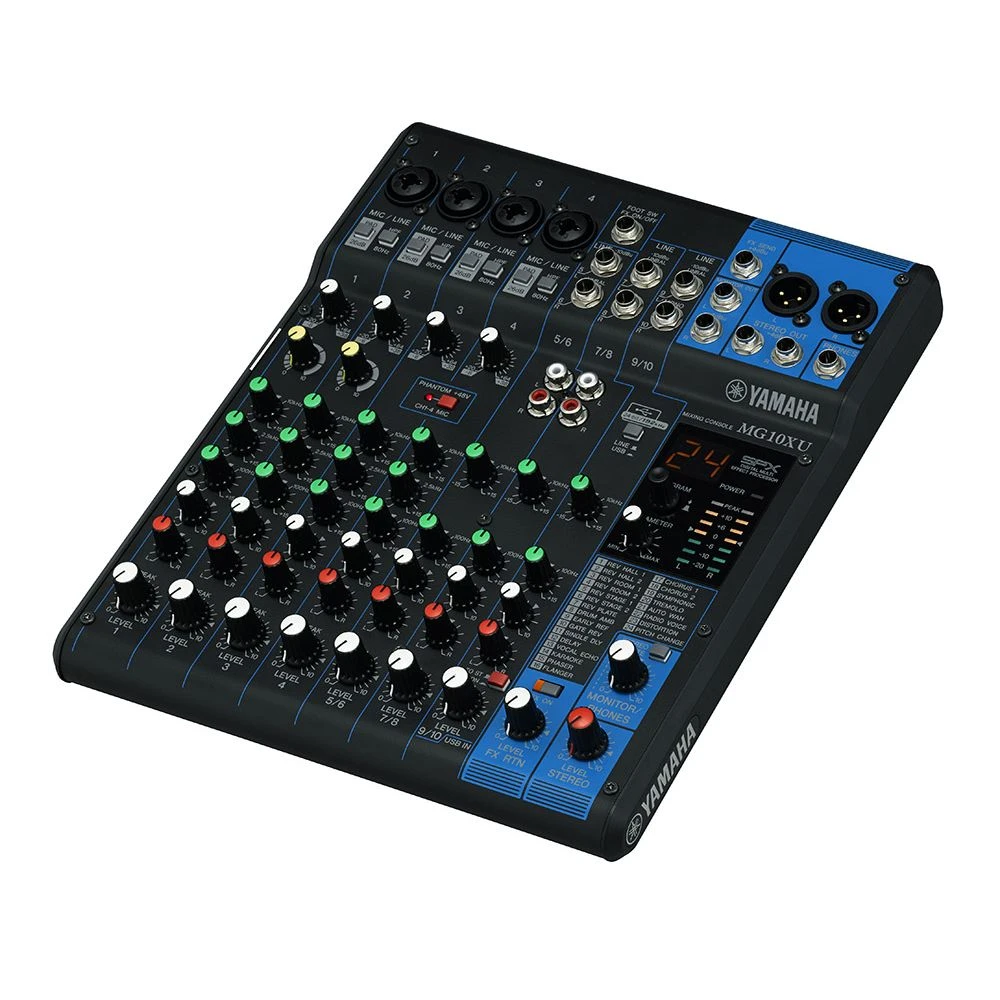

Yamaha MG10XU USB Mixing Desk

Whether it’s going to be installed in a club, taken on the road with your band or stored in the gear cupboard for open mic night. The Yamaha MG10XU has goteverything you need to run a small gig in one portable, reliable PA mixer.

High Quality Mic Preamps and USB Connectivity

Balancing high quality audio electronics with tough build quality and an aux send for headphones, the Yamaha MG10XU also makes a great recording mixer for small studios too. The ‘XU’ edition also features a USB interface built-in to the mixer, so you can record your rehearsal or Gig directly to a DAW sequencer or. USB functionality makes it perfect for quickly capturing musical ideas in the studio without needing a seperate audio interface or soundcard.

D-Pre Mic Preamps

Many of the worlds most coveted vintage preamps use the Class A circuit design for superior sound quality. Yamaha have gone to the deepest level and collaborated with a semiconductor manufacturer to make their own custom preamp circuitry. Both mic channels have phantom power for any condenser mics or active DI boxes.

Each microphone channel also features Yamaha’s renowned MG series Compression. A quick and easy way to boost low signals and improve the signal consistency in the mix without expensive external processing.

Rugged And Robust

There’s a reason you can find Yamaha mixers in venues around the globe. They keep performing night after night, benefiting from years of experience building equipment to last. The 3rd generation of the Yamaha MG Series are built with an improved all-metal chassis and rugged tone pots that won’t let you down.

SPX FX Processing

The 6 presets on board give you all the effects you need to create a sense of space. Use reverb, delay, modulation, distortion and pitch effects for a creative new angle on your mix.

Specifications:

• 10-Channel Mixing ConsoleMax. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
• Includes Cubase AI DAW software download version
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• Dimensions (W×H×D): 244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)
• Net Weight: 2.1 kg (4.63 lbs.)
