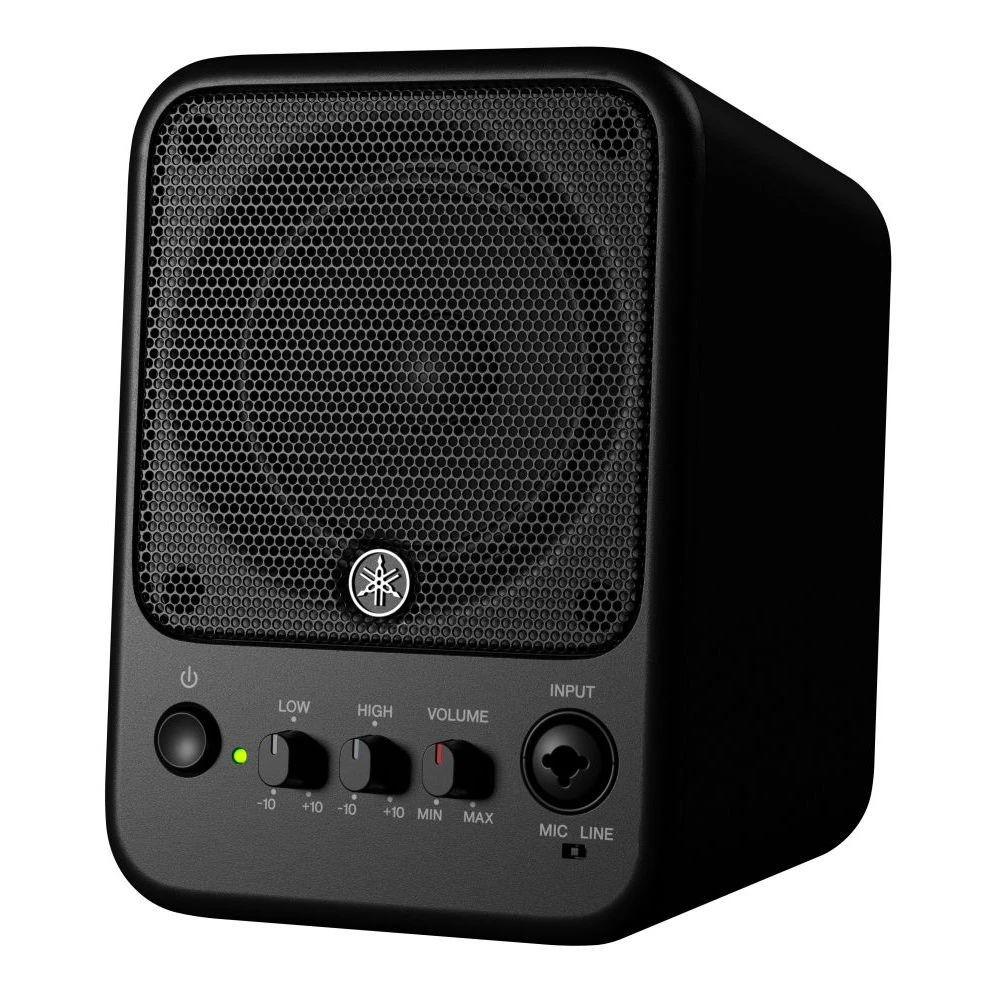

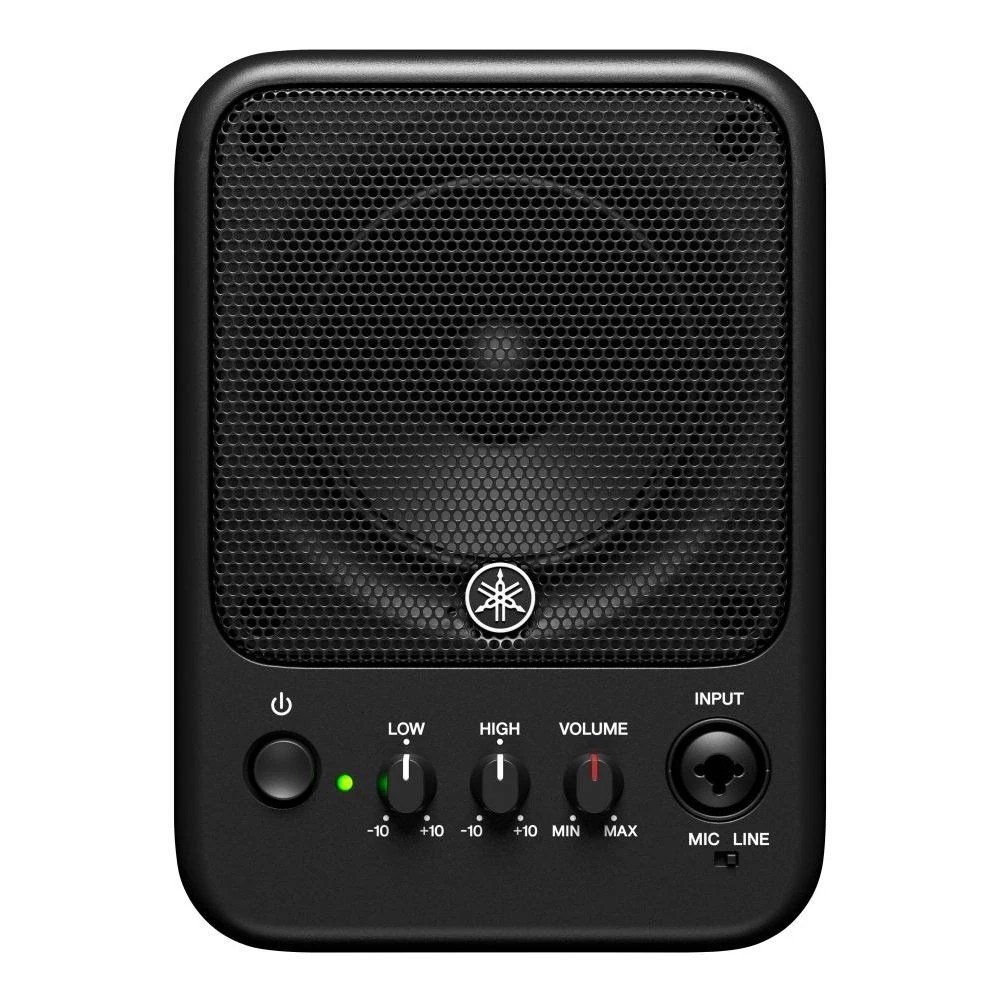

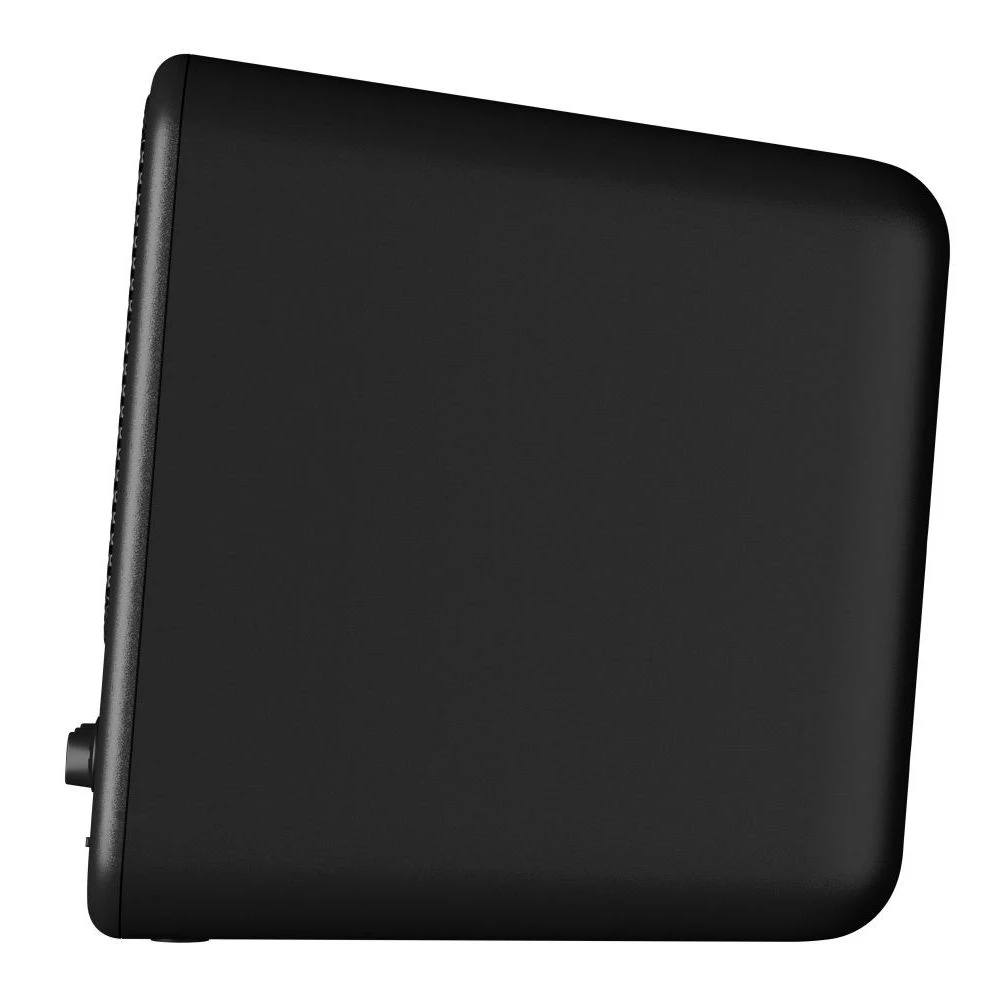

Yamaha MS101-4 Powered Desktop Monitor

Functional as either a standalone speaker or as part of a pair, the Yamaha MS101-4 is an innovatively powered desktop monitor that’s the perfect choice for artists, technicians and engineers looking for compact powerhouse performance straight out the box.

Key Features:

Onboard Preamp: Showcasing an intuitive preamp section that enables users to plug in a microphone or 1/4″ line-level connection into the speaker, the MS101-4 could be used as part of a mobile studio setup, whether as a reference in studios, a monitor for shows or simply a speaker for vocalists rehearsing at home.

EQ Controls: Adjust the Yamaha MS101-4 to your exact requirements with the three built-in EQ controls, making it effortless for users to get the perfect sonic quality they’re looking for every time.

Easily Mountable: Simple to attach to most microphone stands for convenient placement, the MS101-4 can also be wall-mounted with optional brackets.

Yamaha MS101-4 Powered Desktop Monitor Specifications:

• System Type: Full range Powered Speaker, Bass-reflex Type
• Frequency Range (-10dB): 77Hz–20kHz
• Measured Maximum SPL (Peak) / Pink noise @1m: 115 dB SPL
• LF
• Diameter: 4″ (10cm) Cone
• Voice coil: 1.0″
• Magnet: Ferrite
• Dimensions (WxHxD, without rubber feet): 142 x 196 x 187 mm
• Net Weight: 2.1 kg
• Screw threads (bottom): 2 x M5 depth 11mm pitch 60mm (for 2 x M5 x 6~10mm screws)
• 1 x 3/8″ depth 12mm (for 1 x 3/8″ x 9~11mm screw)
• Amplifier Type: Class-D
• Power Rating: *1
• Dynamic: 30W
• Continuous: 20W
• Cooling: Natural cooling (no fan)
• Connectors
• Input: INPUT (Front): Combo, LINE INPUT 1: Stereo mini, LINE INPUT 2: Phone(TRS)
• Output: Phone (TRS) x1
• Power: IEC AC inlet x1
• Input Impedance: INPUT (Front): LINE: 5.4 kO, MIC: 5.4 kO, LINE INPUT 1, 2: 10 kO
• Input Sensitivity (VOLUME: Maximum): INPUT (Front): LINE: -10 dBu, MIC: -40 dBu, LINE INPUT 1, 2: -10 dBu
• Nominal Input Level (VOLUME: Center): INPUT (Front): LINE: +5 dBu, MIC: -25 dBu, LINE INPUT 1, 2: +5 dBu
• Maximum Input Level INPUT (Front): LINE: +20 dBu, MIC: -10 dBu, LINE INPUT 1, 2: +20 dBu
• Controls: VOLUME x1, LOW CONTROL x1, HIGH CONTROL x1, POWER
• Indicators (LED): POWER (Green)
• Idle Power Consumption: 3 W
• 1/8 Power Consumption: 10 W
